Medium ExcavatorsNon-Current
Overview
Cat mid-size excavators range from 20 to 35 tons (20,000 to 35,000 kg). Their size makes them easy to transport to the jobsite, and their power, exclusive Cat Connect Technology, and Cat attachments help you complete larger projects at a lower cost.
Docs & Links
Products
320 GC - Tier 4 / Stage V
- Net Power - ISO 9249
- —146 hp109 kW
- Operating Weight
- —48500 lb22000 kg
- Maximum Digging Depth
- —22 ft6720 mm
320 - Tier 4 / Stage V
- Net Power - ISO 9249
- —172 hp128.5 kW
- Operating Weight
- —49800 lb22600 kg
- Maximum Digging Depth
- —22 ft6720 mm
323 - Tier 4 / Stage V
- Net Power - ISO 9249
- —172 hp128.5 kW
- Operating Weight
- —55100 lb25000 kg
- Maximum Digging Depth
- —22.1 ft6730 mm
325 - Tier 4 / Stage V
- Net Power - ISO 9249
- —172 hp128.5 kW
- Operating Weight
- —62800 lb28500 kg
- Maximum Digging Depth
- —22 ft6700 mm
326 - Tier 4 / Stage V
- Net Power - ISO 9249
- —201 hp149.8 kW
- Operating Weight
- —56400 lb25600 kg
- Maximum Digging Depth
- —22.4 ft6820 mm
330 GC - Tier 4 / Stage V
- Net Power - ISO 9249
- —201 hp150 kW
- Operating Weight
- —68100 lb30900 kg
- Maximum Digging Depth
- —23.8 ft7260 mm
330 - Tier 4 / Stage V
- Net Power - ISO 9249
- —273 hp203.7 kW
- Operating Weight
- —69200 lb31400 kg
- Maximum Digging Depth
- —23.9 ft7240 mm
335 - Tier 4 / Stage V
- Net Power - ISO 9249
- —273 hp203.7 kW
- Operating Weight
- —77000 lb34900 kg
- Maximum Digging Depth
- —22.9 ft6990 mm
335F L
- Net Power - ISO 9249
- —200 hp149 kW
- Operating Weight
- —83820 lb38020 kg
- Maximum Digging Depth
- —22.93 ft6990 mm
335F L
- Engine Model
- Cat® C7.1 ACERT™
- Net Flywheel Power
- —200 hp149 kW
- Operating Weight
- —84170 lb38180 kg
326F L (2017)
- Engine Power - ISO 9249
- —204 hp152 kW
- Operating Weight
- —66250 lb30050 kg
- Maximum Digging Depth
- —22.33 ft6810 mm
330F L (2017)
- Engine Model
- Cat C7.1 ACERT
- Net Flywheel Power
- —235 hp175 kW
- Operating Weight
- —69950 lb31730 kg
325F L
- Engine Power - ISO 9249
- —161 hp120 kW
- Operating Weight
- —57100 lb25900 kg
- Maximum Digging Depth
- —22 ft6710 mm

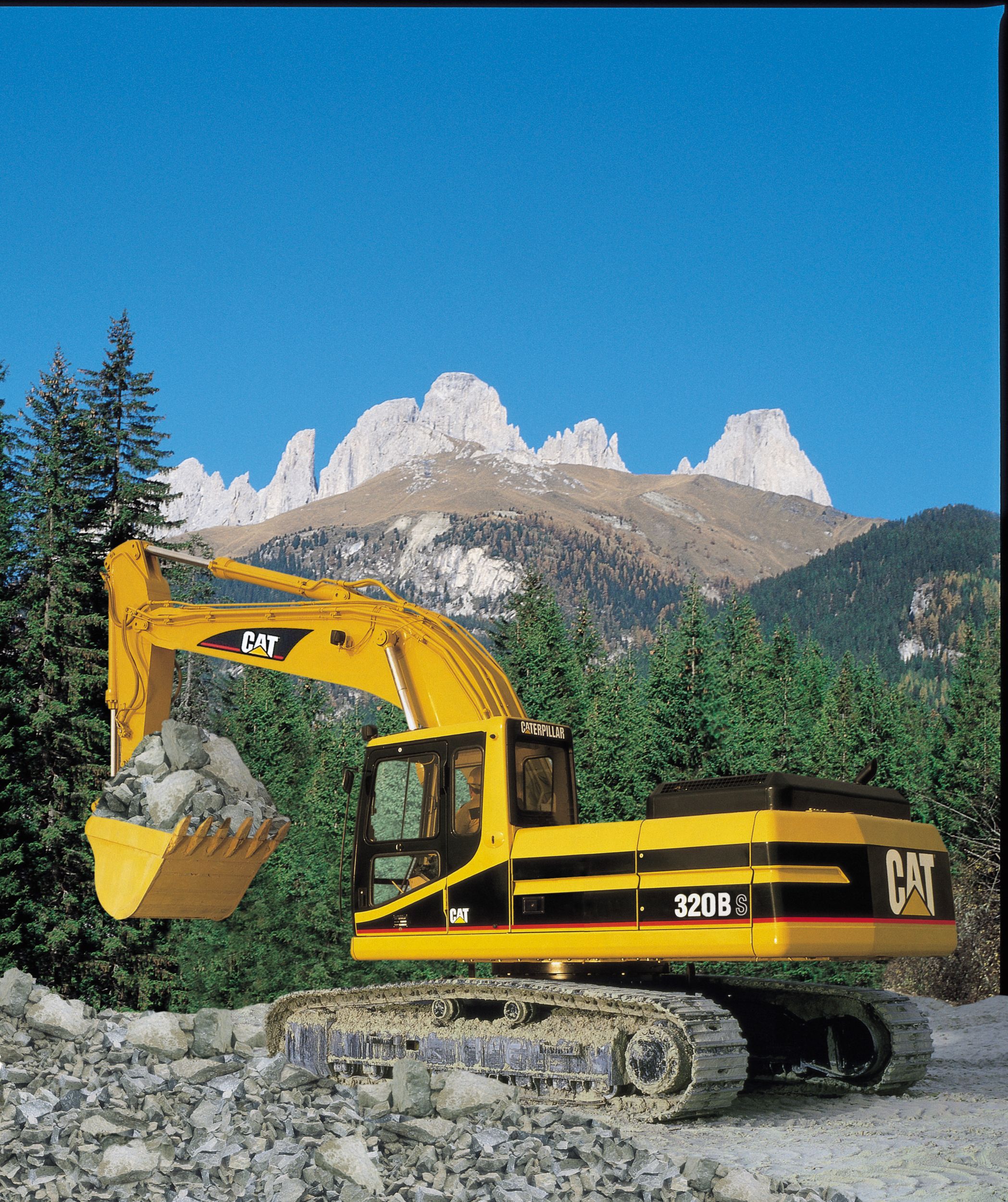

320B
- Engine Model
- Cat 3066 T Diesel Engine
- Net Flywheel Power
- —128 hp96 kW
- Operating Weight - Standard Undercarriage
- —42770 lb19400 kg
320B L
- Engine Model
- Cat 3066T
- Net Flywheel Power
- —128 hp96 kW
- Operating Weight - Standard Undercarriage
- —45459.26 lb20620 kg
320C L Utility
- Engine Model
- Cat® 3066T
- Net Flywheel Power
- —138 hp103 kW
- Operating Weight
- —50700 lb23000 kg
320D L
- Engine Model
- Cat® C6.4 ACERT™
- Net Flywheel Power
- —148 hp110 kW
- Operating Weight
- —44820 lb20330 kg
320D LRR
- Engine Model
- Cat® C6.4 ACERT™
- Net Flywheel Power
- —148 hp110 kW
- Operating Weight
- —52249 lb23700 kg
320D/320D L
- Engine Model
- Cat® 3066TA
- Net Flywheel Power
- —138 hp103 kW
- Operating Weight
- —47400 lb21500 kg
320E L
- Engine Model
- Cat® C6.6 ACERT™
- Net Flywheel Power
- —153 hp114 kW
- Operating Weight
- —54450 lb24730 kg
320F L (2017)
- Engine Model
- C4.4 ACERT
- Net Flywheel Power
- —161 hp120 kW
- Operating Weight
- —49200 lb22300 kg
323F L (2017)
- Engine Model
- Cat C7.1 ACERT
- Net Flywheel Power
- —161 hp120 kW
- Operating Weight
- —50900 lb23100 kg
320F L
- Engine Model
- Cat® C4.4 ACERT™
- Net Flywheel Power
- —161 hp120 kW
- Operating Weight
- —49200 lb22300 kg
320E LRR
- Engine Model
- Cat® C6.6 ACERT™
- Net Flywheel Power
- —153 hp114 kW
- Operating Weight
- —56440 lb25600 kg

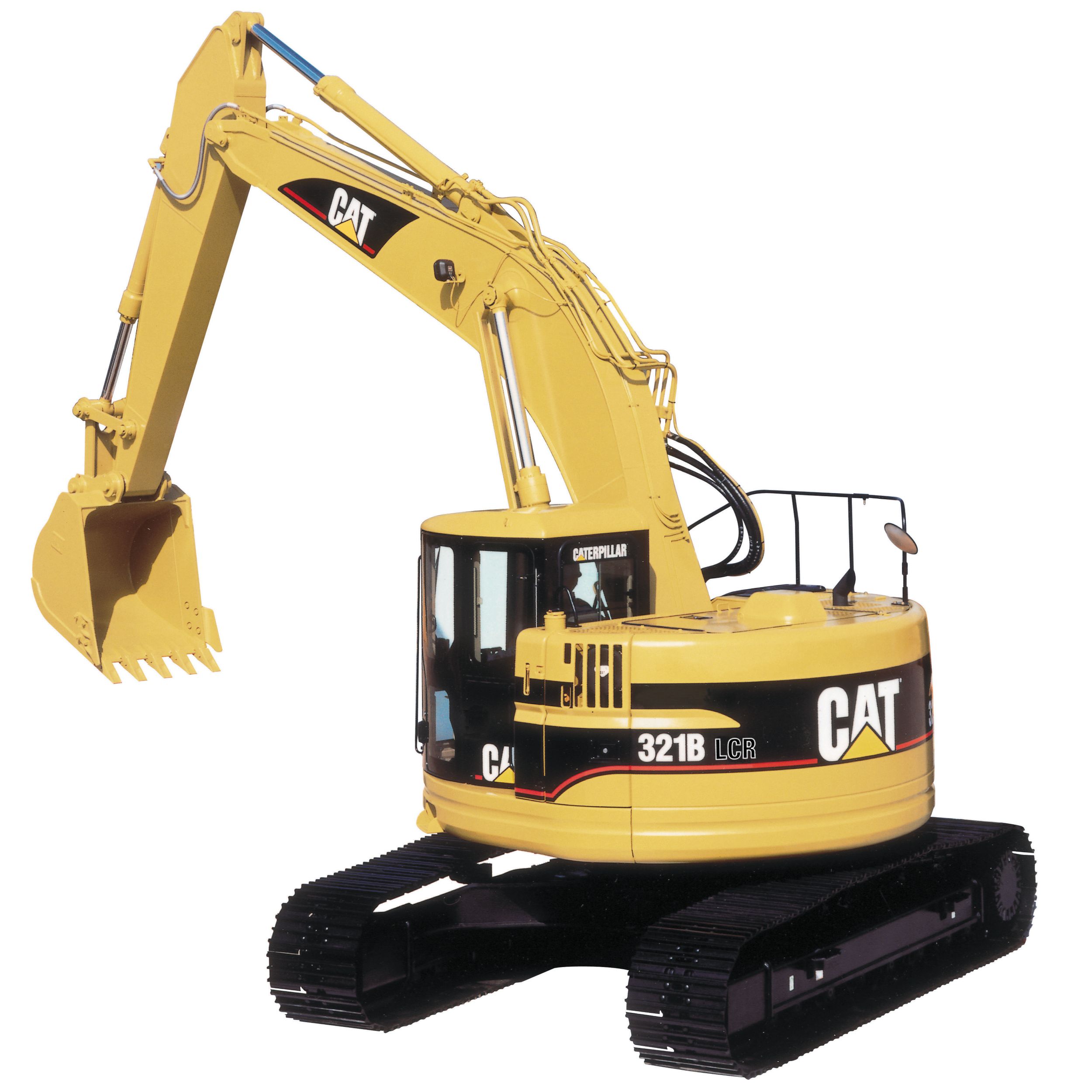

321B LCR
- Engine Model
- Cat 3066T
- Net Flywheel Power
- —129 hp96 kW
- Operating Weight - Standard Undercarriage
- —50926.72 lb23100 kg
321C LCR
- Engine Model
- Cat® 3066T ATAAC
- Net Flywheel Power
- —137 hp102 kW
- Operating Weight
- —51864 lb23525 kg
321D LCR
- Engine Model
- Cat® C6.4 ACERT™
- Net Flywheel Power
- —148 hp110 kW
- Operating Weight
- —51875 lb23530 kg

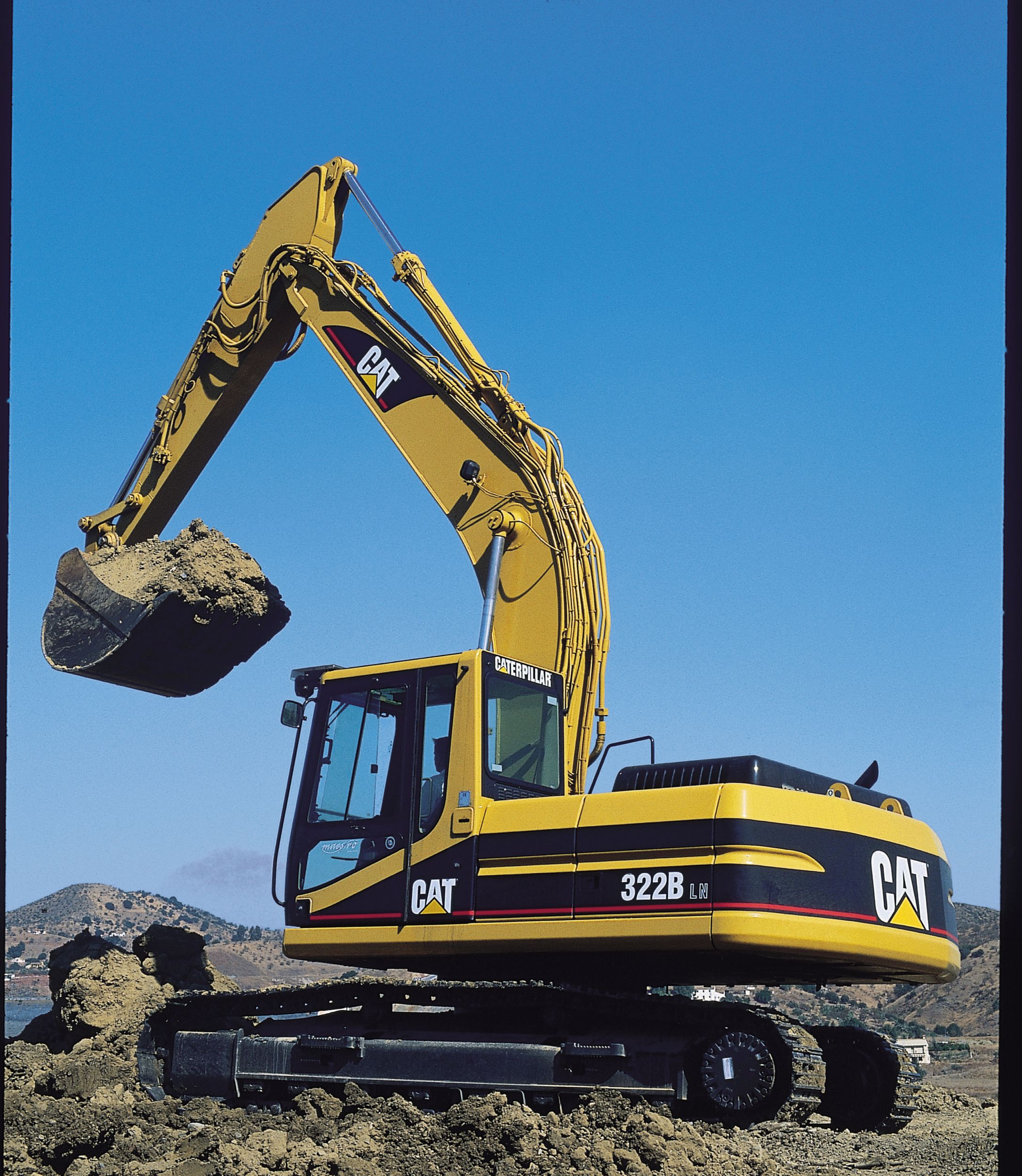

322B L
- Engine Model
- Cat® 3116TA
- Net Flywheel Power
- —153 hp114 kW
- Operating Weight - Standard Undercarriage
- —50160 lb22750 kg
322C L
- Engine Model
- Cat 3126B ATAAC HEUI Fuel System
- Net Flywheel Power
- —168 hp125 kW
- Operating Weight - Standard Undercarriage
- —53351.8 lb24200 kg
323D L
- Engine Model
- Cat® C6.4 with ACERT™ Technology
- Net Flywheel Power
- —150 hp110 kW
- Operating Weight
- —49383 lb22400 kg
323D L
- Engine Model
- Cat® C6.4 ACERT™
- Net Flywheel Power
- —150 hp110 kW
- Operating Weight
- —50706 lb23000 kg
323F L
- Engine Model
- Cat® C7.1 ACERT™
- Net Flywheel Power
- —161 hp120 kW
- Operating Weight
- —50900 lb23100 kg
324E
- Engine Model
- Cat® C7.1 ACERT™
- Net Flywheel Power
- —190 hp142 kW
- Operating Weight
- —64990 lb29479 kg

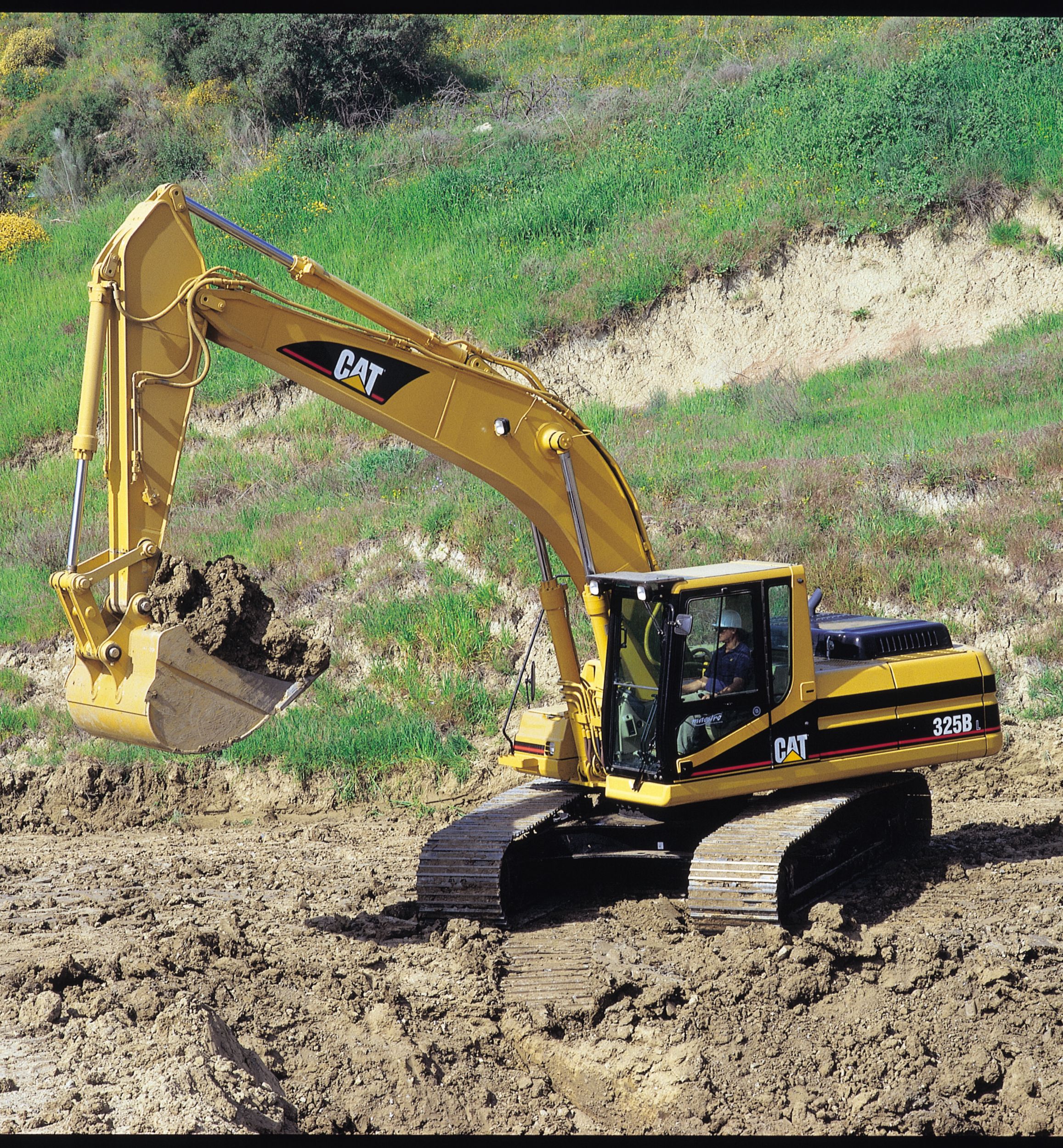

325B
- Engine Model
- Cat® 3116TA
- Net Flywheel Power
- —168 hp125 kW
- Operating Weight - Standard Undercarriage
- —56240 lb25510 kg
325B L
- Engine Model
- Cat® 3116TA
- Net Flywheel Power
- —168 hp125 kW
- Operating Weight - Standard Undercarriage
- —56240 lb25510 kg

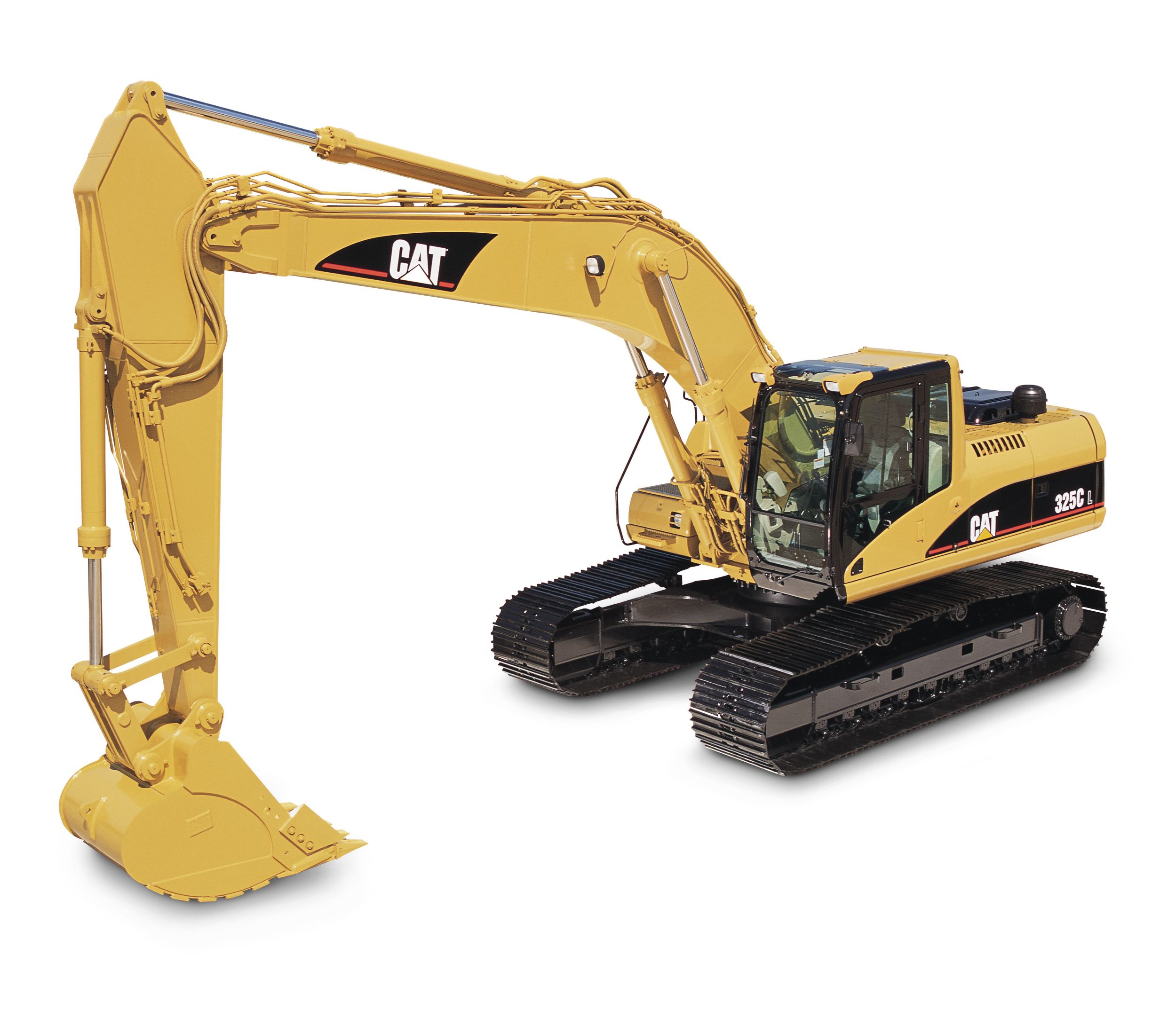

325C L
- Engine Model
- 3126B ATAAC HEUI™ Fuel System
- Net Flywheel Power
- —188 hp140 kW
- Operating Weight - Standard Undercarriage
- —63052.13 lb28600 kg
325C LCR
- Engine Model
- 3126B ATTAC HEUI™
- Net Flywheel Power
- —188 hp140 kW
- Operating Weight - Standard Undercarriage
- —78044 lb35400 kg
325D L
- Engine Model
- Cat® C7 ACERT™
- Net Flywheel Power
- —204 hp152 kW
- Operating Weight
- —64460 lb29240 kg
325F L
- Engine Model
- Cat® C4.4 ACERT
- Net Flywheel Power
- —161 hp120 kW
- Operating Weight
- —57115 lb25907 kg
326F L
- Engine Model
- Cat® C7.1 ACERT™
- Net Flywheel Power
- —203 hp149 kW
- Operating Weight
- —64831 lb29407 kg
328D LCR
- Engine Model
- Cat® C7 ACERT™
- Net Flywheel Power
- —204 hp152 kW
- Operating Weight
- —87850 lb39845 kg
329E
- Engine Model
- Cat® C7.1 ACERT™
- Net Flywheel Power
- —228 hp170 kW
- Operating Weight
- —68958 lb31279 kg
329F L
- Engine Model
- Cat® C7.1 ACERT™
- Net Flywheel Power
- —239 hp175 kW
- Operating Weight
- —68209 lb30939 kg
330B
- Engine Model
- Cat® 3306TA
- Net Flywheel Power
- —222 hp165 kW
- Operating Weight - Standard Undercarriage
- —71628 lb32490 kg
330B L
- Engine Model
- Cat 3306TA
- Net Flywheel Power
- —222 hp165 kW
- Operating Weight - Standard Undercarriage
- —76412.13 lb34660 kg
330B L UHD
- Engine Model
- Cat® 3306 TA diesel engine
- Net Flywheel Power
- —222 hp165 kW
- Operating Weight - Standard Undercarriage
- —87252 lb39570 kg

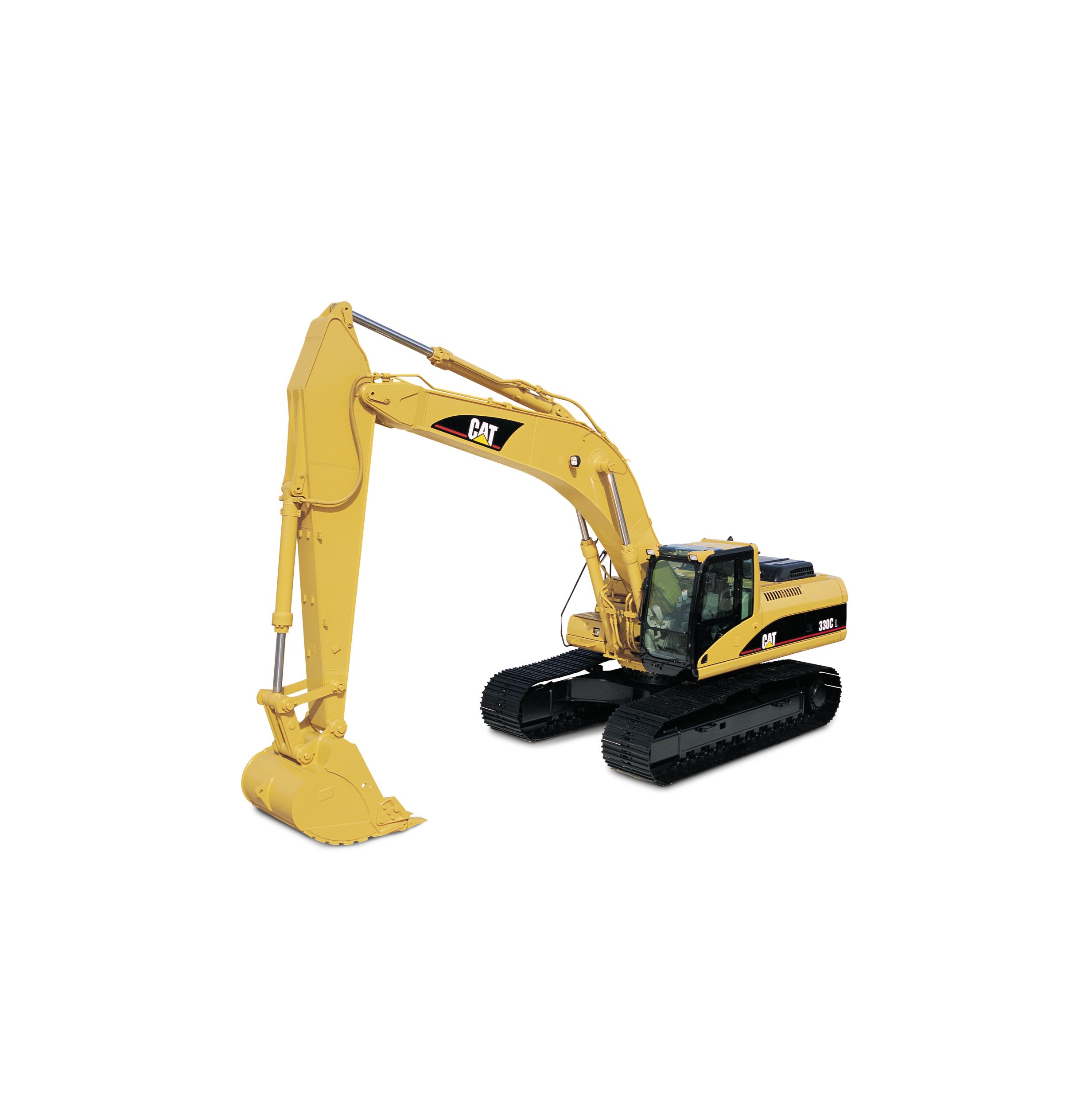

330C L
- Engine Model
- CAT C9
- Net Flywheel Power
- —247 hp184 kW
- Operating Weight - Standard Undercarriage
- —77382.16 lb35100 kg
330D L
- Engine Model
- Cat® C9 ACERT™
- Net Flywheel Power
- —268 hp200 kW
- Operating Weight
- —79700 lb36151 kg
330F
- Engine Model
- Cat® C7.1 ACERT™
- Net Flywheel Power
- —239 hp175 kW
- Operating Weight
- —69902 lb31707 kg
335F L
- Engine Model
- Cat® C7.1 ACERT™
- Net Flywheel Power
- —200 hp149 kW
- Operating Weight
- —81315 lb36884 kg
| Model | Net Power - ISO 9249 | Operating Weight | Maximum Digging Depth |
|---|---|---|---|
| 320 GC - Tier 4 / Stage V | —146 hp109 kW | —48500 lb22000 kg | —22 ft6720 mm |
| 320 - Tier 4 / Stage V | —172 hp128.5 kW | —49800 lb22600 kg | —22 ft6720 mm |
| 323 - Tier 4 / Stage V | —172 hp128.5 kW | —55100 lb25000 kg | —22.1 ft6730 mm |
| 325 - Tier 4 / Stage V | —172 hp128.5 kW | —62800 lb28500 kg | —22 ft6700 mm |
| 326 - Tier 4 / Stage V | —201 hp149.8 kW | —56400 lb25600 kg | —22.4 ft6820 mm |
| 330 GC - Tier 4 / Stage V | —201 hp150 kW | —68100 lb30900 kg | —23.8 ft7260 mm |
| 330 - Tier 4 / Stage V | —273 hp203.7 kW | —69200 lb31400 kg | —23.9 ft7240 mm |
| 335 - Tier 4 / Stage V | —273 hp203.7 kW | —77000 lb34900 kg | —22.9 ft6990 mm |
| 335F L | —200 hp149 kW | —83820 lb38020 kg | —22.93 ft6990 mm |
| 330 GC | — | — | —23.8 ft7260 mm |
| 335F L | — | —84170 lb38180 kg | — |
| 326F L (2017) | — | —66250 lb30050 kg | —22.33 ft6810 mm |
| 330F L (2017) | — | —69950 lb31730 kg | — |
| 325F L | — | —57100 lb25900 kg | —22 ft6710 mm |
| 320B | —128 hp96 kW | — | — |
| 320B L | —128 hp96 kW | — | — |
| 320B LN | — | — | — |
| 320B ME | — | — | — |
| 320B S | — | — | — |
| 320B S ME | — | — | — |
| 320B S VA | — | — | — |

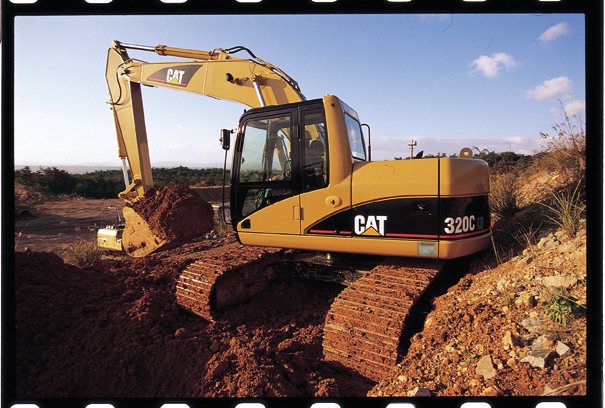

| 320C Utility | — | — | — |
| 320C L Utility | —138 hp103 kW | —50700 lb23000 kg | — |
| 320D L | —148 hp110 kW | —44820 lb20330 kg | — |
| 320D LRR | —148 hp110 kW | —52249 lb23700 kg | — |
| 320D/320D L | —138 hp103 kW | —47400 lb21500 kg | — |
| 320E L | — | —54450 lb24730 kg | — |
| 320F L (2017) | — | —49200 lb22300 kg | — |
| 323F L (2017) | — | —50900 lb23100 kg | — |
| 320F L | — | —49200 lb22300 kg | — |
| 320E LRR | — | —56440 lb25600 kg | — |
| 321B LCR | —129 hp96 kW | — | — |
| 321C LCR | —138 hp103 kW | —51864 lb23525 kg | — |
| 321D LCR | —148 hp110 kW | —51875 lb23530 kg | — |

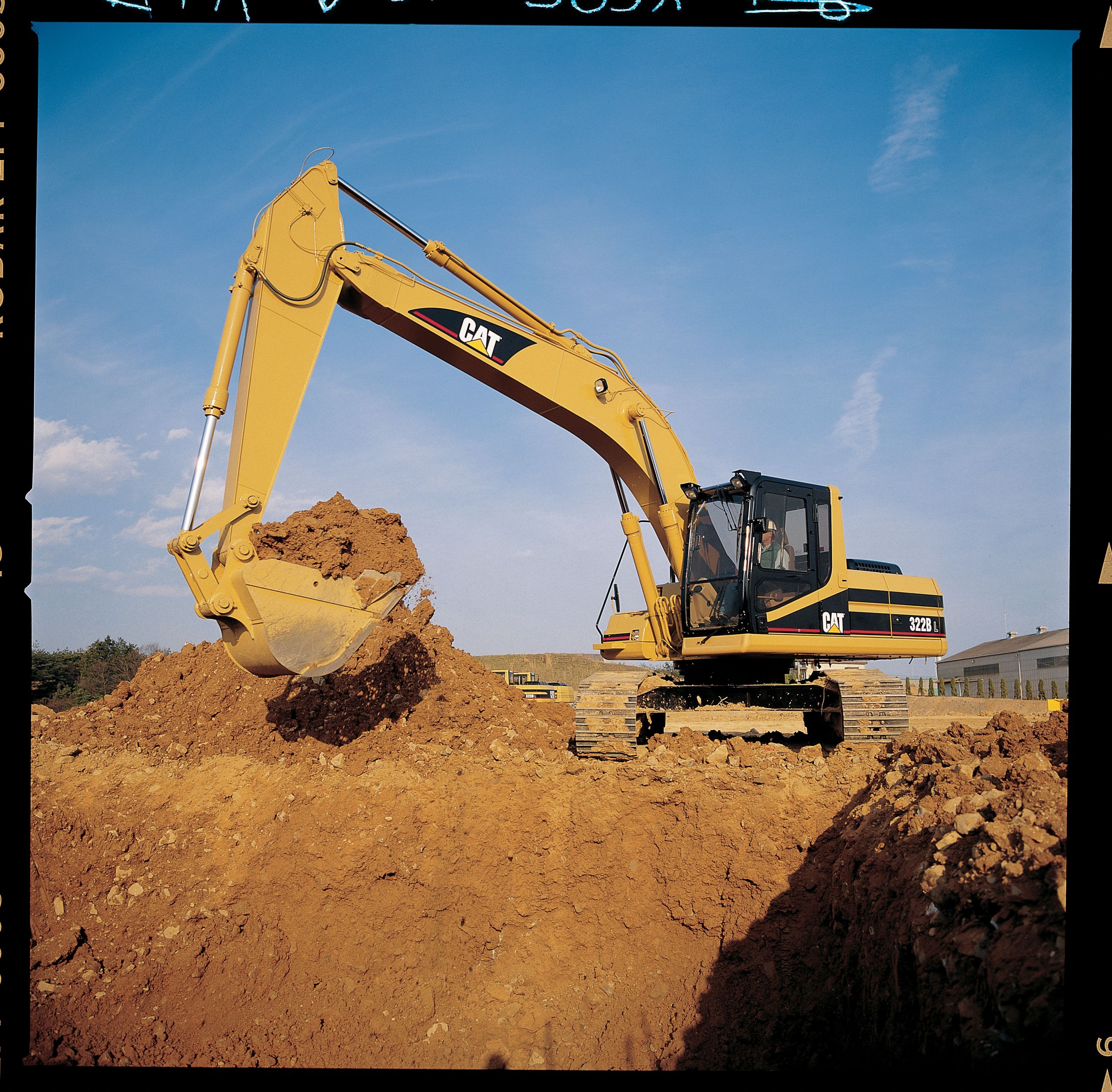

| 322B | — | — | — |
| 322B L | —153 hp114 kW | — | — |
| 322B L | — | — | — |
| 322B L ME | — | — | — |
| 322B LN | — | — | — |
| 322B LN ME | — | — | — |
| 322B LN VA | — | — | — |

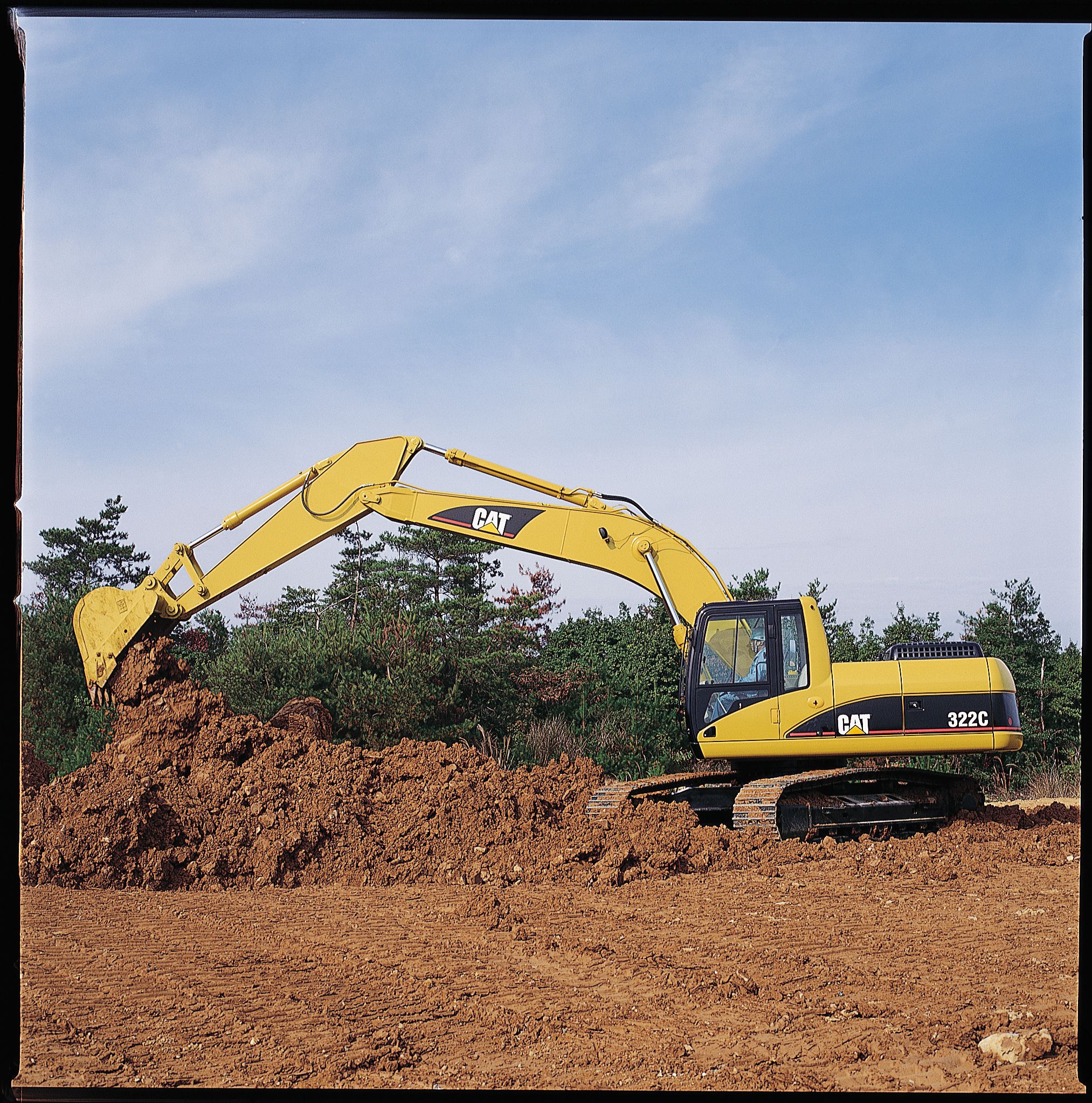

| 322C | — | — | — |
| 322C L | —168 hp125 kW | — | — |
| 323D L | —150 hp110 kW | —49383 lb22400 kg | — |
| 323D L | —150 hp110 kW | —50706 lb23000 kg | — |
| 323F L | — | —50900 lb23100 kg | — |
| 324E | — | —64990 lb29479 kg | — |
| 325B | —168 hp125 kW | — | — |
| 325B L | —168 hp125 kW | — | — |
| 325B L VA | — | — | — |
| 325B LN | — | — | — |
| 325B LN ME | — | — | — |
| 325C L | —188 hp140 kW | — | — |
| 325C LCR | —188 hp140 kW | — | — |
| 325D L | —204 hp152 kW | —64460 lb29240 kg | — |
| 325F L | — | —57115 lb25907 kg | — |
| 326F L | — | —64831 lb29407 kg | — |
| 328D LCR | —204 hp152 kW | —87850 lb39845 kg | — |
| 329E | — | —68958 lb31279 kg | — |
| 329F L | — | —68209 lb30939 kg | — |
| 330B | —221 hp165 kW | — | — |
| 330B L | —222 hp165 kW | — | — |
| 330B L | — | — | — |
| 330B L UHD | —222 hp165 kW | — | — |
| 330C L | —247 hp184 kW | — | — |
| 330D L | —268 hp200 kW | —79700 lb36151 kg | — |
| 330F | — | —69902 lb31707 kg | — |
| 335F L | — | —81315 lb36884 kg | — |
