Tandem Vibratory RollersNon-Current
Overview
Get it dense and keep it smooth. Cat Tandem Vibratory Rollers do that and more. Caterpillar offers a vibratory system for every application. Most models have high frequency combined with low amplitude that match high paving speed on thin lifts as well as low frequency with high amplitude that match low paving speed on thick lifts of stiff material. As stand-alone units or as complements to high production tandem rollers, Cat Utility Rollers set the standards for versatility and reliability. A wide range of drum widths lets you precisely match the machine to the job requirements—whether it's a narrow shoulder, a patching project, a parking lot or a bicycle path. Vibratory systems are characterized by high frequency for fast working speed and high compaction energy for getting density in the fewest passes.
Docs & Links
Products
CB7
- Standard Operating Weight with ROPS
- —19015 lb8625 kg
- Standard Compaction Width
- —59 in1500 mm
- Static Linear Load
- —161 lb/in28.6 kg/cm
CB8
- Standard Operating Weight with ROPS
- —20187 lb9155 kg
- Standard Compaction Width
- —67 in1700 mm
- Static Linear Load
- —161 lb/in28.6 kg/cm
CB10
- Standard Operating Weight with ROPS
- —21638 lb9815 kg
- Standard Compaction Width
- —67 in1700 mm
- Maximum Compaction Width
- —73 in1870 mm
CB22B
- Operating Weight
- —5629 lb2553 kg
- Standard Compaction Width
- —39 in1000 mm²
- Gross Power
- —36.2 hp27 kW
CB24B
- Operating Weight
- —6003 lb2723 kg
- Standard Compaction Width
- —47 in1200 mm²
- Gross Power
- —36.2 hp27 kW
CB24B XT
- Operating Weight
- —6885 lb3123 kg
- Standard Compaction Width
- —47 in1200 mm²
- Gross Power
- —36.2 hp27 kW
CB32B
- Operating Weight
- —6190 lb2808 kg
- Standard Compaction Width
- —51 in1300 mm²
- Gross Power
- —36.2 hp27 kW
CC24B
- Operating Weight
- —5380 lb2441 kg
- Standard Compaction Width
- —47 in1200 mm²
- Gross Power
- —36.2 hp27 kW
CCS7 Combination Asphalt Compactor
- Operating Weight - With ROPS/FOPS Canopy
- —16320 lb7403 kg
- Standard Compaction Width
- —67 in1700 mm
- Gross Power
- —100.6 hp75 kW
CCS9 Combination Asphalt Compactor
- Operating Weight - With ROPS/FOPS
- —19842 lb9000 kg
- Standard Compaction Width
- —84 in2134 mm
- Gross Power
- —131 hp98 kW
CD10 Solid Drum
- Operating Weight
- —19908 lb9030 kg
- Standard Compaction Width
- —67 in1700 mm
- Gross Power
- —101.9 hp75 kW
CD10 Split Drum
- Operating Weight
- —22311 lb10120 kg
- Standard Compaction Width
- —67 in1700 mm
- Gross Power
- —101.9 hp75 kW
CD8 - Solid Drum
- Operating Weight
- —16314 lb7400 kg
- Standard Compaction Width
- —59 in1500 mm
- Gross Power
- —100 hp75 kW
CD8 - Split Drum
- Operating Weight
- —18497 lb8390 kg
- Standard Compaction Width
- —59 in1500 mm
- Gross Power
- —100 hp75 kW
CB14B - 900 mm (35") Drums
- Operating Weight
- —3274 lb1485 kg
- Standard Compaction Width
- —35 in900 mm
- Gross Power
- —22.5 hp16.8 kW
CB14B - 1000 mm (39") Drums
- Operating Weight
- —3351 lb1520 kg
- Standard Compaction Width
- —39 in1000 mm
- Gross Power
- —22.5 hp16.8 kW
CB7 - Split Drum
- Operating Weight
- —19908 lb9030 kg
- Standard Compaction Width
- —59 in1500 mm
- Gross Power
- —100 hp75 kW
CB44B - Solid Drum
- Operating Weight
- —18056 lb8190 kg
- Standard Compaction Width
- —59 in1500 mm
- Gross Power
- —102 hp75 kW
CB44B - Split Drum
- Operating Weight
- —20569 lb9330 kg
- Standard Compaction Width
- —59 in1500 mm
- Gross Power
- —102 hp75 kW
CB10 - Split Drum
- Operating Weight
- —22950 lb10410 kg
- Standard Compaction Width
- —67 in1700 mm
- Gross Power
- —131 hp98 kW
CB54B - Solid Drum
- Operating Weight
- —21407 lb9710 kg
- Standard Compaction Width
- —67 in1700 mm
- Gross Power
- —133.2 hp98 kW
CB54B - Split Drum
- Operating Weight
- —23525 lb10670 kg
- Standard Compaction Width
- —67 in1700 mm
- Gross Power
- —133.2 hp98 kW
CB54
- Operating Weight
- —23818 lb10804 kg
- Standard Compaction Width
- —67 in1700 mm
- Gross Power
- —137 hp102 kW
CB54 XW
- Operating Weight
- —26230 lb11898 kg
- Standard Compaction Width
- —79 in2000 mm
- Gross Power
- —137 hp102 kW
CB66B
- Standard - Operating Weight
- —29057 lb13180 kg
- Standard Compaction Width
- —84 in2130 mm
- Gross Power
- —142 hp106 kW
CB64
- Operating Weight
- —28616 lb12980 kg
- Standard Compaction Width
- —84 in2130 mm
- Gross Power
- —137 hp102 kW
CB564D
- Gross Power
- —130 hp97 kW
- Net Power - EEC 80/1260
- —125 hp93 kW
- Net Power - ISO 9249
- —125 hp93 kW
CB68B
- Standard - Operating Weight
- —31162 lb14180 kg
- Standard Compaction Width
- —84 in2130 mm
- Gross Power
- —142 hp106 kW
CD44B - Solid Drum
- Operating Weight
- —16314 lb7400 kg
- Standard Compaction Width
- —59 in1500 mm
- Gross Power
- —102 hp75 kW
CD44B - Split Drum
- Operating Weight
- —18497 lb8390 kg
- Standard Compaction Width
- —59 in1500 mm
- Gross Power
- —102 hp75 kW
CD54B - Solid Drum
- Operating Weight
- —19908 lb9030 kg
- Standard Compaction Width
- —67 in1700 mm
- Gross Power
- —102 hp75 kW
CD54B - Split Drum
- Operating Weight
- —22311 lb10120 kg
- Standard Compaction Width
- —67 in1700 mm
- Gross Power
- —102 hp75 kW
CB14
- Operating Weight
- —3571 lb1620 kg
- Standard Compaction Width
- —31 in800 mm
- Gross Power
- —22 hp16.1 kW
CB14 Full Flush
- Operating Weight
- —3527 lb1600 kg
- Standard Compaction Width
- —35 in900 mm
- Gross Power
- —22 hp16.1 kW
CB14 XW - 900 mm
- Operating Weight
- —3770 lb1710 kg
- Standard Compaction Width
- —35 in900 mm
- Gross Power
- —22 hp16.1 kW
CB14 XW - 1000 mm
- Operating Weight
- —4057 lb1840 kg
- Standard Compaction Width
- —39 in1000 mm
- Gross Power
- —22 hp16.1 kW
CC24
- Operating Weight
- —5291 lb2400 kg
- Standard Compaction Width
- —47 in1200 mm
- Gross Power
- —33 hp24.6 kW
CB-214E
- Gross Power
- —32.7 hp24.4 kW
- Net Power - EEC 80/1260
- —30.3 hp22.6 kW
- Net Power - ISO 9249
- —30.3 hp22.6 kW
CB-224E
- Gross Power
- —32.7 kW24.4 kW
- Net Power - EEC 80/1260
- —30.3 kW22.6 kW
- Net Power - ISO 9249
- —30.3 kW22.6 kW
CB-334E
- Gross Power
- —46 kW34.1 kW
- Net Power - EEC 80/1260
- —44.25 kW33 kW
- Net Power - ISO 9249
- —44 kW33 kW
CB434D
- Operating Weight
- —16270 lb7380 kg
- Standard Compaction Width
- —59 in1500 mm
- Gross Power
- —83 hp62 kW
CB434D XW
- Operating Weight
- —16710 lb7580 kg
- Standard Compaction Width
- —67 in1700 mm
- Gross Power
- —83 hp62 kW
CB-534D XW
- Gross Power
- —130 hp97 kW
- Net Power - EEC 80/1260
- —125 hp93 kW
- Net Power - ISO 9249
- —125 hp93 kW

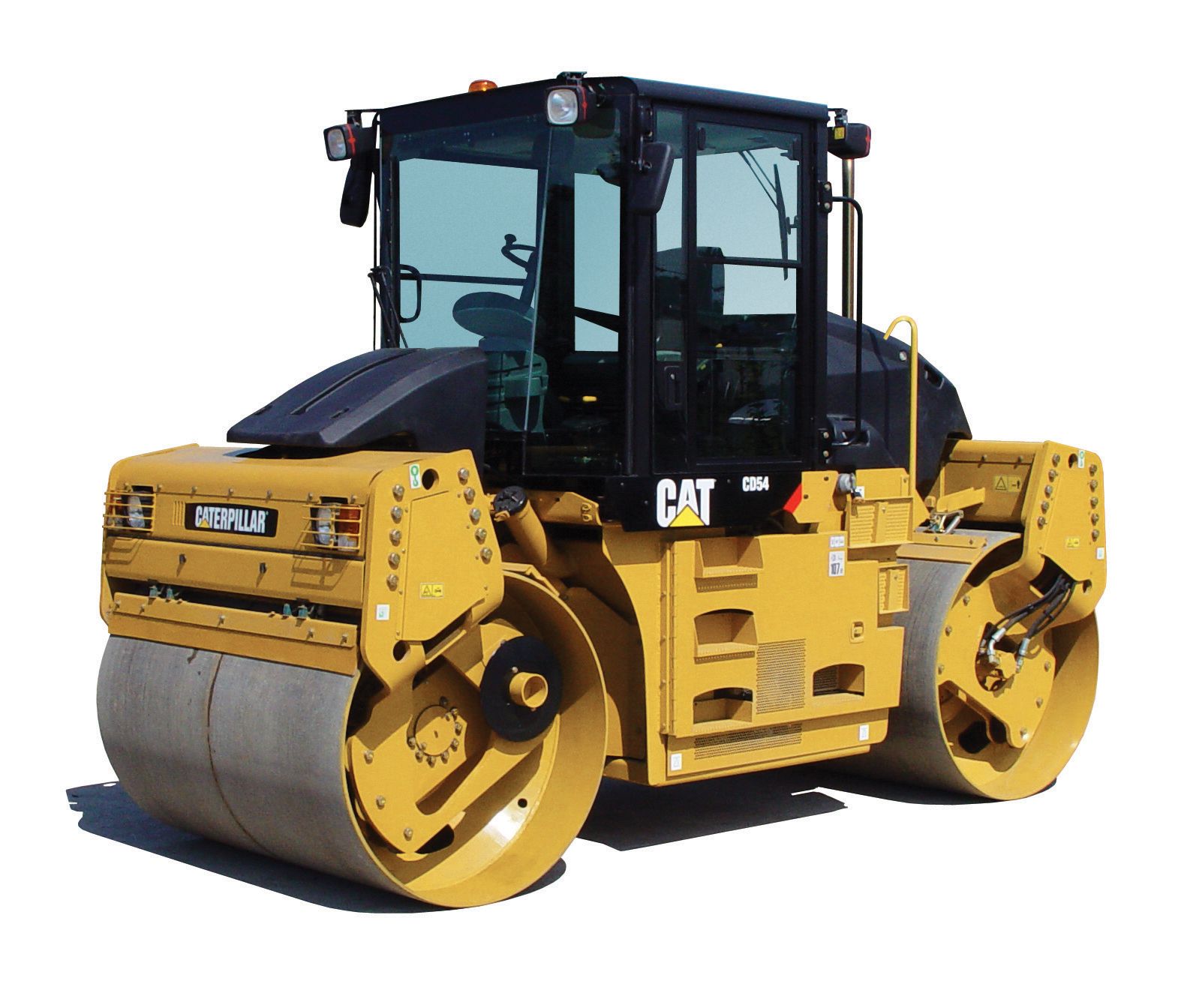

CD54
- Operating Weight
- —20944 lb9500 kg
- Standard Compaction Width
- —67 in1700 mm²
- Gross Power
- —99.5 hp74.5 kW
| Model | Standard Operating Weight with ROPS | Standard Compaction Width | Static Linear Load |
|---|---|---|---|
| CB7 | —19015 lb8625 kg | —59 in1500 mm | —161 lb/in28.6 kg/cm |
| CB8 | —20187 lb9155 kg | —67 in1700 mm | —161 lb/in28.6 kg/cm |
| CB10 | —21638 lb9815 kg | —67 in1700 mm | —169 lb/in30 kg/cm |
| CB22B | — | —39 in1000 mm² | —72 lb/in12.8 kg/cm |
| CB24B | — | —47 in1200 mm² | —63 lb/in11.3 kg/cm |
| CB24B XT | — | —47 in1200 mm² | —73 lb/in13 kg/cm |
| CB32B | — | —51 in1300 mm² | —69 lb/in12.3 kg/cm |
| CC24B | — | —47 in1200 mm² | —57 lb/in10.2 kg/cm |
| CCS7 Combination Asphalt Compactor | — | —67 in1700 mm | — |
| CCS9 Combination Asphalt Compactor | — | —84 in2134 mm | — |
| CD10 Solid Drum | —19335 lb8770 kg | —67 in1700 mm | —148 lb/in26.5 kg/cm |
| CD10 Split Drum | —21738 lb9860 kg | —67 in1700 mm | —165 lb/in29.5 kg/cm |
| CD8 - Solid Drum | — | —59 in1500 mm | —146 lb/in23.9 kg/cm |
| CD8 - Split Drum | — | —59 in1500 mm | —146 lb/in23.9 kg/cm |
| CB14B - 900 mm (35") Drums | — | —35 in900 mm | —46.9 lb/in8.2 kg/cm |
| CB14B - 1000 mm (39") Drums | — | —39 in1000 mm | —42.9 lb/in7.6 kg/cm |
| CB7 - Split Drum | —19908 lb9030 kg | —59 in1500 mm | —174 lb/in31.1 kg/cm |
| CB44B - Solid Drum | — | —59 in1500 mm | —155 lb/in27.6 kg/cm |
| CB44B - Split Drum | — | —59 in1500 mm | —174 lb/in31.1 kg/cm |
| CB10 - Split Drum | —22950 lb10410 kg | —67 in1700 mm | —176 lb/in31.5 kg/cm |
| CB54B - Solid Drum | — | —67 in1700 mm | —159 lb/in28.5 kg/cm |
| CB54B - Split Drum | — | —67 in1700 mm | —176 lb/in31.2 kg/cm |
| CB54 | — | —67 in1700 mm | —178 lb/in31.8 kg/cm |
| CB54 XW | — | —79 in2000 mm | —166 lb/in29.7 kg/cm |
| CB66B | — | —84 in2130 mm | — |
| CB64 | — | —84 in2130 mm | —170 lb/in30.5 kg/cm |
| CB564D | — | — | — |
| CB68B | — | —84 in2130 mm | — |
| CD44B - Solid Drum | — | —59 in1500 mm | —139 lb/in24.8 kg/cm |
| CD44B - Split Drum | — | —59 in1500 mm | —156 lb/in27.8 kg/cm |
| CD54B - Solid Drum | — | —67 in1700 mm | —149 lb/in26.6 kg/cm |
| CD54B - Split Drum | — | —67 in1700 mm | —165 lb/in30 kg/cm |
| CB14 | — | —31 in800 mm | —56.7 lb10.1 kg |
| CB14 Full Flush | — | —35 in900 mm | —56 lb9.4 kg |
| CB14 XW - 900 mm | — | —35 in900 mm | —52.1 lb9.5 kg |
| CB14 XW - 1000 mm | — | —39 in1000 mm | —52 lb9.2 kg |
| CC24 | — | —47 in1200 mm | —56 lb10 kg |
| CB-214E | — | — | — |
| CB-224E | — | — | — |
| CB-334E | — | — | — |
| CB434D | — | —59 in1500 mm | —138 lb/in25 kg/cm |
| CB434D XW | — | —67 in1700 mm | —127 lb/in23 kg/cm |
| CB-534D XW | — | — | — |
| CD54 | — | —67 in1700 mm² | —153 lb/in28 kg/cm |
