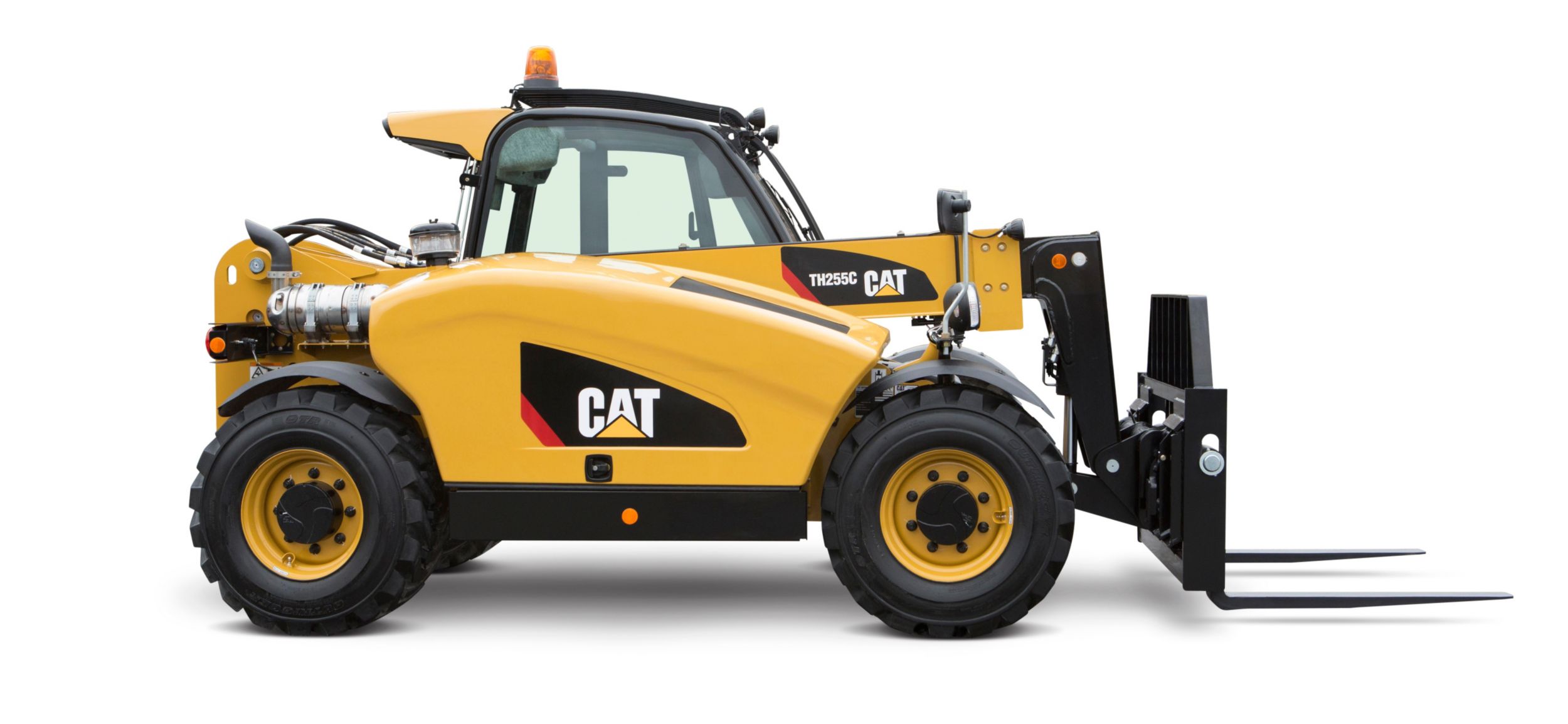

TH255C^Non-Current

When space is limited, the TH255C is your answer. Measuring just 1.8 m wide and 1.9 m tall. It will get under those low overhead doors or work between floors. It may be small but the TH255C packs a heavy punch when it comes to those heavy handling jobs around the job site lifting 2500 kg to 5.6 m. The hydrostatic transmission is perfect for precision maneuvering around obstructions and the 55 kW (74 hp) engine gives you plenty of power for fast loading. We fit a skid steer loader style quick coupler providing you with the opportunity to fit a wide range of work tools, making this a very versatile handler.

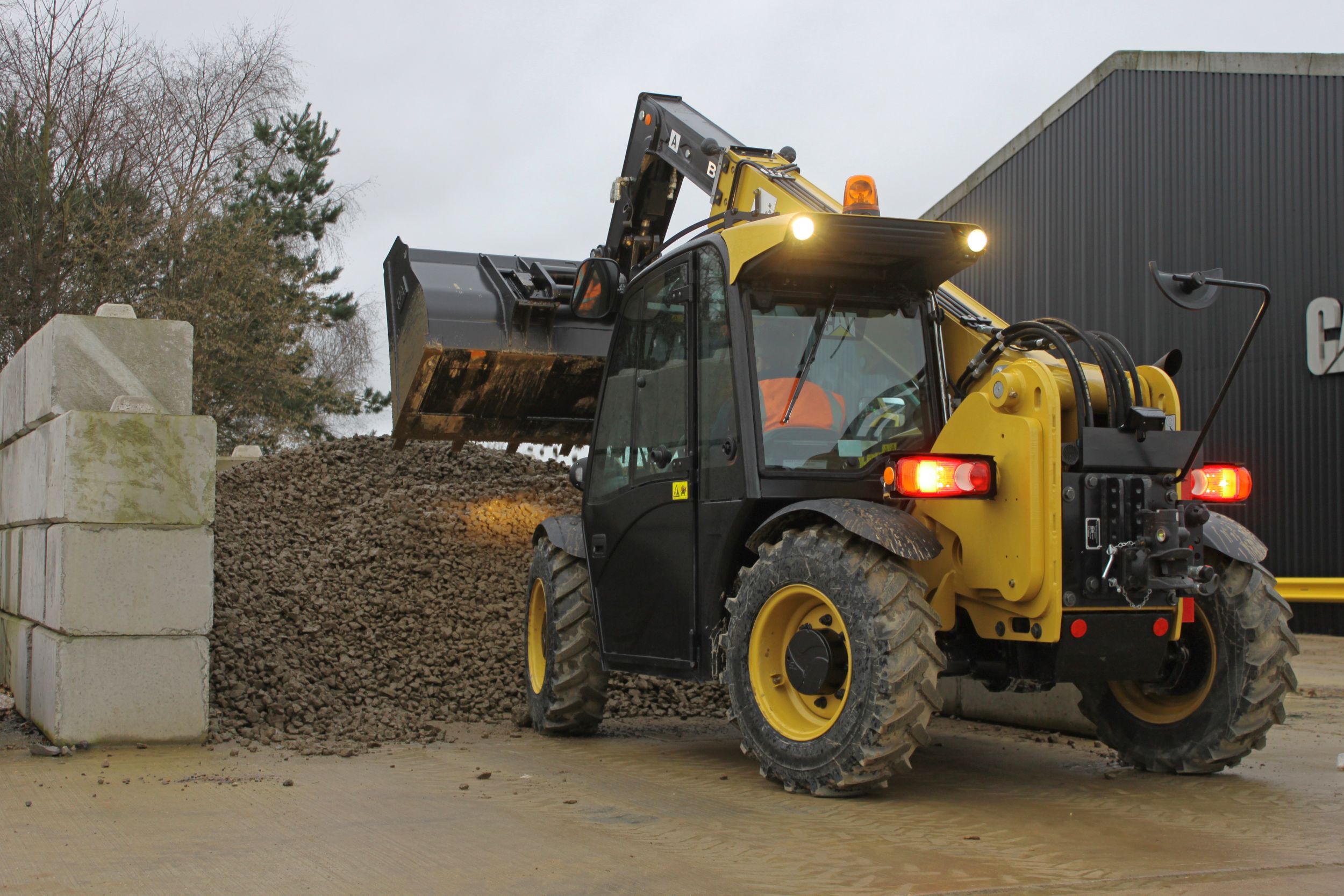

Do Many Jobs with One Single Machine

One Cat TH Series Telehandler can do the job of many. A range of quick change Cat work tools ensures utilization rates stay high.

Get More Work Done Faster

Load sensing hydraulics, faster boom cycle times, a small turning circle and a single lever joystick all help to reduce the time it takes to finish a job.

Control Your Costs

Expect your downtime to be lower, because of rugged construction, easier maintenance and unrivaled Cat dealer support, with most parts delivered to your local Cat dealer within 24 hours.

Maneuverability

Three steering modes simply controlled and with an automatic alignment system makes changing between 4 wheel steering, front wheel steering and crab steering quick and easy. With our narrow chassis and tight axle lock maneuvering on a constricted site is no problem.

Stay Comfortable and in Control throughout the Day

The cabin has a spacious interior keeping you comfortable throughout the working day. The well-designed cabin is spacious and comfortable with ample leg room and controls within easy reach. The heating and optional air conditioning system supplies numerous ventilation outlets strategically positioned throughout the cabin for optimum heating, cooling, de-misting and defrosting. Designed with the operator in mind we offer two cab options.

Standard Cab

• Single lever joystick
• Interactive LCD monitor with key pad
• Longitudinal stability indicator - EN15000 compliant
• Large entry door with opening top glass.
• Two way adjustable mechanical suspension seat
• Heater
• Seat belt
• Front and rear wiper blades
• Left and right rearview mirrors
• Interior mirror
• Radio ready
• Floor mat

Premium Cab = Standard Cab +

• Air suspension seat
• Sun screen
• Roof wiper
• Flood lights
Air conditioning is available as an option on both standard and premium cabs.

Big Cooling System

We know how dusty and dirty it gets on site and have designed a cooling system to cope. Engine, transmission and hydraulic system all have their separate cooling radiators designed with a special “Square wave core.” This allows any material that has passed through the outer screen to pass right through and not clog up. For extreme conditions an optional reversing fan is available, keeping you going whatever the conditions.

Load Sensing Hydraulics Cut Fuel Consumption

At the heart of our system is a variable displacement piston pump. Load sensing means it only works when you want it to. When you are not using the hydraulics the pump stays idle. This not only saves fuel but reduces heat build up and consequently means less wear in the system. Matched to our “Flow Sharing Valve” this system allows you to work all boom functions simultaneously, smoothly and with great accuracy. Lifting heavy loads? No need to speed up the engine to get more hydraulic pressure with our system, it delivers maximum hydraulic pressure at low engine speeds saving fuel. At Caterpillar we know hydraulic systems and we know what you have to do. The Cat Telehandler will perform for you all day every day.

Engine and Serviceability

Servicing the Cat C Series Telehandlers could not be simpler. Engine and transmission are housed under a large lift up hood supported by a gas strut. All daily checks are done from ground level, and are placed for easy access. Filters are all vertical to reduce spillage when changing and the engine has an eco drain to prevent oil contamination. Fuel and hydraulic tanks are non metallic to keep contamination to a minimum and prevent condensed water from damaging components. The Cat 3.4 liter Stage IIIB engine uses a diesel particulate filter with a passive regeneration system. Service life of the filter is 3,000 hours at which time it can be cleaned or service exchanged.

Renowned Cat Dealer Support

Your Cat dealer is ready to help you every step of the way. From new or used machine sales, to rental or rebuild options, your Cat dealer can provide an optimal solution to your business needs. Unsurpassed worldwide parts availability, trained technicians and customer support agreements maximize your machine uptime.
