Overview
The TH417 Telehandler is designed for tough jobsite applications. This telehandler with its 4000 kg load capacity and 17.0 metres of lift height, will do the work of many.
Specifications
| Rated Load Capacity | — |
| Maximum Lift Height | — |
| Engine Model | Cat C4.4 DITAAC |
Benefits & Features
Specifications
| Engine Model | Cat C4.4 DITAAC |
| Gross Power | — |
| Maximum Torque | — |
| Bore | — |
| Stroke | — |
| Displacement | — |
| Operating Weight | — |
| Rated Load Capacity | — |
| Maximum Lift Height | — |
| Load at Maximum Height - Stabilizers Down | — |
| Load at Maximum Height - Stabilizers Up | — |
| Maximum Forward Reach | — |
| Load at Maximum Reach - Stabilizers Down | — |
| Top Travel Speed | — |
| Load at Maximum Height | — |
| Load at Maximum Reach | — |
| Height | — |
| Width | — |
| Wheel Base | — |
| Length - Fork Face | — |
| Ground Clearance | — |
| Turning Radius - Over Tires | — |
| Turning Radius - Over Forks | — |
| Length - Front of Tire | — |
| Rear - Overhang | — |
| Standard | 14.00-24 16PR TG02 |
| Optional Construction | 14.00-24 16PR SGG-2A |
| Maximum System Pressure | — |
| Maximum Pump Flow | — |
| Pump Type | Variable displacement load sensing axial piston pump |
| Fuel Tank | — |
| Hydraulic Tank | — |
| Forward - 1 | — |
| Forward - 2 | — |
| Forward - 3 | — |
| Forward - 4 | — |
| Reverse - 1 | — |
| Reverse - 2 | — |
| Reverse - 3 | — |
| Boom Up | — |
| Boom Down | — |
| Tele In | — |
| Tele Out | — |
| Crowd Forward - Dump | — |
| Crowd Backward | — |
| Combined - Up and Out | — |
| Combined - Down and In | — |
| Boom Breakout Force | — |
| Bucket Breakout Force | — |
| Drawbar Pull - Basic | — |
| Parking Brake | mechanical on front axle |
Benefits & Features
Operator Station
Intuitive Controls
Our easier to use control layout and single joystick will keep you fresh and comfortable all day.
Easier Access
Cab entry and exit is both easier and more convenient due to the well placed handholds and step.
Operator Protection
The machine provides full operator security with OROPS and EROPS protection.
Longitudinal Stability Indicator
New dedicated longitudinal stability indicator (LSI) in the operator's line of sight.
Anti-theft device
The TH417 features a built-in start code device to reduce the risk of theft and unauthorized use.
Cabin
New spacious cabin provides a comfortable environment for its operator.
Ease of Operation
Joystick Control
The joystick allows three simultaneous boom functions enabling application customization.
Flow Sharing
Three simultaneous hydraulic functions are achieved using a full flow sharing hydraulic valve. A load sensing variable displacement pump allows full hydraulic power even at low revs.
Performance

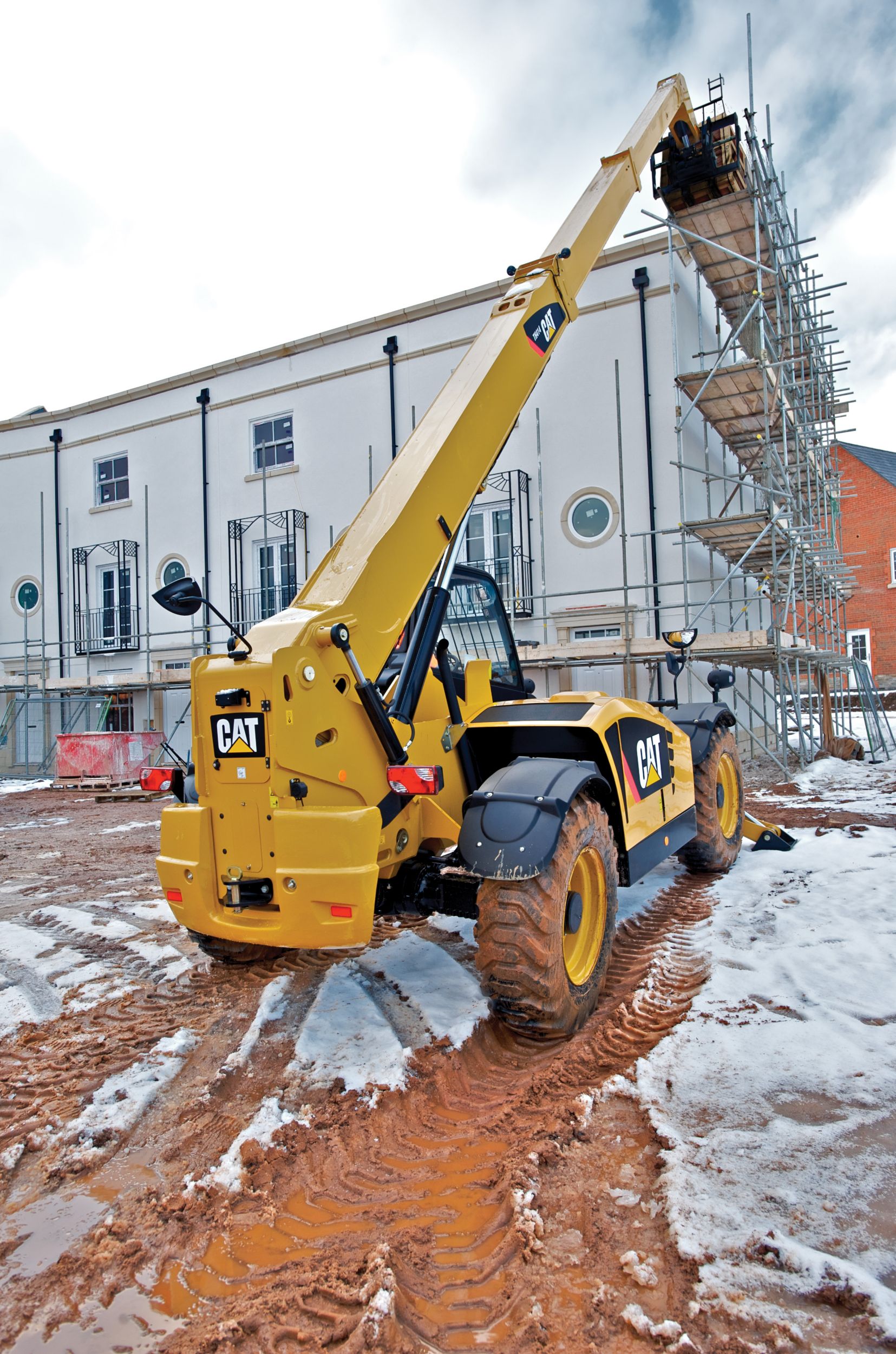

Lift Height
The TH417 can pick and place bricks and materials to a maximum height of 17.3 metres with stabilizers in the down position.
Steering Modes
The TH417 Telehandler offers three steering modes to allow you to more easily position the machine.

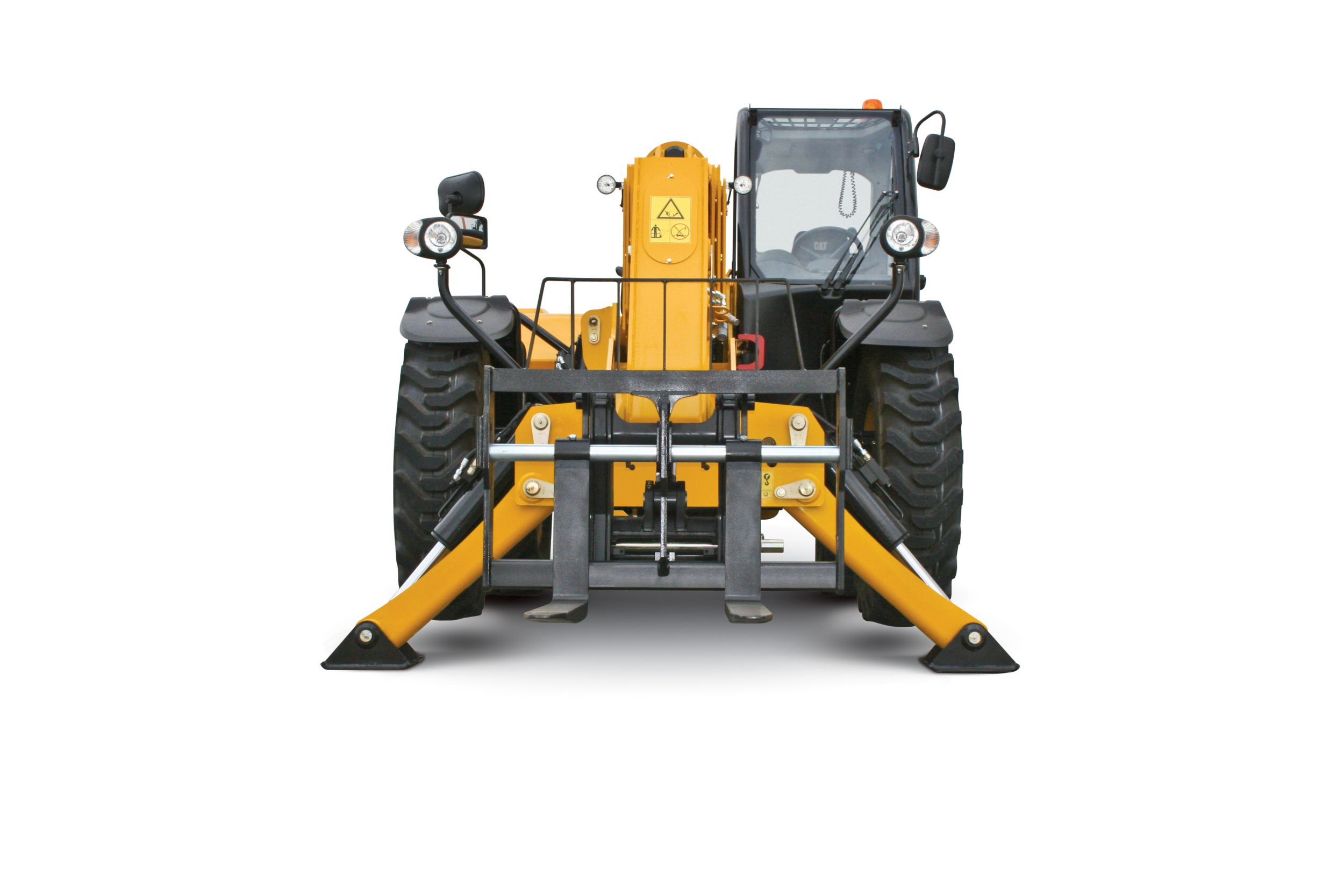

Stabilizers
Standard on the TH417, stabilizers provide increased stability and load carrying capacity.
Chassis
The TH417 Telehandler features a one-piece chassis with side mounted cabin and side mounted engine. Its widespread wheelbase gives outstanding stability in both traveling and lifting operations.
Power Train
Transmission
The TH417 has a 4-speed powersynchro transmission, which uses a torque converter to transfer engine power to the transmission.
Engine
A Cat C4.4 DITAAC mechanical control, turbo charged, after cooled engine is standard on the TH417 Telehandler. This engine is certified to meet Stage IIIA (Tier 3) emission regulations.
Cooling Pack
The cooling pack has been relocated to the rear of the engine bay and is designed to work in challenging environments.
Axles
Durable planetary axles are featured providing 50 degree steering angle for outstanding maneuverability.
Versatility
Quick Coupler
A Caterpillar IT interface is standard on the TH417 Telehandler. For optimum versatility, an optional hydraulic quick coupler is available, allowing the operator to change non-hydraulic work tools without leaving the cab.
Hydraulic System
Machine is equipped with a selectable continuous auxiliary hydraulic flow allowing the use of hydraulically operated work tools.
Work Tools
A wide range of work tools are available to meet most job site applications. Caterpillar Telehandler Work Tools extend the versatility of the machine. Built for performance and durability, these work tools deliver high productivity, long life and excellent value. Contact your Cat dealer for available work tool options.
Machine Configurations
Various machine configurations are available to match the different applications and operating environments.
Tyres
A wide range of tire options enables the machine to be configured to achieve optimum job site performance.
Serviceability and Customer Support

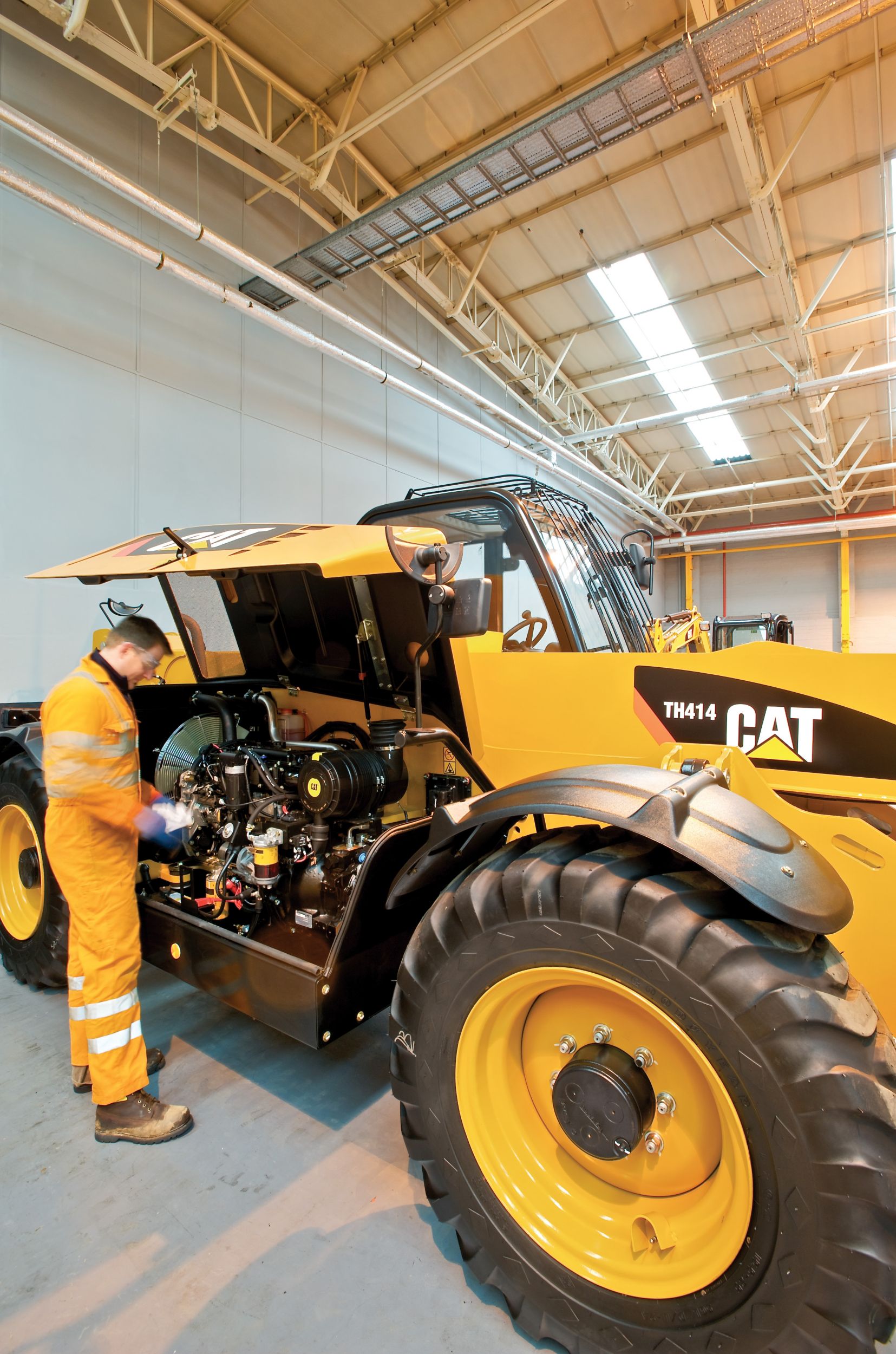

Access
All Cat Telehandler service points, including the combined transmission/hydraulic oil filter, are accessible and major components are at ground level due to the overall machine design.
Operation
Improving operating techniques can boost your profits. Your Cat Dealer has literature and other tools to help increase your productivity.
Product Support
You will find high availability of parts at our Dealer parts counter. Cat Dealers utilize a worldwide computer network to find in-stock parts to minimize machine downtime.
Data not available.
Standard Equipment
- TYRES and RIMS
- Mitas 14.00-24 TG02
- POWER TRAIN
- Cat C4.4 DITAAC engine- 74.5 kW gross power- 410 Nm / 1400 rpm maximum torque- Turbo charged after cooled- 4.4 litre displacement- 105 mm bore- 127 mm stroke- Stage III (Tier 3) compliant- 3 section cooling pack: engine coolant, transmission oil, air to air charge cooler- Water separator
- Transmission, Cat PowerSynchro - 4 forward/3 reverse- Single lever, column mounted direction change- Transmission disconnect via joystick or brake pedal
- Axles, heavy duty durable- permanent 4-wheel drive- limited slip differential in front axle- power-assisted, hydraulic braking system- enclosed oil disc brakes on front axle- parking brake, dry disc with transmission disconnect- automatic steering self alignment system- 3 steering modes: 2-wheel, 4-wheel and crab
- Hydraulics - load sensing, variable flow piston pump - 150 L/min maximum pump flow - 250 bar maximum system pressure - Electronic joystick, simultaneous and proportional controls to all three boom functions - Continuous flow hydraulics - Closed centre spool for auxiliary service - Lock valves on all hydraulic cylinders
- ELECTRICAL
- - 12-volt electrical system- 100 ampere alternator- 900 CCA maintenance-free battery with disconnect- Anti-restart key switch- Audible back-up alarm- Electronic control module- 12 volt internal and external power sockets- Electronic Technician diagnostic connector
- CABIN, STANDARD
- EROPS certified cabin - Single lever electro-hydraulic control joystick - Interactive LCD monitor - Longitudinal stability indicator - Entry door with window- 2-way adjustable mechanical suspension seat - Heater - Seat belt & document pouch - Left & right-side rearview mirror - Interior mirror - Wiper blade front and rear window - Power steering w/steering wheel spinner knob - Radio ready - Operator stationisolated on rubber mounts
- OTHER EQUIPMENT
- Quick coupler - Manual IT interface
- Joystick- bucket configuration- fork configuration
- Fenders
- Frame level
- Remote grease system
- TELESCOPIC BOOM
- Synchronized 3-section boom with non-metallic wear pads
- Compensation cylinder
- Boom work lights
- Boom prop
Optional Equipment
- Lights, flood lights cabin mounted
- - Two front and two rear lights - mounted on cabin roof - included in premium cabin
- Hitch, retrieval
- Not suitable for towing on road
- Spare Tyres and rims
- *Mitas 14.00-24 TG02*Goodyear 14.00-24 SGG
- Work Tools
- Carriages
- Forks (pair)
- Access Work Platform
- Access platform pre-arrangement- includes all necessary items to mount the fixed or extendible platform - included motor, pump, switches in cabin
- Access platform fixed version- 1.8 metre wide- 450 kg load capacity- 180 degrees angle rotation (90 degrees per side)- fully operable from the platform- standard electric emergency lowering system that allows the operator to fully control the platform even without the engine running
- Access platform extendible version- from 2.4 metre wide to maximum 4.5 metre wide- platform can be extended in the air- 350 kg load capacity- 180 degrees angle rotation (90 degrees per side)- fully operable from the platform- standard electric emergency lowering system that allows the operator to fully control the platform even without the engine running
- Tool box
- - For stowing tools and grease gun - not possible in combination with dual battery with disconnect
- Work tools
- Carriage, standard -- 1200 mm wide with load brackets and 60 mm floating shafts
- Forks, pallet -- 60 x 100 x 1200 (pair)
- Access platforms -- * Fixed, 1.8 metre wide, 450 kg load capacity, 180 degree rotation (90 degree per side) and fully operable from platform, standard electric emergency lowering system* Extendible, from 2.4 metre wide to max 4.5 metre wide, 350 kg load capacity, 180 degree angle rotation (90 degree per side), fully operable from platform, standard electric emergency lowering system
