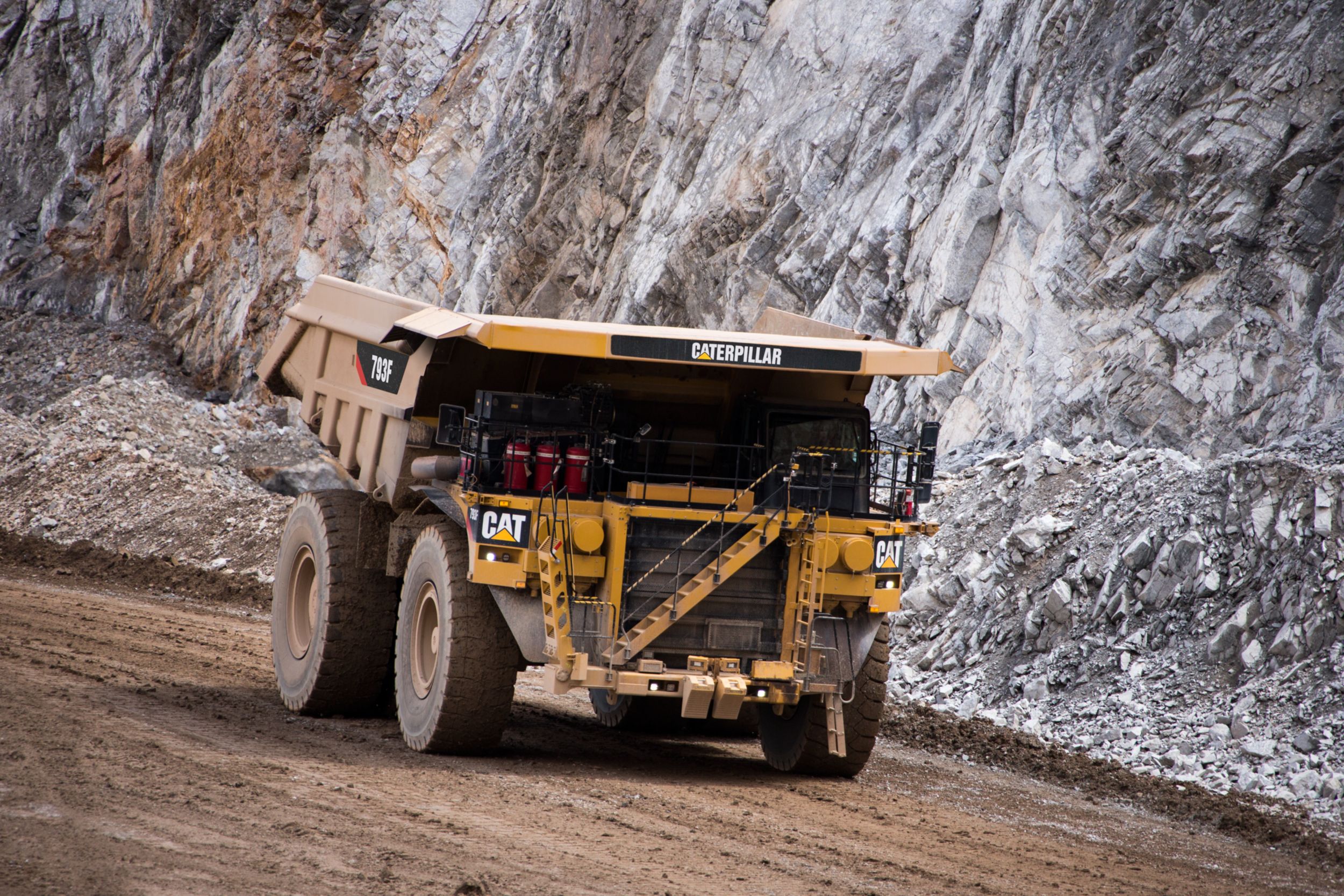

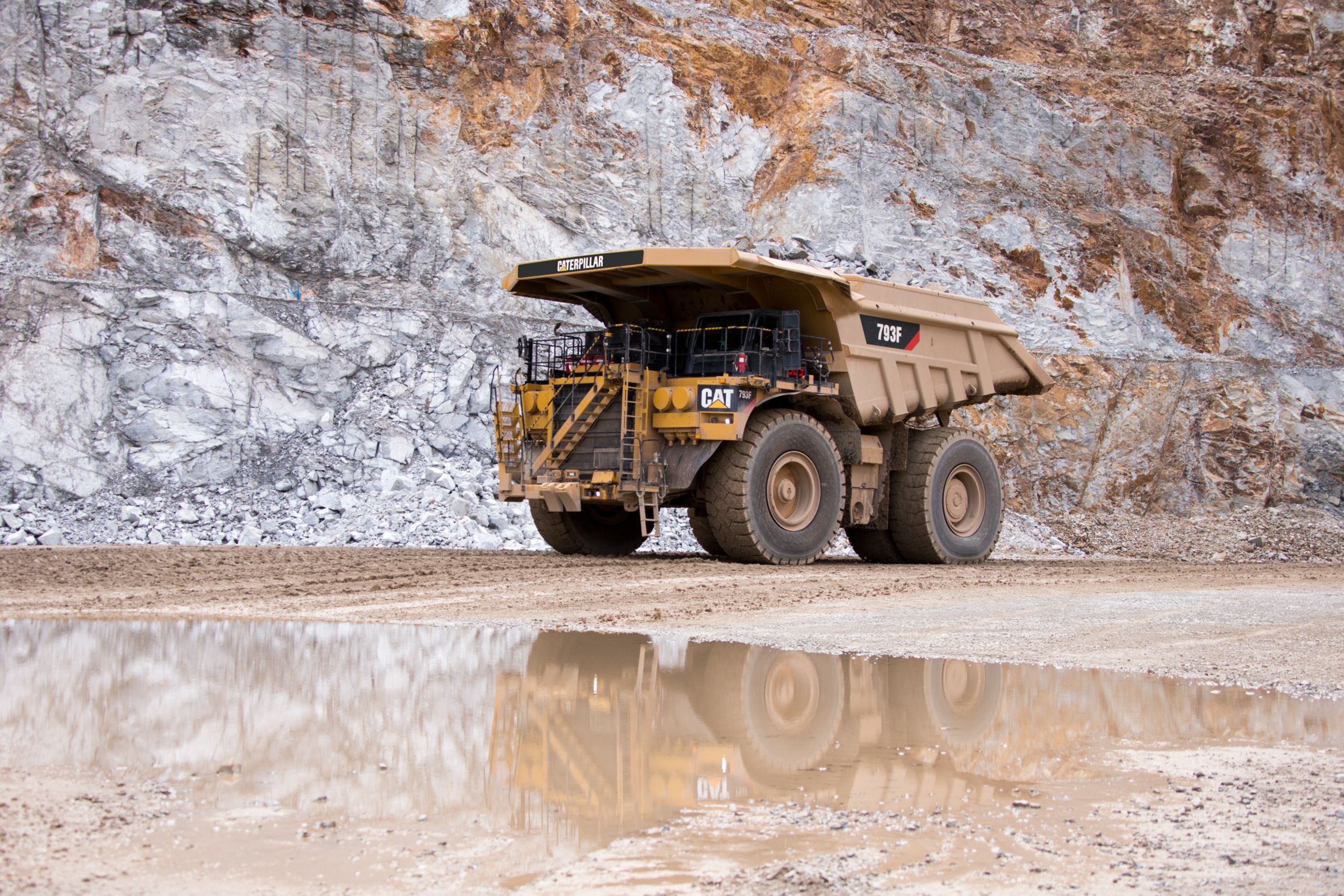

793F (Tier 4 Final)Non-Current
793F - 2017, Tier 4 Final, NACD
Overview
What will it take to boost your bottom line? An engine that delivers more power and performance for an increase in productivity? A class-leading empty weight that leads to optimized payload? A longer life for high operating hours, reduced costs and the opportunity to rebuild for a second life? With the Cat® 793F, you get all of this — and more. This popular industry workhorse is the ideal choice for a wide variety of applications. It hauls more every load, every cycle and every shift. And it delivers a better bottom line to the most important mine in the world: yours.
Specifications
| Nominal Rated Payload | — |
| Engine Model | Cat® C175-16 |
| Gross Power - SAE J1995 | — |
Benefits & Features
Emissions
Meets U.S. EPA Tier 4 Final emission standards, and features the Caterpillar Selective Catalytic Reduction (SCR) system that provides the least Total Fluid Consumption cost with greater reliability.
High Performance Engine
Enhanced Serviceability
Specifications
| Engine Model | Cat® C175-16 |
| Gross Power - SAE J1995 | — |
| Torque Rise | 20% |
| Bore | — |
| Stroke | — |
| Displacement | — |
| Emissions | Meets Tier 4 Final emission standards. |
| Note (1) | Power ratings apply at 1,750 rpm when tested under the specified condition for the specified standard. |
| Note (2) | Ratings based on SAE J1995 standard air conditions of 25° C (77° F) and 99 kPa (29.61 Hg) dry barometer. Power based on fuel having API gravity of 35 at 16° C (60° F) and an LHV of 42.780 kJ/kg (18,390 Btu/lb) when engine used at 30° C (86° F). |
| Note (3) | No engine derating required up to 3200 m (10,500 ft) altitude. |
| Nominal Rated Payload | — |
| Rated Gross Machine Weight | — |
| Chassis Weight | — |
| Body Weight Range | 26 862-47 627 kg (59,220-105,000 lb) |
| Note (1) | Chassis weight with 100 percent fuel, hoist, body mounting group, rims and 40.00R57 tires. |
| Note (2) | Body weight varies depending on how body is equipped. |
| Note (3) | Refer to the Cat Mining Truck 10/10/20 Overload Policy for maximum gross machine weight limitations. |
| Differential Ratio | 1.8:1 |
| Planetary Ratio | 16:01 |
| Total Reduction Ratio | 28.8:1 |
| Forward - 1 | — |
| Forward - 2 | — |
| Forward - 3 | — |
| Forward - 4 | — |
| Forward - 5 | — |
| Forward - 6 | — |
| Reverse | — |
| Top Speed - Loaded | — |
| Effective Cylinder Stroke - Front | — |
| Effective Cylinder Stroke - Rear | — |
| Rear axle - Oscillation | ±4.9 degrees |
| Pump Flow - High Idle | — |
| Relief Valve Setting - Raise | — |
| Body Raise Time - High Idle | — |
| Body Lower Time - Float | — |
| Body Power Down - High Idle | — |
| Note (1) | Twin, two-stage hydraulic cylinders mounted outside main frame, double-acting cylinders in second stage. |
| Note (2) | Power raise in both stages, power down in second stage. |
| Note (3) | Automatic body lower modulation reduces impact on frame. |
| Brake Surface - Front | — |
| Brake Surface - Rear | — |
| Standards | ISO 3450:1996 |
| Front Axle - Empty | 49% |
| Rear Axle - Empty | 51% |
| Front Axle - Loaded | 33% |
| Rear Axle - Loaded | 67% |
| Struck | 112.6-151 m³ (147-197.5 yd³) |
| Heaped (SAE 2:1)* | 162-191 m³ (212-250 yd³) |
| Note (1) | Contact your local Cat dealer for body recommendation. |
| Note (2) | *ISO 6483:1980 |
| Fuel Tank | — |
| Cooling System | — |
| Crankcase | — |
| Rear Axle - Housing | — |
| Steering System - Including Tank | — |
| Brake Hoist System - Includes Tank | — |
| Torque Converter - Transmission Sump | — |
| Torque Converter/Transmission System - Including Sump | — |
| Diesel Exhaust Fluid Tank | — |
| ROPS Standards | ROPS (Rollover Protective Structure) cab offered by Caterpillar meets ISO 3471:2008 for Operator and ISO 13459:2012 for Trainer. |
| FOPS Standards | FOPS (Falling Objects Protective Structure) meets ISO 3449:2005 for Operator and ISO 13459:2012 Level II FOPS for Trainer. |
| Sound Standards (1) | The operator sound pressure level measured according to work cycle procedures specified in ISO 6394 and 6396 is 74 dB(A) for cab offered by Caterpillar, when properly installed and maintained and tested with doors and windows closed. |
| Sound Standards (2) | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment. |
| Steer Angle | — |
| Turning Diameter - Front | — |
| Steering Standards | ISO 5010:2007 |
| Height - Top of ROPS | — |
| Overall Length | — |
| Wheel Base | — |
| Rear Axle - Tail | — |
| Ground Clearance | — |
| Dump Clearance | — |
| Loading Height - Empty | — |
| Overall Height - Body Raised | — |
| Centerline Front Tire Width | — |
| Engine Guard Clearance | — |
| Overall Canopy Width | — |
| Outside Body Width | — |
| Inside Body Width | — |
| Front Canopy Height | — |
| Rear Axle - Clearance | — |
| Centerline of Rear Dual Tire Width | — |
| Overall Tire Width | — |
Benefits & Features
Emissions
Meets U.S. EPA Tier 4 Final emission standards, and features the Caterpillar Selective Catalytic Reduction (SCR) system that provides the least Total Fluid Consumption cost with greater reliability.

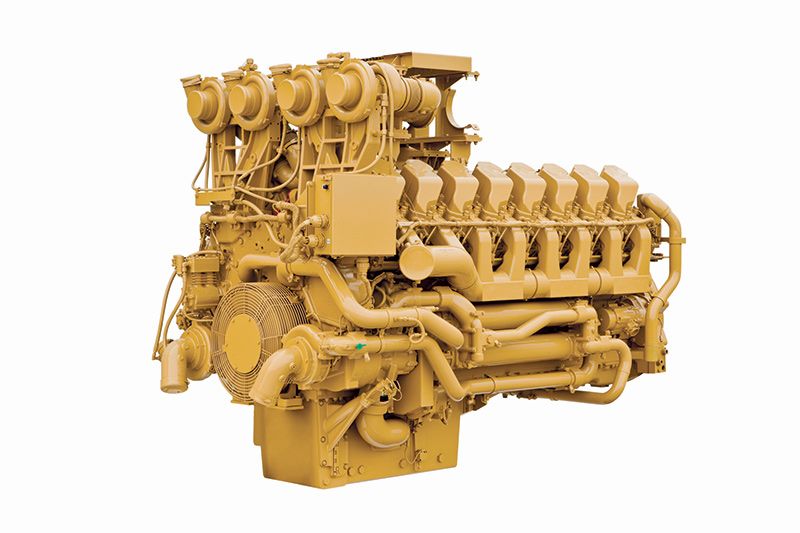

High Performance Engine
High Performance Engine
- The Cat® C175-16 engine offers you the perfect balance between power, robust design and economy.
- The C175-16 is a 16-cylinder, four-stroke design that uses long, effective power strokes for optimum efficiency.
- Is compliant with U.S. Environmental Protection Agency emission requirements.
- The 20 percent net torque rise of the C175-16 provides unequalled lugging force during acceleration on steep grades and in rough underfoot conditions. Torque rise effectively matches transmission shift points for maximum efficiency and fast cycle times.
- High displacement, low rpm rating and conservative horsepower ratings mean more time on the haul roads and less time in the shop.
- The Cat Common Rail Fuel System is an electronically-controlled system senses operating conditions and regulates fuel delivery for optimum fuel efficiency. This precise and flexible fuel system gives the engine the ability to meet emission regulations without sacrificing performance, reliability or durability.
- The flexible core design of the MESABI radiator means easier serviceability along with long life and high durability.
- You have two starter options: The tank on the standard air start system is ground level serviceable, while the electric start option allows the air system to be totally removed from the truck.
- Enhanced Engine Oil Filtration System (SCF/COF): reduces risk of contamination, extends oil change intervals & reduces oil waste, and eliminates cartridge filter changes

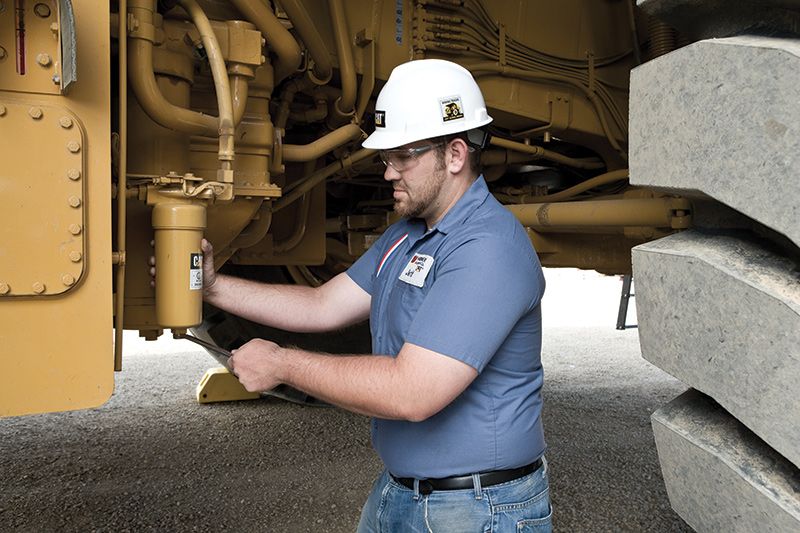

Enhanced Serviceability
Servicing Ease
Improved serviceability points and grouped service locations mean your truck spends more time on the haul road than in the shop.
In-Frame Access
Easy access to daily service points simplifies servicing and reduces your time spent on regular maintenance procedures. Enhanced serviceability and long service intervals are designed to increase machine availability and productivity.
Ground Level Access
Gives you easy access to major components for easy servicing and removal.
Autolube
Automatic lubrication system reduces your maintenance time by automatically lubricating necessary components on a regular basis.
Scheduled Oil Sampling
S·O·S SM sampling valves speed sampling and analysis reliability.
Pressure Test Points
Disconnect valves are conveniently located throughout the hydraulic systems for easy pressure testing.
Sealed Electrical Connectors
Electrical connectors are sealed to lock out dust and moisture. Harnesses are braided for protection. Wires are color-coded for easy diagnosis and repair.
Oil Change Intervals
Extended oil change intervals reduce oil waste.
Robust Braking
Cat oil-cooled, multiple disc brakes on all four corners offer you exceptional, fade-resistant braking.

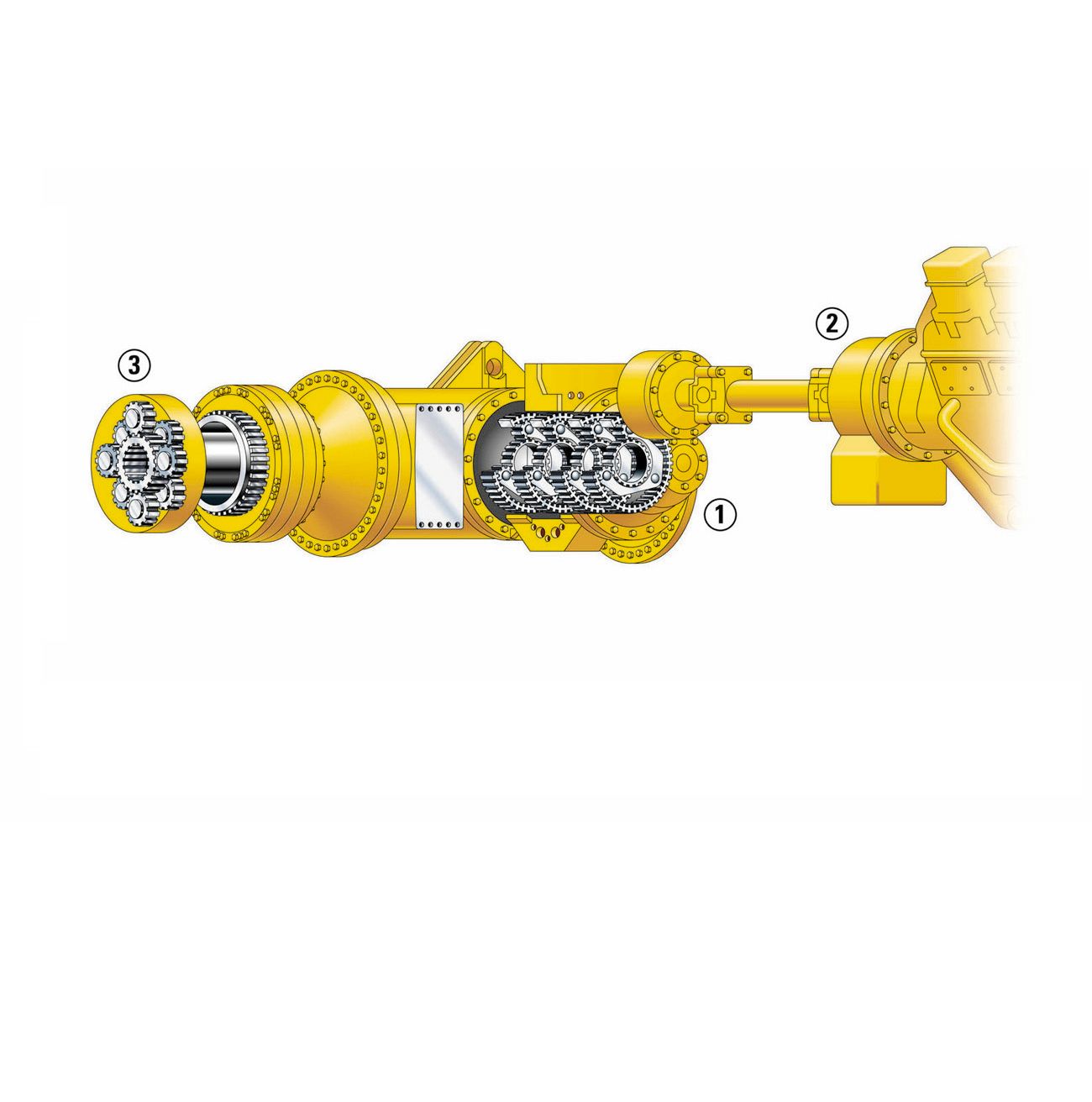

Power Shift Transmission
A smooth shifting six speed transmission using ECPC gives operators a comfortable ride, constant power and improved fuel efficiency.
1 – Transmission,
2 – Lock-Up Torque Converter,
3 – Final Drives

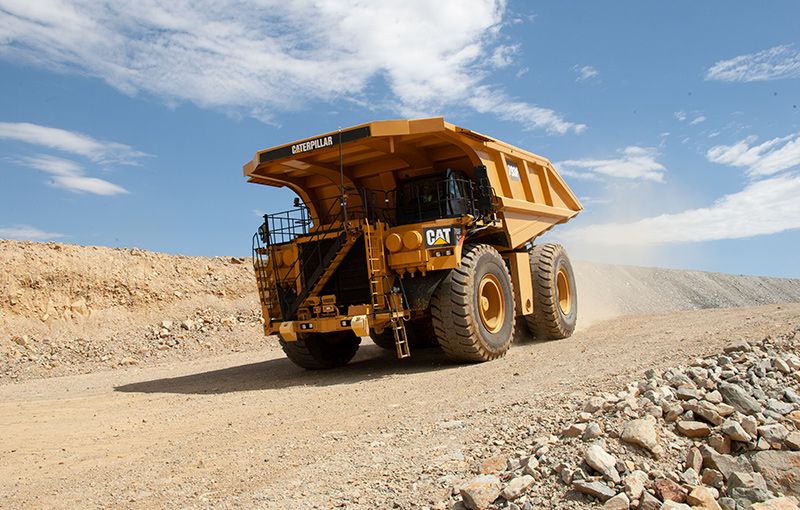

Reliable Mechanical Drive System
The 793F's power train gives you the fastest truck on steep grades, poor underfoot conditions and on haul roads with high rolling resistance.

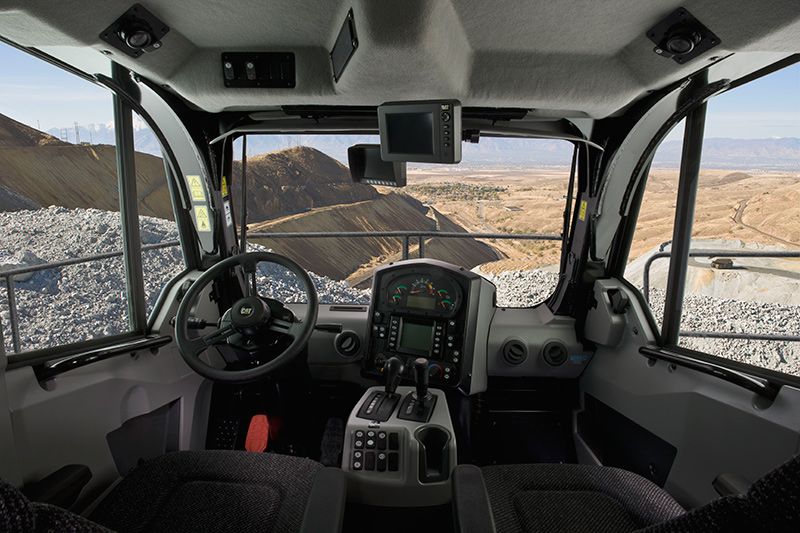

Comfortable Cab
Operators find the large, spacious cab offers unmatched visibility and exceptional comfort.

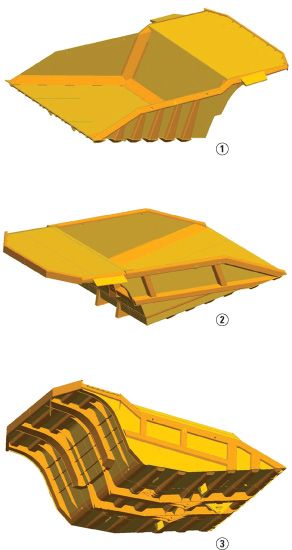

Truck Body Systems
Truck Body Systems
You have four body options with the 793F: X Body, MSD II (Mine Specific Design),Gateless Coal Body and High Performance Body. These bodies are specifically designed to work with the Cat frame for superior structural performance.
1 - X Body
If you have a new mine or are a contract miner the X Body is designed for you. It uses the Cat Mine Specific Design process to create a body that is properly sized and configured to meet the specific requirements of heavy-duty applications. The X Body design offers a larger volume with no weight penalty.
2 - MSD II
The MSD II bodies are intended for established mines and are customized to suit your specific mining applications based on a mine site evaluation. The MSD II is the best lightweight body ever built for mining applications and achieves excellent payload performance.
3 - Gateless Coal Body
The Gateless Coal Body is intended for dedicated coal haulage applications. It can be loaded to achieve target payload across the full range of coal densities. The body is designed and built using the MSD II Body concept, ensuring superior durability and reliability.
4 - High Performance Body
When you equip your truck with a Cat High Performance (HP) body, you’ll experience the benefits of a higher payload thanks to a weight reduction of 2.0-5.0 tonnes (2.2-5.5 tons) or more. The HP body features a lightweight, simplified and durable design that provides complete front machine coverage and extended overhead protection.
Data not available.
Standard Equipment
- ELECTRICAL
- Alarm, Back-up
- Brushless Alternator, 225 ampere
- Batteries, 210-amp hour, low maintenance, 12-volt (2)
- Converter, 12-volt electrical
- Electrical System, 24-volt, 10, 15 and 20 amp
- Jump Start Receptacle
- Lighting System: Back-up and Hazard Lights<br>– Directional Signals (front and rear LED)<br>– Front Stair Access/Service Deck<br>– Stop/Tail Lights (LED)<br>– Engine Compartment<br>– VIMS, Blue Light (LED)<br>– Headlights, with Lo-Hi Beam Selector <br>– Brake and Retarder Light Status Ready
- OPERATOR ENVIRONMENT
- Air Conditioner with Automatic Climate Control
- 12-volt DC Power Supply (3)
- Coat Hook
- Cup Holder
- Diagnostic Connection Port
- Dome Courtesy Light
- Entertainment Radio Ready: 5 amp Converter, Speakers and Wiring Harness
- Gauge/Indicators<br>– Gauge Panel: Transmission Fluid Temperature, Brake Oil Temperature, Engine Coolant Temperature, Fuel Level, Torque Converter Oil Temperature<br>– Electric Engine Control Fault Indicator<br>– Electric Hour Meter<br>– Speedometer<br>– Tachometer<br>– Diesel Exhaust Fluid Level Indicator
- Heater/Defroster, 11 070 kCal (45,930 Btu)
- Hoist, Body Control (electric)
- Horn
- Integrated Object Detection System
- Heated Mirrors, Right and Left
- ROPS Cab, Insulated/Sound Suppressed
- Seat, Operator, Air Suspension
- Seatbelt, Operator, Three Points, Retractable
- Seatbelt, Trainer, Two Points, Retractable
- Stairway and Walkway Access, 600 mm (23.6 in)
- Steering Wheel, Tilt, Padded, Telescopic
- Storage Compartments
- Tinted Glass
- Transmission Gear Indicator
- VIMS Message Center with Advisor
- Window, Operator, Electric Powered
- Windshield Wiper, Intermittent Control and A/C Condenser Filled Washer Bottle
- Plug and Play Radio 12V Unswitched Power Supply Outlets
- Fire Suppression Ready Cab
- POWER TRAIN
- Cat C175-16 meets Tier 4 Final emission standards: <br>– Air Cleaner with Precleaner (4)<br>– Air-to-Air Aftercooler (ATAAC)<br>– Automatic Starter Protection<br>– Ether Starting Aid (automatic)<br>– Multi-Point Oil Pressure Sensing<br>– Turbocharging (4)/Aftercooled
- Engine Aftertreatment System: Pump Electronic Tank Unit (PETU), Clean Emissions Module (CEM)
- Braking System: <br>– Automatic Retarder Control<br>– Adjustable; Brake Release Motor (towing)<br>– Engine Overspeed Protection<br>– Extended Life Brake Disc Material<br>– Oil-cooled, Multi-disc (front and rear)<br>– Service, Retarding, Parking, Secondary<br>– Park Brake Integrated with Gear Selector: Secondary, Emergency
- Advanced Productivity Electronic Controls Strategy (APECS)
- Transmission: 6-speed, Automatic Powershift with Electronic Control (ECPC)<br>– Body-up Reverse Neutralizer<br>– Body-up Shift Inhibitor<br>– Controlled Throttle Shifting<br>– Directional Shift Management<br>– Downshift/Reverse Shift Inhibitor<br>– Individual Clutch Modulation<br>– Lock-up Torque Converter<br>– Neutral Coast Inhibitor<br>– Neutral Start Switch<br>– Programmable Top Speed;<br>– Pre-lubrication/Engine<br>– Rear Axle Continuous Lubrication/Filtration
- OTHER STANDARD EQUIPMENT
- Auto Lubrication System with 41 kg (90 lb) barrel, auto shutoff, and grease filter
- Aux “Buddy” Dumping Quick Connect
- Aux Steering Quick Connect (towing)
- Driveline Guard
- Fast Fill Diesel Exhaust Fluid System
- Fast Fill Diesel Fuel System
- Fuel Filter with Water Separator
- Ground Level Battery Lockout
- Ground Level Engine Shut-down
- Ground Level Engine Start Lockout
- Ground Level Transmission Lockout
- Ground Level VIMS Data Port
- Hi-speed Crankcase Oil Change
- Hydraulic Filters, 1,000 hour
- Reservoirs (3 separate): Brake/Hoist, Steering/Fan, Transmission/Converter
- Rock Ejectors
- Service Points, Ground Level
- Sight Level Gauges for Hydraulic/Engine Oil
- S•O•S℠ sample ports
- Supplemental Steering (automatic)
- Tie Down Eyes
- Tow Hooks (front)/Tow Pin (rear)
- Traction Control System
- Vandalism Protection Locks
- Vital Information Management System (VIMS): Includes VIMS Payload Monitor with MAX Payload and Speed Manager<br> (Recommend using download cable 127‑9797 and PC based software JERD2175. Supplemental software “VIMS Supervisor” YERA1403. Order separately. Computer not provided.)
- Primary Access Anti-slip High Visibility Demarcations
- Tie Off Points
- Rubber-lined Battery Box Lid
- Portable Fire Extinguisher Mounting
- SL-V Grease Injectors
- Fuel Tank Mud Guards
- ANTIFREEZE
- Extended Life Coolant to –35° C (–30° F)
Optional Equipment
- OPTIONAL EQUIPMENT
- Additional Retarding for Downhill Hauls
- Body Heat
- Cat Comfort Air Suspension Trainer Seat
- Antifreeze/Coolant Protects to –50° C (–58° F)
- Brake Wear Indicator Gauge
- Cabin Air Precleaner
- Center Tow Bumper Attachment
- Electric Powered Window, Right Side
- Electric Starting System
- Engine Coolant and Oil Heater for Cold Weather Starts
- Additional Lighting
- High Visibility Reflector Group
- Workshop Horn
- Working at Heights
- Emergency Stop
- Four Mirror Package
- Hydraulic Tank Mud Guards
- Engine Delay Shutdown Timer
- Extended Life Wheel Stations
- External Digital Payload Display
- Fast Fill Service Center with Live S•O•S and Keypad
- Cat Comfort Heated Operator Seat
- High Intensity Discharge (HID) Lighting (front and rear)
- Hub Odometer (km and miles)
- Portable Fire Extinguisher
- Rear Axle Lubrication Cooler
- Retractable Front Sun Visor
- Rim Guard
- Rims (813 mm/32 in)
- Road Analysis Control (RAC)
- Throttle Lock
- Walkway and Handrail for Rear Cab Access
- Wheel Chocks
- Work Area Vision System (WAVS)
