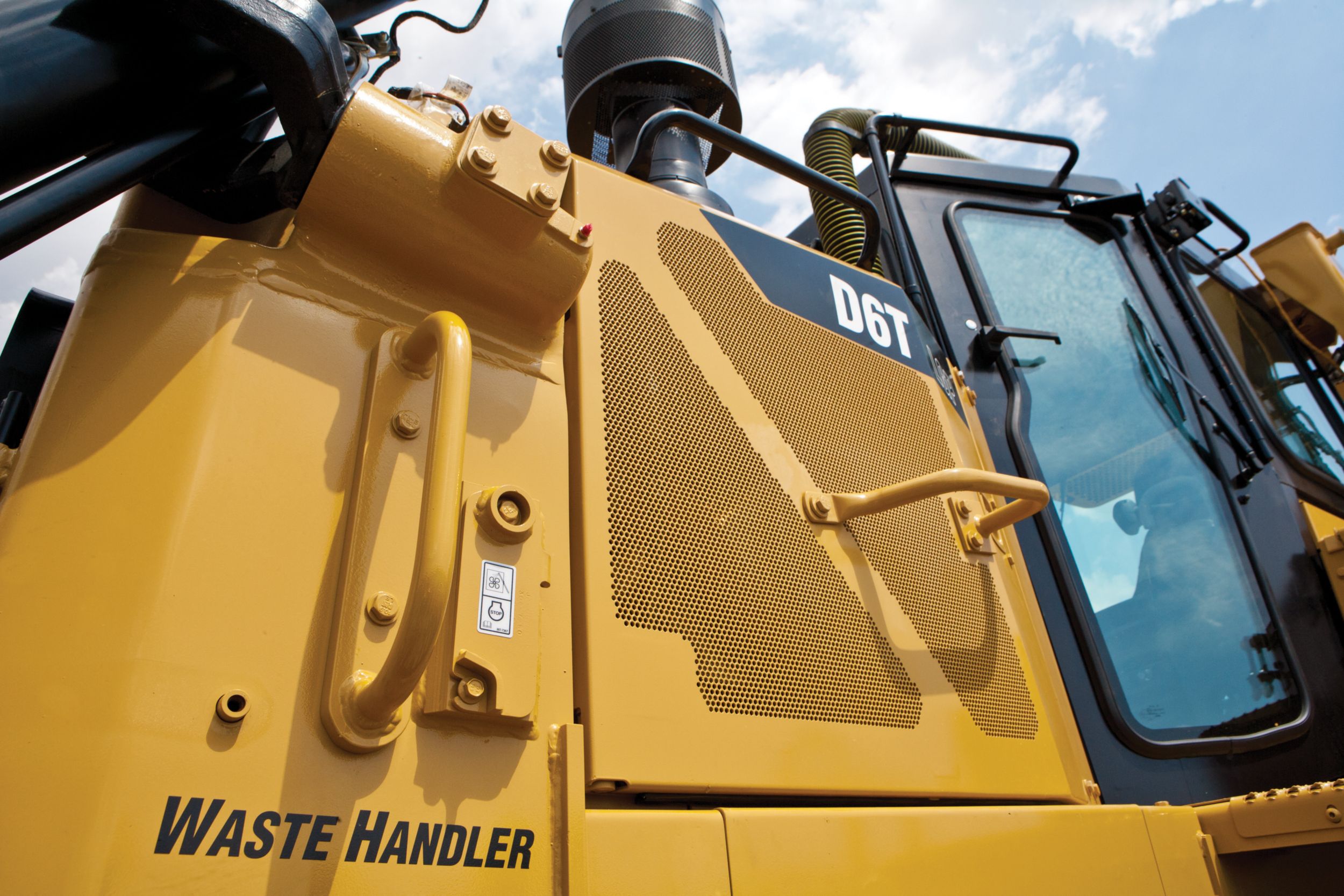

The Cat® D6T Waste Handler has earned a reputation for best-in-class versatility, productivity and resale value. Landfill customers choose the D6T WH because it excels at multiple tasks from pushing trash and spreading cover to cell construction and closing. Cat waste handlers are designed and built from the frame up to handle the demands of landfill work - and they do it with industry leading comfort and reliability. The D6T WH meets U.S. Tier 4 Interim/EU Stage IIIB emission standards.
Engine Model | Cat® C9.3 ACERT™ |
Flywheel Power | — |
Operating Weight | — |
Engine Model | Cat® C9.3 ACERT™ |
Flywheel Power | — |
Bore | — |
Stroke | — |
Displacement | — |
Engine Power - ISO 14396 | — |
Gross Power - SAE J1995 | — |
Engine Power - ISO 14396 (DIN) | — |
Emissions | U.S. Tier 4 Interim/EU Stage IIIB |
Net Power - 80/1269/EEC | — |
Net Power - SAE J1349 | — |
Net Power - ISO 9249 (DIN) | — |
Net Power - ISO 9249 | — |
Cooling System | — |
Hydraulic Tank | — |
Power Train | — |
Roller Frames - Each | — |
Final Drive - Each | — |
Engine Crankcase | — |
Pivot Shaft Compartment | — |
Fuel Tank | — |
Operating Weight | — |
Operating Weight - LGP A | — |
Shipping Weight - XW VPAT | — |
Shipping Weight - XW A | — |
Shipping Weight - LGP VPAT | — |
Operating Weight - LGP S | — |
Operating Weight - XL SU | — |
Shipping Weight - LGP A | — |
Operating Weight - LGP VPAT | — |
Shipping Weight - XL SU | — |
Operating Weight - XW SU | — |
Shipping Weight - XW SU | — |
Operating Weight - XW A | — |
Shipping Weight - LGP S | — |
Operating Weight - XW VPAT | — |
Operating Weight - XL A | — |
Shipping Weight - XL A | — |
Track Gauge - XW VPAT/LGP/LGP VPAT | — |
Ground Contact Area - LGP VPAT | — |
Ground Clearance | — |
Shoe Type | Moderate Service |
Width - Shoe - LGP VPAT | — |
Width - Shoe - XW | — |
Ground Contact Area - XW VPAT | — |
Width - Shoe - LGP | — |
Oscillation at Front Idler - XL/XW VPAT | — |
Pitch | — |
Ground Pressure - XW | — |
Track Gauge - XL | — |
Carrier Rollers/Side | 1 |
Grouser Height | — |
Width - Shoe - XL | — |
Oscillation at Front Idler - LGP/LGP VPAT | — |
Ground Contact Area - XL | — |
Oscillation at Front Idler - XW | — |
Ground Contact Area - LGP | — |
Ground Pressure - LGP | — |
Track Rollers/Side - XL/XW | 7 |
Ground Pressure - XL | — |
Shoes/Side - XL/XW | 41 |
Track on Ground - XL/XW | — |
Track Rollers/Side - LGP | 8 |
Width - Shoe - XW VPAT | — |
Track Gauge - XW | — |
Ground Contact Area - XW | — |
Shoes/Side - LGP | 45 |
Ground Pressure - LGP VPAT | — |
Ground Pressure - XW VPAT | — |
Track on Ground - LGP | — |
Capacity - LGP VPAT-Blade | — |
Width - XL SU-Blade | — |
Capacity - XW SU-Blade | — |
Capacity - XW VPAT-Blade | — |
Width - XW SU-Blade | — |
Width - LGP VPAT-Blade | — |
Width - XW VPAT-Blade | — |
Width - LGP S-Blade | — |
Capacity - XL SU-Blade | — |
Capacity - LGP S-Blade | — |
Pry-Out Force | — |
Maximum Penetration | — |
Shank Gauge | — |
Beam Cross Section | 219 × 254 mm (8.8 × 10 in) |
Pocket Spacing | — |
Weight - Each Additional Shank | — |
Number of Pockets | 3 |
Overall Beam Width | — |
Ramp Angle | — |
Maximum Penetration Force | — |
Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole | — |
Weight - With One Shank | — |
Type | Fixed Parallelogram |
Shank Section | 74 mm × 175 mm (2.9 in × 6.9 in) |
Drawbar Pull - 2.5 Forward | — |
Drawbar Pull - 3.5 Forward | — |
1.5 Reverse | — |
3.5 Reverse | — |
Drawbar Pull - 3.0 Forward | — |
2.5 Reverse | — |
1.5 Forward | — |
3.5 Forward | — |
2.5 Forward | — |
Drawbar Pull - 2.0 Forward | — |
Drawbar Pull - 1.5 Forward | — |
2.0 Forward | — |
3.0 Forward | — |
2.0 Reverse | — |
3.0 Reverse | — |
Brakes | Brakes meet the International Standard ISO 10265:2008. |
Cab | Meets appropriate standards as listed below. |
ROPS/FOPS | ROPS meets criteria ISO 3471:1994, 2008 FOPS meets ISO 3449:1992, 2005 Level II |
Pump Output - Fan | — |
Pump Output - Implement | — |
RPM at Rated Engine Speed - Fan | — |
Angle Cylinder Flow - VPAT | — |
Ripper Cylinder Flow | — |
Lift Cylinder Flow | — |
RPM at Rated Engine Speed - Implement | — |
Tilt Cylinder Flow | — |
RPM at Rated Engine Speed - Steering | — |
Pump Output - Steering | — |
Pressure Setting - Implement - Non-VPAT | — |
Pressure Setting - Implement - VPAT | — |
Ripper - Lift - Non-VPAT | — |
Bulldozer - Tilt - Non-VPAT | — |
Bulldozer - Lift - Non-VPAT | — |
Ripper - Lift - VPAT | — |
Steering | — |
Bulldozer - Lift - VPAT | — |
Bulldozer - Angle - VPAT | — |
Bulldozer - Tilt - VPAT | — |
Maximum Full Drum - Line Pull | — |
Overall Width | — |
Oil Capacity | — |
Drum Width | — |
Maximum Full Drum - Line Speed | — |
Winch Case - Width | — |
Flange Diameter | — |
Drum Diameter | — |
Maximum Bare Drum - Line Speed | — |
Increased Tractor Length - LGP | — |
Drum Capacity - 25 mm (1.0 in) | — |
Control | Electric |
Rope Diameter - Recommended | — |
Winch Model | PA56 |
Drum Capacity - 22 mm (0.88 in) | — |
Cable Ferrule Size - O.D. × Length | 54 mm × 67 mm (2.1 in × 2.6 in) |
Winch Drive | Mechanical |
Weight | — |
Winch and Bracket Length | — |
Maximum Bare Drum - Line Pull | — |
Increased Tractor Length - XL/XW | — |
Winch Case - Length | — |
Type | Mechanical |

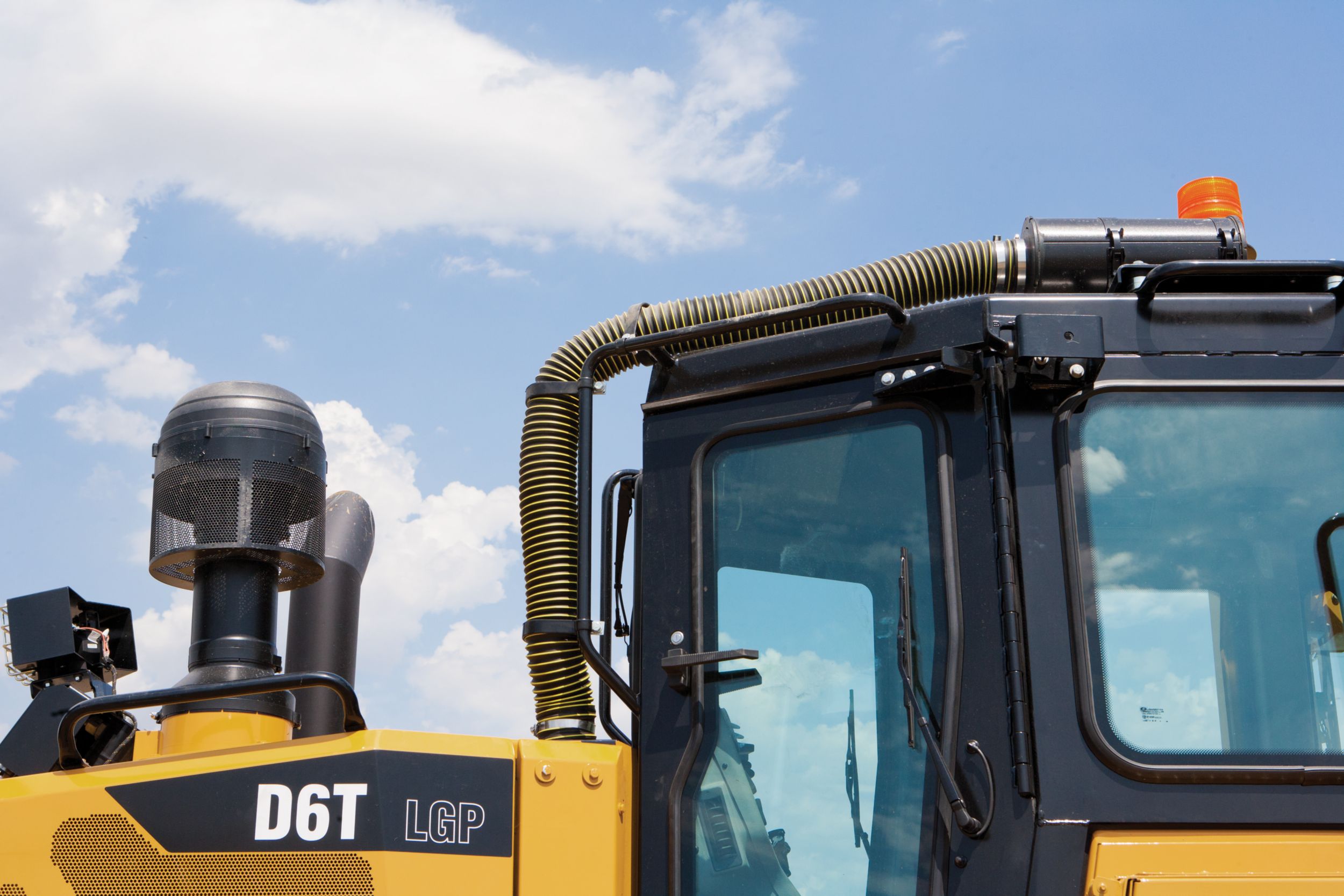

The D6T cab is designed and equipped for operator productivity, safety and comfort. An isolation-mounted cab reduces noise and vibration. Large windows, tapered hood and notched fuel tank offer excellent all-around visibility. Updated dash and instrumentation streamline the display in a format that is more common across the Cat tractor line. Features like a standard air-ride suspension seat, conveniently located heating and air conditioning controls and well placed air vents add to operator comfort. Carbon filters are available for the cab air filters to help reduce odor.

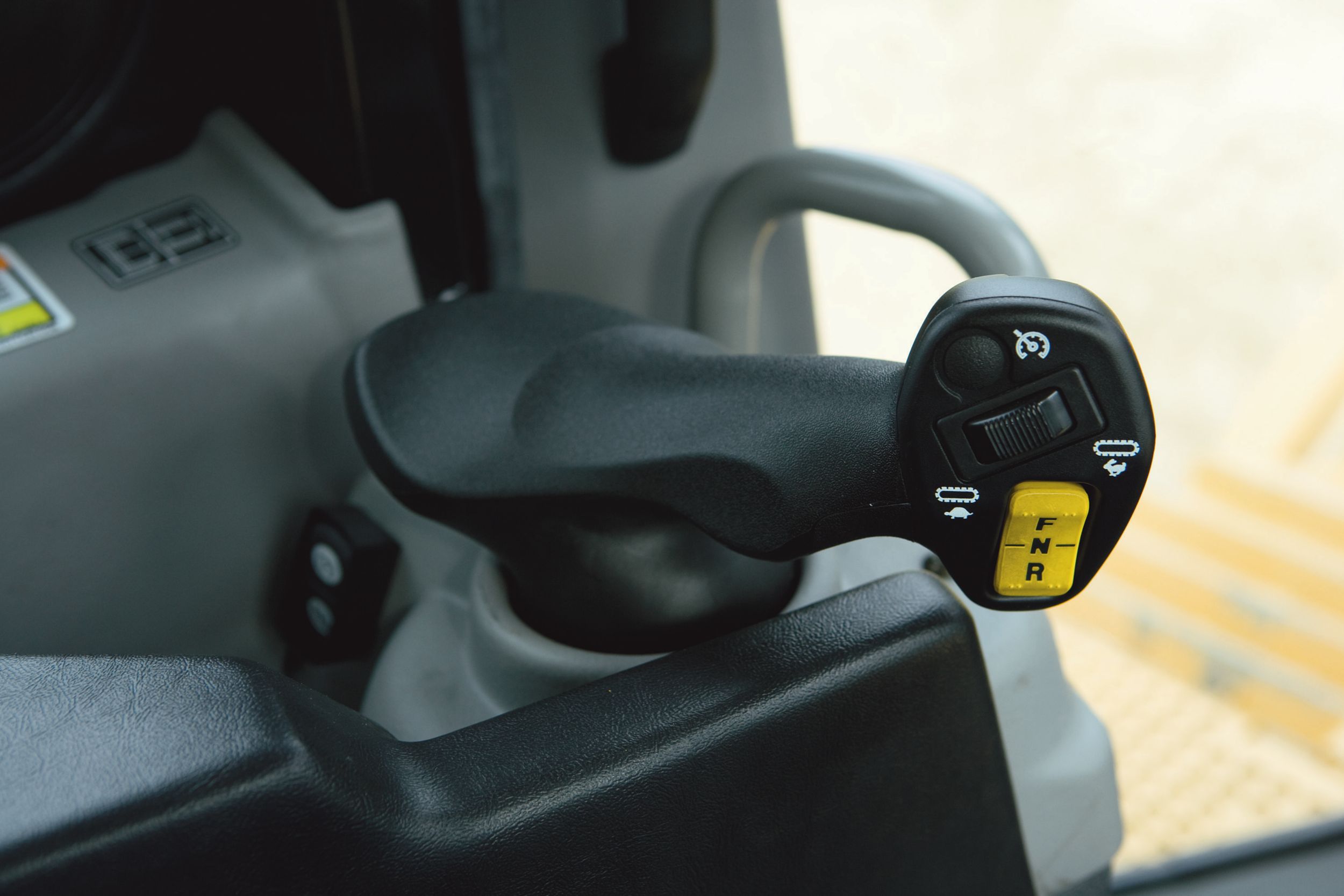

Responsive electro-hydraulic differential steering controls direction and degree of turns, forward-reverse shifting, and gear selection in a single control handle. Ergonomically designed dozer and rear implement controls offer ease of operation, precise control and enhanced operator comfort.
Lock-out feature prevents inadvertent operation of hydraulic work tool attachments.
Operators can pre-select a forward and reverse speed setting for easy, efficient directional changes. Auto-shift settings include first forward to second reverse and second forward to second reverse. Auto-kickdown allows the transmission to automatically downshift when significant load increases are detected.
The D6T features a Cat C9.3 ACERT™ engine and a Cat Clean Emissions Module to deliver the performance and efficiency that customers demand, while meeting U.S. EPA Tier 4 Interim/EU Stage IIIB emission standards.
The Cat NOx Reduction System captures and cools a small quantity of exhaust gas, then routes it into the combustion chamber where it drives down combustion temperatures and reduces NOx emissions.
A Diesel Oxidation Catalyst (DOC) uses a chemical process to convert regulated emissions in the exhaust system. The Diesel Particulate Filter (DPF) traps particulate matter that is carried into the exhaust stream. System components are contained in the Cat Clean Emissions Module (CEM) to protect components, minimize the aftertreatment footprint and simplify maintenance. In Waste Handlers, the Clean Emissions Module is insulated for protection in high debris applications.
The Cat Regeneration System is designed to work transparently, without any interaction needed from the operator. Under most operating conditions, engine exhaust is hot enough to oxidize soot through passive regeneration. If supplemental regeneration is needed, the Cat Regeneration System elevates exhaust gas temperatures to burn off soot in the Diesel Particulate Filter (DPF). This process happens automatically, but the operator can initiate the cycle when convenient or interrupt regeneration as needed. A soot level monitor and regeneration indicator lights are integrated into the dash display. Key Off Regeneration - Optional Key Off Regeneration allows the operator to initiate a regeneration cycle after the key has been turned off. If a cycle takes place, the engine will complete regeneration, followed by a cool down period prior to shutting down. Delayed Engine Shutdown - Delayed Engine Shutdown feature is available to allow the machine to cool immediately after a heavy work load or regeneration cycle. Engine Idle Shutdown Timer - An optional Engine Idle Shutdown timer will sound a warning and shut down the engine after the machine has been idling for a pre-set period of time.
The power shift transmission and differential steering work with the C9.3 ACERT engine to deliver the outstanding power, productive performance and reliability expected from Cat Track-Type Tractors. Differential steering maintains full power to both tracks to provide best-in-class turning with a loaded blade. When one track speeds up, the other slows down an equal amount. Maneuverability - especially with large blade loads - is improved, as well as cycle times in some applications. Greater load capacity, power and speed control are possible in soft underfoot conditions on steep slopes. Exclusive Multi Velocity Program machine control system allows the operator to choose from five speed ranges in Forward and Reverse to best match machine speed to applications and ground conditions. Operators maximize production, minimize fuel consumption, and reduce overall machine operating costs. Standard Eco Reverse feature reduces engine speed during the reverse portion of the dozing cycle. Once set, no additional operator input is needed. Eco Reverse can reduce fuel use by up to 5 percent, depending on the application.
The engine radiator, Air To Air After Cooler (ATAAC), and hydraulic oil cooler are packaged in a single plane. Aluminum bar plate construction provides durability and allows for higher heat transfer and superior corrosion resistance. The standard cores feature six fins per inch to allow debris to pass through and reduce plugging concerns. In cooler conditions, a hydraulically driven demand fan reduces speed to conserve power, save fuel and decrease sound levels. An automatic reversing fan changes the fan rotation while the machine is backing up or stationary. This feature includes access slots in the side of the radiator guard for cleaning access. Roof-mounted air conditioning removes the condenser unit from under the hood. This helps reduce heat load, improves cleaning access and increases ambient capability.
The Computer Aided Earthmoving System (CAES) is a high-technology landfill tool that allows machine operators to hold tighter grades/slopes. This helps conserve valuable airspace and cover soil without stakes and crews. The system uses Global Navigation Satellite System (GNSS) technology, machine mounted components, a radio network and office management software to deliver real-time information on an in-cab display. Additionally, CAES permits the identification of site specific storage areas such as hazardous waste, medical, industrial, organic, and other materials which require special handling or a record of their placement.
AccuGrade™ is a dealer installed machine control and guidance system that uses Laser, Global Navigation Satellite System (GNSS) and/or Universal Tracking Station (UTS) technology, machine mounted components and off-board hardware. This system provides accurate blade positioning information and automatics for greater efficiency. The D6T Waste Handler is Grade Control Ready, with deeply integrated harnesses incorporated into the machine during assembly. It can also be ordered AccuGrade Ready, with optional brackets and hardware installed, making the tractor ready to plug in the dealer installed AccuGrade system.
Remote monitoring with Product Link improves overall fleet-management effectiveness. Product Link is deeply integrated into machine systems. Events and diagnostic codes, as well as hours, fuel, idle time and other detailed information are transmitted to a secure web based application, VisionLink™. VisionLink includes powerful tools to convey information to users and dealers, including mapping, working and idle time, fuel level and more.
The D6T WH features the Cat elevated sprocket design that isolates final drives, axles, and steering components from harsh impacts. The undercarriage is designed for easy clean-out, and a modular design aids serviceability to help reduce maintenance costs. Heavy Duty Undercarriage is recommended for waste handling applications. Components are designed for extended wear life in abrasive conditions and high impact applications. Customers may also choose a SystemOne™ Undercarriage for the D6T WH. SystemOne can help reduce total undercarriage owning and operating costs in many applications. Lifetime sealed and lubricated cartridges eliminate bushing turns and sprockets require no replacement during the life of the chain. All SystemOne undercarriage components are designed to work and wear as a system for longer track life. Several track shoe options are available, but a center-hole track shoe is recommended when working in trash to help shed waste that might otherwise help accelerate internal track wear.

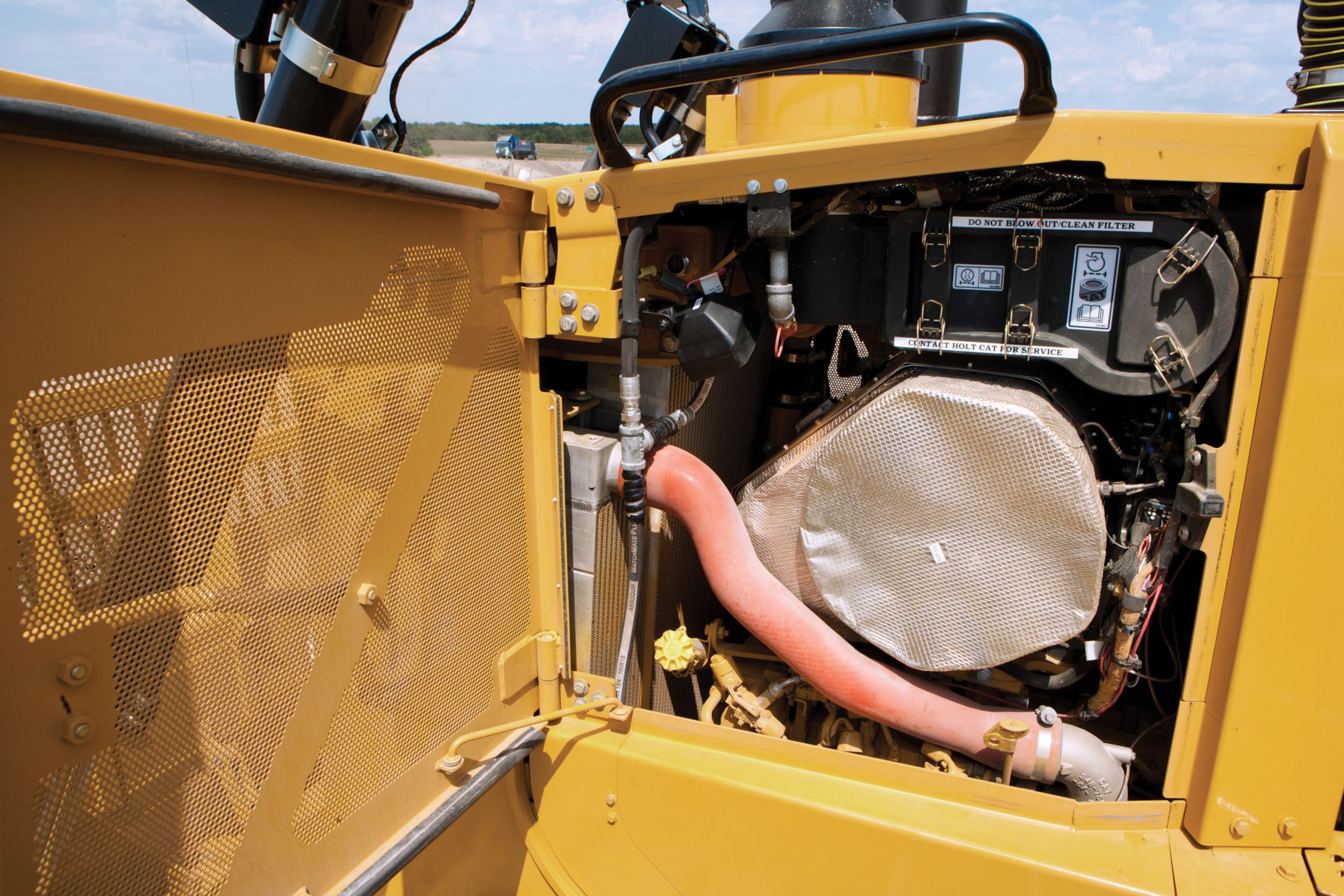

Several key engine enclosure panels are hinged or feature tool-less removal for easy access during inspection or service work. Larger side engine enclosures provide direct access to the back side of the cooling package for inspection and cleaning. Heavy duty radiator grill doors are now standard and maintain their robust bolt-on, hinged design for easy access to the fan and the front side of the cooling package.
The new ground level service center is accessible on the left hand fender without setting foot on the machine, giving easy access to the battery disconnect and secondary engine shutdown switches. Optional access light switch, digital hour meter and jacket water heater plug are also available.
Newly designed steps and handles make climbing on and off the tractor easier than ever. An access light switch is included with optional light packages that turns on the cab-mounted exterior light for night time visibility when mounting/dismounting the machine. An Operator Presence Detection system allows the machine to idle when an operator is not in the seat. The system locks out the powertrain so any unintentional movements during ingress or egress will not physically move the machine.
From helping you choose the right machine to knowledgeable ongoing support, Cat dealers provide the best in sales and service. Manage costs with preventive maintenance programs like Custom Track Service, Scheduled Oil Sampling (S·O·SSM) analysis, and guaranteed maintenance contracts. Stay productive with best-in-class parts availability. Cat dealers can even help you with operator training to help boost your profits. And when it's time for machine replacement, your Cat dealer can help you save even more with Genuine Cat Remanufactured parts. Receive the same warranty and reliability as new products at cost savings of 40 to 70 percent for powertrain and hydraulic components.
