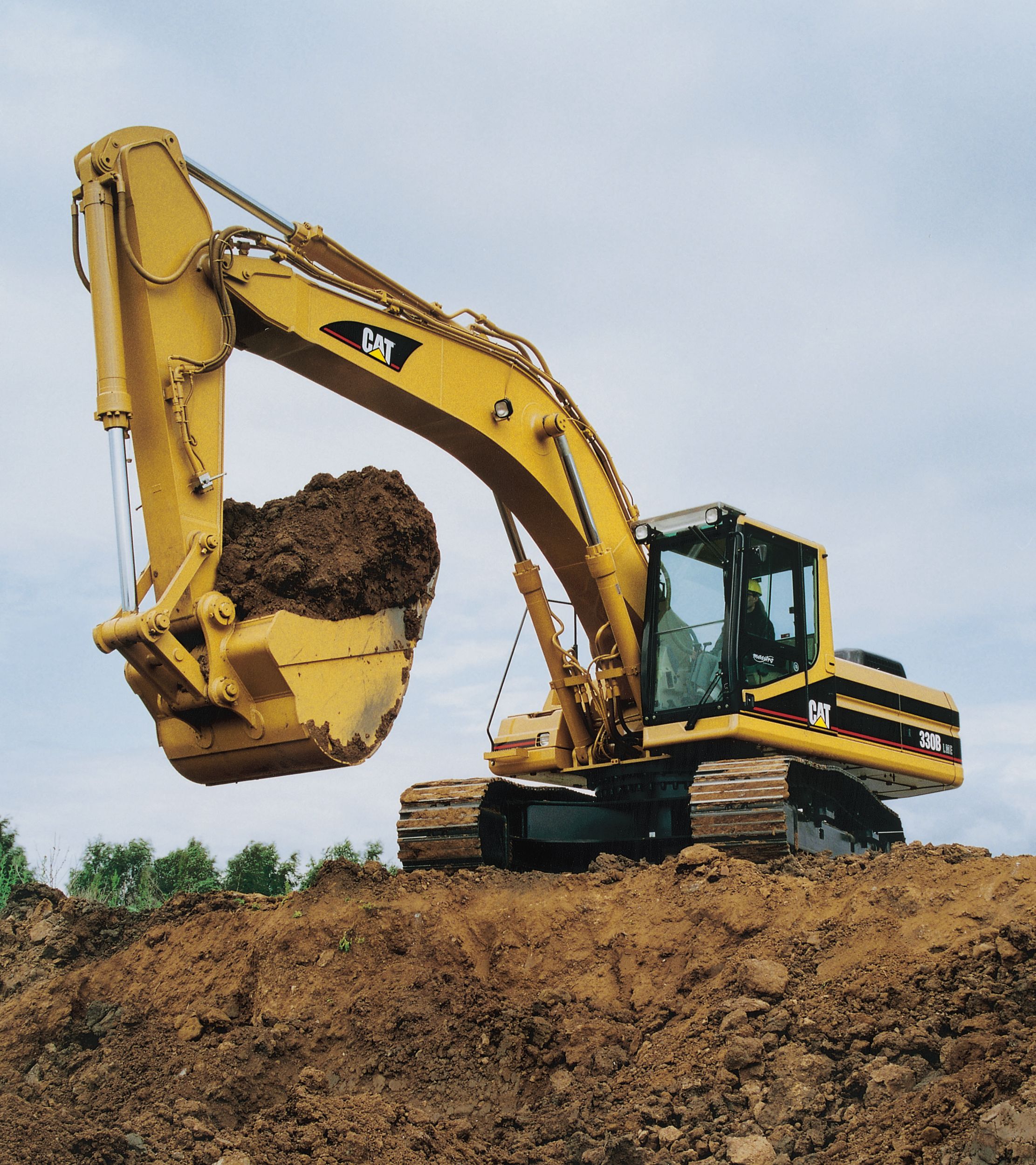

330B^Non-Current

Engine

Engine Model	Cat® 3306TA
Net Flywheel Power	—222 HP165 kW
Net Power - ISO 9249	—221 HP165 kW
Bore	—4.76 in124 mm
Stroke	—5.98 in152 mm
Displacement	—64.1 in³10.5 l
Net Power - EEC 80/1269	—221 HP165 kW
Net Power - SAE J1349	—219 HP163 kW

Weights

Operating Weight - Standard Undercarriage

—71628 lb32490 kg

Service Refill Capacities

Fuel Tank Capacity	—145 gal (US)560 l
Cooling System	—11.9 gal (US)45 l
Engine Oil	—7.9 gal (US)30 l
Swing Drive	—4 gal (US)15 l
Final Drive - Each	—4 gal (US)15 l
Hydraulic System - Including Tank	—106 gal (US)400 l

Swing Mechanism

Swing Speed	—9 r/min9 r/min
Swing Torque	—71250 lb/ft96.6 kN·m

Drive

Maximum Drawbar Pull	—60250 lb268 kN
Maximum Travel Speed	—2.9 mile/h4.6 km/h

Hydraulic System

Main Implement System - Maximum Flow (2x)	—63 gal/min240 l/min
Maximum Pressure - Equipment	—4974 psi34300 kPa
Maximum Pressure - Travel	—4974 psi34300 kPa
Maximum Pressure - Swing	—4336 psi29900 kPa
Pilot System - Maximum Flow	—10 gal/min37 l/min
Pilot System - Maximum Pressure	—595 psi4100 kPa
Boom Cylinder - Bore	—5.91 in150 mm
Boom Cylinder - Stroke	—57 in1440 mm
D Family Bucket Cylinder - Bore	—5.9 in150 mm
D Family Bucket Cylinder - Stroke	—46 in1156 mm
E Family Bucket Cylinder - Bore	—6.3 in180 mm
E Family Bucket Cylinder - Stroke	—53 in1356 mm

Standards

Brakes	SAE J1026 APR90
Cab/FOGS	SAE J1356 FEB88 ISO 10262

Track

Standard with Standard Undercarriage	—24 in600 mm
Standard with Long Undercarriage - Triple Grouser	—30 in750 mm
Optional - Heavy Duty - Triple Grouser	—34 in850 mm
Optional - Triple Grouser	—34 in850 mm
Optional	—33 in838 mm
