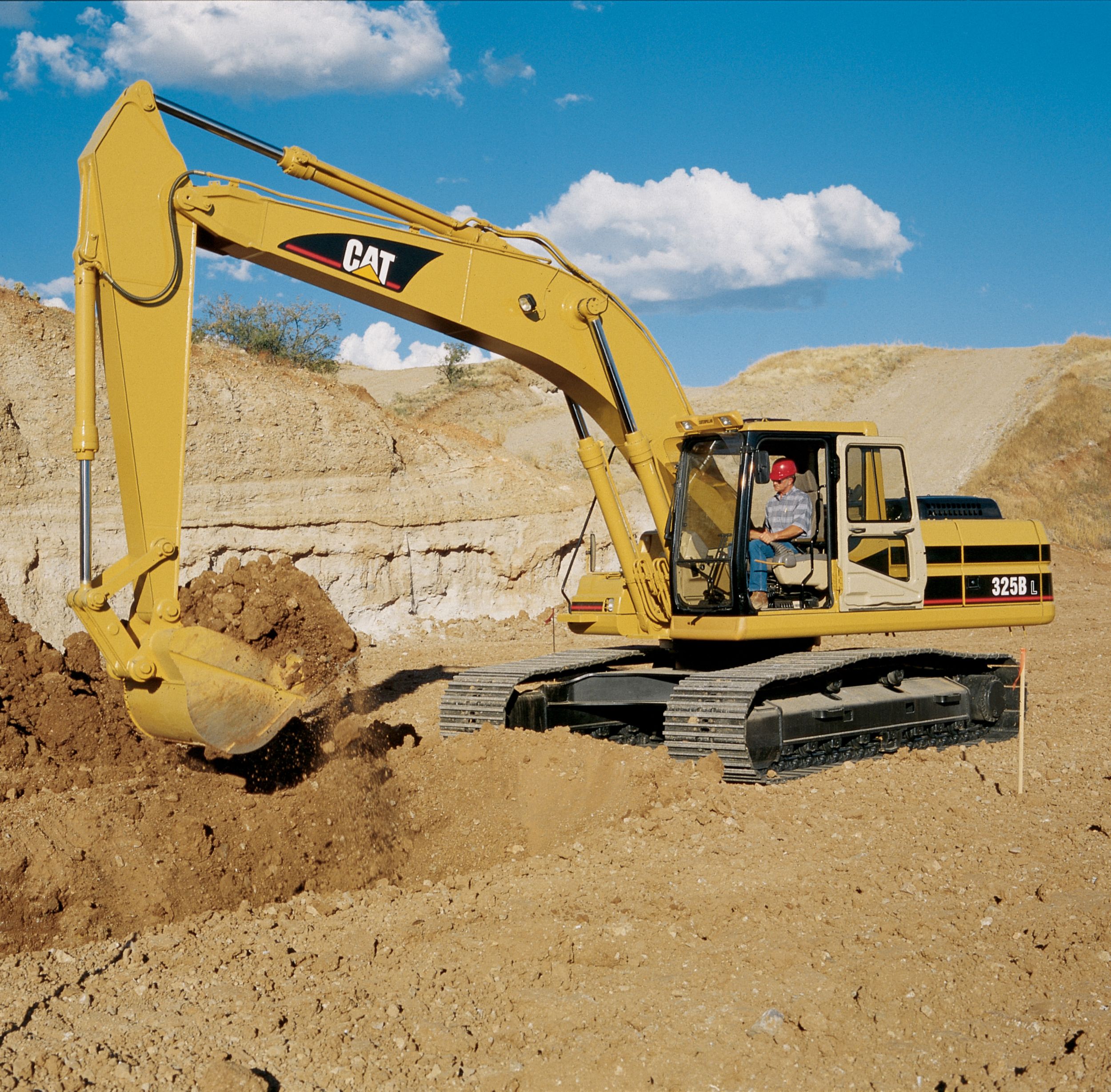

325B^Non-Current

Engine

Engine Model	Cat® 3116TA
Net Flywheel Power	—168 HP125 kW
Net Power - ISO 9249	—168 HP125 kW
Bore	—4.1 in105 mm
Stroke	—5 in127 mm
Displacement	—403 in³6.6 l
Net Power - SAE J1349	—166 HP124 kW
Net Power - EEC 80/1269	—168 HP125 kW

Weights

Operating Weight - Standard Undercarriage

—56240 lb25510 kg

Service Refill Capacities

Fuel Tank Capacity	—111 gal (US)420 l
Cooling System	—8.3 gal (US)31.5 l
Engine Oil	—5.3 gal (US)20 l
Swing Drive	—2.6 gal (US)10 l
Final Drive - Each	—2.1 gal (US)8 l
Hydraulic System - Including Tank	—82 gal (US)310 l

Swing Mechanism

Swing Speed	—10.2 r/min10.2 r/min
Swing Torque	—56055 lb/ft76 kN·m

Drive

Maximum Drawbar Pull	—48109 lb214 kN
Maximum Travel Speed	—3.1 mile/h5 km/h

Hydraulic System

Main Implement System - Maximum Flow (2x)	—56.5 gal/min214 l/min
Maximum Pressure - Equipment	—4980 psi34300 kPa
Maximum Pressure - Travel	—4980 psi34300 kPa
Maximum Pressure - Swing	—3988 psi27500 kPa
Pilot System - Maximum Flow	—11 gal/min41 l/min
Pilot System - Maximum Pressure	—595 psi4100 kPa
Boom Cylinder - Bore	—5.51 in140 mm
Boom Cylinder - Stroke	—55 in1407 mm
C Family Bucket Cylinder - Bore	—5.12 in130 mm
C Family Bucket Cylinder - Stroke	—46 in1156 mm
D Family Bucket Cylinder - Bore	—5.91 in150 mm
D Family Bucket Cylinder - Stroke	—46 in1156 mm

Track

Standard with Standard Undercarriage	—24 in600 mm
Standard with Long Undercarriage - Triple Grouser	—32 in800 mm
Optional (1)	—24 in600 mm
Optional (2)	—28 in700 mm
Optional (3)	—32 in800 mm
