320D LRR^Non-Current

Reduced Radius

The tail swing of this machine has been reduced where the back end of the machine won't extend beyond the length of the tracks. The tail swing is just 2.0 m (6'7”) as compared to the 2.75 m (9'0”) on the 320D. When rotated 90 degrees and working over the side, just 600 mm (2'0”) hangs over the side. This allows the 320D LRR to work well in road construction applications and other space restricted areas.

Stability

The 320D LRR offers a very stable platform providing great stability for all applications. When compared to 320D L, the 320D LRR delivers up to 6% additional lift over the side with the heavier counterweight. One of the main contributors is the additional counterweight used on the 320D LRR. This allows for the balance of the machine to be comparable to a standard machine with a longer tail swing.

Comfort

The cab of the 320D LRR is the same full-sized cab with all the amenities and attachments found on the cab of the 320D L.

Cat C6.4

The Cat C6.4 with ACERT™ Technology introduces a series of evolutionary, incremental improvements that provide breakthrough engine technology. The building blocks of ACERT Technology are fuel delivery, air management and electronic control. ACERT Technology optimizes engine performance while meeting U.S. EPA Tier 3 emission regulations. With its proven technology, robust components and precision manufacturing, you can count on this engine to power up at start time and keep working productively all shift long.

ADEM™ A4 Engine Controller

The ADEM A4 electronic control module manages fuel delivery to get the best performance per liter of fuel used. The engine management system provides flexible fuel mapping, allowing the engine to respond quickly to varying application needs. It tracks engine and machine conditions while keeping the engine operating at peak efficiency.

Fuel Delivery

The Cat C6.4 features electronic controls that govern the fuel injection system. Multiple injection fuel delivery involves a high degree of precision. Precisely shaping the combustion cycle lowers combustion chamber temperatures, generating fewer emissions and optimizing fuel combustion. This translates into more work output for your fuel cost.

Cooling System

The cooling fan is directly driven from the engine. An electrically controlled viscous clutch fan is available as an attachment to reduce fan noise. The optimum fan speed is calculated based on the target engine speed, coolant temperature, hydraulic oil temperature and actual fan speed. When fan speed is reduced, there's more power available for other functions - and less fuel is burned.

Component Layout

To optimize efficiency of hydraulic performance, the hydraulic components are located close together, which reduces friction loss and pressure drops in the lines.

System Pressure

System pressure has been increased to 35 000 kPa (5076 psi), which attributes to improved performance:
• Increased stick and bucket forces (up 7% higher than the 320C LU) to better handle those tight digging conditions
• More drawbar pull (206 kN - 46,322 lb) to provide more ability to climb slopes, easier spot turns and improved travel in poor underfoot conditions
• More lift capacity, generally over the front where you are generally hydraulically limited

Heavy Lift

The 320D LRR features the addition of a heavy lift, which increases system pressure to 36 000 kPa (5220 psi), giving even more lift capacity over the front. Heavy Lift is activated be depressing the soft switch on the right hand conslole. As the pressure increases, the engine speed is reduced, which allows better control while lifting objects.

Pilot System

The pilot pump is independent from the main pumps and controls the front linkage, swing and travel operations.

Hydraulic Cross Sensing System

The hydraulic cross sensing system utilizes each of two hydraulic pumps to 100 percent of engine power, under all operating conditions. This improves productivity with faster implement speeds and quicker, stronger pivot turns.

Boom and Stick Regeneration Circuit

Boom and stick regeneration circuit saves energy during boom-down and stick-in operation which increases efficiency, reduces cycle times and pressure loss for higher productivity, lower operating costs and increased fuel efficiency.

Auxiliary Hydraulic Valve

The auxiliary valve is standard on the 320D LRR. Control Circuits are available as attachments, allowing for operation of high and medium pressure tools such as shears, grapples, hammers, pulverizers, multi-processors and vibratory plate compactors.

Hydraulic Cylinder Snubbers

Snubbers are located at the rod-end of the boom cylinders and both ends of the stick cylinders to cushion shocks while reducing sound levels and extending component life.

Monitor

The monitor is a full color Liquid Crystal Display that gives you vital operating and performance information, alerts in text, all in a simple, east to navigate format.

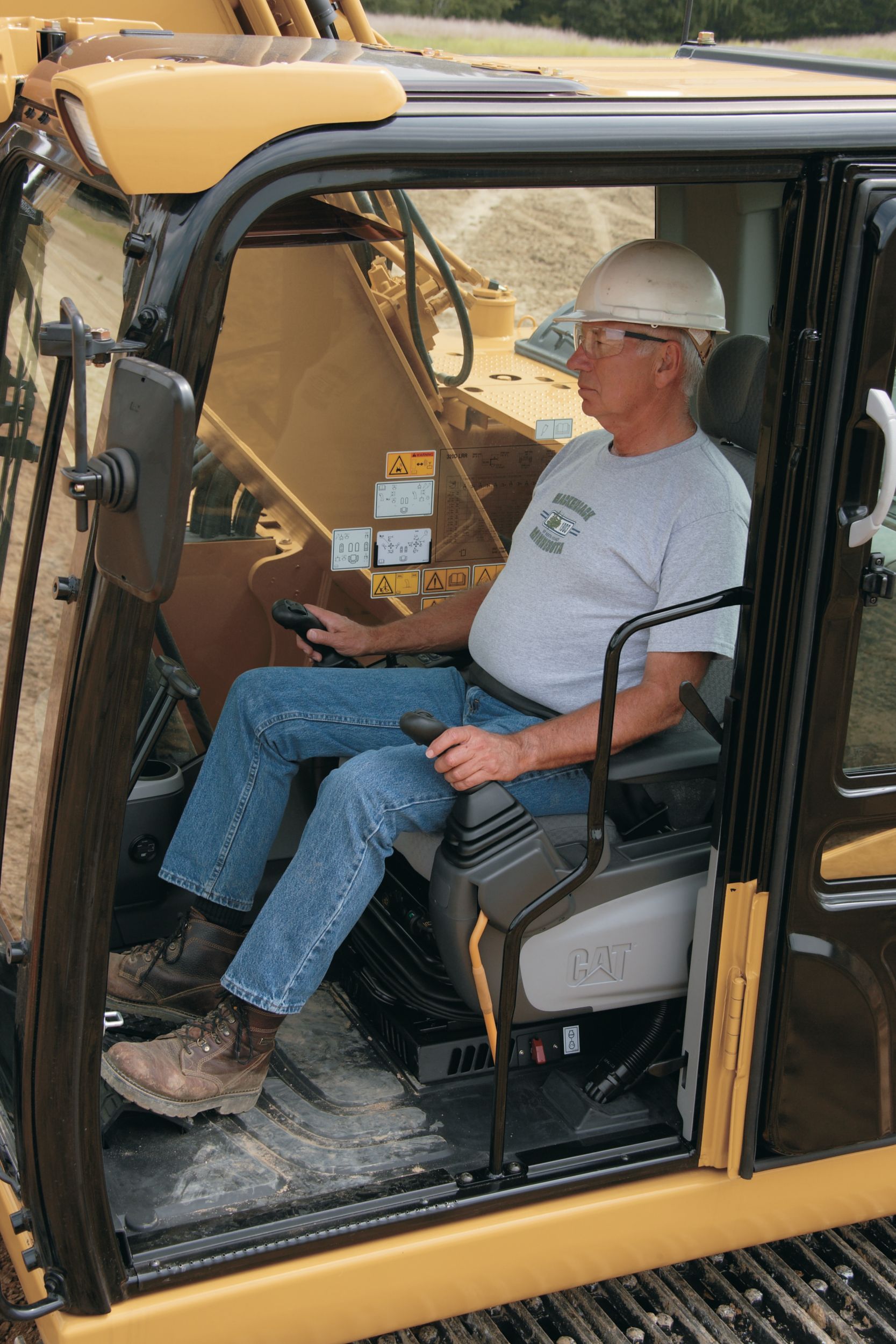

Operator Station

The layout of the interior has been redesigned to maximize operator comfort and reduce operator fatigue.
• Frequently used switches have been relocated for easier access.
• Consoles and armrests have been redesigned for better comfort and adjustability.
• More seat options - choose from the standard mechanical suspension seat, or the optional air suspension seat with heater. Both provide excellent comfort.

Standard Cab Equipment

To enhance operator comfort and productivity, the cab includes a lighter, drink holder, coat hook, service meter, literature holder, magazine rack and storage compartment.

Joystick Control

Joystick controls have low lever effort and are designed to match the operator's natural wrist and arm position.

Hydraulic Activation Control Lever

For added safety, this lever must be in the operate position to activate the machine control functions.

Automatic Climate Control

Fully automatic climate control adjusts temperature and flow, and determines which air outlet is best in each situation with a touch of a button.

Robust Undercarriage

A solid foundation built tough to absorb the stresses of everyday work.
• Rollers and idlers are sealed and lubricated to extend service life.
• Track links are assembled and sealed with grease to decrease internal bushing wear and increase life by as much as 25%, when compared to dry seal undercarriages.
• Spring recoil system stroke has been increased to better relieve excess track tension, which can occur when material builds up between the track and sprocket.

Front Linkage Options

The Reach Boom allows excellent all-around versatility and a large working envelope. It can be equipped with the following three sticks:
• R3.9B1 - offers maximum reach and digging depth
• R2.9B1 - performs well in a mid-range working envelope
• R2.5B1 - a good match when the job requires a larger bucket or a hammer

Wide Variety of Work Tools

Caterpillar offers a complete line of work tools to match all of your application needs:
• Hammers - matched to Cat machines for optimum performance
• Thumbs, Stiff Link, Full Rotation - transforms your 320D LRR into a versatile material handling machine
• Grapples - choose from a large variety of grapples that best suit your application
• Multi-processors - does the work of many types of demolition tools by use of interchangeable jaws
• Shears - features 360 degree rotation and high force to weight ratio
• Pulverizers - ideally suited for rapid, non-explosive demolition applications
• Vibratory Plate Compactors - provide superior compaction force in a reliable, low maintenance package
• Rippers - perfectly suited for trenching and pipeline applications where conditions aren't favorable to traditional ripping methods

Caterpillar Buckets

The most extensive choice of buckets that can optimize machine performance and match your application needs.
• General Purpose Buckets - for digging in low impact, moderately abrasive materials such as dirt, loam, gravel and clay.
• Heavy-Duty Buckets - for use in abrasive applications such as mixed dirt, clay and rock.
• Heavy-Duty power Buckets - for use in abrasive applications where breakout force and cycle times are critical - good for materials such as mixed dirt, clay and rock.
• Ditch Cleaning Buckets - wide and shallow for ditch cleaning, bank forming and finishing.

Caterpillar Ground Engaging Tools (GET)

Choose from a wide variety of tips that maximize bucket and machine performance. Sidecutters and sidebar protectors are also available.

Couplers

Multiply the versatility and utility of 320D LRR.
• Hydraulic Pin Grabber Plus - allows quick and easy tool changes without having to leave the cab. Picks up a large variety of tools equipped with standard pins.
• Dedicated Coupler - no loss of tip radius, maximizing the breakout forces on your 320D.

Machine Security

An optional Machine Security System is available from the factory on the 320D LRR. This system controls when the machine can be operated and utilizes specific keys to prevent unauthorized machine use, a significant theft deterrent.

Product Link

PL321 is standard from the factory and includes the following features:
• Engine hours
• Machine location
• Time based fences (when the machines can operate)
• Geo-based fences (boundaries that the machine can operate)
• Health Watch ° Codes from on-board EDM's/Sensors ° Estimated Fuel Consumption ° Fuel Watch
• Maintenance Watch
° Preventative Maintenance Planning ° Preventative Maintenance Checklists ° Overdue PM Notification ° PM History Recording

More Attachments

The 320D LRR offers the most options available to equip your machine to best match your application and work environment requirements. From track shoe size to guarding packages to operator comfort options, the 320D LRR offers more options.

Extended Service Interval

320D LRR service and maintenance intervals have been extended to reduce machine service time and increase machine availability.

Auxiliary Hydraulic Options

Allows you to configure your 320D LRR to meet your work tools needs, while increasing its versatility.
• Single Function Circuit - suited for tools that require one-way flow with both pumps, such as hammers, vibratory plate compactors.
• Double Function Circuit - suited for tools that require two-way flow, utilizing one pump, such as thumbs or non-rotation grapples or shears.
• Tool Control System - accommodates single or double function tools, as well as rotating tools when equipped with medium pressure.
- Stores pressure and flow information for up to 10 tools - Cat tools selectable that have preset flows and pressures - Shortcut button on right hand console, making tool selection easier.

Ground Level Service

The design and layout of the 320D LRR was made with the service technician in mind. Many service locations are easily accessible at ground level allowing critical maintenance to get done quickly and efficiently.

Air Filter/Radiator Compartment

The left rear service door allows easy access to the engine radiator, oil cooler and air-to-air-after-cooler. A wire mesh screen is provided between the aftercooler and radiator/oil cooler, where there is a wide enough clearance to blow off debris using a wand. The air filter, also located within this compartment features a double-element construction for superior cleaning efficiency. When the air cleaner plugs, a warning is displayed on the monitor screen inside the cab. The air filter, the access point for the washer tank, and maintenance points for electric components, such as the battery, circuit breaker and controller, are positioned behind the cab, in the air cleaner compartment. The jump-start receptacle, which is an attachment, is near the battery. When equipped, the hand control pattern changer is located within this compartment.

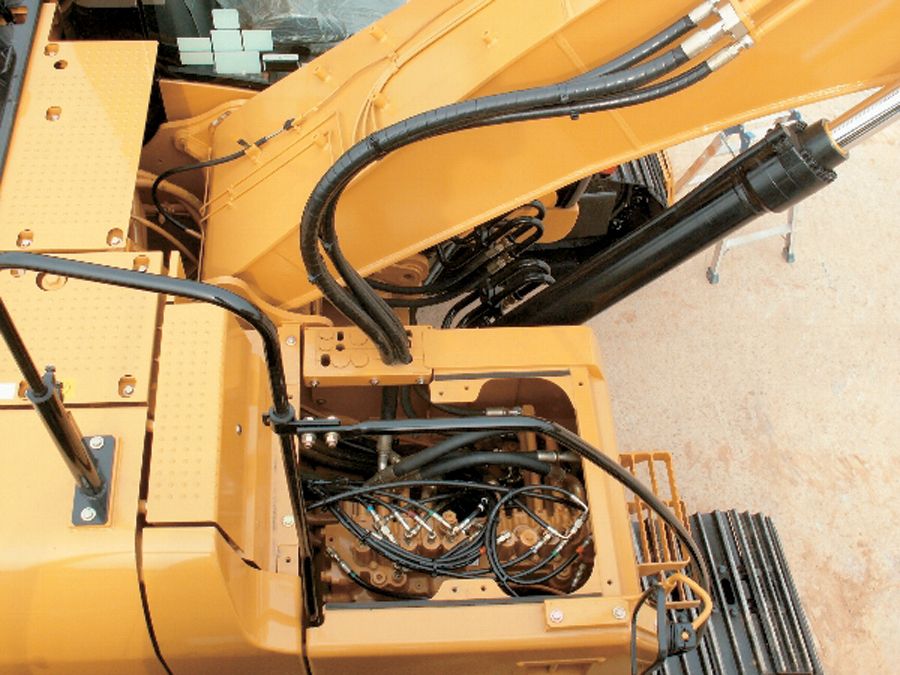

Pump Compartment

A service door on the right side allows for ground level access to the hydraulic pump, case drain and pilot filters.

Greasing Points

A concentrated remote greasing block on the boom delivers grease to hard-to-reach locations on the front.

Anti-Skid Plate

Anti-skid plate covers top of storage box and upper structure to prevent slipping during maintenance.

Diagnostics and Monitoring

The 320D LRR is equipped with S•O•SSM sampling ports and hydraulic test ports for the hydraulic system, engine oil, and for coolant. A test connection for the Cat Electronic Technician (Cat ET) service tool is located in the cab.

Product Support

You will find nearly all parts at our dealer parts counter. Cat dealers utilize a worldwide computer network to find in-stock parts to minimize machine down time. Save money with remanufactured components.

Machine Selection

Make detailed comparisons of the machines you are considering before you buy. What are the job requirements, machine attachments and operating hours? What production is needed? Your Cat dealer can provide recommendations.

Customer Support Agreements

Cat dealers offer a variety of product support agreements, and work with customers to develop a plan the best meets specific needs. These plans can cover the entire machine, including attachments, to help protect the customer's investment.

Operation

Improving operating techniques can boost your profits. Your Cat dealer has videotapes, literature and other ideas to help you increase productivity, and Caterpillar offers certified operator training classes to help maximize the return on your investment.

Maintenance Services

Repair option programs guarantee the cost of repairs up front. Diagnostic programs such as Scheduled Oil Sampling, Coolant Sampling and Technical Analysis help you avoid unscheduled repairs.

Replacement

Repair, rebuild, or replace? Your Cat dealer can help you evaluate the cost involved so you can make the right choice.
