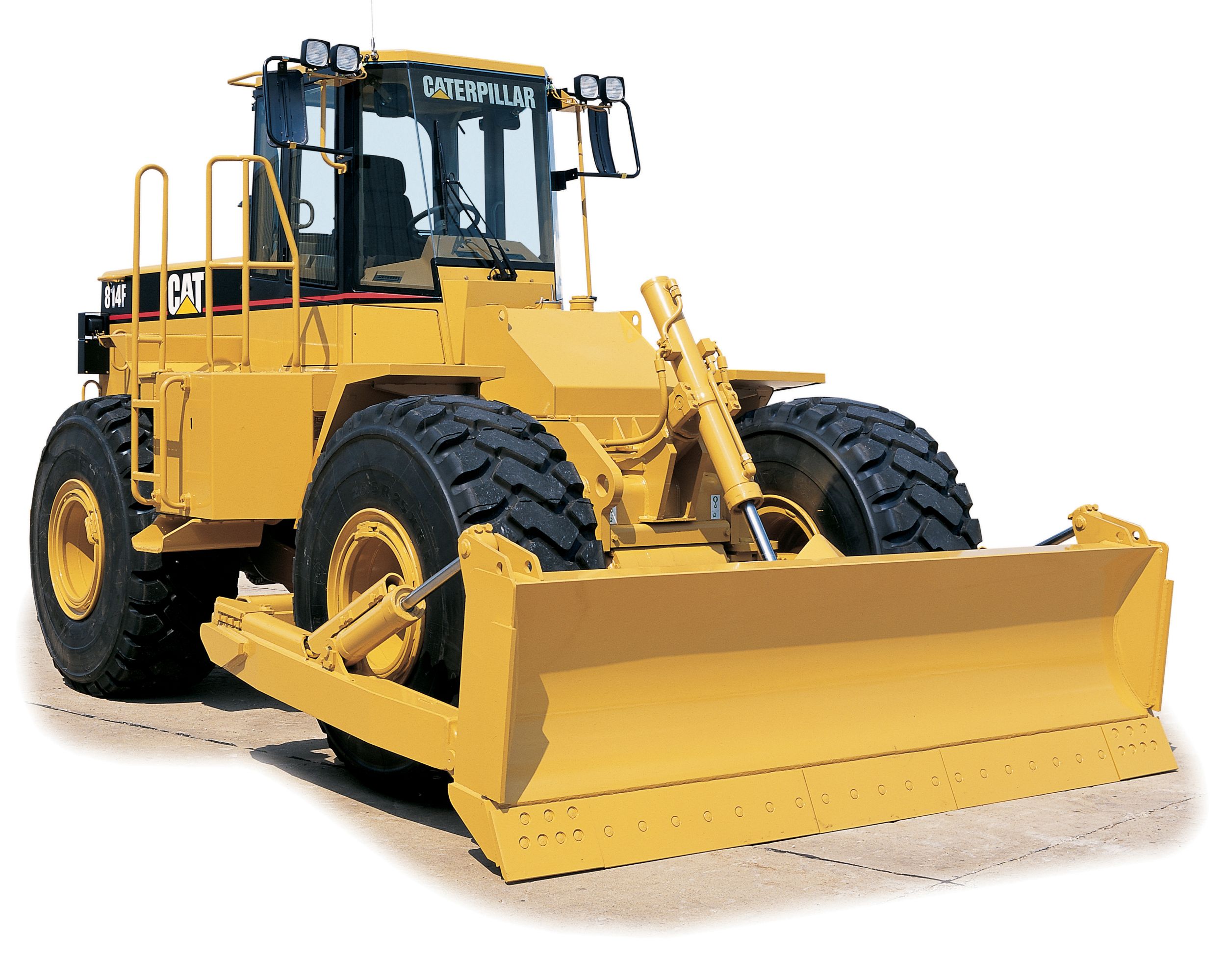

814F^Non-Current

Caterpillar 3176C Diesel Engine

Delivers, at a rated speed of 2,100 rpm, flywheel power of 179 kW (240 hp) and meets the U.S. Environmental Protection Agency Tier 2 emissions regulations and Stage II EU Emissions Directive 97/68/EC. With high horsepower and low displacement, this innovative engine provides excellent fuel economy and durability which can significantly reduce operating costs.

Torque Rise

Is increased as a result of the electronically controlled, computer actuated unit fuel system that provides high injection pressure and more precisely controlled fuel delivery as the engine lugs back from rated speed.

Advanced Diesel Engine Module (ADEM™ III) Fuel System

Is a Caterpillar electronic control module which provides improved engine response, performance, fuel efficiency, troubleshooting diagnostics and reduced emissions. It allows integration with the electronic transmission control for maximum power train efficiency.

Turbocharger

Packs more dense air into the cylinders for more complete combustion and lower emissions, improving performance and engine efficiency. These benefits are especially useful at high altitudes.

Air-to-Air Aftercooler

Reduces smoke and emissions by providing cooler inlet air for more efficient combustion. This also extends the life of the piston rings and bore.

Dual Cooling Jets

In the block spray oil on the piston skirt and cylinder bores keep ring temperatures low for long ring and liner life with excellent oil control.

Pistons

Are two piece articulated with forged steel crowns for excellent strength and aluminum skirts for reduced weight. Pistons are oil cooled for increased heat dissipation and longer life.

Valves

Four per cylinder allow for good airflow, enhancing fuel efficiency and heat rejection. Valves and unit injection system are camshaft-actuated for precise timing.

Crankshaft

Is a steel-forged, carburized and induction-hardened for long-term durability. It is dynamically balanced for smooth operation. The crankshaft is completely regrindable, and the connecting rods can be removed through the tops of the cylinders for easy servicing.

Caterpillar Engine Oil

Is formulated to optimize engine life and performance and is strongly recommended for use in Cat diesel engines. Engine oil change interval is increased to 500 hours.

Cat Remanufactured Part

Are available, along with dealer proposed repair options, which increase machine availability and reduce total repair costs.

Caterpillar Planetary Powershift Transmission

Features heavy-duty components to handle tough jobs. The 354.4 mm (13.6 in) planet drives operate in all gears, forward and reverse.

Heavy-Duty Axles and Brakes

Are designed to last in all kinds of operating conditions. Two front axles disc brakes provide improved braking capability and better heat dissipation. Planetary final drives use free-floating, bronze sleeve bearings in the planet gears. • Oil disc brakes are adjustment-free and fully enclosed to lock out contaminants.

Front Axle

Is rigidly mounted to the frame to support the weight of the compactor, internal torque loads and external loads applied during compacting and dozing operations.

Rear Axle

Includes a trunnion, two trunnion supports and associated bearings, allowing it to oscillate plus or minus 12 degrees.

Four Piece Axle

Contains two axle shaft housings - the center housing and the intermediate housing. Features and benefits of this design include: • Inboard brakes on the front axle only are positioned immediately adjacent to the differential and operate on the low torque side of the final drive, requiring less braking to stop the machine.

1 Exceptional All-Around Viewing Area

Reduces strain and fatigue, making operators more productive.

2 Caterpillar Monitoring System

With electronic analog gauges is a highly effective and reliable warning and diagnostic system. As a warning system, it constantly checks machine functions and tells the operator when there is a problem. Easy-to-read gauges display fuel level, temperatures for engine coolant, transmission and hydraulic oil, engine rpm and gear range. Hour meter, odometer and analog tachometer readings are also displayed. As a diagnostic system, it identifies conditions, shows current readings and plays back maximum or highest readings registered during recent operations. The right side panel contains a three level warning system, providing full-time monitoring of key functions. The system alerts the operator of immediate or impending problems with air inlet temperature, brake oil pressure, electrical system, low voltage, engine oil pressure, engine over-speed, fuel filter status, parking brake status, steering oil pressure and transmission filter status.

3 Quick Gear Kick Up/Down Button

Lets the operator easily downshift or upshift to a different gear. It is a convenient way to shift that saves time and effort.

4 Ignition Key Start/Stop Switch

Is positioned for easy machine starting and stopping.

5 12-Volt Power Supply and Cat Electronic Technician (ET) Diagnostics

Is provided inside the cab for powering radios, telephones or a laptop computer. This is particularly useful for powering a laptop running Cat ET to access the enhanced engine and transmission control system diagnostics.

6 Steering Column

Adjusts to multiple positions. The leather-like steering wheel and transmission control provide a sure grip and comfortable feel. The horn is conveniently located in the center of the steering wheel.

7 Pilot-Operated Blade Controls

Are conveniently located and allow for precise blade movement.

8 Contour Seat

Is designed for comfort and support. Seat cushions reduce pressure on the lower back and thighs while allowing unrestricted arm and leg movement. • A fully adjustable air suspension seat with self-contained compressor is available as an option.

9 Built-In Storage Space

Is designed to hold cups, lunch box, insulated bottle and personal items.

10 Repositioned Vents

Throughout the cab keep fresh air flowing while improving the cab's heating, cooling, defrost and defog capability.

11 Throttle Lock

Allows and operator to set the engine speed and remove his foot from the governor (accelerator) pedal much like cruise control on an automobile. Using this feature increases productivity, fuel efficiency and improves operator comfort.

12 Decelerator Pedal

On the left acts as both an engine decelerator and a brake that overrides the engine speed selected by the throttle lock. This enables the operator to slow down when throttle lock is engaged and to return to throttle lock without pressing a button. It aids in maneuvering around shovels, haul trucks, tractors or any other obstacle.

13 Windshield Washers/Wipers

With in-the-blade washer delivery system are standard features on front and rear windows. The front wiper has intermittent speed capability.

Blade Package

Consists of blade, push arms, trunnion mounting, dozer length skid plate, reversible cutting edges, self-sharpening end bits, hydraulic lines guard and hydraulic blade cylinders.

Outside Mounted S-Blade

With multiple box section construction including heat treated moldboard and DH-2 steel cutting edges and end bits does light production dozing, spreads fill, backfills, cleans up around trucks and shovels. The outside mounting is a stronger design because stresses are put on the frame rather than the blade so blade flexing is reduced. It also allows for higher lift and a wider blade can be used than with an inside mounted design.

Operator Controls

Lift and tilt/tip are standard options and the levers are located to the right of the operator.

Application

Does light production work, including dozing, spreading fill, backfilling, stockpiling, charging hoppers and cleaning up around trucks and shovels.

Blade Options

Contact Caterpillar Work Tools and Services for additional blade options which include:
• Coal scoop with tilt
• Woodchip scoop with tilt
• Coal U-blade with 25 degree wing angle

Straight Blade

Is standard on the 814F.

Dozer Front Frame

Built specifically to handle greater amounts of rimpull, the machine can readily push its weight plus the weight of the material for long distances in heavy dozing applications.

Tire Options

Are available from Goodyear (two options) and Michelin (two options).

Counterweight

Is located on either side of the push arms. For each specific application, there is a correct machine weight for proper balancing of traction, flotation, mobility and response. Lower machine weight is usually required for typical second gear applications such as fill spreading, stockpiling, road maintenance, towing implements and shovel cleanup. Higher machine weight is usually required for such typical first gear applications as heavy dozing and push loading.

Air Conditioner

Uses blended air and R134a refrigerant for immediate temperature changes.

Air Suspension Seat

Provides added comfort for the operator so productivity stays high.

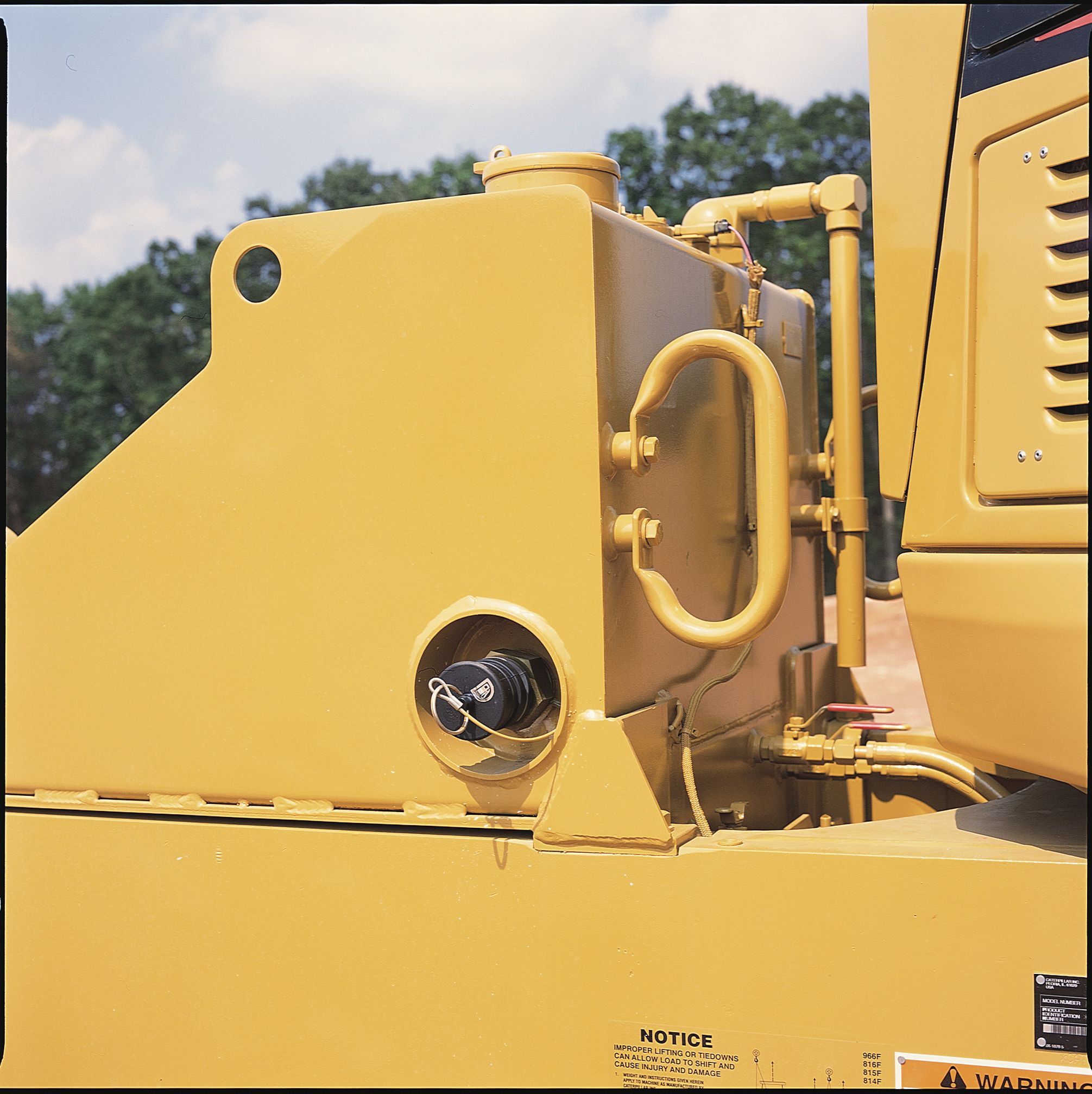

Fast Fill Adapter

Used during peak periods when high production is needed and little down time can be afforded for fueling. Fuel is pumped into the tank through a filling nozzle at rates up to 378.5 liters (100 gallons) per minute. As fuel enters the tank, air is forced out through an open vent. When the tank is full, the vent closes and the filling nozzle.

Caterpillar Monitoring System

Provides diagnostics that allow technicians to review a machine's operation and quickly troubleshoots problems. Operating parameters, diagnostic codes and out-of-range readings are displayed through the diagnostic connector.

Cat Electronic Technician (ET)

Is a software program which allows the service technician to find and identify a problem on a machine and to analyze how to fix it quickly. Cat ET provides the capability to access the electronic control modules from a personal computer. The Cat ET is used for:
• Viewing active and non-active diagnostic codes and clearing them after repair.
• Displaying the status of all parameters such as engine speed, gear engaged, control levers position, control switch position, etc.
• Performing diagnostic tests and calibrations of electro-hydraulic components.
• Viewing current configurations and changing parameter settings.
• Flashing new Caterpillar software in the electronic control modules.
• Recording all parameters during machine operation.
A customer version of Cat ET is also available for your fleet of Caterpillar equipment. Contact your Caterpillar dealer for more detailed information.

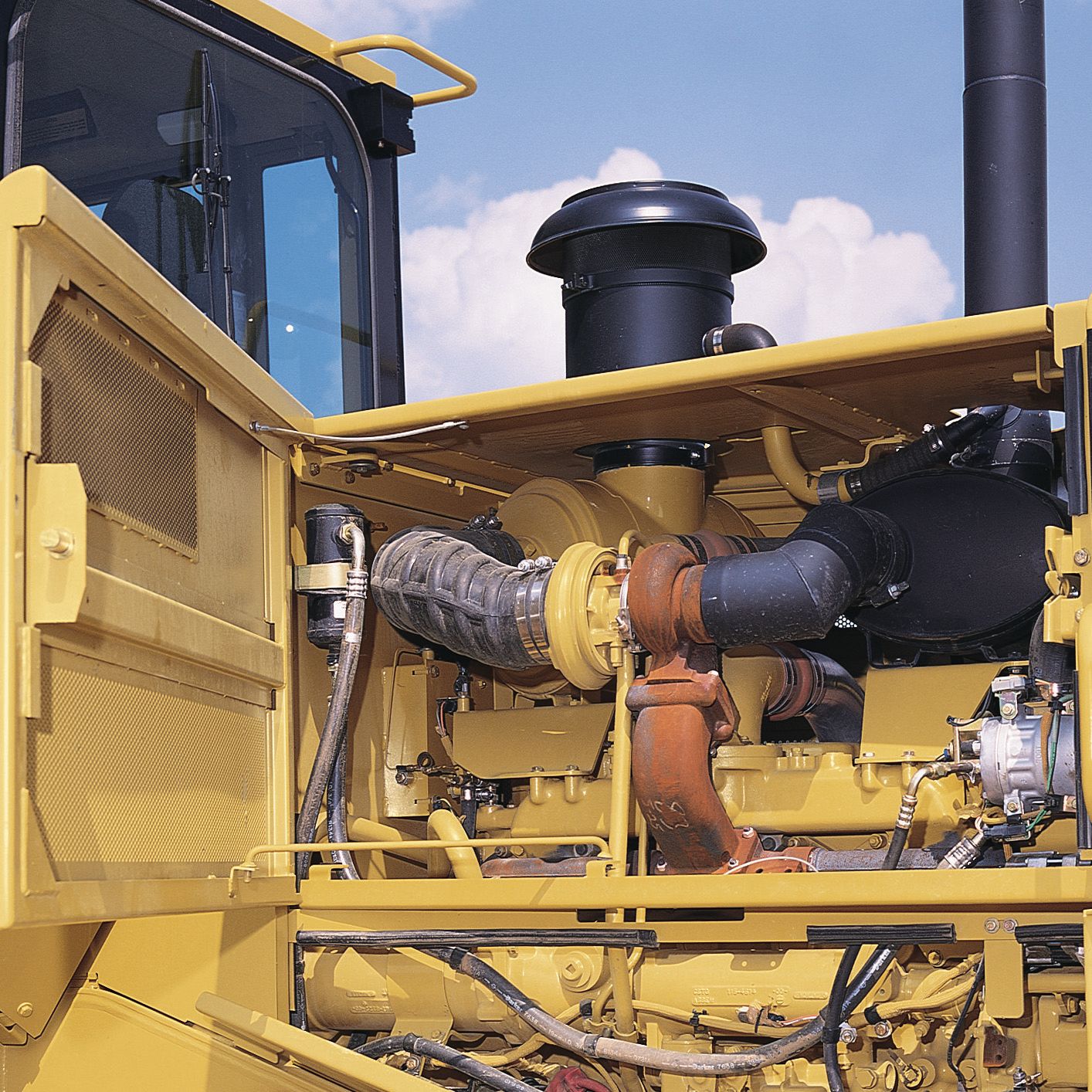

Engine Access

All metal engine enclosure and hinged access doors allow for easy daily maintenance and inspections.

Left Side Service Access

Provides convenient entry to the engine oil filter, grease points, air filter, power train oil dipstick, coolant sight gauge, power train oil fill, power train oil filter and high speed engine oil fill.

Right Side Service Access

Features that are easily reached under the hood include fuel filter and water separator, fuel primer and engine oil dipstick.

500 Hour Oil Change Interval

Increases uptime and production by doubling the time between oil and filter changes without requiring increased oil sump capacity.

Caterpillar Scheduled Oil Sampling

Helps ensure better performance, longer life and increased customer satisfaction. It is an extremely thorough and reliable early warning system which detects traces of metals, dirt and other contaminants in your engine, axle, transmission and hydraulic oil. S·O·SSM can predict potential trouble early, thus avoiding costly unscheduled failures. Your Caterpillar dealer can give you results and specific recommendations shortly after receiving your sample.

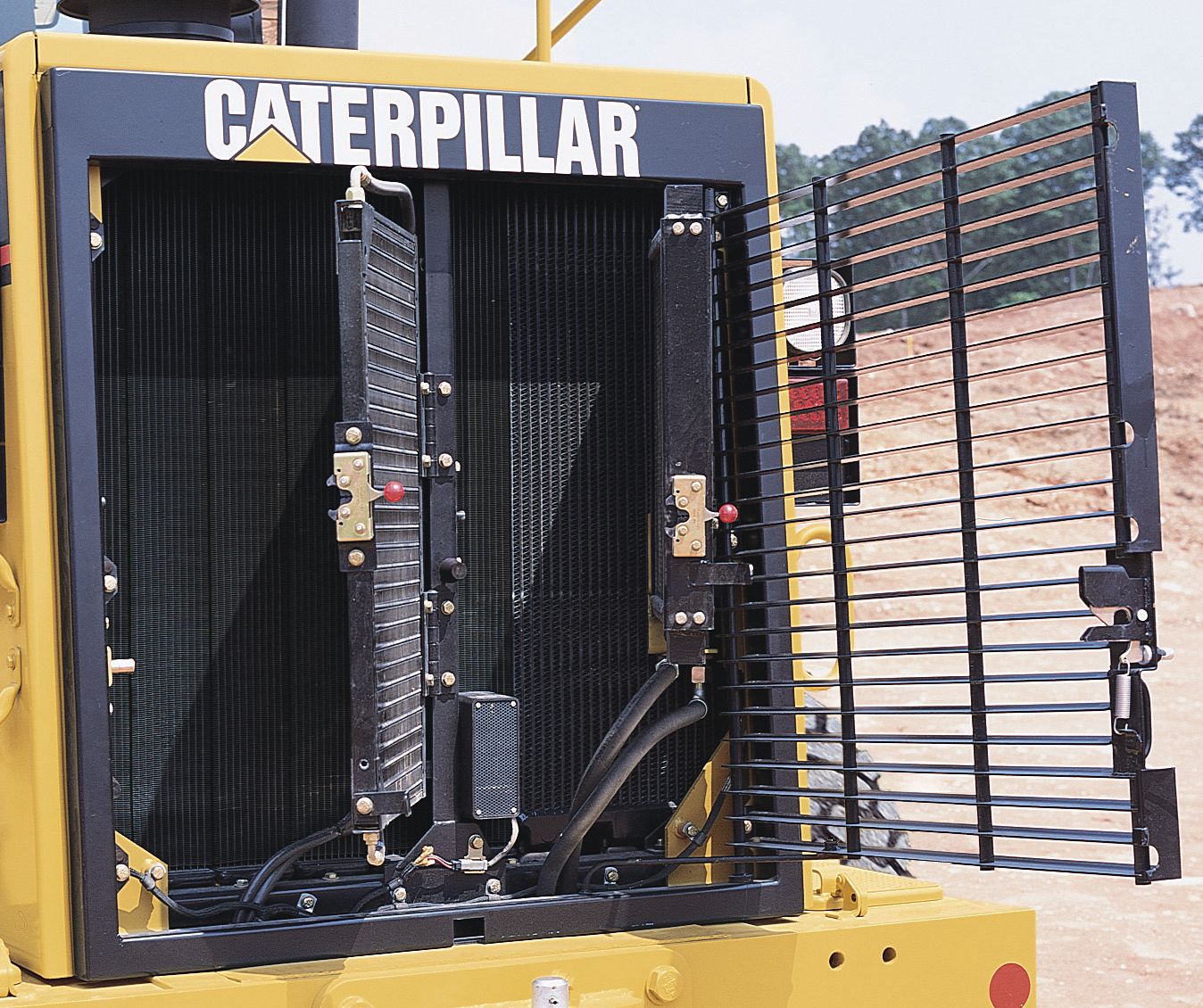

Hinged Hydraulic Oil Cooler and Air Conditioning Condenser

Swing open without special tools and allows the cooling system to be cleaned quickly and easily.

Engine Shutdown Switch

Is located inside engine enclosure panel for simple access and extended switch life.

Battery Box

Is located in the right side bumper for convenient access to the maintenance-free batteries.

Tool Box

Is located in the left side bumper for additional protection against harsh work environments.

Machine Selection

Make detailed comparisons of the machines under consideration before purchase. Cat dealers can estimate component life, preventative maintenance cost and the true cost of lost production.

Purchase

Look past initial price. Consider the financing options available as well as day-to-day operating costs. Look at dealer services that can be included in the cost of the machine to yield lower equipment owning and operating costs over the long run.

Customer Support Agreements

Cat dealers offer a variety of product support agreements and work with customers to develop a plan that best meets specific needs. These plans can cover the entire machine, including attachments, to help protect the customer's investment.

Product Support

You will find nearly all parts at our dealer parts counter. Cat dealers use a worldwide computer network to find in-stock parts to minimize downtime. Save money with genuine Cat Reman parts. You receive the same warranty and reliability as new products at cost savings of 40 to 70 percent.

Operation

Improving operating techniques can boost your profits. Your Cat dealer has training videotapes, literature, application and equipment training courses and other ideas to help you increase productivity.

Maintenance Services

More equipment buyers are planning for effective maintenance before buying equipment. Choose from your dealer's wide range of maintenance services at the time you purchase your machine. Repair option programs guarantee the cost of repairs up front. Diagnostic programs such as S·O·SSM and Coolant Sampling and Technical Analysis help you avoid unscheduled repairs.

Replacement

Repair, rebuild or replace? Your Cat dealer can help you evaluate the cost involved so you can make the right choice.
