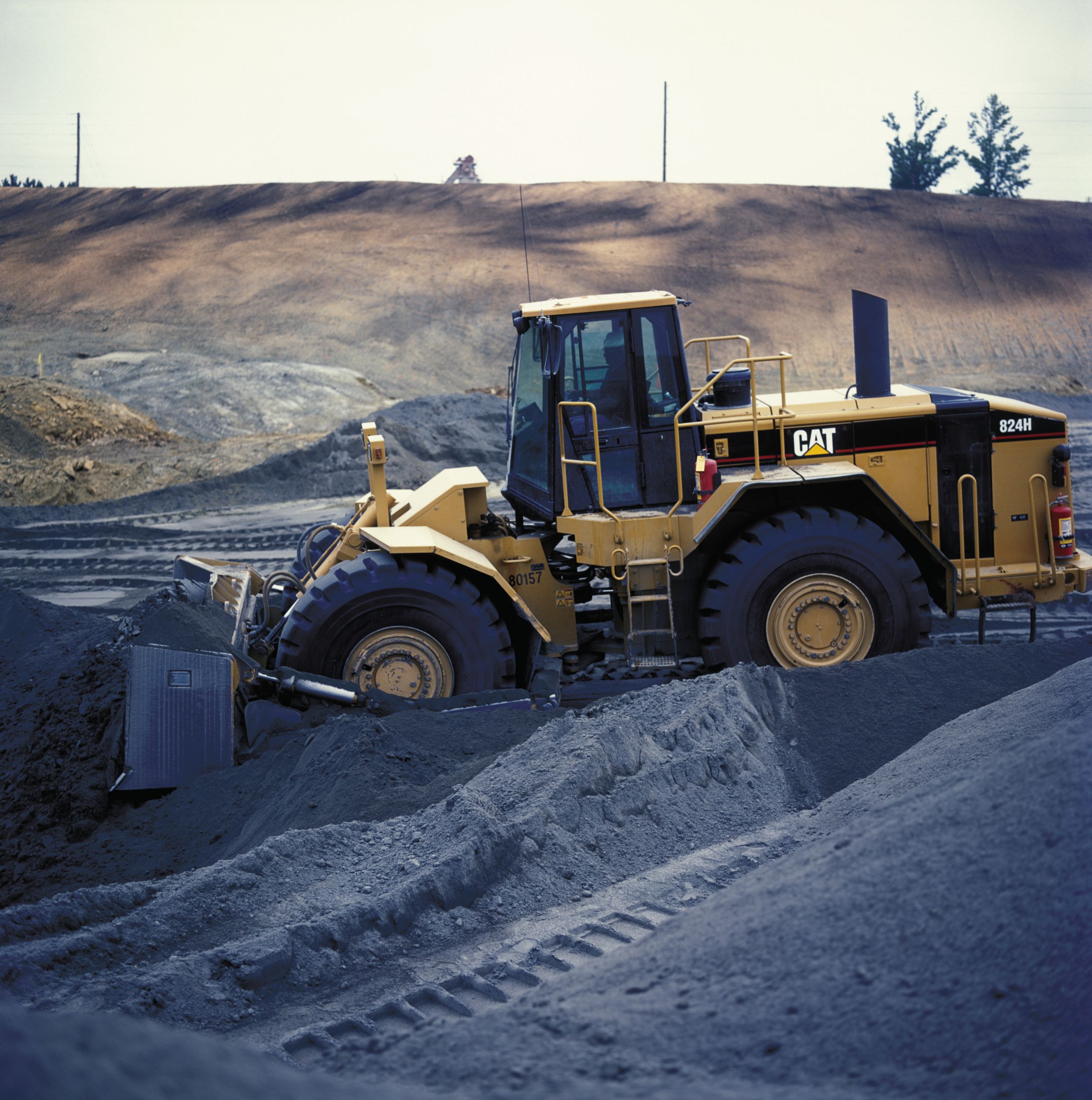

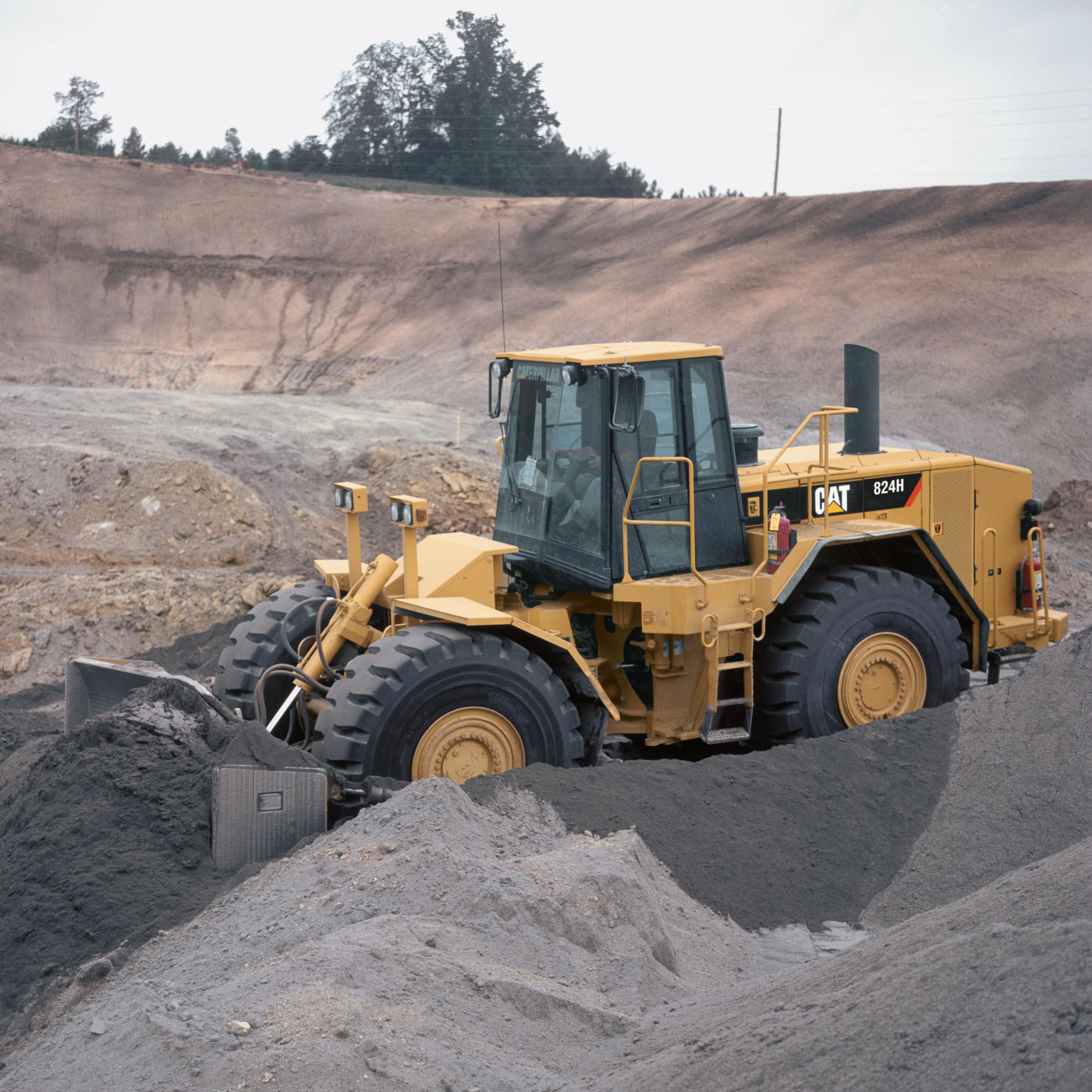

Cat® coal scoops have been proven in the field, helping customers achieve top efficiency and productivity while keeping costs down. With the 824H, you get a purpose built machine that provides industry leading uptime, safety, serviceability and operator comfort.
Engine Model | Cat® C15 ACERT™ |
Net Power | — |
Operating Weight | — |
Engine Model | Cat® C15 ACERT™ |
Net Power | — |
Net Power - EEC 80/1269 | — |
Net Power - ISO 9249 | — |
Bore | — |
Stroke | — |
Displacement | — |
Direct Drive - Flywheel Power | — |
Direct Drive - Gross Power | — |
Converter Drive - Flywheel Power | — |
Converter Drive - Gross Power | — |
Converter Drive - Forward 1 | — |
Converter Drive - Forward 2 | — |
Converter Drive - Forward 3 | — |
Converter Drive - Forward 4 | — |
Converter Drive - Reverse 1 | — |
Converter Drive - Reverse 2 | — |
Converter Drive - Reverse 3 | — |
Converter Drive - Reverse 4 | — |
Brakes | Meet SAE/ISO 3450 1996 |
Front | Planetary-Fixed |
Oscillating Rear | ±13 |
Operating Weight | — |
Fuel Tank | — |
Cooling System | — |
Crankcase | — |
Transmission | — |
Hydraulic Tank | — |
Differential - Final Drives - Front | — |
Differential - Final Drives - Rear | — |
Cab | ROPS/FOPS is standard |
Sound Performance Levels | Meet ANSI/SAE, SAE and ISO standards |
ROPS/FOPS | Meets SAE and ISO standards |
Carry | — |
Doze | — |

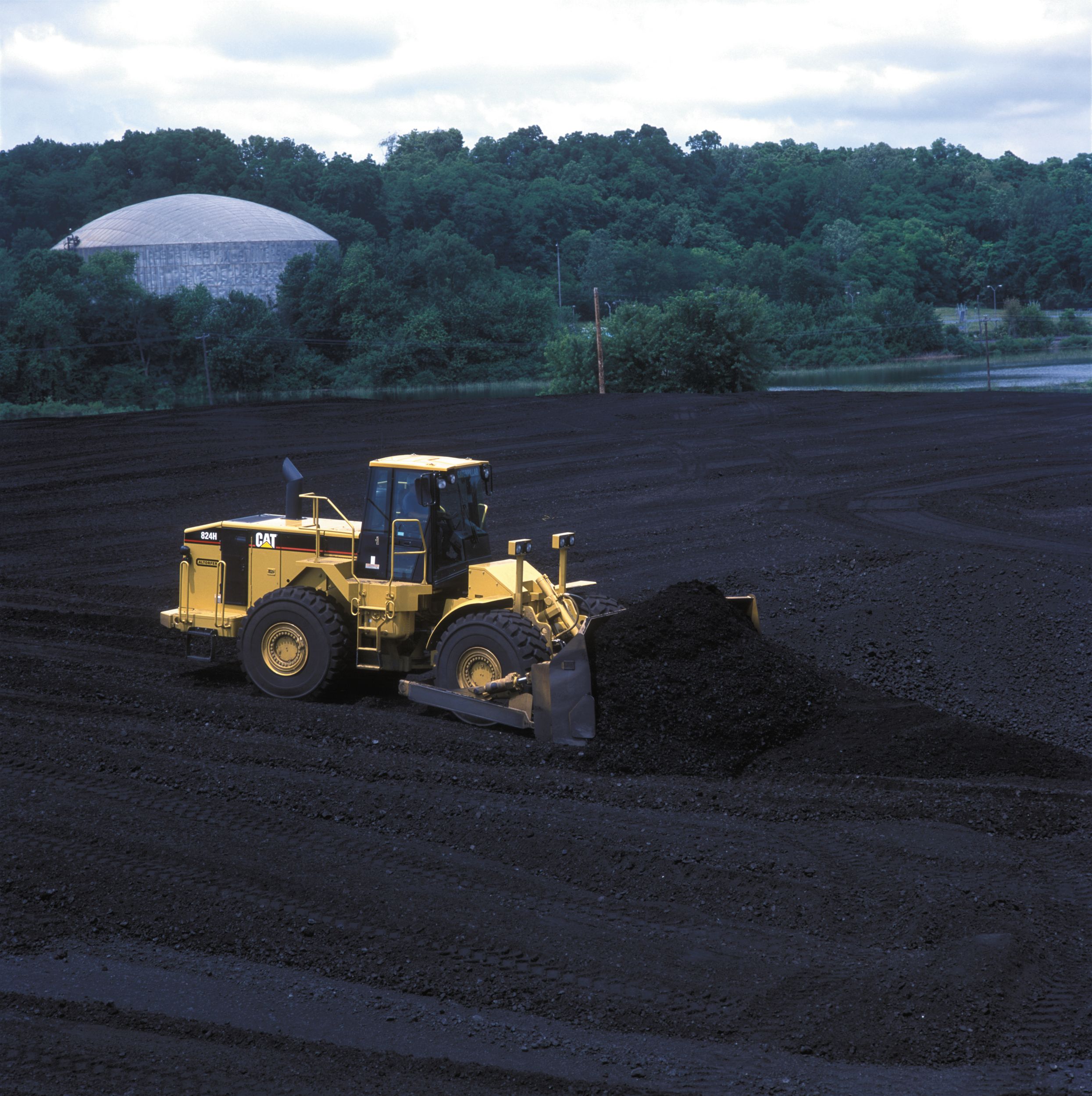

Cat coal scoops have the unique capability of maximizing your production by both dozing and carrying a load with each pass. A purpose built hydraulic system is optimized for use with this work tool to maximize machine productivity and efficiency.
The ICTC works with throttle lock to allow the operator to modulate rimpull to the wheels and slow the machine down without reducing engine speed. This allows the machine to maintain full hydraulic power for blade and steering control which gives the 824H a hydrostatic feel while keeping the benefits of the world's most efficient and powerful drive train and powershift transmission with lock-up control system.
The fixed front, oscillating rear axle ensures four-wheel ground contact for optimum traction and stability. The front axle is rigidly mounted to the front loader frame, while the rear axle is allowed to oscillate. This configuration allows the operator's view of the scoop to remain constant as the rear axle oscillates enabling the operator to maintain a smooth and properly graded work area in any underfoot conditions.
The steering system utilizes a variable displacement pump for maximum machine performance by directing power through the steering system only when needed. This improves efficiency and reduces heat build up.
The Cat C15 engine with ACERT technology is U.S. EPA Tier 3 and EU Stage III compliant. It features increased horsepower and efficient fuel management for quick response, high productivity and exceptional service life. A sculptured cylinder block provides greater strength and is lighter weight.
Electronic shifting provides smooth, consistent shifts. Large diameter clutches coupled with four planet gear trains provide added durability for extended, trouble free life.
Combining the use of robotic welding and castings in critical high stress areas, more than 80 percent of the machine structure is robotically welded to provide highly consistent welds and increased strength. Castings are also used in several areas to increase strength by helping spread the loads and reduce the number of parts.
Getting on and off the machine is one of the leading causes of injury on a job site. Cat coal scoops have a number of features to ensure your operator gets safely on and off the machine. They include primary and secondary stairwell exits, punch stamped tread plates, ground level nighttime stairwell light switch, full perimeter railings on upper platforms, side platform emergency egress and toe kicks and optional roading fenders.
With the new optional rearview camera, visibility is greatly enhanced. The camera is located in a pocket on the grill to protect it from damage and the elements. The camera can be set to activate only when the transmission is in reverse to help eliminate distractions in the cab, especially when in dark environments.
Cat coal scoops offer a number of standard and optional features to enhance job site visibility. Standard and optional features include articulated wiper/washer system with intermittent features, optional rear vision camera, optional high intensity discharge lights, optional warning beacon and optional turn signals.
The optional swing out radiator fan provides for easy access to the radiator cores for easy cleaning and inspection.
The fan reverses automatically at preset intervals to remove debris from the inlet screen. It can also be reversed manually from the cab.
The demand fan automatically adjusts fan speed for optimal cooling, resulting in reduced power draw on the engine, better fuel efficiency and more power for hydraulics and rimpull.
Swing out doors on both sides of the engine compartment provide easy access to the engine oil dipstick and filler spout, S·O·SSM ports, fuel filters air conditioner compressor, engine oil filters, alternators, starting receptacle, air filter service indicator, cooler fill and ether starting aid. There are also ground level viewable sight gauges on all major systems and centralized remote pressure taps.
An electrical disconnect switch and hydraulic lockout switch allow service technicians to perform maintenance while the machine stays static. Other shutdown or lockout devices include ground level engine shutdown and ground level steering hitch lock lever.
A comfortable operator is a productive operator, which is why Caterpillar has designed the 824H with a best-in-class working environment for this size scoop. The world class cab incorporates features for operator comfort and ergonomics, visibility and ease of operation. An updated Implement Pod is fully adjustable and designed for low-effort comfort. Switches and controls are located within easy reach of the operator. Interior noise levels are reduced to a quiet 73 dB(A). Options include heated seat for cold weather operations and Bluetooth, MP3, or satellite radio options.
