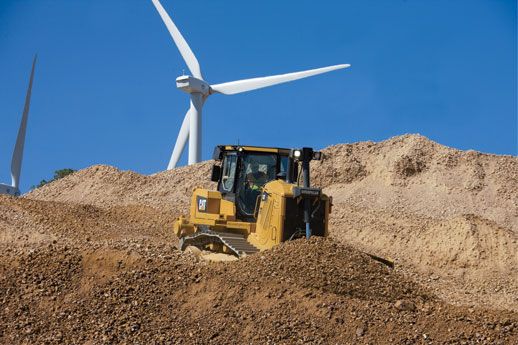

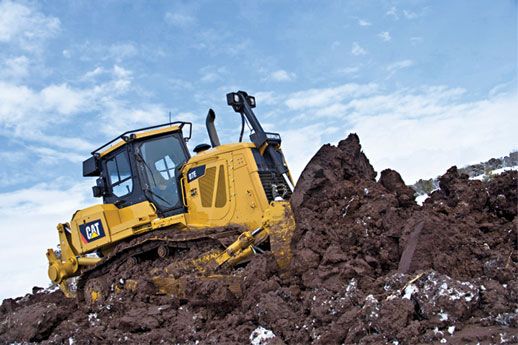

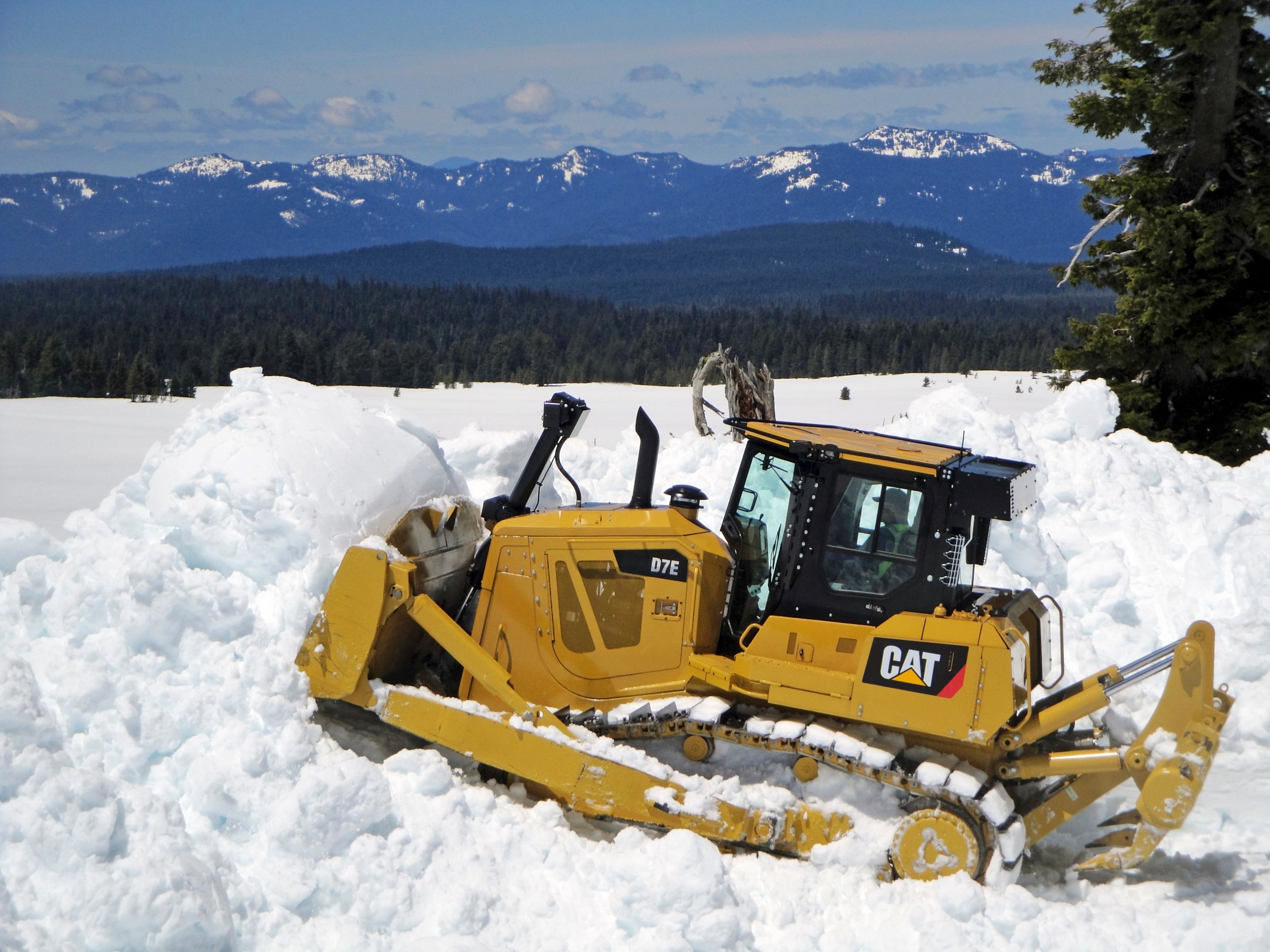

D7E (U.S. Tier 4 Interim/EU Stage IIIB/Japan MLIT Step 4)Non-Current
D7E -2013,Tier 4 Interim,NACD,EU,ANZ,Japan,Israel,Turkey
Overview

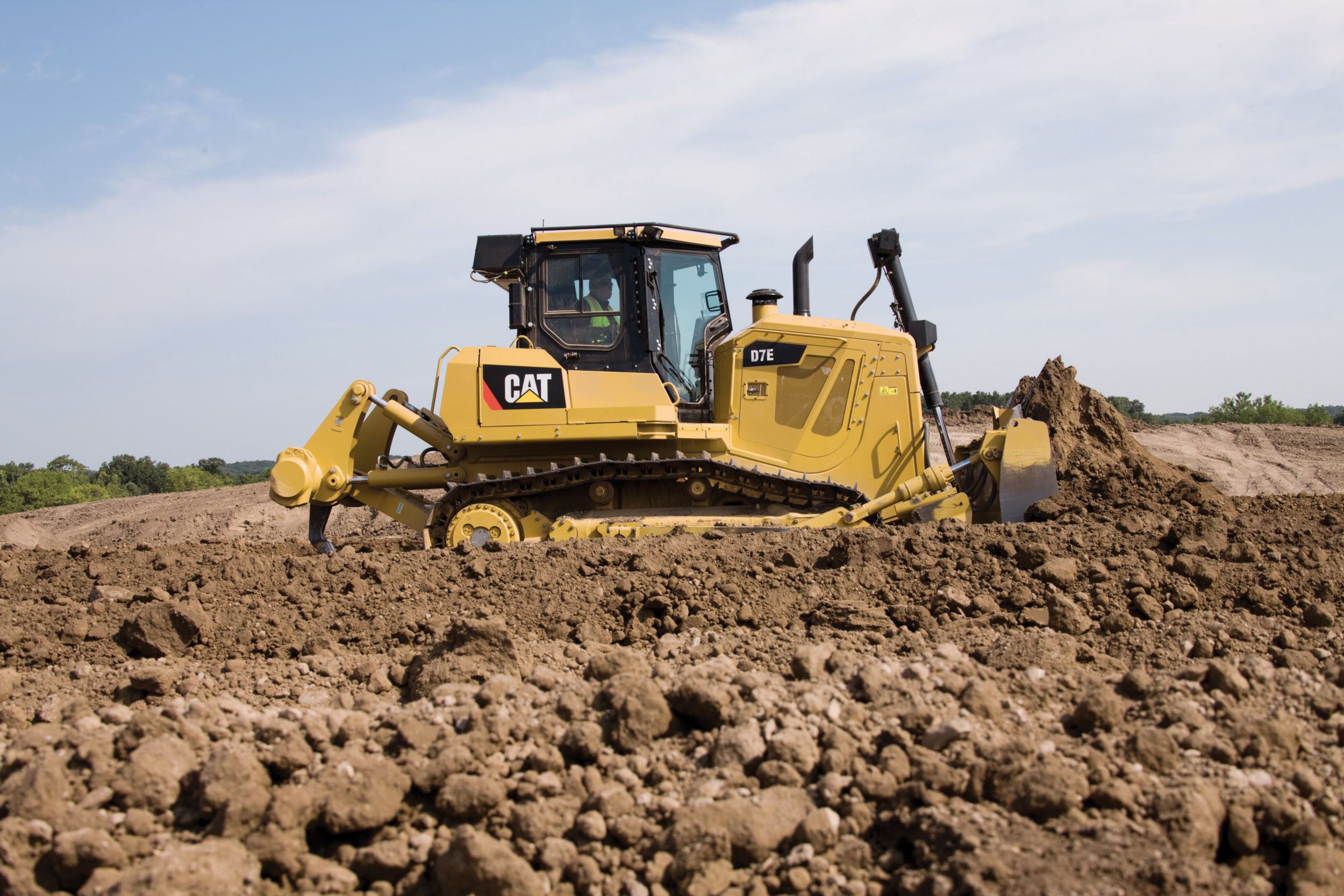

The Cat D7E was designed to meet growing demand for powerful yet highly maneuverable track-type tractors. By adapting electric drive technology to the unique requirements of dozer applications, Caterpillar has developed an all-new class of tractor that delivers the best possible balance of heavy-dozing and fine-grading performance. The innovative diesel-electric powertrain is also designed to burn considerably less fuel and consume fewer fluids and parts for reduced owning and operating costs. Improved productivity and efficiency means getting more work done while using fewer resources. The D7E meets U.S. Tier 4 Interim/EU Stage IIIB/Japan MLIT Step 4 emission standards.
Specifications
| Engine Model | Cat® C9.3 ACERT™ |
| Flywheel Power | — |
| Operating Weight | — |
Benefits & Features
Specifications
| Engine Model | Cat® C9.3 ACERT™ |
| Flywheel Power | — |
| Bore | — |
| Stroke | — |
| Displacement | — |
| Net Power - Maximum - ISO 9249/SAE J1349 (DIN) | — |
| Engine Power - Maximum - SAE J1995 | — |
| Net Power - Maximum - ISO 9249/SAE J1349 | — |
| Net Power - Rated - ISO 9249/SAE J1349 (DIN) | — |
| Net Power - Rated - ISO 9249/SAE J1349 | — |
| Global Emissions | U.S. Tier 4 Interim/EU Stage IIIB/Japan MLIT Step 4 |
| Engine Power - Maximum - ISO 14396 | — |
| Engine Power - Maximum - ISO 14396 (DIN) | — |
| Fuel Tank | — |
| Cooling System | — |
| Engine Crankcase | — |
| Final Drive - Each | — |
| Pivot Shaft Compartment | — |
| Hydraulic Tank | — |
| Final Drive - Each - LGP | — |
| Powertrain | — |
| Operating Weight | — |
| Shipping Weight | — |
| Shipping Weight - STD | — |
| Operating Weight - STD SU | — |
| Shipping Weight - LGP | — |
| Operating Weight - LGP S | — |
| Tilt Cylinder Flow - Head End Flow | — |
| Tilt Cylinder Flow - Rod End Flow | — |
| Pump Output - Implement | — |
| Pump Type | Piston, Variable Displacement |
| Pump Output - Steering | — |
| Lift Cylinder Flow | — |
| Ripper Cylinder Flow | — |
| Pressure Setting - Steering | — |
| Ripper - Lift | — |
| Bulldozer | — |
| Ripper - Pitch | — |
| Steering | — |
| Tilt Cylinder | — |
| Maximum Penetration Force | — |
| Beam Cross Section | — |
| Each Additional Shank | — |
| Shank Gauge | — |
| Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole | — |
| Pry-Out Force | — |
| Ramp Angle | — |
| Weight - With One Shank | — |
| Pocket Spacing | — |
| Shank Section | 72 mm × 228 mm (2.8 in × 9.0 in) |
| Type | Multi-Shank |
| Number of Pockets | 3 |
| Overall Beam Width | — |
| Maximum Penetration | — |
| Winch Case - Length | — |
| Maximum Full Drum - Line Speed | — |
| Winch Model | PA90 |
| Maximum Bare Drum - Line Pull | — |
| Rope Diameter - Recommended | — |
| Weight | — |
| Throat Clearance | — |
| Winch Case - Width | — |
| Installed Weight | — |
| Overall Width | — |
| Maximum Full Drum - Line Pull | — |
| Maximum Bare Drum - Line Speed | — |
| Control | Electronic/Hydraulic |
| Cable Ferrule Size - O.D. × Length | 60 mm × 65 mm (2.38 in × 2.56 in) |
| Winch Length | — |
| Winch Drive | Hydraulic |
| Oil Capacity | — |
| Winch and Bracket Length | — |
| Increased Tractor Length - STD | — |
| Increased Tractor Length - LGP | — |
| Drum Diameter | — |
| Drum Width | — |
| Flange Diameter | — |
| Drum Capacity - 24 mm (1 in) | — |
| Drum Capacity - 29 mm (1.13 in) | — |
| Ferrule Size (O.D. × Length) | 60 mm × 65 mm (2.38 in × 2.56 in) |
| ROPS | Rollover Protective Structure (ROPS) meets the following criteria: ISO 3471:2008 |
| FOPS | Falling Object Protective Structure (FOPS) meets the following criteria: ISO 3449:2005 Level II |
| Cab | ANSI/SAE J1166 OCT98 |
| Brakes | Crawler Machine Brake Requirements meets the following criteria: ISO 10265:2008 |
| AC Compressor Nominal Input Voltage | — |
| Electric Water Pump System Nominal Input Current | — |
| AC Compressor Maximum Input Current | — |
| Electric Water Pump System Nominal Input Voltage | — |
| Type | Electric Drive |
| AC Generator and Propulsion Module Voltage | — |
Benefits & Features
Powertrain
The electric generator, power inverter and propulsion module in the electric drive system replace traditional mechanical components such as a torque converter and transmission. The Cat C9.3 engine with ACERT Technology turns a powerful electric generator that efficiently converts mechanical energy into AC electrical current. Electrical current from the generator flows through specially armored cables and military grade connectors to a solid-state power inverter. Advanced electronics send AC current to the propulsion module to control the motors and provides DC current for the accessory systems. The propulsion module delivers well-modulated torque via axles to the final drives. Consisting of state-of-the-art AC electric motors - and connected to the D7E updated differential steering system - the propulsion module has no moving electrical contacts and few moving mechanical parts. All electrical components are fully sealed to safely operate in a wide range of dozing conditions. Liquid cooling ensures that the electric drive components deliver peak performance in extreme temperature conditions. The D7E electric drive system is highly efficient at delivering engine power to the ground. Infinitely variable speed control, means there are no gears to shift. Operators can concentrate on the task and the job site, rather than on shifting gears and managing engine speed. Training is simplified as well. A proven differential steering system combines with electric drive to make the D7E the only system that can perform locked-track pivot turns for better maneuverability. A dedicated D8-size steering pump delivers improved performance.
Benefits
- Fuel efficiency: 10 - 30 percent less fuel burned per hour.
- Reduced owning and operating costs: Fewer moving parts, longer drive train component life, reduced lifetime service and maintenance.
- Resourceful: Designed to use less fuel and fluids, and fewer replacement parts.
- Increased efficiency: Lower fuel usage per cubic yard of material moved.
- Increased productivity: More material moved per hour.
- Versatility: Power, smooth operation and maneuverability for a wide variety of applications.

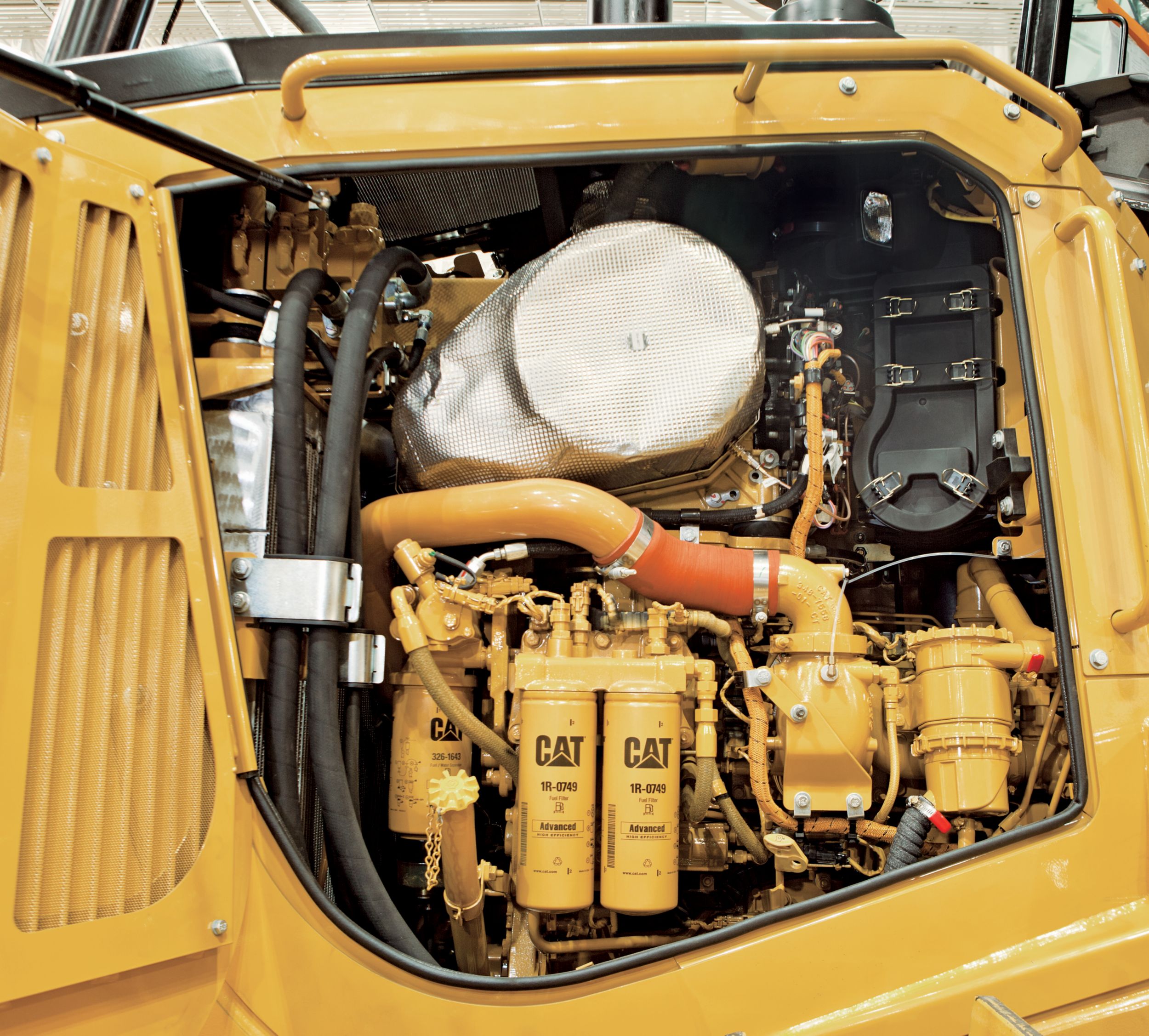

Engine
The D7E features a Cat C9.3 ACERT engine and a Cat Clean Emissions Module aftertreatment to deliver the performance and efficiency that customers demand, while meeting U.S. Tier 4 Interim/EU Stage IIIB/Japan MLIT Step 4 emission standards. The efficient drivetrain allows the engine to operate in a tighter rpm range, 1,500 - 1,800 rpm, which helps extend engine life and improve fuel economy. The increased drivetrain efficiency also allows the machine to achieve greater performance at lower horsepower than previous models, adding even more to the D7E overall benefits.
Features
- Serviceability: Electric priming pump and easier engine access make service easier.
- Leak Protection: Components are sealed, preventing leaks and protecting fluids from contamination.
Cooling System
The D7E cooling system uses a three-part radiator built with rugged, highly efficient aluminum bar cores for charged air, jacket water, and the separate circuit. Although the jacket water and separate circuit coolant operate at different temperatures, the radiator appears and acts as one integrated unit. Airflow is managed by a hydraulic variable speed demand fan, reducing power requirements and fuel consumption. A molded shroud ensures efficient air flow through the radiator and the fan utilizes lightweight, durable blades for high efficiency and quiet operation. A larger gap between fins reduces plugging, and the single-plane design allows for easier cleaning and service.
Emissions Technology
Cat NOx Reduction System
The Cat NOx Reduction System captures and cools a small quantity of exhaust gas, then routes it into the combustion chamber where it drives down combustion temperatures and reduces NOx emissions.
Aftertreatment Technologies
To meet U.S. Tier 4 Interim/EU Stage IIIB/Japan MLIT Step 4 emission standards, Cat aftertreatment components have been designed to match application needs. System components include a Diesel Oxidation Catalyst (DOC), which uses a chemical process to convert regulated emissions in the exhaust system, and a Diesel Particulate Filter (DPF) that traps particulate matter that is carried into the exhaust stream. The DOC, DPF and Cat Regeneration System are contained in a Caterpillar designed Clean Emissions Module (CEM) that protects the components, minimizes the aftertreatment footprint and simplifies maintenance. For high debris applications that require thermal shields on exhaust components, an optional insulated CEM is available for the D7E.
Cat Regeneration System
The Cat Regeneration System is designed to work transparently, without any interaction needed from the operator. Under most operating conditions, engine exhaust is hot enough to oxidize soot through passive regeneration. If supplemental regeneration is needed, the Cat Regeneration System elevates exhaust gas temperatures to burn off soot in the Diesel Particulate Filter (DPF). This is a process that happens automatically, but the operator can initiate the cycle when convenient or interrupt regeneration as needed. Soot level monitor and regeneration indicator lights are integrated into the dash display.
Delayed Engine Shutdown
Delayed Engine Shutdown feature is available to allow the machine to cool immediately after a heavy work load or regeneration cycle.
Engine Idle Shutdown Timer
An optional Engine Idle Shutdown timer will sound a warning and shut down the engine after the machine has been idling for a pre-set period of time.

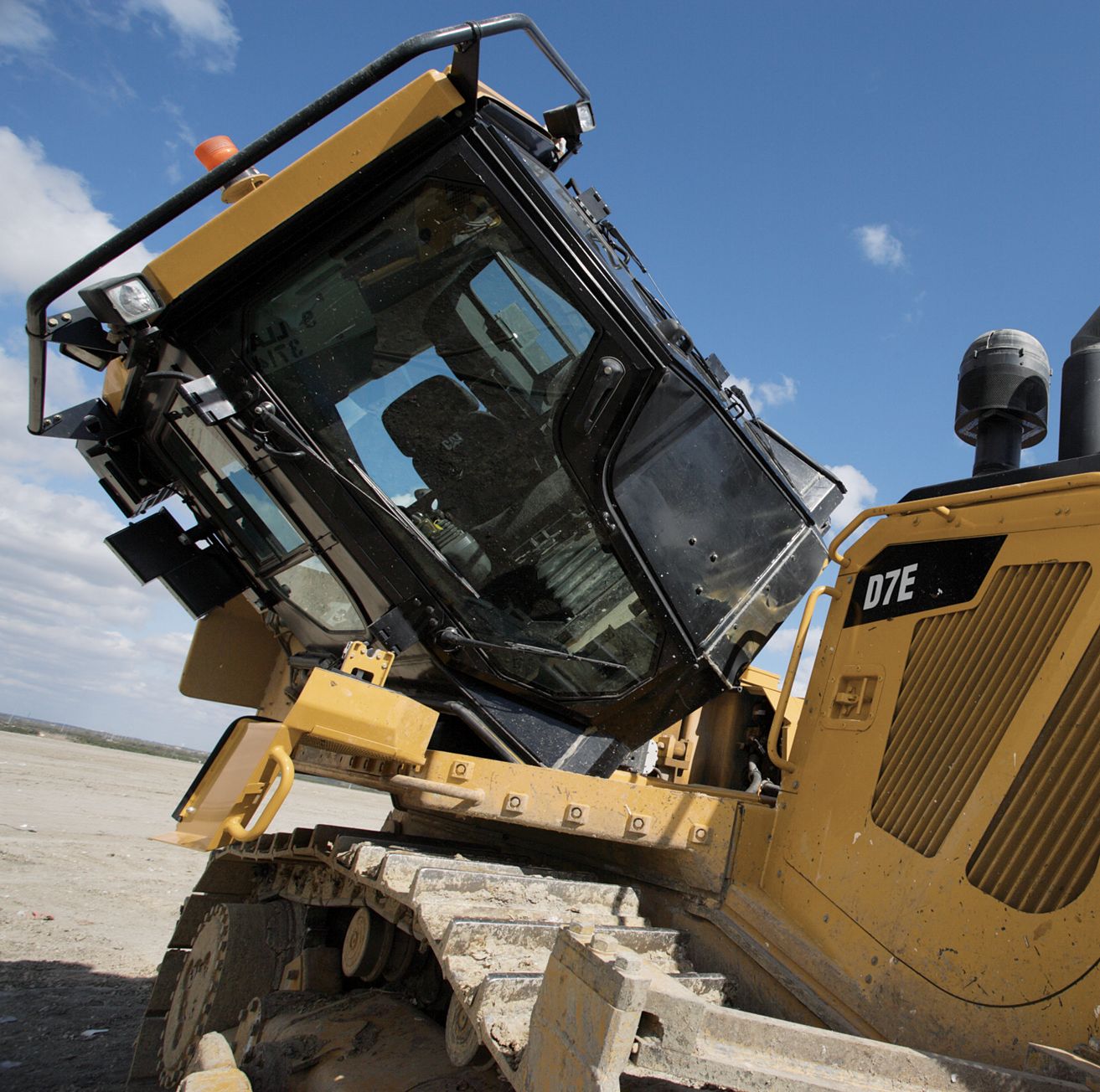

Operator Station
- The D7E cab is designed to maximize operator efficiency. From the operator's seat, the single center post aligns perfectly with the air intake, exhaust and lift cylinder, greatly enhancing forward visibility. The angled door provides more side glass area, enhancing sightlines to the blade and all around the job site. That helps operators work more confidently and productively all shift long and enhances job site safety.
- The cab offers more interior space, as well as wider, swing out doors for easier cab access.

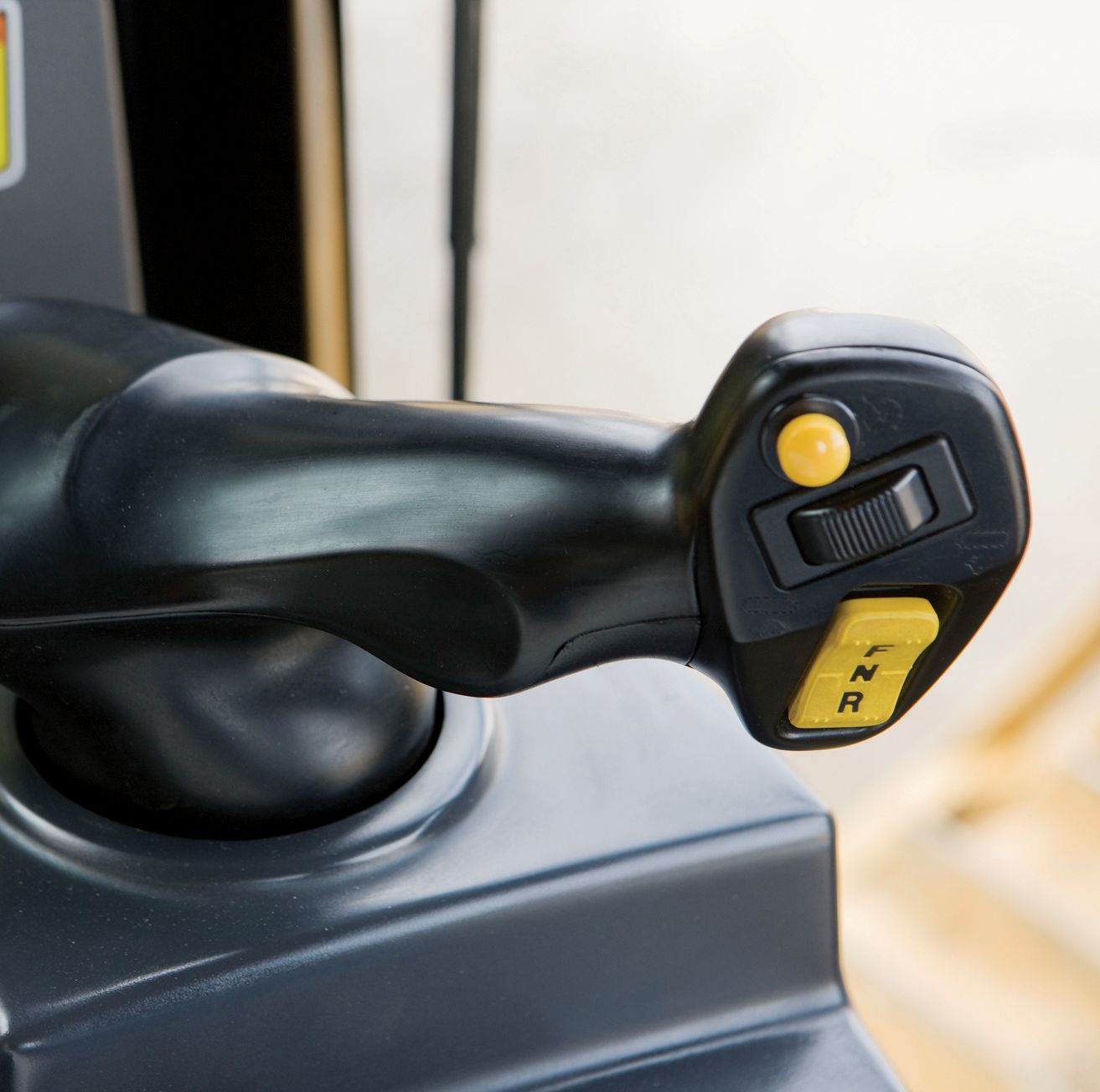

- Ergonomic controls are fully adjustable and designed for low-effort comfort. Switches and controls for various systems are located within easy reach of the operator.
- A standard Eco Reverse mode works during the reverse travel direction of the dozing cycle and during idle time to save even more fuel.
- Interior noise levels are reduced to a quiet 75 dB(A) (ISO 6396).
- A single-unit heating, ventilation and air conditioning (HVAC) system is self contained and powered by electrical current from the accessory power converter. It has no belts, needs no long refrigerant lines, and maintains maximum cooling efficiency even when the machine goes to idle.
- An integrated display screen provides a range of machine status information, plus safety, service and maintenance-related alerts. Built-in connections and mounts make for easy installation of a grade control system display.
- A speed recall feature allows operators to pre-set the desired forward and reverse travel speed, and then resume that speed simply by pressing a button.
Integrated Technologies
Caterpillar is the only manufacturer to offer fully-integrated electronic technology solutions that enable greater accuracy, higher productivity, lower operating costs and more profitability.

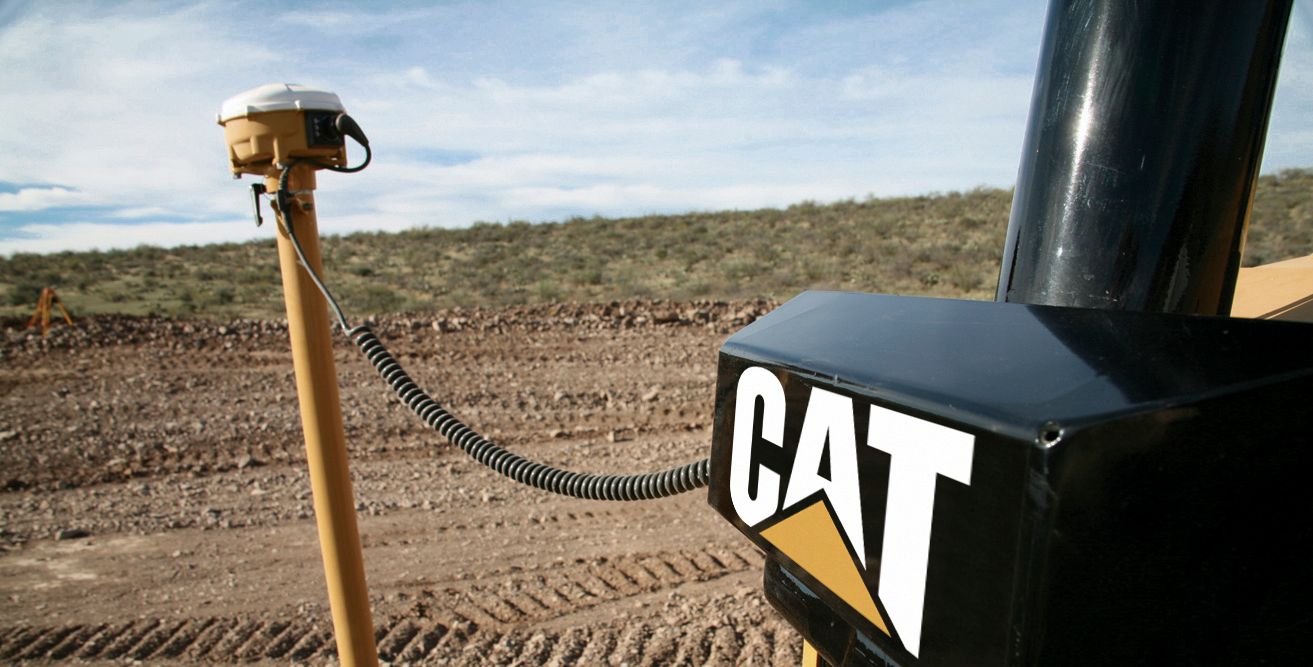

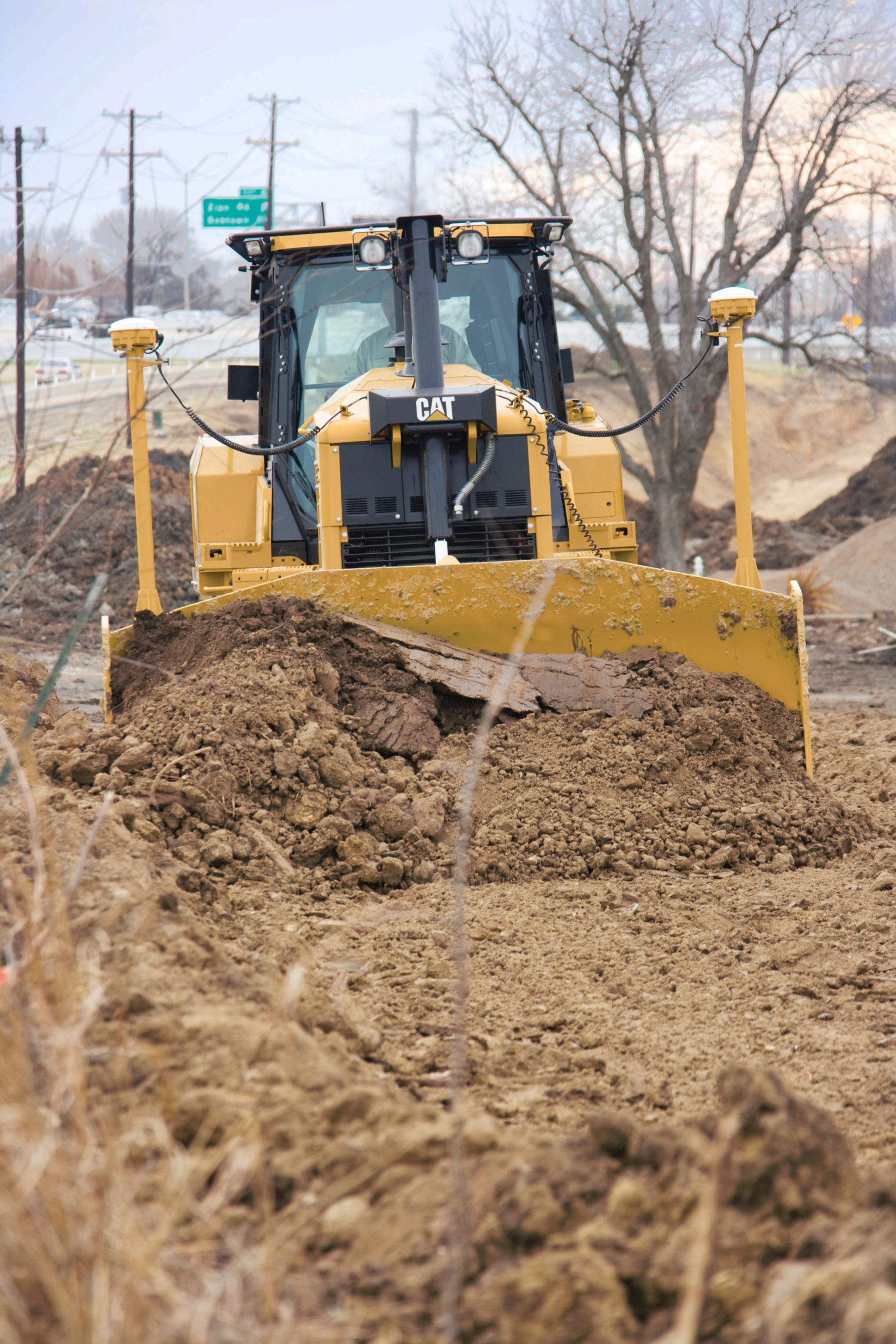

AccuGrade
AccuGrade uses positioning and guidance technologies, machine sensors, and automatic blade control to help operators get to grade faster, easier and more efficiently. Digital design plans, real-time cut/fill data, and in-cab guidance give operators detailed information to work more confidently and achieve greater accuracy, in fewer passes, using less material. Operators can stay on grade and improve productivity and accuracy by nearly 50 percent over conventional methods. Grade stakes and checkers are minimized, making the work site safe, efficient, and cost effective. AccuGrade technologies include Cross Slope, Sonic, Laser, GPS, and/or Universal Total Station (UTS).
Product Link™
Product Link helps take the guesswork out of equipment management with remote monitoring capabilities for your machine or your entire fleet. Track asset location, hours, fuel usage, diagnostic codes, idle time and more through the secure VisionLink™ user interface, powered by Trimble. Knowing where your equipment is, what it's doing and how it's performing enables you or your Cat dealer to manage your fleet in real-time so you can maximize efficiency, improve productivity, and lower operating costs. *Product Link licensing not available in all areas. Please consult your Cat dealer for availability.
Work Tools
Dozer Blades
The D7E features a robust, single lift cylinder design. The single cylinder delivers the same power as a dual-cylinder system, but with fewer than half the components. Blade stability is excellent, supported by L-shaped push arms. Dozer blade capacity is the same as previous models, although the D7E blade enhances durability with thicker plating.
Blade Options
- Universal Blade
- Coal Blade
- Semi-Universal Blade
- Wood Chip Blade
- Straight Blade
- LGP Angle Blade
- Angle Blade
- LGP Variable Radius SU Blade
Rear Attachments
- Distributed hydraulics and commonality among D7E rear Work Tools help maximize productivity and efficiency. A well-balanced machine design means counterweights are not needed when a rear work tool is not attached.
- Ripper - The ripper on the D7E is placed closer to the machine for improved balance. The Ripper Auto Stow function allows the operator to automatically raise and position the ripper for the next pass. Cast-in ripper mounts mean the machine comes ready-to-pin from the factory, so a ripper can be mounted quickly and easily.

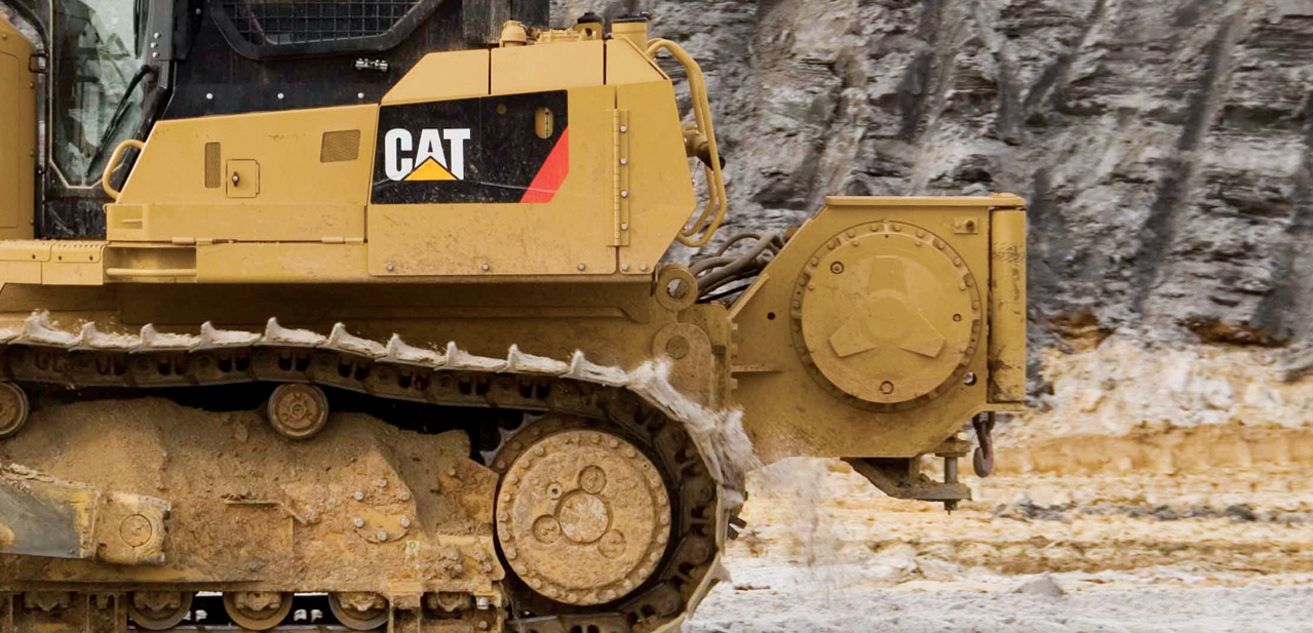

- Winch - The hydraulically driven winch for the D7E features positive load control with variable speed, a dual braking system, a single lever control and a standard three roller fairlead.
- Drawbar - The drawbar for the D7E is suited for a variety of applications, including disks, compactors, chopper wheels, pull-type scrapers and retrieving other equipment.
Serviceability and Customer Support
Designed for Serviceability
The D7E redefines serviceability. With easy access to service points and longer service intervals, the D7E can significantly reduce total owning and operating costs. A tilt cab allows easy access to modular major components, such as generator, propulsion module, power electronics and hydraulics. The heating, ventilation and air conditioning (HVAC) system is self contained for improved performance, increased service intervals and ease of serviceability. Service points are grouped on the left side of the machine for quick and easy routine maintenance. Ground-level sight gauges provide quick and easy inspection of fluid levels. Modular final drives can be easily accessed and serviced.
Ground Level Service Center
The ground level service center is accessible on the left hand fender without setting foot on the machine, giving easy access to the battery disconnect, remote engine shutdown and optional access light switches. It also houses an LED warning indicator showing that the powertrain and accessory systems are energized. When the systems are de-energized and safe for maintenance, the indicator turns off.
Renowned Cat Dealer Support
From helping you choose the right machine to knowledgeable ongoing support, Cat dealers provide the best in sales and service. Manage costs with preventive maintenance programs like Custom Track Service, Scheduled Oil Sampling (S·O·SSM) analysis, and guaranteed maintenance contracts. Stay productive with best-in-class parts availability. Cat dealers can even help you with operator training to help you boost profits. And when it's time for machine replacement, your Cat dealer can help you save even more with Genuine Cat Remanufactured parts. Receive the same warranty and reliability as new products at cost savings of 40 to 70 percent for powertrain and hydraulic components.
Undercarriage
The D7E features an advanced undercarriage design for greater machine versatility in a wider range of applications. Enhanced visibility, especially to the sides, is only one of the many benefits of this highly efficient undercarriage system. D10-size sprocket bearings offer added durability. Shock loads are directed through the roller frame to reduce wear and tear on the machine - and on the operator. The Heavy Duty undercarriage system components are designed for extended wear life in abrasive conditions and rocky or uneven terrain. The Standard arrangement is designed for versatility and works in a variety of soil conditions. The LGP configuration increases track contact area and reduces ground pressure for improved stability and excellent flotation in soft ground conditions.
Sustainability
- The D7E is designed to maximize efficiency and productivity while conserving natural resources.
- Uses 10-30 percent less fuel per hour than previous models. Many customers are reporting even better fuel savings in their own applications.
- In the first two years of production, customers using the D7E saved more than 5.7 million liters (1.5 million gallons) of diesel fuel as compared to the D7R. Significant fuel savings means greatly reduced emissions and lower costs for customers.
- The D7E earned a 2009 Clean Air Excellence Award from the U.S. Environmental Protection Agency.
- More efficient - 25 percent more material moved per liter/gallon of fuel.
- Fewer parts and longer component life, less fuel and fluids, means less to replace and less to dispose of.
- Major structures and components are built to be rebuilt, reducing waste and replacement costs.
- Approximately 98% of machine materials can be recycled (ISO 16714), conserving valuable natural resources and further enhancing machine end-of-life value.
Waste Handler
- The fuel-efficient D7E Waste Handler is a heavy-duty machine designed especially for waste handling applications. Its versatility makes it a powerful and highly maneuverable machine for dozing and spreading waste, as well as an ideal fine grading machine to place just the right depth of cover material. The D7E WH is designed to give you more uptime in harsh landfill conditions, with specialized components that are installed during factory assembly for maximum performance.
- Heavy duty guarding and screens help protect machine components against damage from material wrapping, impact and debris build-up.
- Special seals help prevent debris from getting in the engine and transmission compartments, as well as into the final drives.
- Hydraulic demand fan offers efficient cooling and reverses to reject debris. Single plane radiator offers easy clean-out.
- Insulated Clean Emissions Module and thermal shields provide a high level of thermal protection.
- A clean air module increases cab air pressure to keep dust out and filter the air for a more pleasant operator environment.
- Special lighting packages and a black hood and lift cylinder help your operators work more efficiently in low light conditions.
- Features like well placed grab bars, an access ladder for refueling/rear window cleaning and an optional rear vision camera contribute to helping you meet your job site safety goals.
- Specialized track shoe and blade offerings help you optimize your machine for maximum productivity.

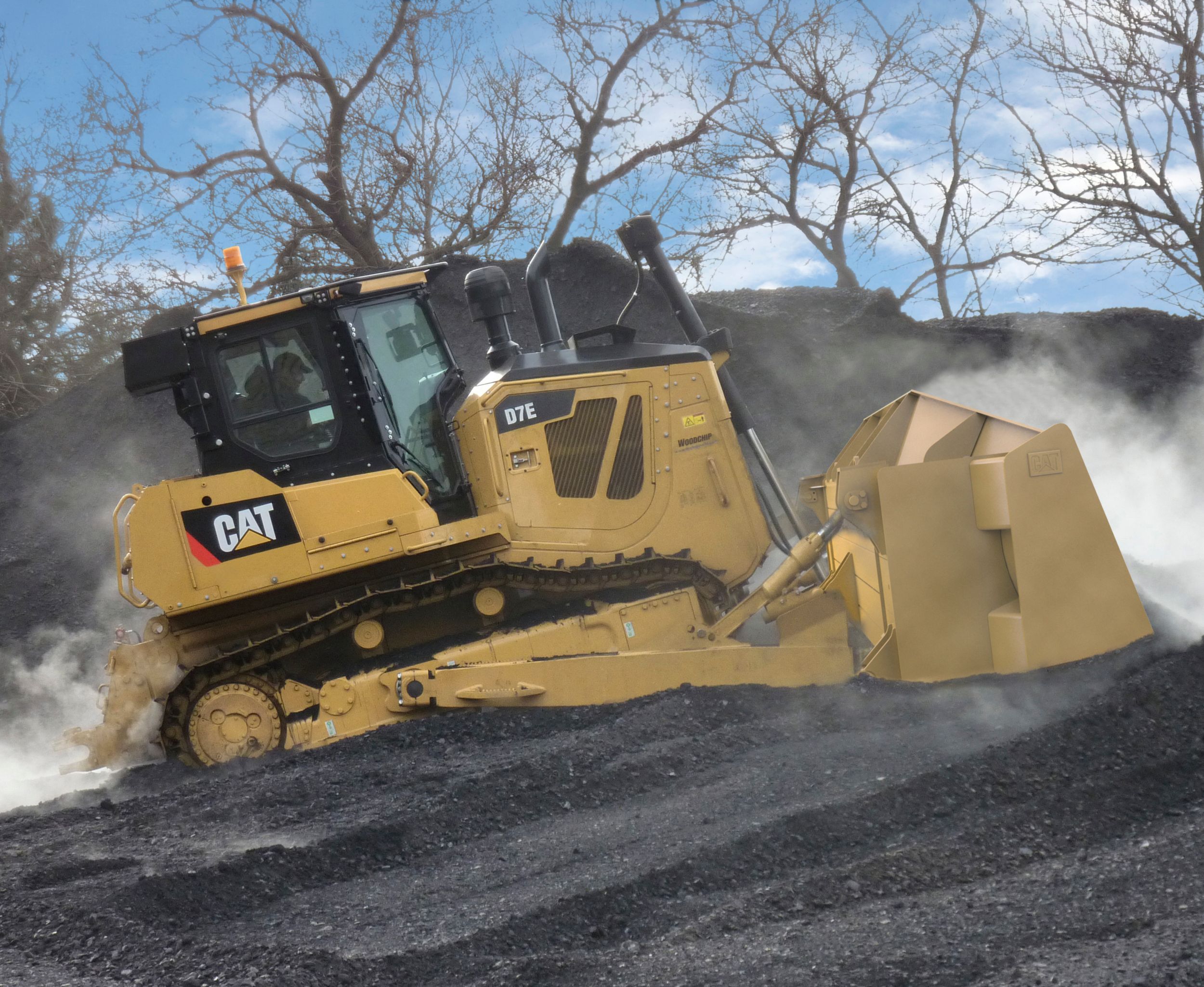

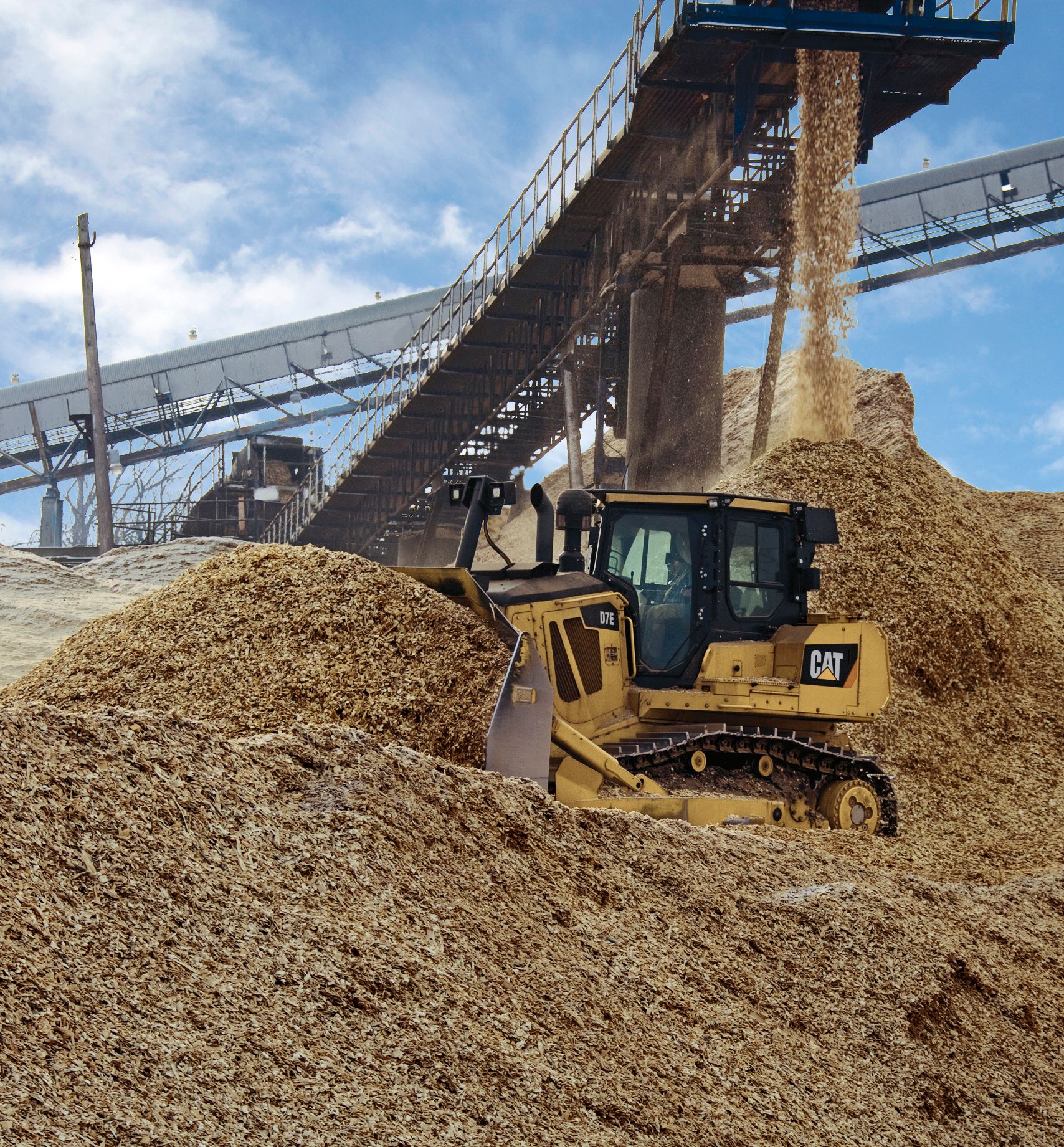

Stockpile Machine
- Caterpillar offers a D7E Stockpile arrangement designed for maximum productivity when moving loose material like coal or wood chips. The D7E is especially well suited to this application because of its maneuverability and exceptional fuel economy, helping you move more material in less time, and using significantly less fuel.
- Specialized guarding and seals help protect the machine from damage and debris build-up in major components.
- Single-plane cooling package gives you greater cooling efficiency, reduced plugging and easier clean-out access. Hydraulic demand fan offers efficient cooling and reverses to reject debris.
- Insulated Clean Emissions Module and thermal shields provide a high level of thermal protection.
- Shielding and seals help keep debris out of engine and powertrain.
- Additional features like a turbine precleaner and roof-mounted filter help protect both the machine and the operator in high debris conditions.
- Special blade and track shoe offerings let you optimize the machine for the job.
Data not available.
Standard Equipment
- POWERTRAIN
- Aftercooler, Air to Air
- Air Cleaner, Precleaner with Strata
- Tube Dust Ejector
- C9.3 ACERT Engine: - EPA/ARB Tier 4 Interim/EU Stage IIIB/Japan MLIT Step 4 - Certified Engine with Aftertreatment
- Coolant, Extended Life
- Differential Steering
- Ecology Drains (Engine Oil, Coolant, Hydraulic Oil, Fuel Tank, Powertrain Case)
- Electronic Air Cleaner Service Indicator
- Fan, Hydraulically Driven Demand with High Ambient Capability
- Final Drives, Double Reduction
- Generator, AC
- Parking Brake
- Power Inverter
- Propulsion Module
- Prescreener
- Radiator, Core, Aluminum Bar Plate
- Separate Circuit Core, Aluminum Bar Plate
- Starting Aid, Ether
- Transmission, Continuously Variable
- Turbocharger, Wastegated
- Water Separator, Primary Fuel Filter
- UNDERCARRIAGE
- Guards, End Track Guiding
- Heavy Duty Track (610 mm/24" Moderate Service)
- Master Link
- Rollers and Idlers, Lifetime Lubricated
- Sprocket Rim Segments, Replaceable
- Track Adjusters, Gas Spring Recoil
- Undercarriage, Heavy Duty
- ELECTRICAL
- Accessory Power Converter (APC)
- Alarm, Backup
- Batteries, Maintenance Free (1,000 CCA)
- Converter, 24V to 12V, 10 Amp
- Heater, Engine Coolant, 120V
- Horn, Forward Warning
- OPERATOR ENVIRONMENT
- Armrest, Adjustable
- Bidirectional Shift Switch
- CB Ready
- Cab, Center Post, Integral ROPS/FOPS
- Continuously Variable Speed Control
- Controls, Electro-Hydraulic, Pilot
- Operated with Electronic Deactivation Switch
- Foot Supports, Dash
- Hour Meter, Electronic
- Machine Isolation
- Mirror, Rearview
- Modular HVAC, Cab Mounted
- Monitoring System, Electronic, with Coolant, Power Train Oil, and Hydraulic Oil Temperature, Fuel Gauge, Tachometer, Gear Indicator and Diagnostic Functions
- Operator Presence
- Pedal, Travel Control
- Radio Ready, 12V
- Seat Belt, Retractable, 76 mm (3 in)
- Seat, Cloth, Air Suspension
- Speed Recall Button
- Throttle Dial, Electronic with Eco Reverse
- Wipers, Intermittent
- OTHER STANDARD EQUIPMENT
- CD ROM Parts Book
- Cab, Tilt
- Engine Enclosures, Perforated
- Front Tow Hook
- Grade Control Ready
- Guards, Hinged Bottom
- Guard, Final Drive Flange
- Hood, Perforated
- Hydraulics, Load Sensing, Dozer Lift and Tilt
- Oil Cooler, Hydraulic
- Oil Cooler, Powertrain
- Product Link (Satellite or Cellular)
- Radiator Doors, Louvered, Double Hinged
- Screen, Grill Door Fan
- S·O·S Sampling Ports
- Vandalism Protection for Fluid Compartments and Battery Box
Optional Equipment
- MACHINE ARRANGEMENTS
- LGP Arrangement
- EU Regional Package
- Sound Suppression (Europe)
- Stockpile/Woodchip Arrangement
- Waste Handling/Landfill Arrangement (XL, LGP)
- POWERTRAIN
- Arctic/Cold Weather Attachments
- Battery - Heavy Duty (1,400 CCA) or Arctic
- Engine Coolant Heater, 240V
- Fast Fuel
- Fuel Tank - High Capacity (408 L/122 gal)
- Heavy Duty Grill Door, Hinged
- Insulated Clean Emissions Module
- Powertrain Oil Change System
- Remote Disconnect Switch
- Reversible Fan
- OPERATOR ENVIRONMENT
- Black Hood and Back of Blade
- Converter - 24V to 12V
- Front and Rear Door/Window Screens
- Heated Seat
- Lights: - Basic (6) Lights - Premium (10) HID Lights - Warning Strobe
- Rear Vision Camera
- Sliding Rear Window
- TRACK
- 610 mm, 660 mm, 914 mm (24", 26", 36")
- Moderate Service, Extreme Service
- CONSTRUCTION TECHNOLOGIES
- AccuGrade Ready Installation Arrangement
- AccuGrade Mounting Bracket - Center
- Dual Tilt
- GUARDING
- Bottom - Heavy Duty, Sealed
- Fast Fuel
- Final Drive, Sprocket
- Fuel Tank
- Lights
- Track Roller Frame
- BLADES
- SU (Semi-universal), U (Universal), (S) Straight, and Angle Blades
- Sweeps (without canopy)
- Track Guide Guards
- Turbine Precleaner
- REAR IMPLEMENTS
- Counterweight
- Drawbar
- Implement Towing Arrangement
- Implement Towing Arrangement - Eject Scraper
- Multi-shank Ripper and Ripper Hydraulics
- Striker Bar
- Winch Arrangement/Winch Hydraulics
