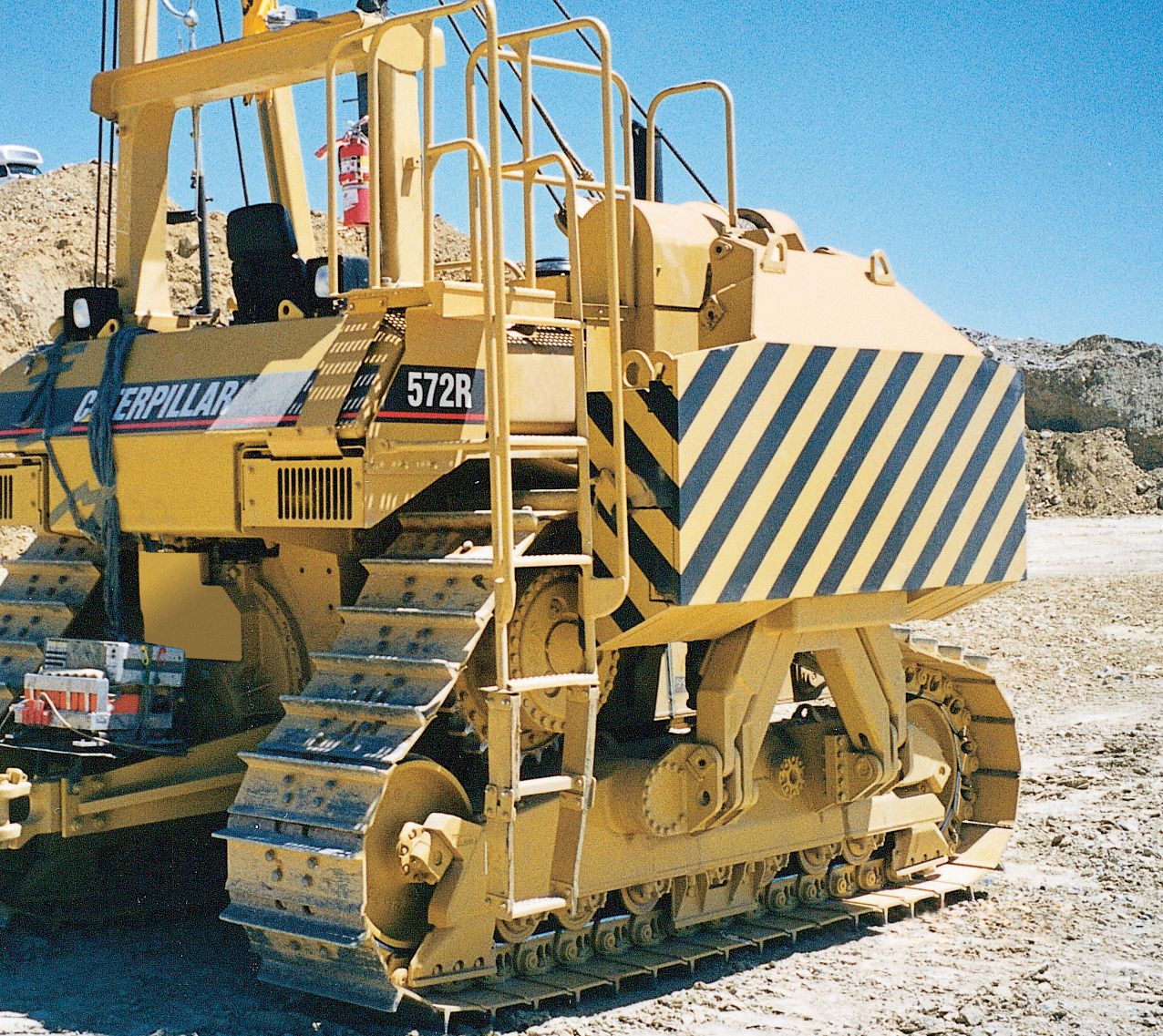

572R^Non-Current

Engine

Cat 3306 engine. Caterpillar 3306 engine performs at full-rated net power of 171 kW (230 hp) at 2100 rpm with high torque rise of 36%. High horsepower, combined with high torque rise, give the 572R the durability needed on the challenging jobs. Plus, this engine meets all the latest emission regulations around the world.

Turbocharged

Turbocharged and aftercooled 3306 diesel engine delivers plenty of power for quick response, big loads and improves response and performance at low to medium engine speeds.

Long Life

Large displacement, high torque rise and low rpm rating for low stress, long life.

Torque

High torque rise offers superior lugging capabilities - keep moving through tough spots without downshifting.

Weight-to-Horsepower

Good weight-to-horsepower ratio - faster loading, bigger loads, shorter cycle times.

Fuel System

Direct unit injection fuel system eliminates external high pressure fuel lines and provides excellent control of injection timing with individually metered, high-pressure, direct-injection of fuel. Result is improved engine response and reliability plus low fuel consumption and emissions.

Mounting

Resilient engine mounting for quieter operation and less vibration.

Advanced Modular cooling system (AMOCS)

Advanced Modular cooling system (AMOCS) utilizes an exclusive two pass cooling system and increased cooling surface area to provide a more efficient heat transfer system than conventional systems.

Torque Divider

Torque Divider. A single-stage torque converter with output torque divider sends 70% of the engine torque through the converter, 30% through a direct drive shaft for greater driveline efficiency and higher torque multiplication.

Torque Converter

Torque converter responds to changing load conditions by providing torque multiplication for increased drawbar pull while protecting the drive train from shock loads.

Converter Design

The torque converter shields the driveline from sudden torque shocks and vibration.

Transmission

Planetary Power Shift Transmission has 3-speeds forward and 3-speeds reverse and utilizes large diameter, high-capacity, oil-cooled clutches.

• Modulation system permits fast speed and direction changes.

• Modular transmission and bevel gear slide into rear case for servicing ease, even with ripper installed.

• Oil-to-water cooler for maximum cooling capacity.

• Forced oil flow lubricates and cools clutch packs to provide maximum clutch life.

Planetary Design

Proven planetary design delivers fast, smooth speed changes while distributing loads over multiple gears for long life. Perimeter-mounted clutches provide superior heat dissipation and a large contact area for long service life.

Clutches and Brakes

Separated clutches and brakes. Oil-cooled, hydraulically actuated multiple-disc clutches and brakes for smooth, precise turns.

Final Drives

Final drives. Precision, high load capacity gears and bearings give long-lasting performance and durability.

Strength

High strength steel mainframe. The 572R mainframe absorbs high impact shock loads and twisting forces.

Analysis

Structural testing analysis is used to verify and ensure integrity of the mainframe.

Precision

Robotic welding provides deep penetration and consistency for long life.

Roller Frames

Roller frames are tubular, to resist bending and twisting, with reinforcement where operating stresses are the highest.

• Non-oscillating roller frames for greater stability in pipelaying applications.

• The recoil system is sealed and lubricated.

• Improved pipelayer structure mounting.

Final Drives

Final drives and associated power train components are raised above the work area, isolating them from the ground-induced impact loads, as well as pipelayer loads, extending power train component life.

Sprockets

Sprocket position keeps sprocket teeth, bushings and final drives away from the abrasive materials and moisture, resulting in longer final drive gear and seal life.

High Flange

High flange improved track rollers (optional) combined with center or full length roller guards attachments greatly improved track guiding for demanding side slope conditions.

Track Shoes

Track shoes are 660 mm (26”) single grouser shoes made from heat-treated, rolled steel for added strength. Long track frame and wide gauge enhance track contact area, providing a very stable working base.

General

Operator's station provides excellent comfort and convenience. The new counterweight design provides improved viewing area from the machine.

Steering

Pipelayer steering clutch levers are easy-to-reach, low-effort controls. They are independently actuated for sure, precise steering.

Seat

The seat is ergonomically designed and fully adjustable for maximum comfort. The seat cushion reduces the pressure on the lower back and thighs while allowing unrestricted arm and leg movement.

Instrument Panel

Instrument panel is the Electronic Monitoring System (EMS) for monitoring critical machine functions. There is also a gauge group displaying fuel level, coolant, and power train oil temperatures.

Brakes

Separated brakes are independent of the steering clutch function to give the machine precise steering control.

Controls

Pipelayer controls are low effort and allow simultaneous, precise positioning of the load line and boom.

Load Line Speed

Load line speed range is controlled by a push-pull knob that allows the operator to select high or low.

Counterweight

Counterweight control adjusts the position of the counterweight for added machine stability.

Auto Shifting

Automatic shifting features. Bi-Directional Auto shift allows the operator to pre-select a forward and reverse gear for directional changes.

Auto Kickdown

Auto-kickdown automatically downshifts the transmission when the engine lugs down to a predetermined RPM level.

Winch and Boom

• Boom and hook drawworks are driven by independent hydraulic winches.

• Oil-disc brakes provide smooth operation, positive retention of boom and hook positions.

• Modular design allows fast replacement, easy field service and testing.

• Infinitely variable speed controls for both boom and hook allow precise control.

• Tubular, cast-steel boom is rugged, delivers better fatigue life.

• Replaceable boom-mount bearings.

• Symmetrical boom simplifies installation.

• Emergency free-fall function on load line control allows the operator to drop the load quickly.


Counterweight and Frame

• New counterweight design offers improved viewing area while traveling or working.

• Main frame consists of box-section frame welded to cast bevel gear case.

• Counterweight is extended hydraulically for improved load balance, visibility and clearance.

• Service latch mechanically locks counterweight in extended position.

Drawbar

• Able to tow a wide range of attachments.

Modular Design

Modular design of power train components permits fast removal and installation.

Modular Testing

Pre-testing modular components before installation or after repair assures high quality.

Service Access

Group service points and excellent access to service areas make routine checks fast and convenient.

Easy Inspection

Quick, easy service access and inspection of daily maintenance items.

Pressure Test Points

Pressure test points for powertrain and hydraulic systems are provided.

Troubleshooting

Electrical system diagnostic connector enables fast troubleshooting of starting and charging problems.

Cooling System

Modular cooling system, with individual core assemblies, provides improved serviceability, reduced replacement costs and improved durability.

Cat Remanufactured

Caterpillar Remanufactured starters, alternators, cylinder heads, short blocks, engines, oil pumps and final drive hubs are available for fast, economical repairs.

Ecology Drains

Ecology drains provide an environmentally safer method to drain fluids. They are included on the radiator, hydraulic tank and major power train components.
