Overview
The Cat 365B L incorporates the latest technology for high production trenching, excavating and truck loading. It features an ergonomically designed cab for optimized operator comfort and productivity, and advanced engine and hydraulic systems that work together for maximum productivity, fuel efficiency and lower maintenance costs.
Specifications
| Engine Model | Cat 3196 ATAAC |
| Net Flywheel Power | — |
| Maximum Travel Speed | — |
Benefits & Features
Specifications
| Engine Model | Cat 3196 ATAAC |
| Net Flywheel Power | — |
| Displacement | — |
| Operating Weight - Standard Undercarriage | — |
| Maximum Reach - Ground Level | — |
| Maximum Digging Depth | — |
| Bucket Digging Force | — |
| Stick Digging Force | — |
| Maximum Bucket Capacity | — |
| Number of Shoes - Each Side - Standard Undercarriage | 47 |
| Number of Track Rollers - Each Side - Standard Undercarriage | 8 |
| Number of Carrier Rollers - Each Side | 3 |
| Maximum Travel Speed | — |
| Maximum Drawbar Pull - Standard Undercarriage | — |
| Main System - Maximum Flow - Total | — |
| Swing System - Maximum Flow | — |
| Maximum Pressure - Equipment - Normal | — |
| Maximum Pressure - Equipment - Heavy Lift | — |
| Maximum Pressure - Travel | — |
| Pilot System - Maximum Flow | — |
| Fuel Tank Capacity | — |
| Cooling System | — |
| Engine Oil | — |
| Swing Drive - Each | — |
| Final Drive - Each | — |
| Hydraulic System - Including Tank | — |
| Hydraulic Tank | — |
Benefits & Features
Operator Station
Operator Comfort
The work station is designed to be quiet and comfortable for the operator, assuring high productivity during a long work day.
Viewing Area
Excellent viewing area through large, wide windows. A large skylight provides upward visibility. Both larger and upper portions of the front windshield can be easily stored in an overhead position.
Electronic Control System
Caterpillar designed electronic control system uses VIDS (Vital Information Display System) as the interface between the machine and the operator or the serviceman.
Automatic Climate Control
Automatic climate control is standard and maintains constant temperature in the cab regardless of outside conditions.
Joystick Controls
Electronic joystick controls have low lever effort and eliminate pilot lines. Control pattern can be changed electronically to suit operator preference.
Engine Speed Dial
Engine speed dial has ten settings for simple, precise speed setting. The selected engine speed setting shows on the VIDS display screen.
Travel Controls
Electronic hand or foot actuated travel controls allow the operator to move the excavator while operating the equipment. Hand levers are easily removable.
Travel Pedal
Optional straight travel pedal provides forward or reverse straight line travel with a single pedal movement.
Hydraulic Activation Control Lever
Hydraulic activation control lever deactivates hydraulic functions and helps prevent operation when the operator exists the cab.
Seat
The fully adjustable Cat suspension seat includes a wide range of comfort features including fore/aft, height and weight adjustments.
Electronic Control System
Controllers
Electronic control system utilizes three controllers connected by Cat Data Link to manage the engine and hydraulics for maximum productivity and efficiency.
System and Components
Both system and components are Caterpillar designed and built for perfect integration to optimize machine performance.
Joysticks
Electronic joysticks provide features not possible with pilot valves.
Vital Information Display System
VIDS (Vital Information Display System) is the link between the machine and the operator or serviceman.
Analog Gauge
The analog gauge displays information requiring frequent checking.
Message Screen Center
The message screen center displays vital information on machine conditions.
Keypad
The keypad allows operator to select machine operation conditions and to set view preferences.
Service and Maintenance
Service Intervals
Service intervals are extended to reduce maintenance costs.
Hydraulic Capsule Filters
Hydraulic capsule filters are mounted outside the tank to prevent spills and system contamination during replacement.
Oil Sample and Pressure Ports
Oil sample and pressure ports provide easy checking of machine condition.
Service Points
Service points centrally located with easy access to facilitate routine maintenance.
Hydraulic System Filter
The pilot hydraulic system filter keeps contaminants away from the pilot system.
Drain Filter
A swing and travel motor case drain filter keeps contaminants from returning to the tank.
Donaclone Precleaner
Donaclone precleaner is standard to extend the service interval of the main air cleaner.
Radial Seal Cleaner
The radial seal main air cleaner has a double layered filter element for more efficient filtration.
Environmentally Sound Features
Environmentally sound features help protect the environment.
Water Separator
The water separator removes water from fuel even when under pressure and is located in the battery compartment for easy access.
Remote Greasing Block
The remote greasing block on the boom and three grease points for the swing bearing deliver grease to hard to reach locations.
Electronic System Control
The electronic system control has diagnostic capabilities for Cat Dealers' use.
Hydraulics
Load Sensing System
Load sensing PPPC (Proportional Priority Pressure Compensation) system now with Caterpillar developed Hydrac electronic actuation combines a proven system with state-of-the-art electronic control for high efficiency and excellent controllability.
Main Pumps
Large, heavy-duty main pumps with separate swing pump provide high speeds and full time swing priority.

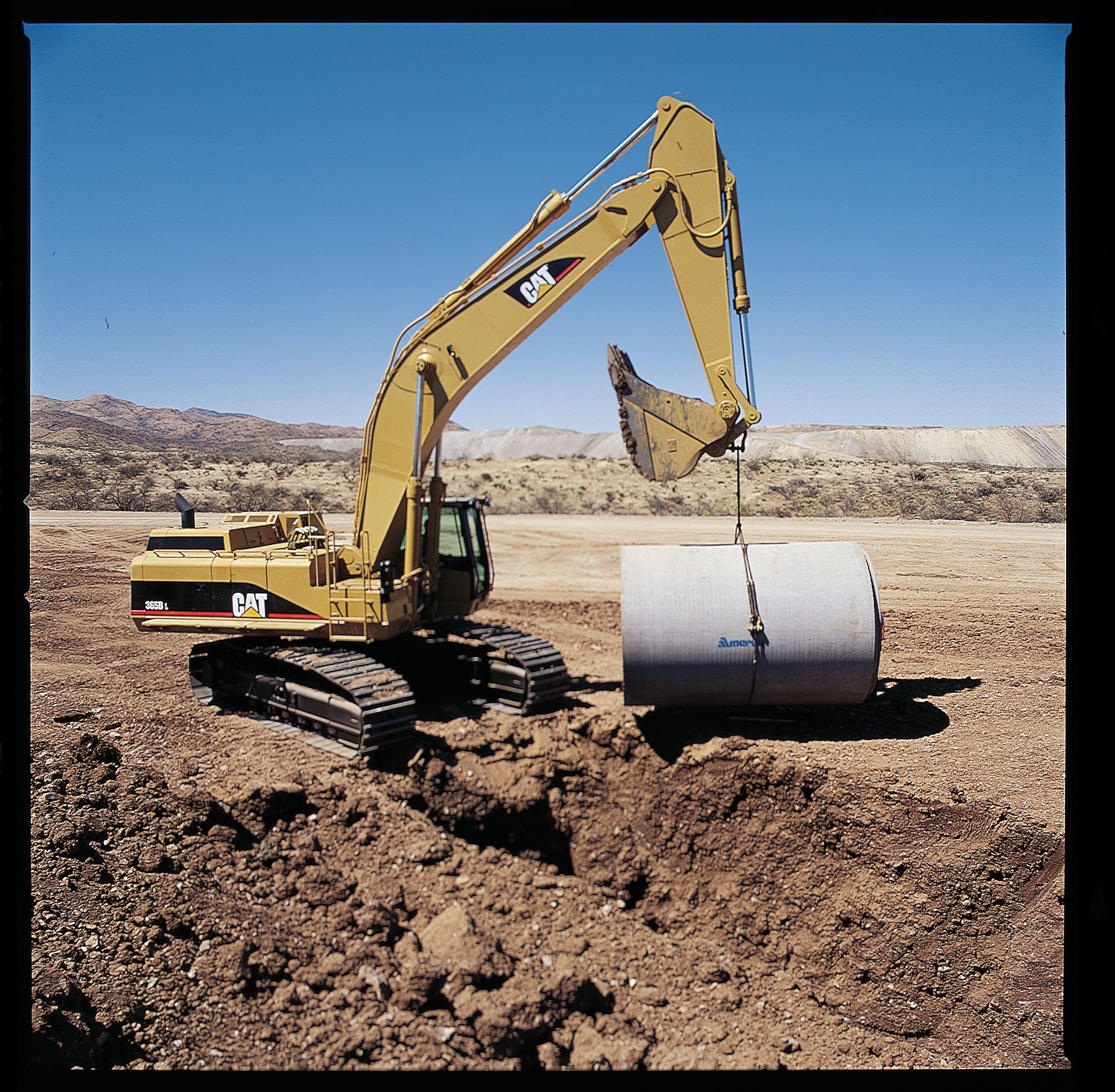

Heavy Lift Feature
The heavy lift feature is standard and allows lifting of heavy objects with precision.
Auxiliary Valve
The auxiliary valve is standard for use with optional control arrangements to operate tools such as hammers, shears, etc.
Cylinder Snubbers
Hydraulic cylinder snubbers at rod end of boom cylinder and both ends of stick cylinder cushion shocks, reduce sound and increase cylinder life.
Cat XT5 and XT6 Hoses
Cat's XT5 and XT6 hoses are used in high pressure circuits to meet the critical flexibility and strength demands of today's hard working hydraulic systems.
Swing Dampening Valves
Swing dampening valves reduce swing wag and produce smooth swing stops.
Biodegradable Hydraulic Oil
Biodegradable hydraulic oil is available as an option.
Engine
Diesel Engine
The innovative Cat 3196 ATAAC diesel engine delivers large-engine performance from a compact engine design.
Advanced Diesel Engine Module
The Advanced Diesel Engine Module (ADEM II) fuel system controls the engine for optimal fuel injection, increased fuel efficiency, and longer component life.
Injection Fuel System
Caterpillar state-of-the-art electronically controlled, computer-actuated unit injector fuel system has high injection pressure for complete fuel combustion, more efficient fuel use and reduced emissions.
Pistons
Two-piece articulated pistons with forged steel tops withstand higher cylinder pressures.
Cooling Jets
Dual cooling jets keep ring temperatures low for long ring and liner life with excellent oil control.
Cooling System
High capacity cooling system allows operation in ambient temperatures.
Hydrostatically Driven Fan
A separate cooling system with a hydrostatically driven fan provides quiet engine operation and reduced fuel consumption during cooler ambient conditions.
Valves
Four valves per cylinder for superior heat rejection.
Blocks and Heads
Blocks and heads are Caterpillar designed, cast and machined to meet Caterpillar quality standards.
Extended Life Coolant
Extended life coolant/antifreeze offers better protection over a longer period of time, lowers operating costs, requires less maintenance and is environmentally responsible and recyclable.
Structures
Advanced Carbody Design
The advanced carbody design stands up in the toughest applications.
Variable Gauge Undercarriage
The Variable Gauge (VG) undercarriage is standard, providing a wide, stable base for lifting or a narrow gauge for reduced shipping width.
Track Roller Frames
Robot-welded track roller frames use a fabricated U-section of thick steel plates for the top portion with a flat bottom plate where the rollers mount for increased strength and stiffness.
Frame
Rugged main frame is designed for maximum durability and efficient use of materials.
Undercarriage
Undercarriage Components
Caterpillar designed and built undercarriage components are purposely oversized to offer heavy-duty performance and durability.
Track Links
Strutted track links are sealed for long life. Three choices of shoe width are available to suit the application. All are heavy duty type with thick webs.
Rollers
Track rollers, carrier rollers and idlers are sealed and lubricated for excellent service life.
Idler Guards
Standard idler guards and center track guides maintain track alignment. Optional full length track guiding guards are available for additional protection on steep side slopes.
Motors
Smooth autoshifting two-speed travel motors offer top travel speeds and plenty of pull on slopes ort turns.
Final Drives
Triple-reduction, planetary final drives are compact yet durable.
Guards
Heavy guards protect the travel motors against damage.
Long (L) Undercarriage
Long undercarriage is standard to maximize stability and lifting capacity. Long, wide and sturdy undercarriage offers a stable work platform.
Booms, Sticks and Attachments
Work Tools
Choose a variety of work tools such as hammers, shears, rotators, grapples or crushers. Ask the Cat dealer for information on attachments or special configuration.
Booms and Sticks
Caterpillar booms and sticks are built for performance and long service life.
Reach Boom
The reach boom features an optimum design that maximizes digging envelopes with three stick choices.
Reach Sticks
All reach sticks accept V-family buckets and bucket linkage.

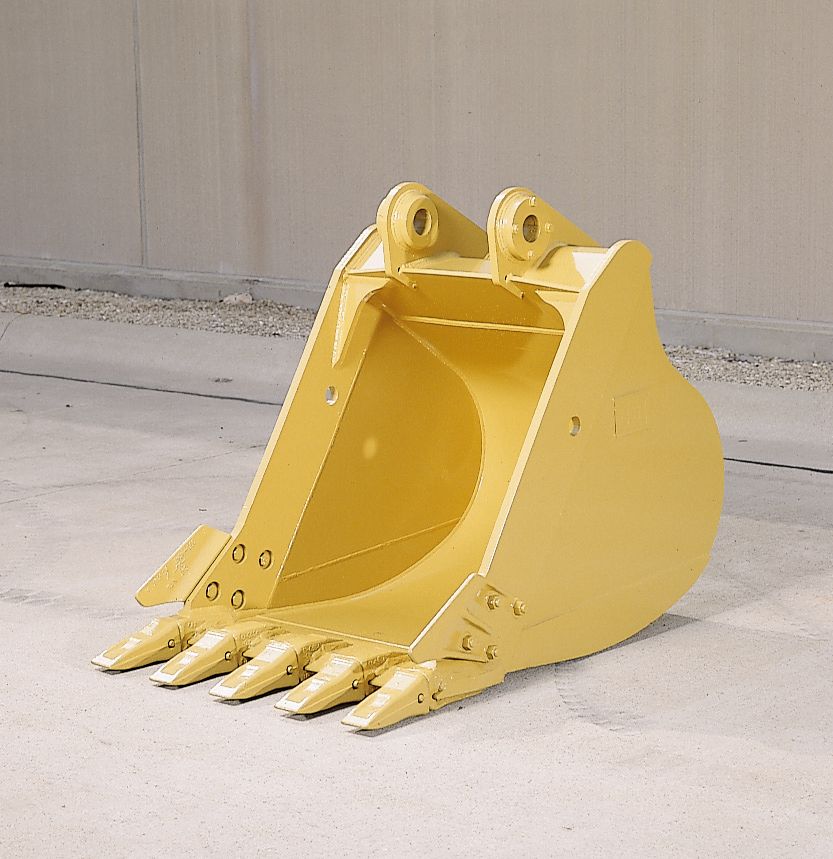

Buckets
Service and Performance
Caterpillar buckets increase service life and optimize performance.
General Purpose (GP) and Excavation (E) Buckets
General Purpose (GP) and Excavation (E) buckets are for digging in soft to hard ground with low to moderate abrasive materials.
Heavy Duty (HD) and Extreme Excavation (EX) Buckets
Heavy Duty (HD) and Extreme Excavation (EX) buckets are for digging in moderate to hard abrasive materials.
Heavy Duty Rock (HDR) and Rock (R) Buckets
Heavy Duty Rock (HDR) and Rock (R) buckets for digging in fragmented rock, frozen ground, caliche and highly abrasive materials.
Ground Engaging Tools
Caterpillar Ground Engaging Tools (GET) include a variety of side cutters, sidebar protectors, tip options and adapters to match operating conditions.
Complete Customer Support
Selection
Make detailed comparisons of the machines you are considering before you buy.
Purchase
Look past initial price. Consider the financing options available as well as day-to-day operating costs.
Operation
Improving operating techniques can boost your profits.
Maintenance
What is the cost of preventive maintenance? More and more equipment buyers are planning for effective maintenance before buying the equipment.
Replacement
Repair, rebuild or replace? Your Cat dealer can help you evaluate the cost involved so you can make the right choice.
Product Support
You will find nearly all parts at our dealer parts counter. Cat dealers utilize a worldwide computer network to find in-stock parts to minimize machine down time.
Data not available.
