CB14B - 900 mm (35") DrumsNon-Current
CB14B - 900 mm (35")
Specifications
| Operating Weight | — |
| Maximum Weight at Rear Drum | — |
| Maximum Weight at Front Drum | — |
| Standard Compaction Width | — |
| Curb Clearance | — |
| Ground Clearance | — |
| Static Linear Load | — |
| Travel Speed - Maximum | — |
| Gross Power | — |
| Engine Model | Kohler KDW1003 |
| Overall Length | — |
| Overall Width | — |
| Drum Diameter | — |
| Maximum Machine Height | — |
| Drum Width | — |
| Frequency | — |
| Nominal Amplitude - High | — |
| Centrifugal Force per Drum - Maximum | — |
| Fuel Tank Capacity | — |
| Water Spray Tank Capacity | — |
Benefits & Features
Comfort and Control

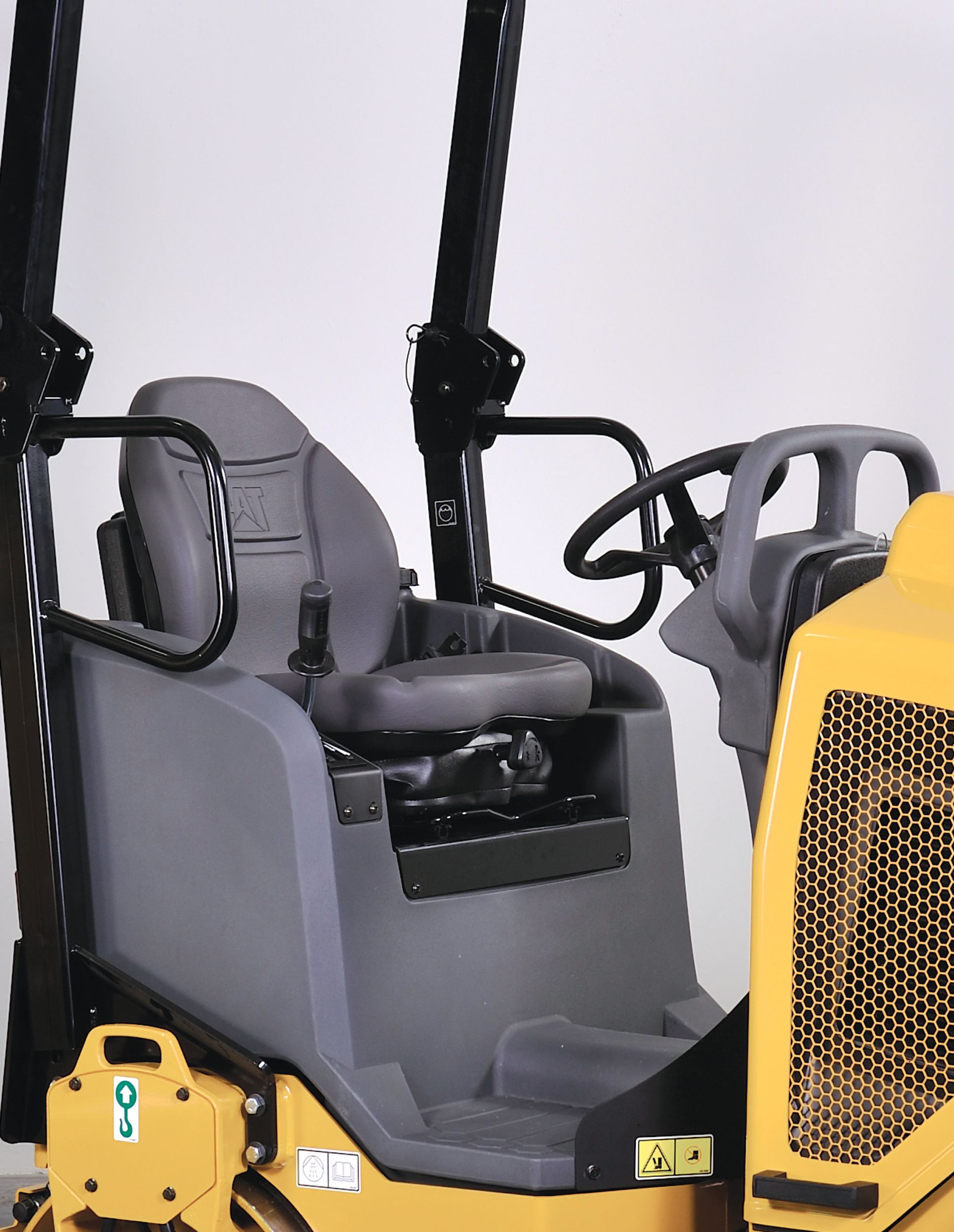

Roomy Operating Station
The roomy operating station with abundant leg room and standard, adjustable seat improves visibility. The seat is equipped with an operator presence sensor for enhanced safety and water drainage capability.

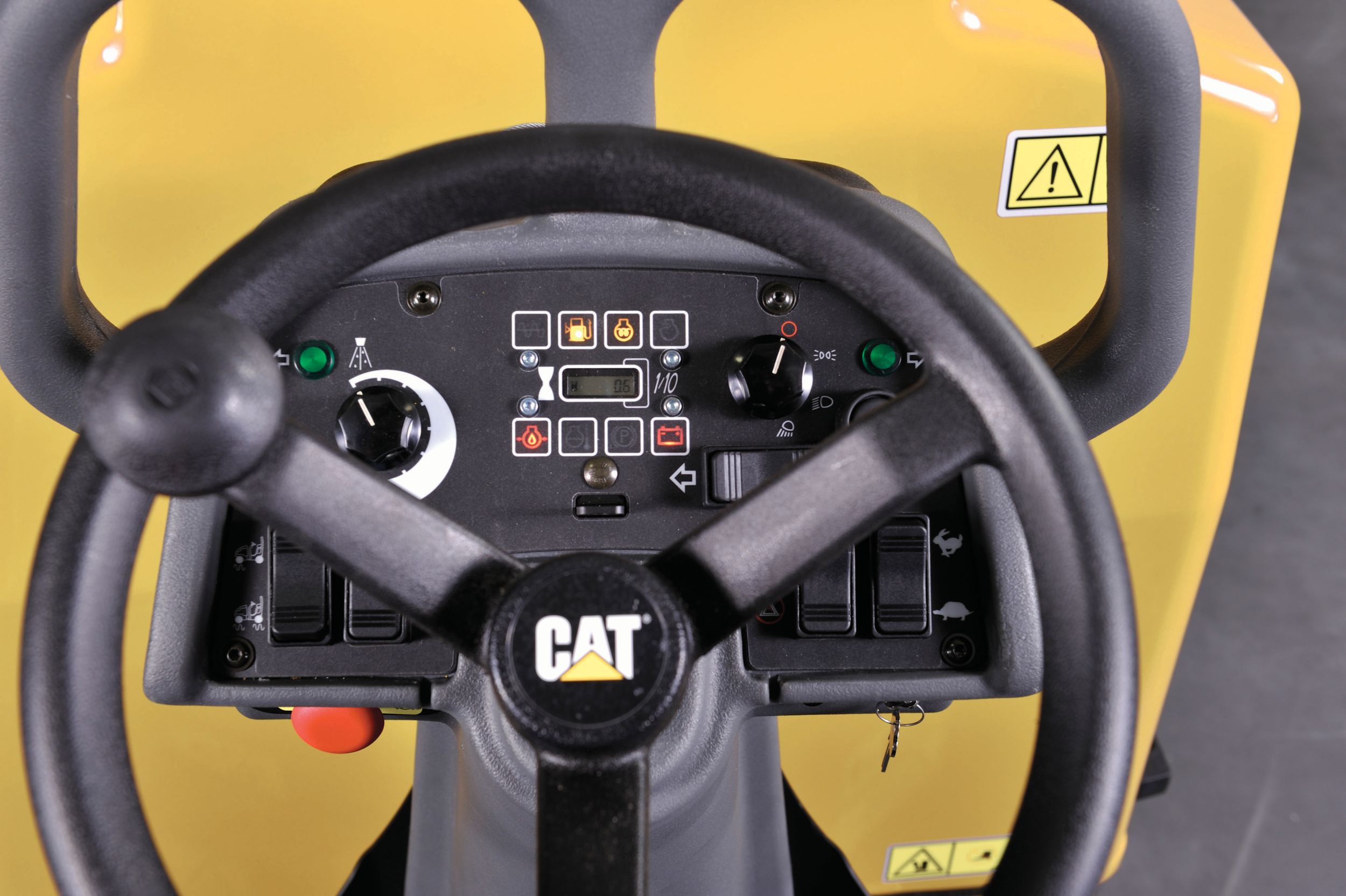

Instrument Panel
The controls are centrally located for operator ease and safety. Key controls such as drum vibe selection, water spray on/off and intermittent settings are logically placed and easy to adjust. The easily observed warning lights provide quick feedback to the operator.
Visibility
The sloped engine hood enables excellent forward visibility and minimal side clearance creates direct sight lines to working areas.
Smooth, Efficient Powertrain
Powerful Engine

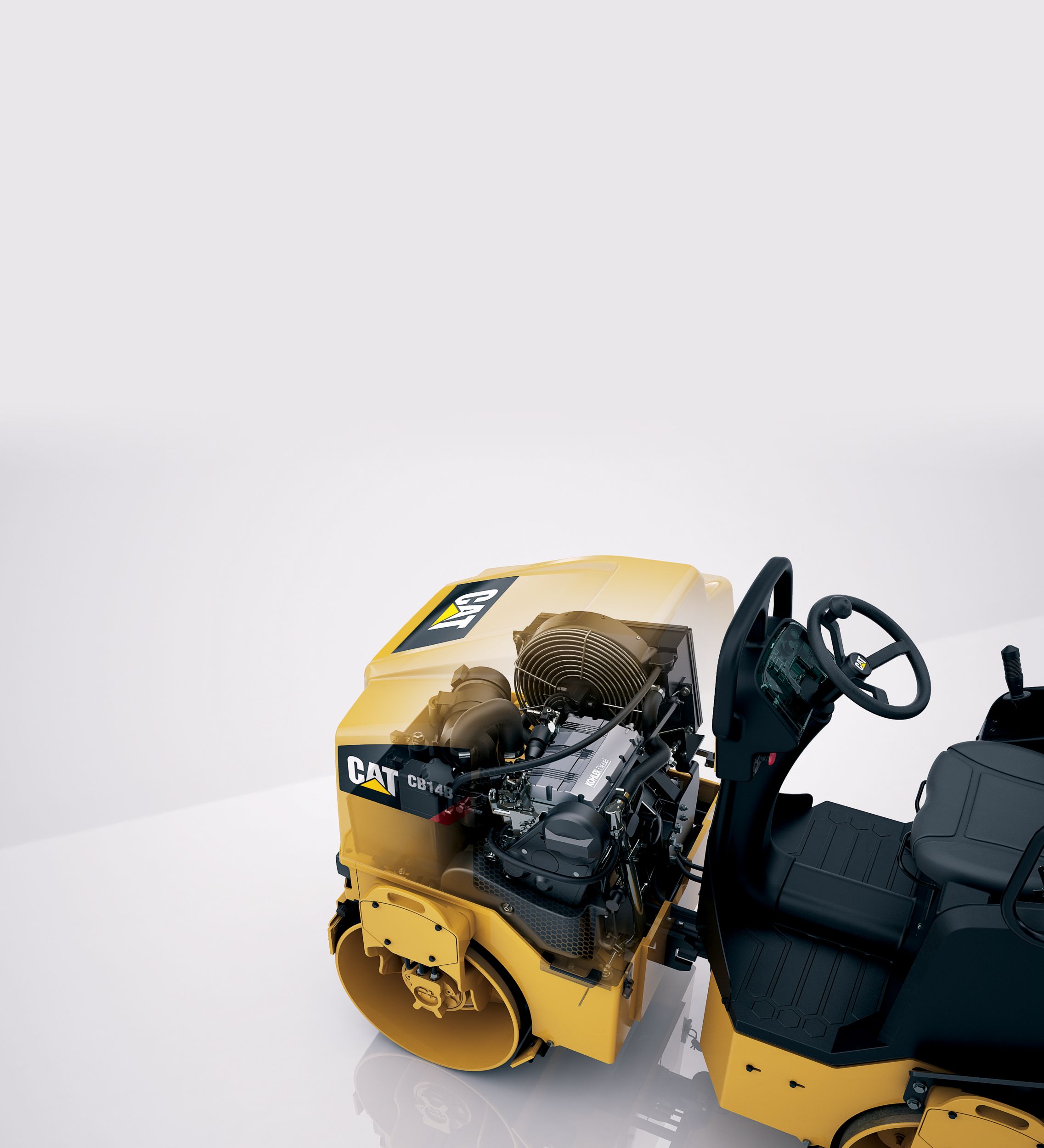

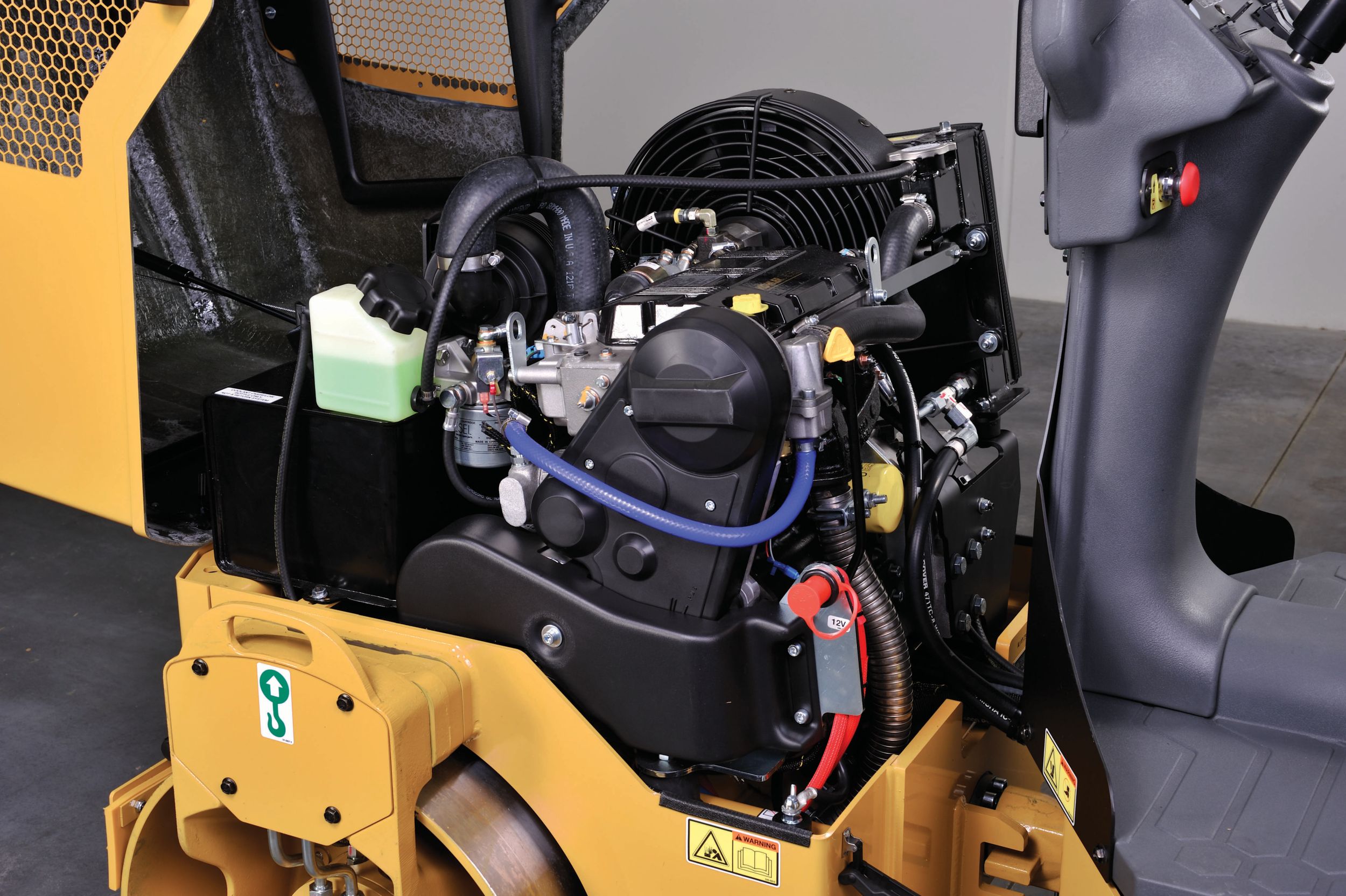

The Kohler KDW1003 4-cycle, 3-cylinder liquid cooled diesel engine delivers 16.8 kW (22.5 hp) of power @ 2850 rpm. It meets U.S. EPA Tier 4 Final engine emissions standards, has a pre-heat starting system, and is serviced and supported by Cat® Dealers.
Cooling System
The cooling system with integrated water and oil cooler utilizes an aluminum radiator that provides corrosion resistance and reliability. Large space between cores provide efficient cooling and easy cleaning. The system is effective in high-ambient temperatures up to 50º C (122º F).
Maneuverability and Transport
Size and Steering

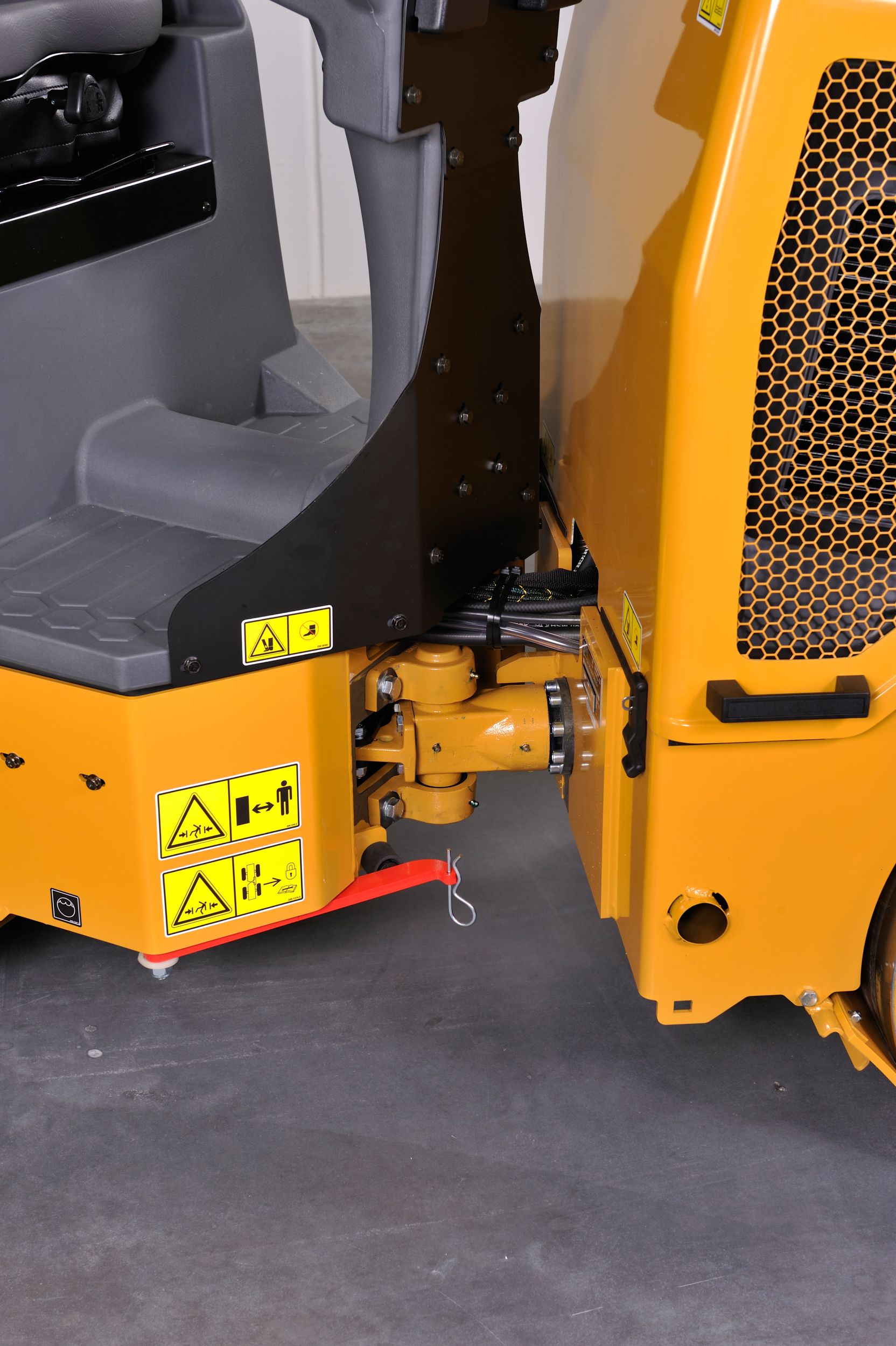

The articulated frame with sealed articulation bearings has a low center of gravity that provides optimum stability on asphalt or soil/aggregate.
Transportability

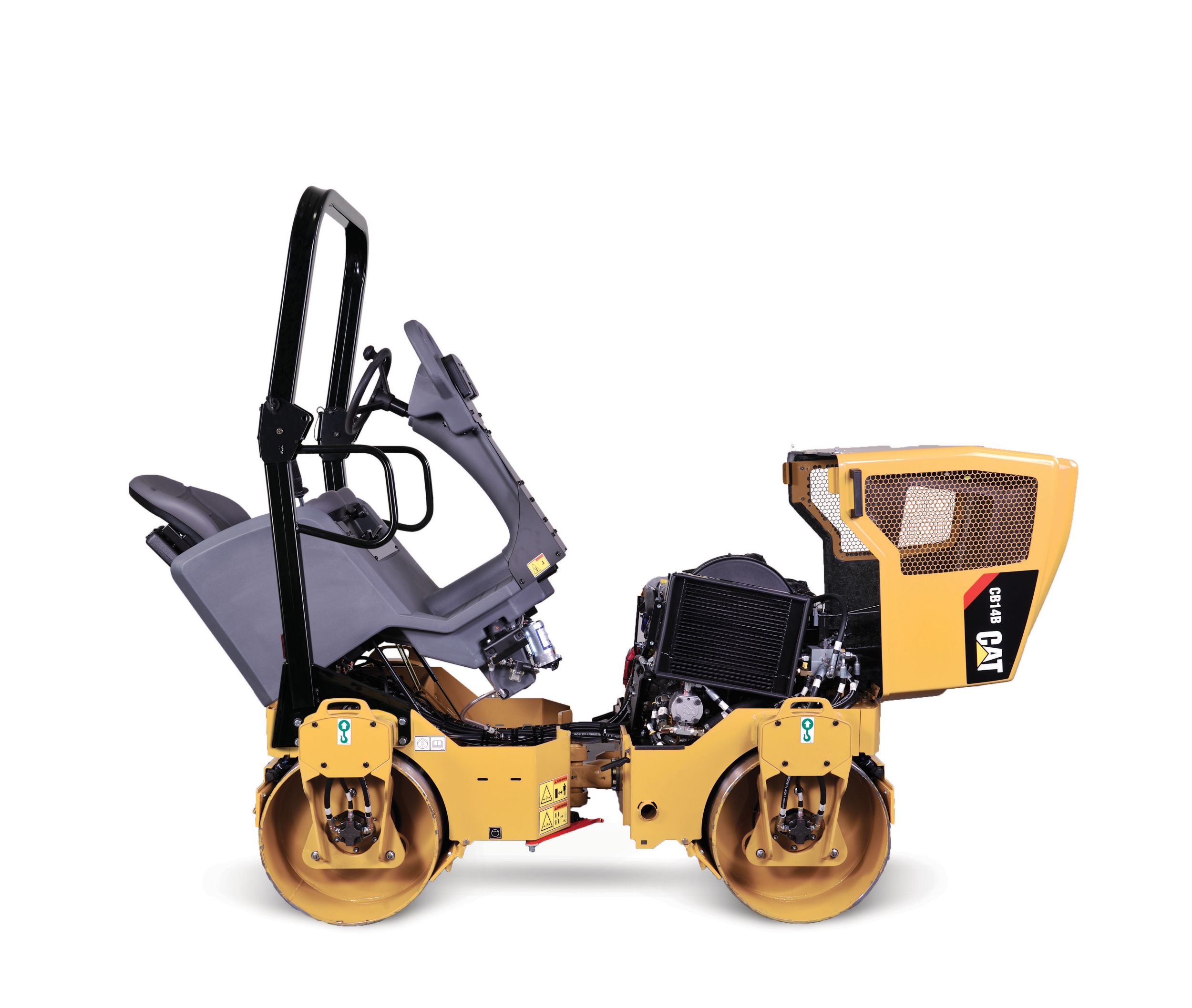

The foldable ROPS facilitates machine transportability and can be folded forward without the use of tools. The short machine length allows it to fit crosswise on a trailer, while high ground clearance facilitates driving up trailer ramps. The machine is equipped with four lifting points for attaching an optional spreader bar.
Perfectly Matched
Vibratory System and Drums

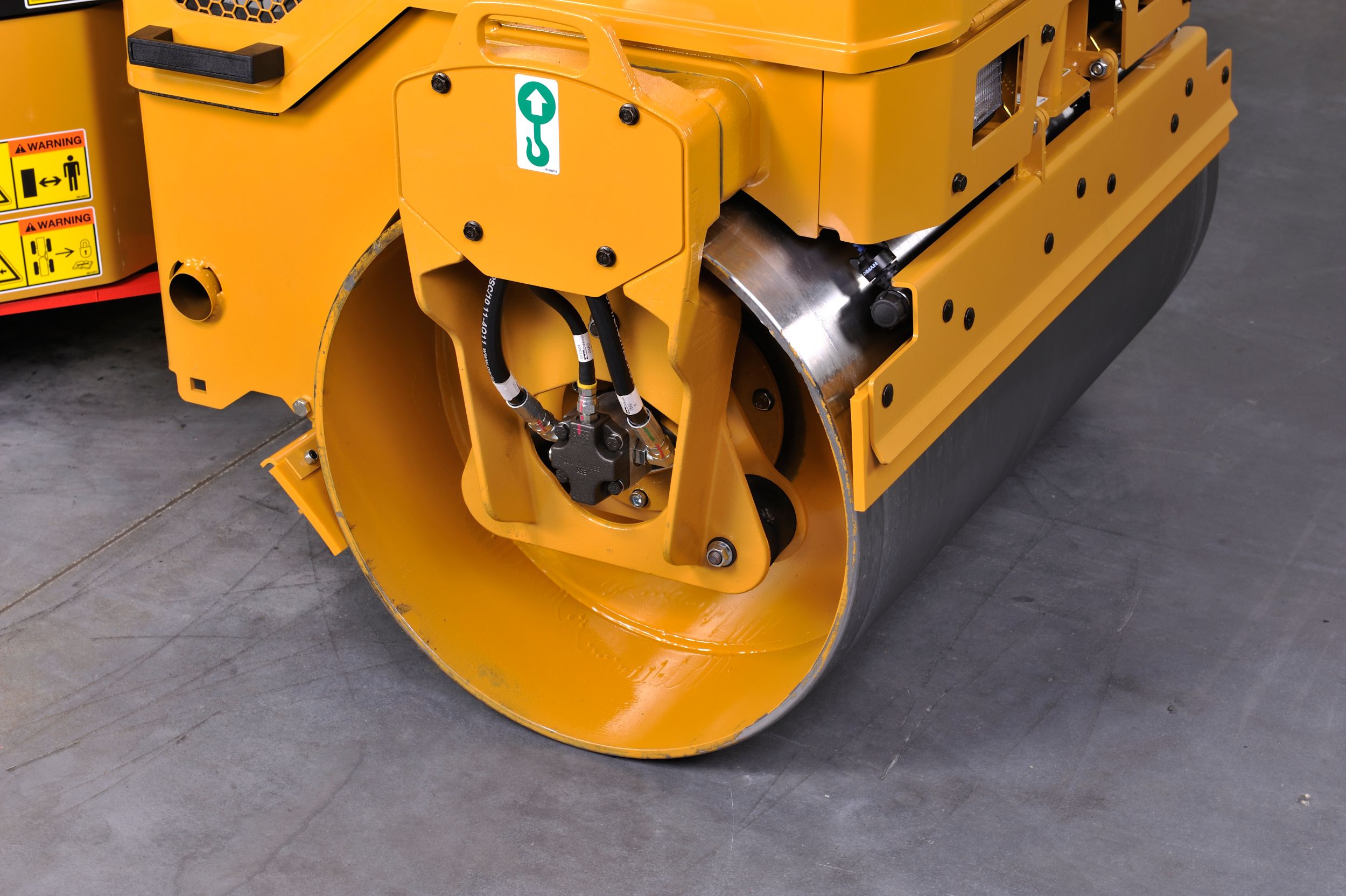

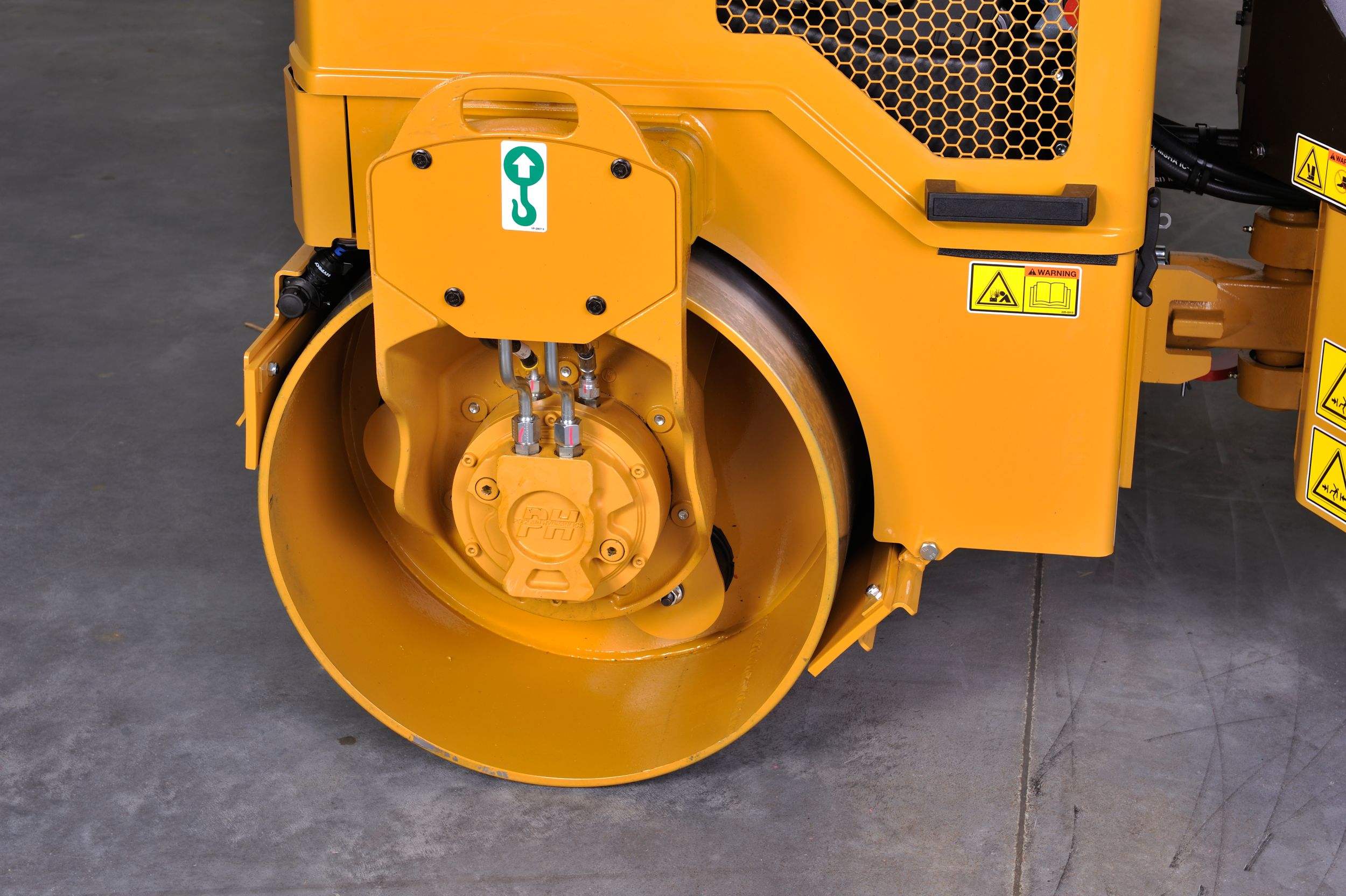

The CB14B utilizes 900 mm (35") tandem vibratory drums. Vibratory selection includes front drum only or both drums for versatility on the job site. The system automatically starts when the propel lever is engaged.
Dual Drum Drive Powertrain
The dual-drum drive powertrain provides continuous full-drum traction on soft base materials, uneven surfaces and steeper grades. The rounded drum edge prevents cutting into mat for better mat quality.
Consistent Water Spray Coverage
Pressurized System
The standard 100 L (26 gal) tank maximizes time between refills. Eight intermittent spray settings optimize usage, while four nozzles at rear and front of each drum evenly distributes water coverage.
Easy Service
The system is equipped with corrosion-proof materials that are easy to clean. The spray bars and spray nozzles can be removed by hand, without the use of tools. The system is double-filtered system to help prevent clogging and a single drain port simplifies clean-out.
Serviceability
Easy Component Access

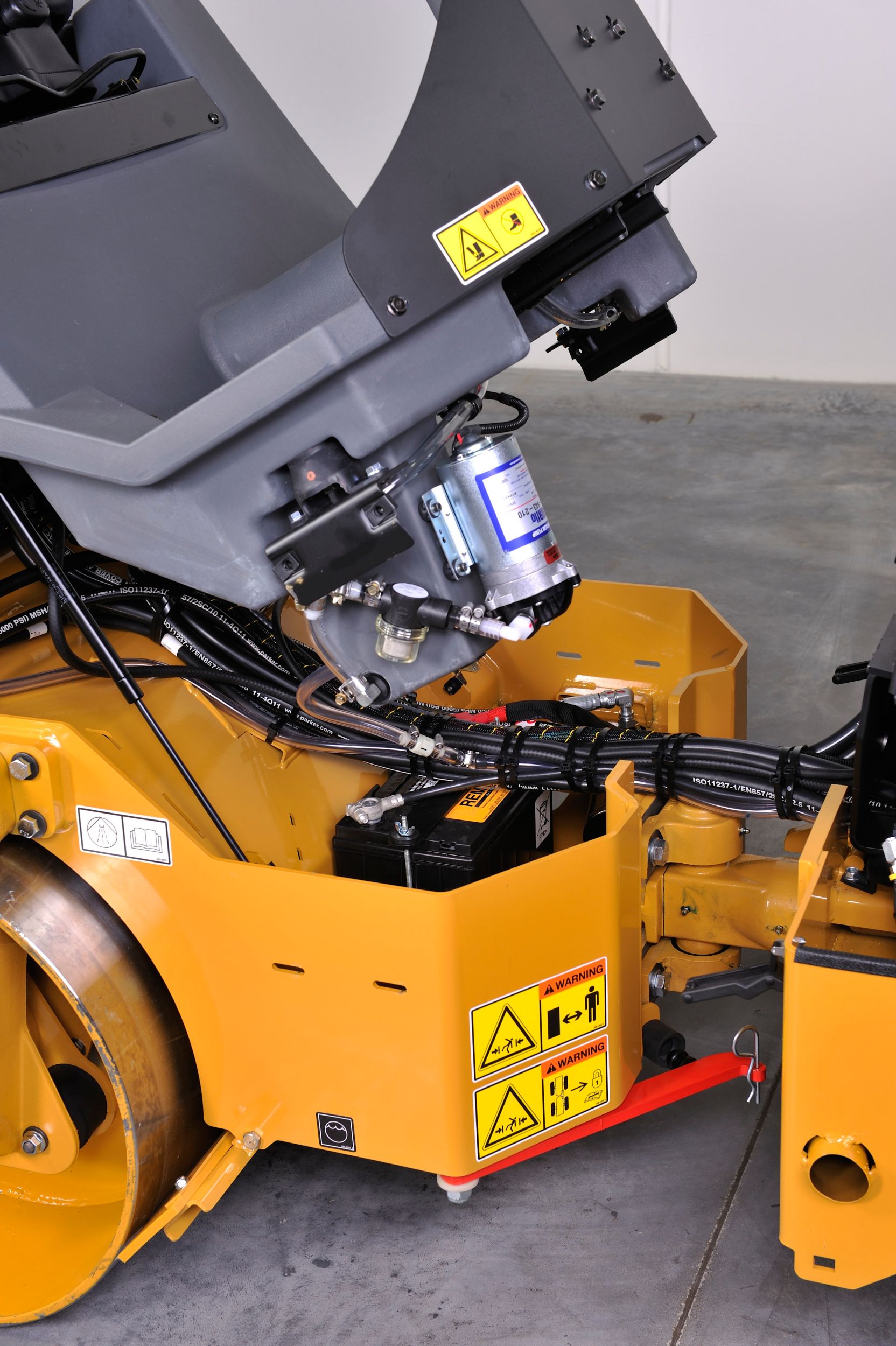

The engine hood and operating platform are equipped with lift assist for quick access and servicing. The battery and water pump are easy to reach with the operator platform in the raised position. External engine components, hydraulics and routine service points are grouped for simplified access and ecology-minded draining.
Effortless Maintenance

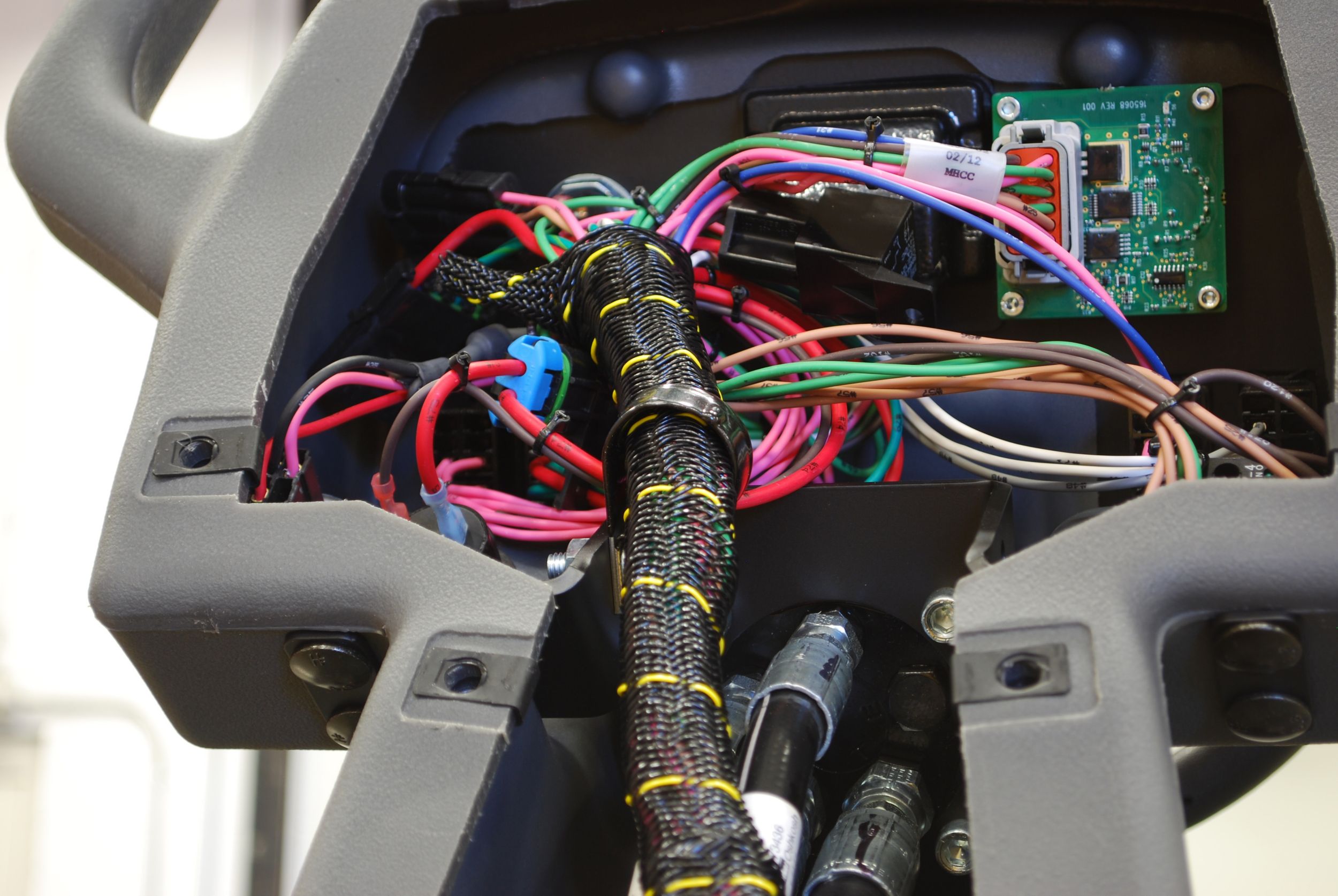

Large space between radiator and oil cooler core provide easy cleaning. The fuel and water tanks are also conveniently located for fast cleaning. The electrical system utilizes color-coded wires, all-weather connections and nylon braiding to provide reliability and protection.
Data not available.
Optional Equipment
- Foldable ROPS
- Fixed ROPS
- Suspension Seat
- Lifting Bar
- Warning Beacon
- Working Lights
