Overview

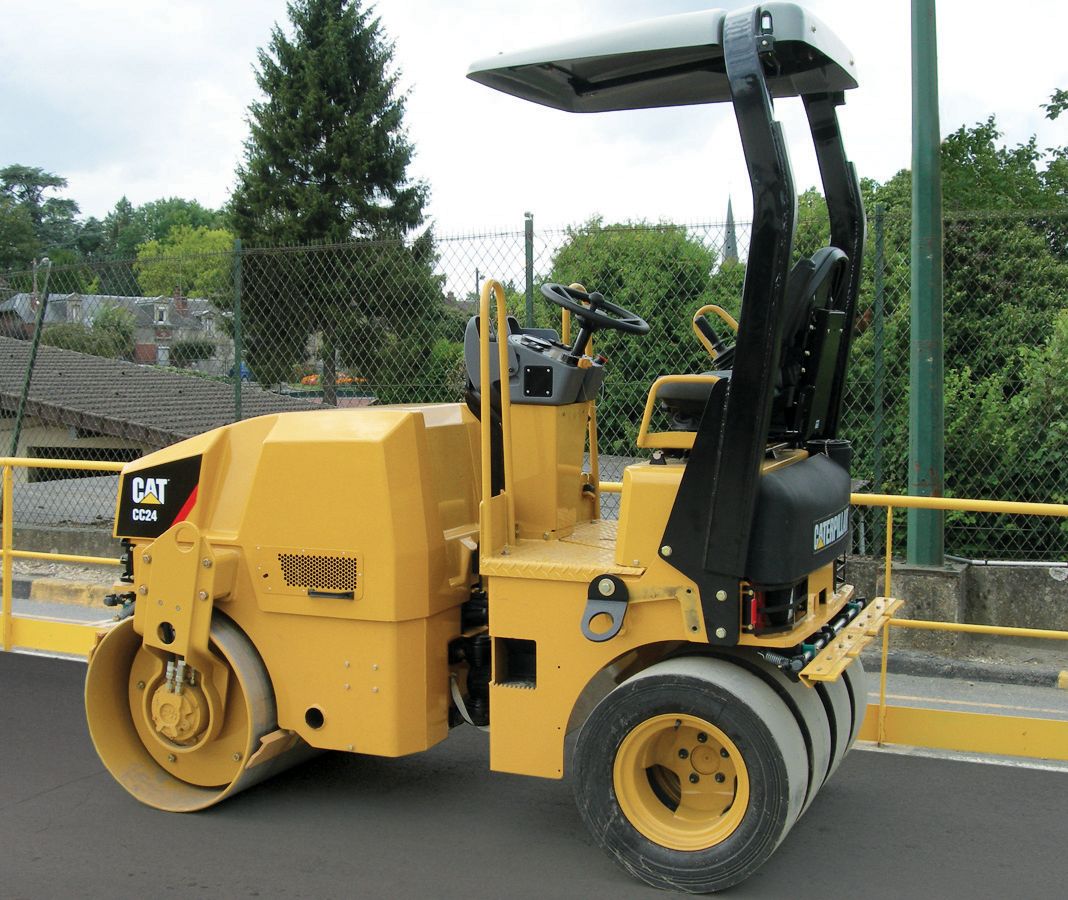

The CC24 is a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production roller. The CC24 provides greater production capabilities with its 1200 mm (47") wide drum on the front and four 6-ply tires on the rear. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions or other similar sized jobs. The pneumatic tires provide even compaction on uneven surfaces.
Specifications
| Operating Weight | — |
| Standard Compaction Width | — |
| Gross Power | — |
Benefits & Features
Specifications
| Operating Weight | — |
| Maximum Weight at Rear Wheels | — |
| Maximum Weight at Front Drum | — |
| Standard Compaction Width | — |
| Curb Clearance | — |
| Turning Radius - Inside Drum Edge | — |
| Ground Clearance | — |
| Number of Wheels | 4 |
| Static Linear Load | — |
| Travel Speed - Maximum | — |
| Gross Power | — |
| Engine Model | C1.5 |
| Overall Length | — |
| Wheel Base | — |
| Height - Steering Wheel | — |
| Overall Width | — |
| Maximum Machine Height | — |
| Drum Diameter | — |
| Drum Width | — |
| Centrifugal Force per Drum - Minimum | — |
| Nominal Amplitude - High | — |
| Frequency | 63/55 Hz (3,780/3,300 vpm) |
| Centrifugal Force per Drum - Maximum | — |
| Fuel Tank Capacity | — |
| Water Spray Tank Capacity | — |
| Tire Spray Tank Capacity | — |
Benefits & Features
Cat® C1.5 Engine
Power
The liquid-cooled C1.5 engine provides a gross power of 24.6 kW (33 hp) for good performance and reliability on grades and in tough conditions.
Large Cooling System
The large cooling system with integrated water and oil coolers keep engine temperatures low in order to maximize fuel efficiency and minimize emissions.
High Ambient Cooling
The high ambient cooling system provides efficient operation in high ambient temperatures.
Low Sound Levels
Low sound levels are achieved in both operating speeds. An intermediate throttle position enables even quieter operation for optimum operator comfort.
500 Hour Oil Change
The oil change interval for the C1.5 engine is 500 hours, reducing service requirements and maximizing uptime.
Traction Control (Optional)
The optional traction control system transfers torque between the front drum and two sets of rear tires when slippage occurs.
Operator's Station
Operator's Station
The operator's station incorporates a fully-equipped console and an adjustable suspension seat. Arm and wrist rests provide better operator comfort for day-long productivity. The steering wheel includes a steering knob for easy maneuverability in turns.
Instrument Panel
The easy-to-understand instrument panel integrates a fuel level indicator, hour meter and light indicators for machine functions. The key switch includes an automatic engine pre-heat feature that improves cold-weather starting.
Smooth Operation
The hydraulic propel lever's two steps regulating curve provides smooth and precise control at low speed. Machine speed increases gradually in the first half of lever stroke for optimum control in confined areas. The second half of lever stroke enables the maximum propel speed to be reached quickly.
Foldable ROPS (Optional)
The foldable ROPS includes two gas shocks that assist the operator and folds forward or backward without the use of special tools.
Vibratory System
Dual Frequency Vibratory System
The standard vibratory system incorporates two frequencies of 63 Hz (3,780 vpm) and 55 Hz (3,300 vpm) in order to provide application versatility.
Vibratory Selection
A vibratory selection switch provides standard front, rear and both drum vibratory capabilities.
Automatic Vibratory Control
The vibratory system includes an automatic start feature that activates whenever the propel lever is moved from the neutral position.
Pod-style Eccentric Weights
The eccentric weights are enclosed in a pod-style housing providing cleanliness that extends bearing life.
Rear Drum Vibratory Delay ( Optional )
The rear drum vibratory delay feature controls the start of the rear drum in order to assist power management on slopes.
Water Spray System
Water Tank
A 150L (39.6 gal) high-capacity polyethylene water tank is enclosed within the machine frame, providing extended operation. An additional tank with a 90 L (23.7 gal) capacity provides a total water capacity of 240 L (63.4 gal). A newly designed drain allows the entire system to be drained quickly.
Extended Operating Intervals
The standard 150L (39.6 gal) tank provides an operating interval of 1.5 hours between refills. An additional 90 L (23.7 gal) tank extends the interval by an additional hour, while the intermittent spray mode doubles the operating time.
Water Pump and Filters
The extended life water pump and filters are conveniently located for easy access while providing optimum spray and flow.
Retractable Self-Adjusting Scrapers
The retractable, self-adjusting scrapers utilize a hardened, compound that provides durability. The ability to retract the scrapers when moving between job sites extends the service life and lowers owning and operating costs.
Tire Spray System (Optional)
The optional tire spray system allows a solvent to be sprayed on the tire surfaces in order to prevent asphalt from adhering to the tires. One spray nozzle is positioned above each tire. The system is controlled with an on/off switch on the control console.
Pneumatic Tires
Versatile Machine
Steel front drum and rubber tires at the rear allow a single machine to function as both a double drum and pneumatic compactor.
Flexible Tires
The flexible tires provide a kneading action resulting in a smooth, tight surface.
Self-Adjusting Scrapers
Each tire includes a self-adjusting scraper. The scrapers are designed for even wear and can be retracted when not in use, limiting wear.
Tire Spray System (Optional)
The tire spray system applies a solvent to the tires in order to prevent material from adhering to them.
Reliability and Serviceability
Vertical Lift Engine Enclosure
The vertical lift engine enclosure allows fast access to routine service points.
Water Spray System
The filters can be easily removed without the use of special tools.
Extended Life Oils
Extended life oils increase maintenance intervals for the engine oil, hydraulic system and vibratory system. Remote-mounted drains provide simplified collection of fluids.
Quick-Connect Hydraulic Test Ports
The quick-connect hydraulic test ports simplify system diagnosis.
Color-coded Electrical System
Electrical wiring is color-coded and numbered for simple troubleshooting. Nylon-braided wrap and all-weather connectors ensure electrical system integrity.
