Overview

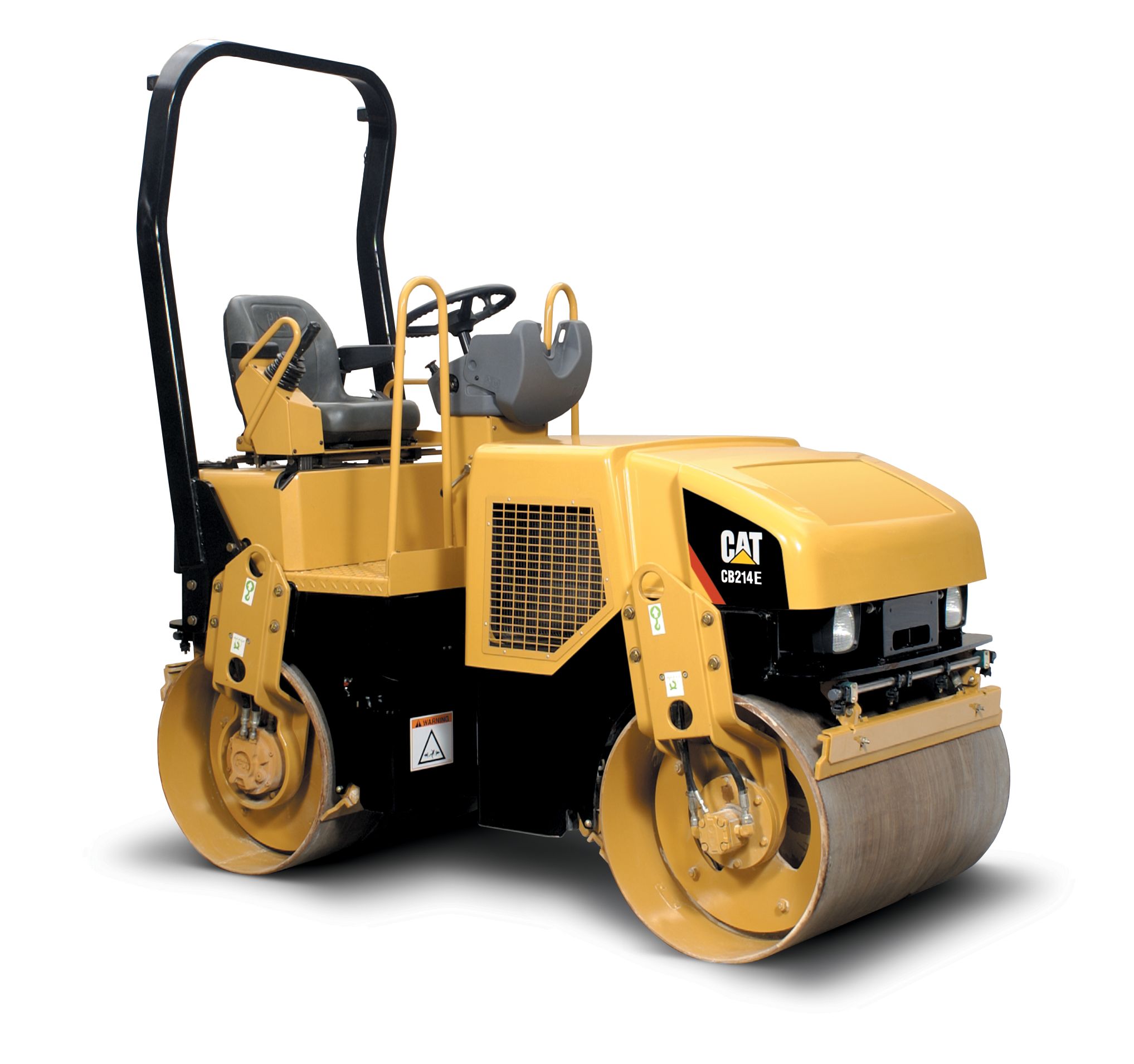

The CB-214E is a versatile machine that can be used as the only vibratory compactor on small sized jobs or on larger jobs as a support roller for high-production compactors. With its 1000 mm (39") wide drums, the CB-214E is well suited for rental customers and contractors or agencies that maintain streets, roads, alleys or are adding paths to parks and recreation areas. In these applications, the tight turning radius and easy maneuverability make it a perfect match.
Specifications
| Gross Power | — |
| Net Power - EEC 80/1260 | — |
| Net Power - ISO 9249 | — |
Benefits & Features
Specifications
| Operating Weight - At Rear Drum with ROPS/FOPS | — |
| Operating Weight - At Front Drum with ROPS/FOPS | — |
| Operating Weight - Without ROPS/FOPS | — |
| Operating Weight - With ROPS/FOPS | — |
| Curb Clearance | — |
| Turning Radius - Outside Drum Edge | — |
| Turning Radius - Inside Drum Edge | — |
| Ground Clearance | — |
| Travel Speed - Maximum | — |
| Gross Power | — |
| Net Power - EEC 80/1260 | — |
| Net Power - ISO 9249 | — |
| Bore | — |
| Stroke | — |
| Engine Model | Cat® 3013C |
| Overall Length | — |
| Wheel Base | — |
| Height - Steering Wheel | — |
| Height - With ROPS/FOPS | — |
| Compaction Width | — |
| Overall Width | — |
| Drum Width | — |
| Drum Diameter | — |
| Frequency | — |
| Vibration Selection | Front, rear or both |
| Eccentric Weight Drive | Hydraulic |
| Centrifugal Force per Drum - Maximum | — |
| Nominal Amplitude - High | — |
| Fuel Tank Capacity | — |
| Water Spray Tank Capacity | — |
Benefits & Features
Caterpillar 3013C Engine
Precise Balance and Optimum Running Speed
The Caterpillar 3013C engine has precise balance and optimum running speed for quiet and efficient operation.
Liquid-cooled Engine
The liquid-cooled engine operates at low temperature helping reduce component wear.
Variable Injection Timing
Variable injection timing provides highly efficient combustion eliminating visible smoke.
Oil Service
Standard 500 hour oil service interval reduces operating costs.
Meets EU Stage II and U.S. Tier 2 Standards
The Caterpillar 3013C engine meets EU Stage II and U.S. Tier 2 off highway emissions standards.
Vibratory System
Pod-style Weight Housings
The pod-style weight housings are assembled and sealed at the factory to ensure cleanliness, extended bearing life and easy field exchange/service.
Change Interval
The change interval for bearing lubrication is every three years or 3,000 hours.
Frequency and Amplitude
The balance between frequency and amplitude provides a good mat finish for commercial work.
Vibratory Delay Option
The vibratory delay option allows front drum to vibrate before the rear drum.
Operator Comfort
Single Propel Lever Control
A single propel lever control provides simplified operation, making the CB-214E a perfect fit for new operators.
Instrument Panel
The easy-to-understand instrument panel integrates warning lights for main functions, fuel gauge, water spray and switches, allowing the operator to quickly verify the status of machine systems.
Sound Levels
Low sound levels make the CB-214E comfortable for both operators and spectators.
Operator's Station
Seat Arrangements
The durable suspension or non-suspension seat arrangements offer day long comfort.
Ignition Key Switch
The ignition key switch automatically enables engine pre-heat system.
Operator's Station is Isolated
The operator's station is isolated with four rubber mounts that help reduce vibration before it reaches the operator, controls and instrumentation.
Lockable Cover
A lockable cover protects instrumentation and gauges.
Visibility
Forward Visibility
Excellent forward visibility allows the operator to see objects 0.58 m (1.9') high and 1 m (3.3') in front of the machine.
Rearward Visibility
The rearward visibility is even better. The operator can see objects that are 0.35 m (1.1') behind the machine and flush to the surface.
Engine Enclosure
The low-profile engine enclosure provides unobstructed sight lines to ground personnel working near the machine.
Water Spray System
Constant or Intermittent Spray Capabilities
Constant or intermittent spray capabilities provide extended operation between refills.
Water Filtration
Triple water filtration reduces machine downtime caused by system clogs.
Water Pump
The extended-life water pump provides optimum spray and flow. The pump and filters are conveniently located for easy access.
Water Tank Drain
The large water tank drain allows system to be drained in less than five minutes.
Optional Front and Rear Spray Bar Shields
Optional front and rear spray bar shields prevent wind displacement of water.
Optional 70 Liter (18.5 gal) Water Tank
An optional 70 liter (18.5 gal) water tank increases production between refills.
Drum Design Keeps Production High
Specially Designed Drum Edges
Specially designed drum edges help eliminate marks on deep lifts or when turning.
Drum Construction
The drums are constructed of rolled steel plate and are finished to reduce surface irregularities.
Replaceable Rubber Mounts
Replaceable rubber mounts isolate vibration and enhance vibratory capabilities.
Drum Scrapers
Each drum is fitted with two retractable, spring-loaded, self adjusting scrapers, positioned at the front and rear of each drum.
Serviceability
Fiberglass Engine Enclosure
The fiberglass engine enclosure pivots upward and locks open with a prop rod.
External Engine Components
External engine components, hydraulics and routine service points are clustered in easy-to-access locations.
Daily Visual Maintenance
Daily visual maintenance system simplifies verification of fluid levels and filter conditions.
Extended-life Oils
Extended-life oils increase maintenance intervals for the vibratory system, hydraulic system and engine oil.
Remote-mounted Drains for Hydraulic and Engine Oils
Remote-mounted drains for hydraulic and engine oils provide simplified collection of fluids.
Quick-connect Hydraulic Test Ports
Quick-connect hydraulic test ports simplify system diagnosis.
Electrical Wiring
Electrical wiring is color-coded and numbered for simply troubleshooting.
Nylon-braided Wrap and All-weather Connectors
Nylon-braided wrap and all-weather connectors ensure electrical system integrity.
