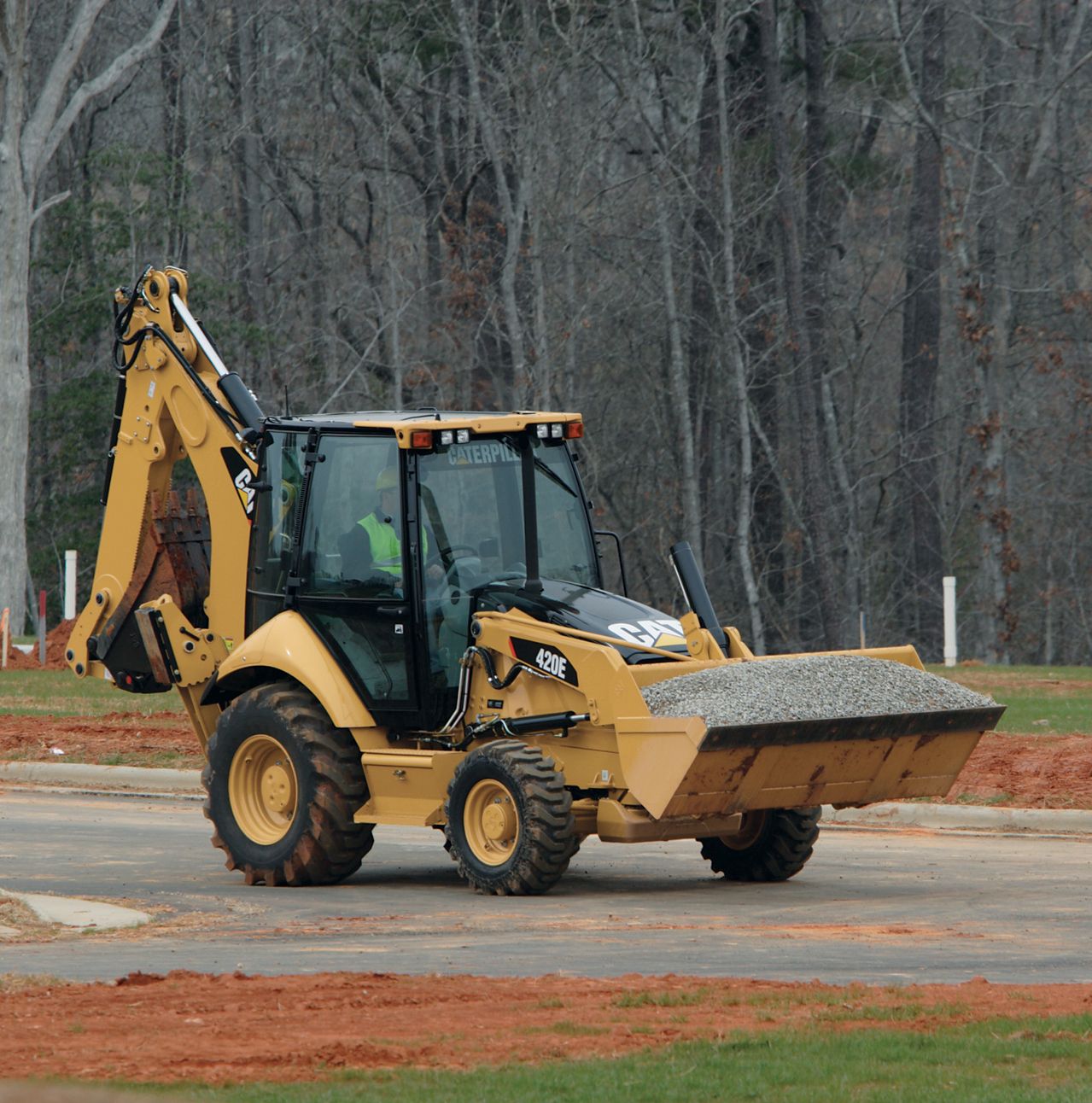

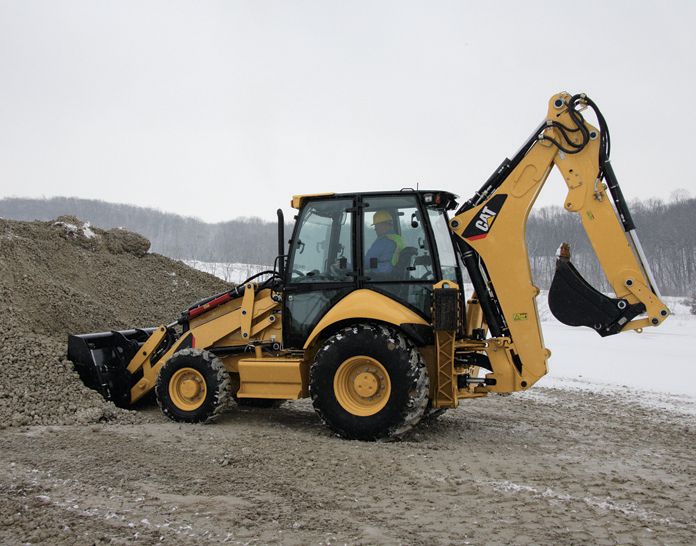

420E/420E IT^Non-Current

Experience a whole new level of comfort with the spacious E-Series operator station. The ergonomic, automotive style enhances the operator environment. A narrow front dash provides excellent visibility to the front bucket. Reduced vibration keeps operator fatigue low. In-cab storage compartment and lockable tool and battery box provides ample space for tools and belongings. The operator station also features an easy-to-read gauge cluster and increased legroom.

Automatic Engine Speed Control

This new feature reduces engine speed when the backhoe is not in use to conserve fuel and lower environmental noise.

Air Suspension Seat

The standard air suspension seat is adjustable for a greater operating range and more comfortable ride. A switch allows the seat to be tailored to support differing body weights. Adjustable seat height accommodates all operators. The deluxe cab air suspension seat also has an adjustable back support, lumbar support, seat cushion extension, seat cushion tilt and vertical and angle adjusting armrests.

Improved Air Conditioning

The improved air conditioning system features enhanced air distribution and performance for a more comfortable work environment. A nearly 20% increase in air flow combined with improved louver locations provide superior operator comfort.

Configurations

The 420E operator station is available in 5 options - ROPS Canopy, ROPS Canopy Plus, Standard Cab, Deluxe Cab and Deluxe Cab with Air Conditioning. See Standard and Optional Equipment for details.

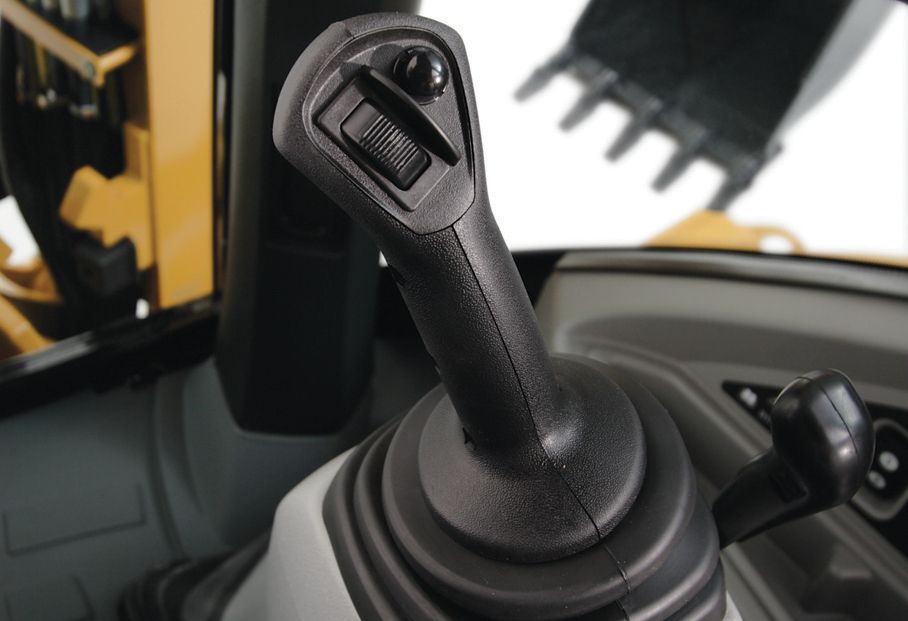

Low effort, ergonomic excavator-style joystick controls provide smooth modulation. Thumb rollers provide convenient, fingertip control of auxiliary functions, eliminating pedals on the floor.

One-Touch Low Idle

Located on the right hand joystick, this button reduces engine speed to low idle. This new feature will reduce fuel consumption and improve communication with ground crew.

Pattern Selector

The pattern selector switch, located in the cab, allows the operator to change from excavator to backhoe control pattern simply by pressing a button. This allows the operator to use the pattern they are most familiar with to get more done, faster.

The 420E has a load-sensing, closed center hydraulic system,which closely matches power and flow to the demand needed by the implements. So whether you're in full trenching mode, or delicately digging around services, you are in control. In applications such as production trenching, speed is important and the system will match the flow needed to get the job done quickly and efficiently. The load-sensing hydraulic system also delivers:
• A cooler hydraulic system
• Better fuel efficiency
• Quieter operation
• Reduced wear on components
Cat XT-3 ES ToughGuard™ hoses combined with Cat couplings and O-ring face seal fittings provide a leak-free system. The 420E also features new flow-sharing hydraulic valves, ensuring proportional flow of oil to all hydraulic cylinders, providing greater control and improving multi-function performance.

The optional Ride Control System smoothes the ride in all conditions, including load and carry, highway roading, or simply moving around the job site. It reduces machine loping, providing a smooth and stable ride for increased operator comfort and reduced operator fatigue. The Ride Control option improves material retention in the loader bucket for increased productivity and a cleaner job site. The system is easily engaged by a switch on the front console. The Ride Control switch has three positions, ON, OFF and AUTOMATIC. In the automatic position, the Ride Control engages automatically as the travel speed increases. At low speed, the system disengages for loading, grading or finishing applications.

Cat Engine

The 420E features the Cat® C4.4 DIT (Direct Injection Turbocharged) engine with ACERT® technology and meets all U.S EPA Tier 3/EU Stage IIIa emissions requirements. The increased horsepower and torque rise deliver improved loading and roading performance.
• Electronic engine control provides precise fuel metering for optimized power, response and fuel efficiency.
• The water separator service indicator ensures the operator is alerted when service is necessary.
• Dry-type axial seal air cleaner with automatic, integrated dust ejection system for more efficient pre-separation. Both air cleaner and precleaner functions are incorporated into a single unit mounted under the hood.

Transmission

The Cat standard power shuttle transmission provides four speeds forward and reverse. Hydraulically shifted clutches allow on-the-go direction and travel speed shifts. The optional auto-shift transmission matches gears with grade and load conditions. Top gear is selected with the twist grip control on the steering wheel.
• Hydraulic proportional control valves smooth speed and directional shifts.
• Transmission Kick-Down Switch/Neutralizer allows the operator to downshift through the gears to first.
• Four Wheel Drive (4WD) option improves mobility and loader performance in poor underfoot and can be activated on-the-go.
• Maximum roading speed of 40 km/h (25 mph) for faster travel between job sites.
• Cat Rear Axles are designed specifically for demanding backhoe loader applications. Axles feature outboard planetary gear sets for easy serviceability and brake design improvements for longer service life.

Brake Mode Selector

The brake mode selector switch has three positions: two wheel drive, two wheel drive with all wheel braking and four wheel drive. Two wheel drive with all wheel braking provides better tire life while roading and engages the front axle when brakes are applied for improved braking performance.

Caterpillar offers a choice of single tilt or integrated toolcarrier (IT) loader linkage to suit your application requirements. The IT loader controls provide single lever proportional control and fine modulation of the hydraulic work tools. A thumb roller operates auxiliary hydraulic functions such as the multi purpose bucket on the IT machines.

Single Tilt

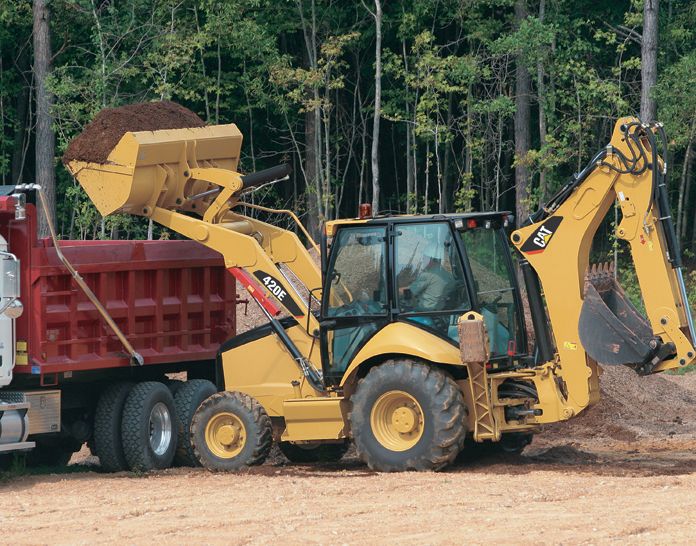

The standard single tilt loader linkage features strong lift and breakout forces for solid performance in backfilling and truck loading applications.

Integrated Toolcarrier

The optional integrated toolcarrier (IT) loader linkage provides higher breakout forces, as well as parallel lift, for efficient loading and material handling. Integrated toolcarriers are highly versatile and can use a wide range of Cat Work Tools for a variety of applications.

Return-to-Dig

The return-to-dig system reduces loading cycle times by bringing the loader bucket back to the dig position with an easy pull of the lever. By the time the loader bucket is at ground level, the bucket is angled correctly for the next load or cut.

The E-Series backhoe delivers industry-leading digging forces. Serrated edges on the stick provide improved material clamping for clearing and demolition applications. The single pin bucket linkage contributes to best-in-class rotation of 205 degrees for all applications.

E-Stick Design

The optional extendible stick (E-stick) increases reach and dig depth by approximately 1.2 meters (4 feet). The new design delivers increased life and easy in-field adjustment with common hand tools.

Curved Boom

The excavator-style boom is built for optimum performance and durability. The curved design provides additional clearance over obstacles while digging a trench or truck loading. The narrow boom enhances the viewing area to the bucket and trench throughout the entire operating range.

Thumbs

Thumb mounting provisions are standard on every Cat Backhoe Loader for added machine versatility. Hydraulic thumbs are available factory-installed. Mechanical thumbs are available through your Cat Dealer.

Convenient service features make maintenance easy, reducing your downtime.
• Tilt-up hood provides convenient access to all engine check points.
• Fill caps are color-coded for quick identification.
• Electronic control modules store fault codes for easy, efficient troubleshooting and maximum uptime.
• S•O•SSM, Coolant Sampling and Technical Analysis help you avoid unscheduled repairs.
• Caterpillar is committed to providing you with a safe work environment. For more information please visit SAFETY.CAT.COM™.

Your Cat dealer is ready to assist you with your purchase decision and everything after.
• Financing packages are flexible to meet your needs.
• Your Cat dealer can evaluate the cost to repair, rebuild and replace your machine, so you can make the right choice.
• Nearly all parts are available at your Cat dealer parts counter.
• See your dealer's website or www.cat.com to customize the machine that is right for you using the Build and Quote applications. Also find information on other Cat products, dealer services and industry solutions.

AccuGrade™ System

The AccuGrade system for backhoe loaders improves digging accuracy and site safety by eliminating the need for manual grade measuring. Both the Site and Laser Reference Systems save time and money in a variety of digging and trenching applications.

Site Reference System

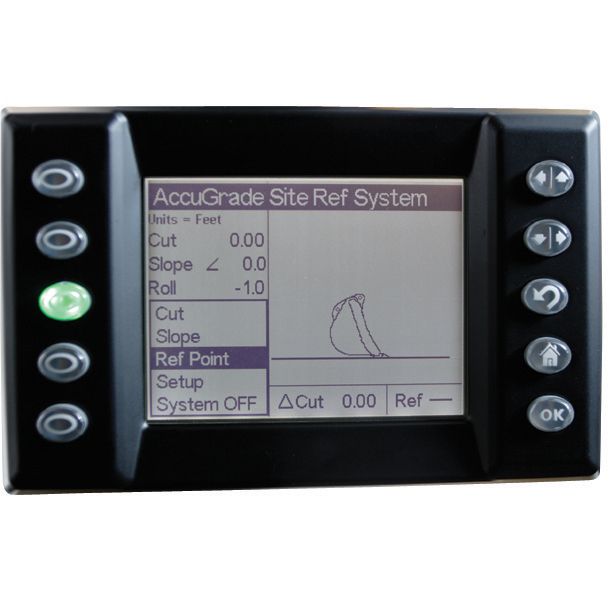

The Site Reference System allows the operator to excavate to pre-determined coordinates. The intuitive software and controls allow the operator to set target grades. An in-cab display allows the operator to enter slope and dig depth parameters. Easy to read grade indicator and elevation display delivers all system information to the cab for easy viewing by the operator. System includes rugged components built to withstand the harshest environments:
• In-cab display
• Cylinder position sensors
• Swing position sensor
• Inclinometer
• Wiring harnesses

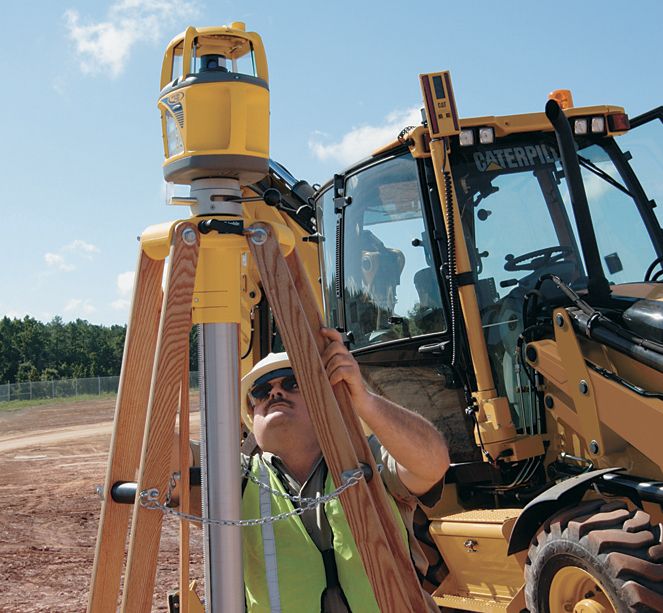

Laser Reference System

The Laser Reference System works with laser transmitters to accurately grade or excavate to a site plan without the use of grade stakes. The Laser System includes all the components of the Site Reference System with the addition of the following:
• Laser receiver
• Electric mast and mount
• Laser wiring harness
Note: Laser transmitter and tripod sold separately

Product Link

Product Link uses GPS technology to provide machine data, including service hours, location, events and diagnostic information, to you through a web-based application or e-mail/pager notification.

Machine Security System

An optional Machine Security System (MSS) that utilizes a programmable key system deters theft, vandalism and unauthorized usage. MSS uses electronically coded keys selected by the customer to limit usage by individuals or time parameters.

Backhoe Work Tools

A large selection of backhoe tools - including a new hydraulic thumb - gives you the flexibility to serve more customers, more profitably.
• Standard Duty, Heavy Duty, Heavy Duty Rock, Pin Lock, Soil Excavation, Coral and Ditch Cleaning Buckets
• Cold Planer
• Hydraulic Hammer
• Auger
• Ripper
• Mechanical & Hydraulic Thumbs
• Quick Coupler
• Vibratory Plate Compactor

Loader Work Tools

The versatile loader tool line includes a wide variety of options from angle blades to asphalt cutters:
• General Purpose, Multi Purpose, Side Dump and Light Material Buckets
• Angle Blade
• Broom
• Rake
• Asphalt Cutter
• Loader Forks
• Bale Spear
• Material Handling Arm
• Snow Plow

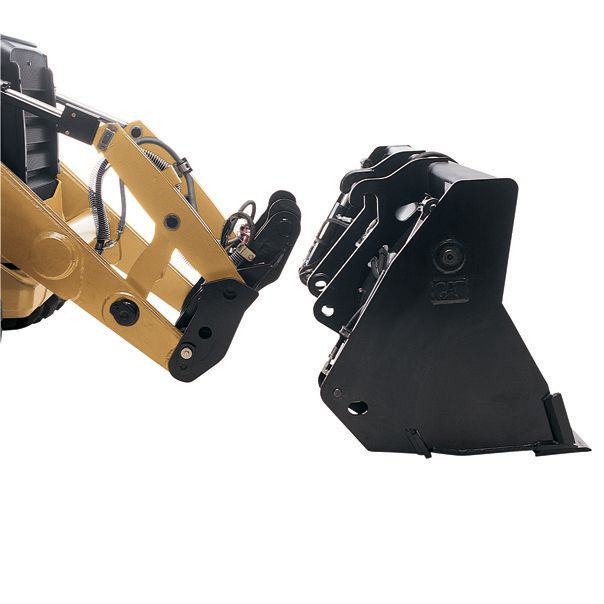

IT Quick Coupler

The quick coupler allows quick connection to selected work tools. Mechanical work tools can be changed in less than 30 seconds from the comfort of the operator station.

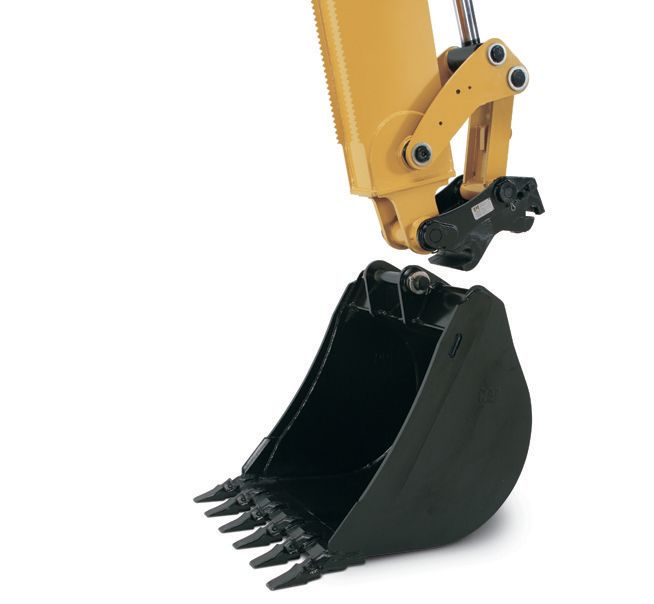

The right bucket makes all the difference

To get top performance from your Cat backhoe loader, be sure your machine is equipped with the proper bucket and tips. The soil excavation bucket provides the best productivity in most conditions.

DRS 230 (Diagonal Retention System)

Heavy-duty bucket teeth are attached with diagonal pins rather than horizontal pins for easy exchange.
