Overview

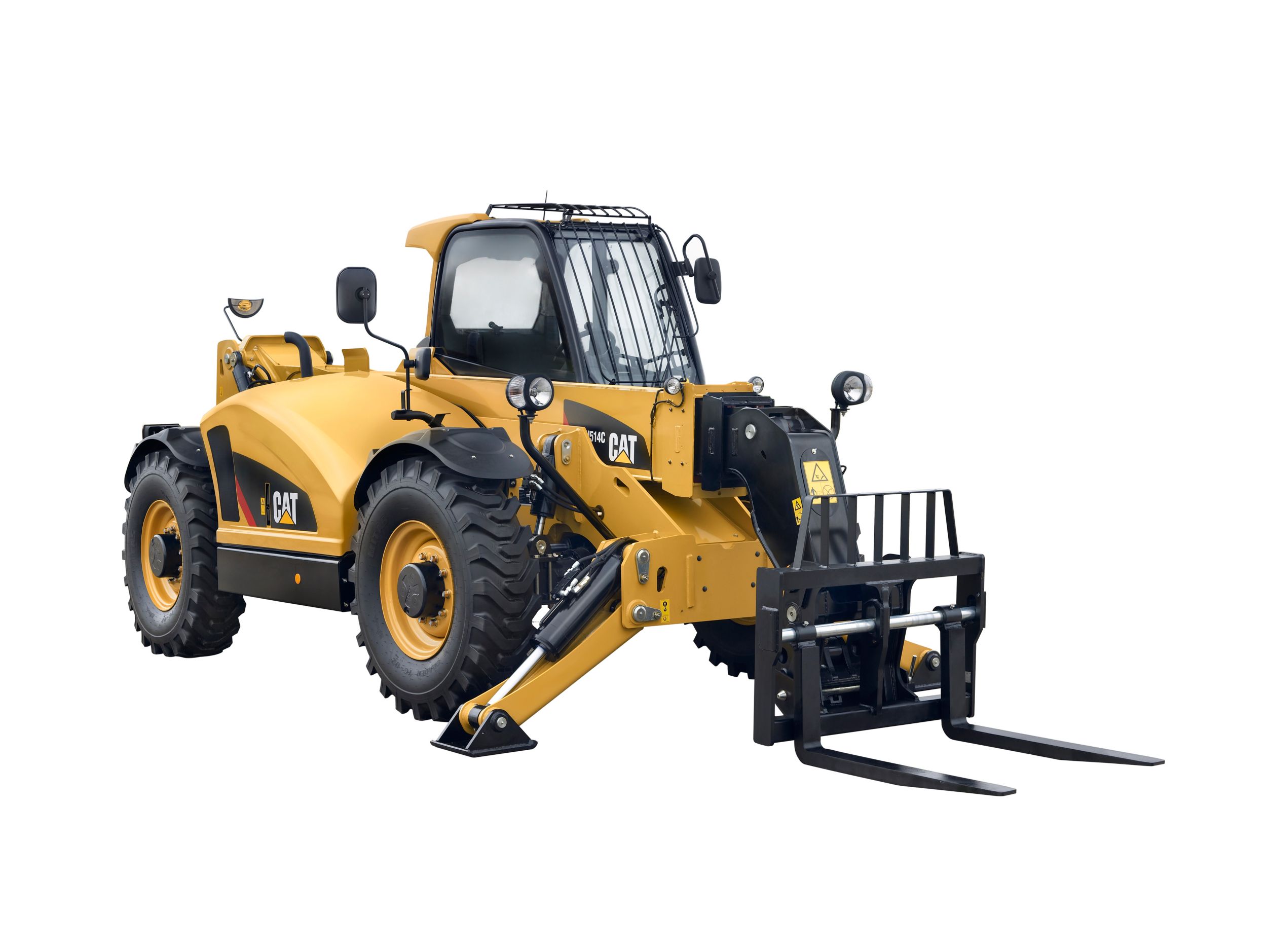

The TH514 Telehandler is designed for your toughest jobsite applications. With load capacity of 4990 kg (11,000 lb) and lift height of 13.7 m (45 ft), this telehandler will do the work of many.
Specifications
| Rated Load Capacity | — |
| Maximum Lift Height | — |
| Engine Model | Cat C4.4 DITAAC |
Benefits & Features
Specifications
| Engine Model | Cat C4.4 DITAAC |
| Gross Power | — |
| Maximum Torque | — |
| Bore | — |
| Stroke | — |
| Displacement | — |
| Operating Weight | — |
| Rated Load Capacity | — |
| Maximum Lift Height | — |
| Load at Maximum Height - Stabilizers Down | — |
| Load at Maximum Height - Stabilizers Up | — |
| Maximum Forward Reach | — |
| Load at Maximum Reach - Stabilizers Down | — |
| Load at Maximum Reach - Stabilizers Up | — |
| Top Travel Speed | — |
| Load at Maximum Height | — |
| Load at Maximum Reach | — |
| Height | — |
| Width | — |
| Wheel Base | — |
| Length - Fork Face | — |
| Ground Clearance | — |
| Turning Radius - Over Tires | — |
| Turning Radius - Over Forks | — |
| Length - Front of Tire | — |
| Rear - Overhang | — |
| Standard | 14.00-24 16PR TG-02 Mitas |
| Optional Construction | 14.00 - 24 SGG Goodyear |
| Maximum System Pressure | — |
| Pump Type | Variable displacement load sensing axial piston pump |
| Primary System Maximum Pressure | — |
| Primary System Maximum Pump Flow | — |
| Auxiliary Hydraulic Supply - Intermittent | — |
| Auxiliary Hydraulic Supply - Continuous | — |
| Fuel Tank | — |
| Hydraulic Tank | — |
| Forward - 1 | — |
| Forward - 2 | — |
| Forward - 3 | — |
| Forward - 4 | — |
| Reverse - 1 | — |
| Reverse - 2 | — |
| Reverse - 3 | — |
| Boom Up | — |
| Boom Down | — |
| Tele In | — |
| Tele Out | — |
| Crowd Forward - Dump | — |
| Crowd Backward | — |
| Combined - Up and Out | — |
| Combined - Down and In | — |
| Boom Breakout Force | — |
| Bucket Breakout Force | — |
| Drawbar Pull - Basic | — |
Benefits & Features
Operator Station
Intuitive Controls
Our easier to use control layout and single joystick will keep you fresh and comfortable all day.
Easier Access

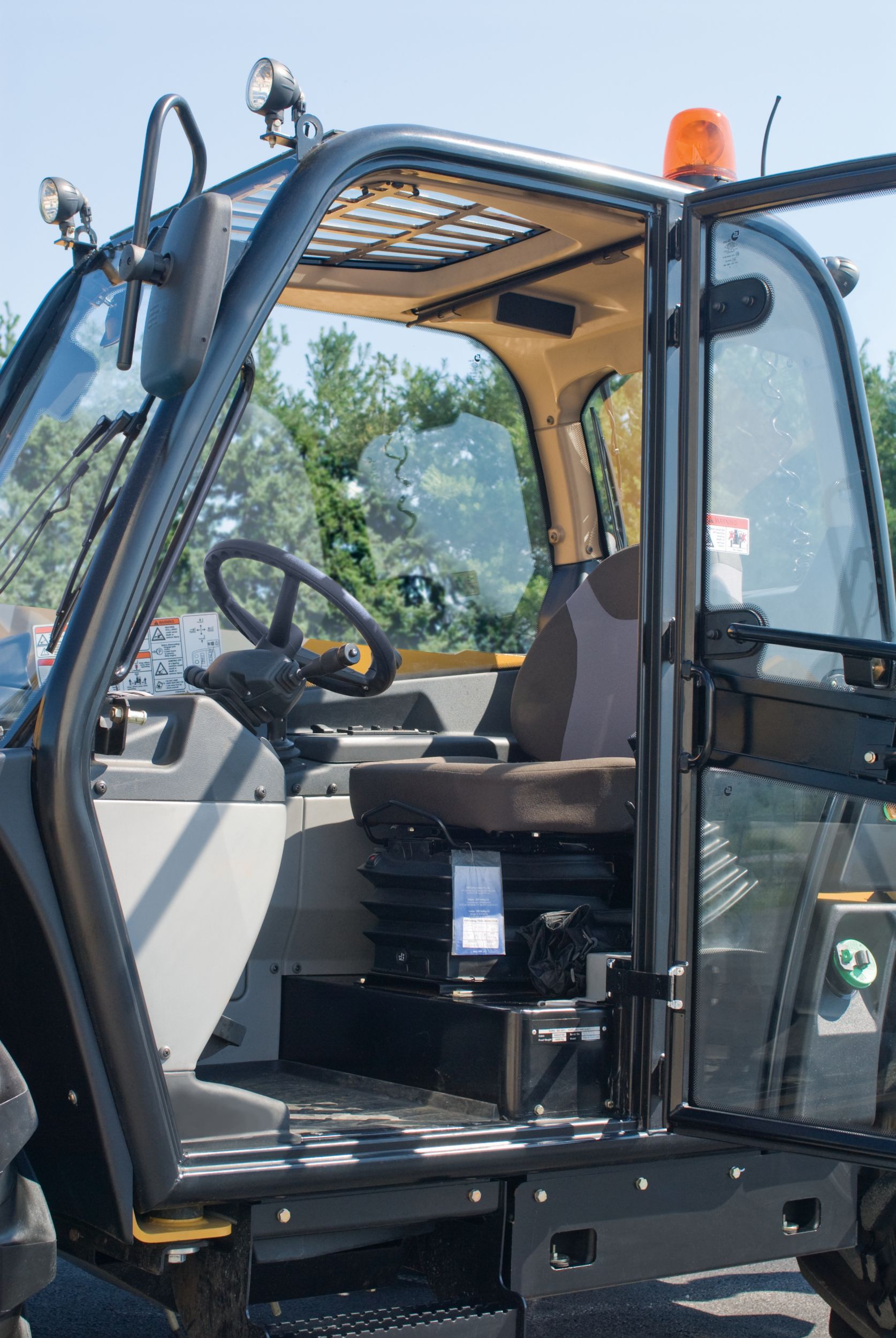

Cab entry and exit is both easier and more convenient with its well placed handholds and step.
Operator Protection
The machine provides full operator security with EROPS protection.
Ease of Operation

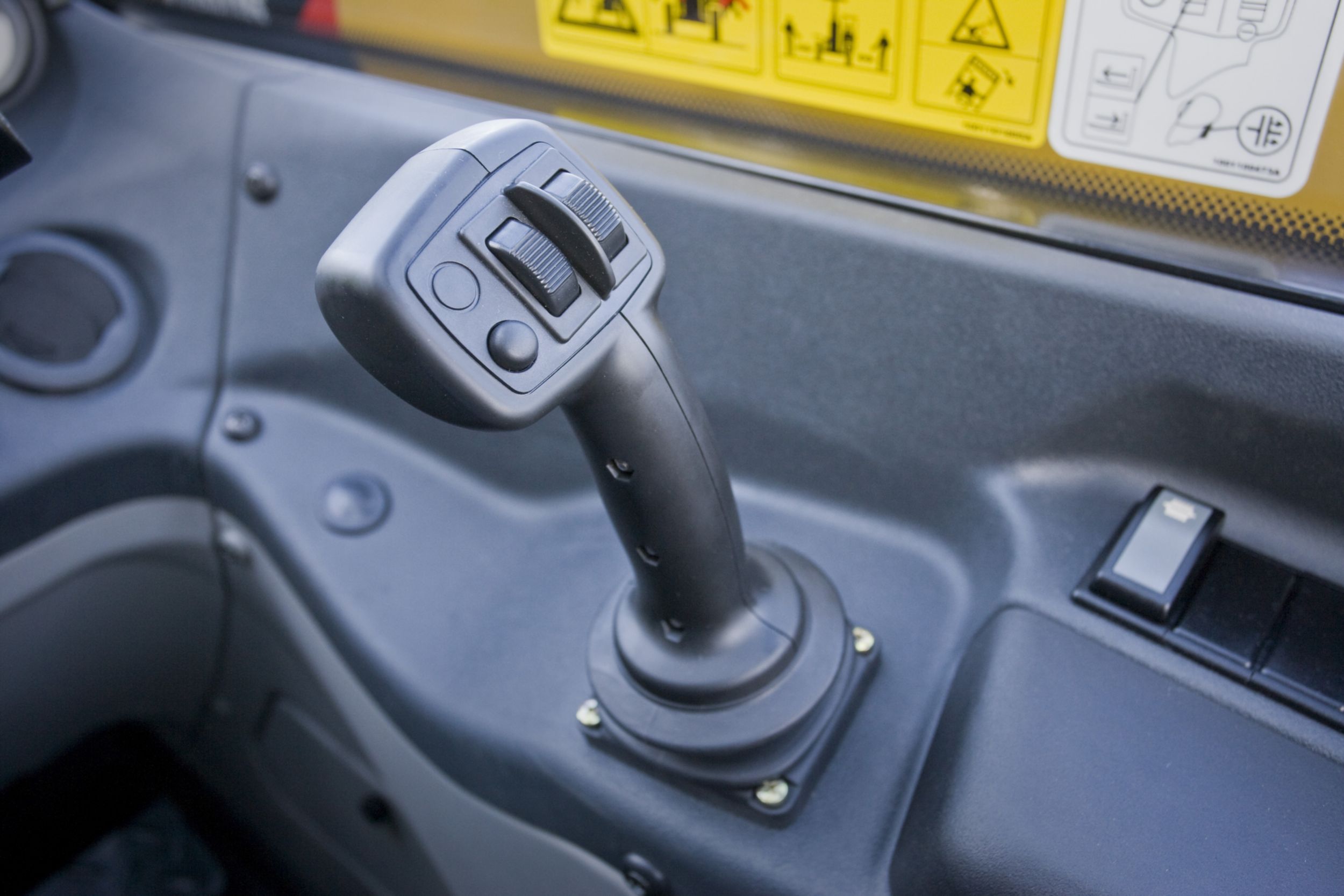

Joystick Control
The joystick allows three simultaneous boom functions enabling application customization.
Flow Sharing
Three simultaneous hydraulic functions are achieved using a full flow sharing hydraulic valve. A load sensing variable displacement pump allows full hydraulic power even at low revs.
Performance
Lift Height

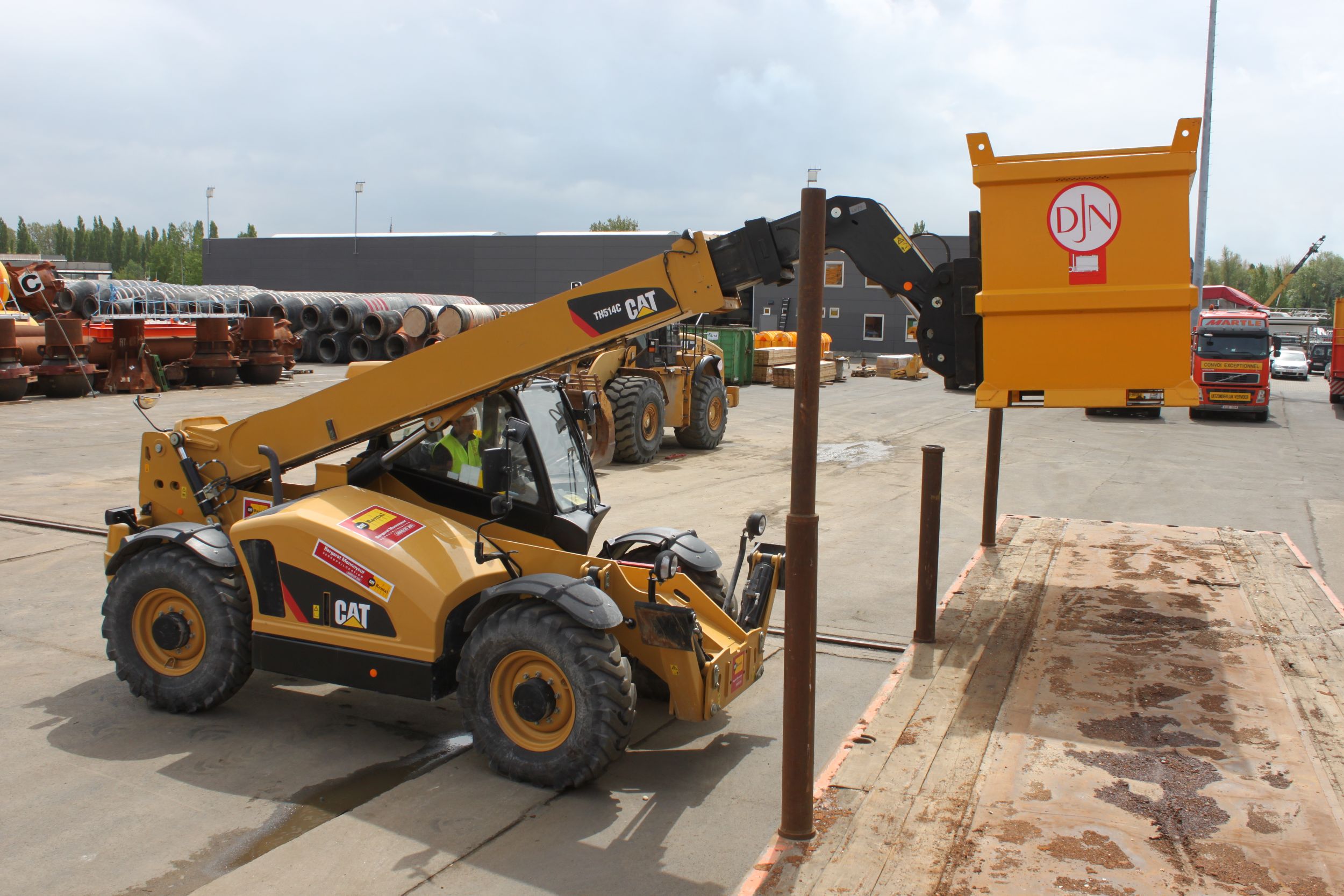

The TH514 can pick and place bricks and materials to a maximum height of 13.7 m (45 ft).
Steering Modes
The TH514 Telehandler offers three steering modes to allow you to more easily position the machine.
Power Train
Transmission
The TH514 has a 4-speed powersynchro transmission, which uses a torque converter to transfer engine power to the transmission.
Versatility
Quick Coupler
A manual IT interface is standard on the TH514 Telehandler. For optimum versatility, an optional hydraulic quick coupler is available, allowing the operator to change non-hydraulic work tools without leaving the cab.
Hydraulic System
Machine is equipped with a selectable continuous auxiliary hydraulic flow allowing the use of hydraulically operated work tools.
Work Tools
A wide range of work tools are available to meet most job site applications. Telehandler work tools extend the versatility of the machine. Built for performance and durability, these work tools deliver high productivity, long life and excellent value. Contact your Cat dealer for available work tool options.
Machine Configurations
Various machine configurations are available to match the different applications and operating environments.
Tires
Two tire options are available to enable the machine to be configured to achieve its optimum job site performance.
Work Platform
With a platform size of 8 ft x 4 ft, it is designed for ease of transport. Platform has a maximum capacity of 1,000 lbs and is designed with multiple lanyard anchor points.
Serviceability and Customer Support
Access
All Cat Telehandler service points, including the combined transmission/hydraulic oil filter, are accessible and major components are at ground level due to the overall machine design.
Operation
Improving operating techniques can boost your profits. Your Cat Dealer has literature and other tools to help increase your productivity.
Product Support
You will find high availability of parts at our Dealer parts counter. Cat Dealers utilize a worldwide computer network to find in-stock parts to minimize machine downtime.
Data not available.
Standard Equipment
- Engine, Cat C4.4 DITAAC, Tier 3 compliant
- - Gross power 74.5 kW/101 hp- Maximum torque 410 Nm / 1400 rpm- Displacement 414 litre- Bore 105 mm / Stroke 127 mm
- Transmission, Cat PowerSynchro
- - 4 forward / 3 reverse- Single lever, column mounted direction change- Transmission disconnect via joystick or brake pedal
- Axles, heavy duty durable
- Permanent 4-wheel drive
- Front axle, limited slip differential
- 3 Steering modes -- 2-wheel, 4-wheel, and crab
- Hydraulics, continuous flow
- Boom, telescopic
- -Sychronized 3-section boom with non-metallic wear pads- Compensation cylinder- Boom work lights- Boom prop
- Electrical
- Alternator, 100 amp
- 12 volt electrical system
- Battery, single 900 CCA maintenance-free with disconnect
- Anti-restart key switch
- Audible back-up alarm
- 12 volt internal and external power sockets
- 'Electronic Technician' diagnostic connector
- Stabilizers
- Cabin, standard
- EROPS certified
- LCD monitor, interactive
- - Entry door with window- Floor mat- Interior mirror- Heater
- Rearview mirror, left and right side
- Wiper blade, front and rear window
- Power steering with steering wheel spinner knob
- Radio ready
- Quick Coupler
- Manual, IT interface
Optional Equipment
- Coupler, IT hydraulic
- includes Auxiliary Electrics
- Spare Tyres and rims
- *Mitas 14.00-24 TG02*Goodyear 14.00-24 SGG
- Work Tools
- Carriages
- Forks (pair)
- Work platform
- Truss boom
- Lifting hook
- Buckets
