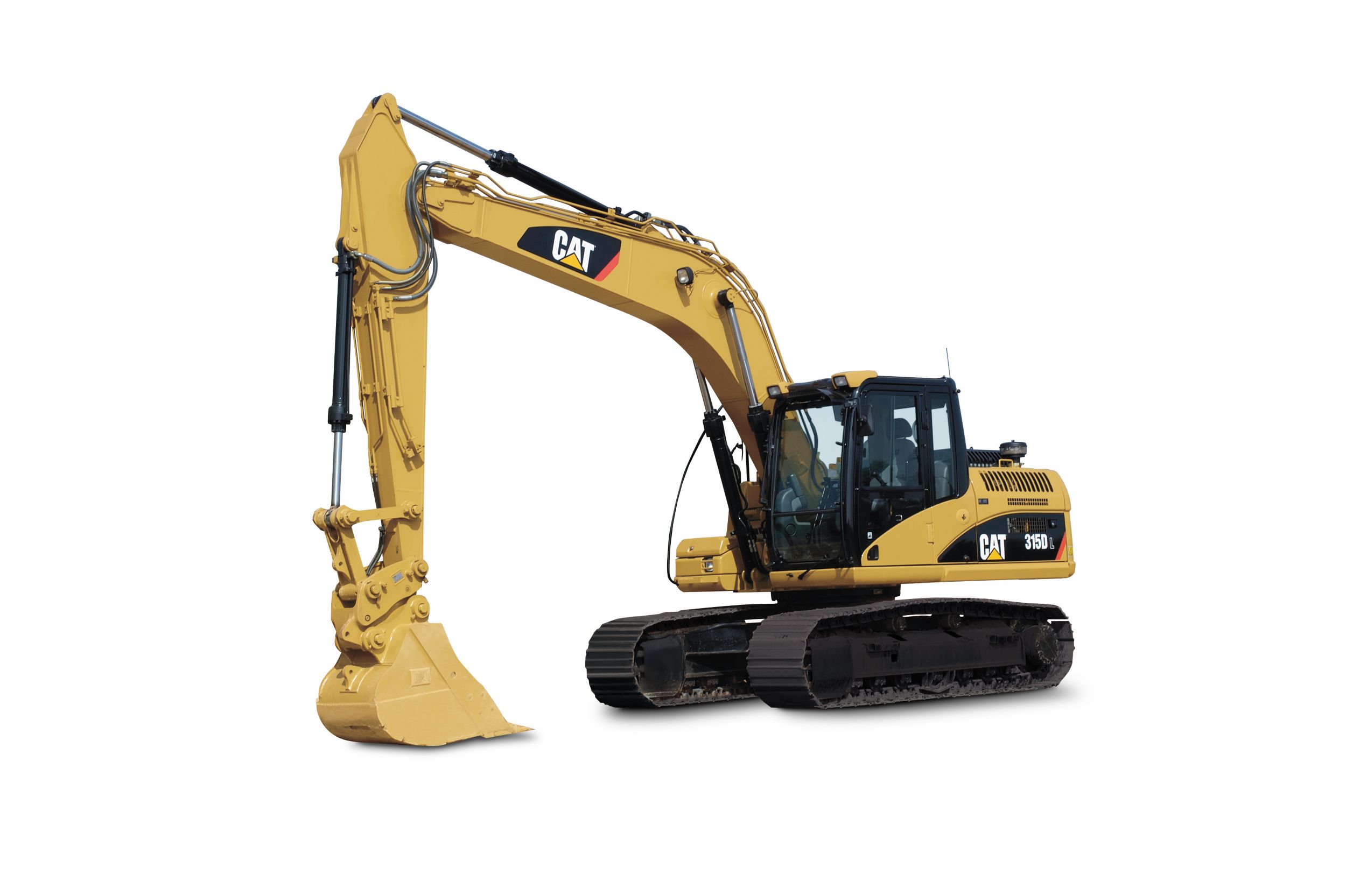

315D L^Non-Current

Cab

Experience a spacious, quiet and comfortable operator station. The cab is pressurized to 0,5 bar to reduce the amount of dust that enters the cab, keeping the operator comfortable the entire shift, while assuring high productivity during long work days.
• The comfortable seat adjusts to suit the operator's size and weight. Available as an option is the air suspension and / or heating seat.
• Air conditioning with automatic climate control adjusts temperature and airflow.
• Low effort joystick controls are designed to match the operator's natural wrist and arm position. Joysticks can be operated with arms on the armrest. The horizontal and vertical strokes are designed to reduce fatigue.

Prestart Check and Monitor Display

Prior to starting the machine, the system checks for low engine oil, hydraulic oil and engine coolant fluid levels and warns the operator through a color Liquid Crystal Display (LCD) monitor. The LCD monitor displays vital operating and performance information, in 27 different languages, for operator convenience.

Cab Exterior

The 315D L provides a new cab design that allows the Falling Object Guard System (FOGS) to be bolted directly to the cab, at the factory or as an attachment, enabling the machine to meet specifications and job site requirements. The cab shell is attached to the frame with viscous rubber cab mounts that dampen vibrations and sound levels to enhance operator comfort.Prior to starting the machine, the system checks for low engine oil, hydraulic oil and engine coolant fluid levels and warns the operator through a color Liquid Crystal Display (LCD) monitor. The LCD monitor displays vital operating and performance information, in 27 different languages, for operator convenience.

The Cat C4.2 engine with ACERT Technology

The Cat C4.2 engine with ACERT Technology optimizes performance and meets EU Stage IIIA regulations. In conjunction with integrated electronics, ACERT Technology reduces emissions during the combustion process by using advanced technology in the air and fuel systems. The Cat C4.2 engine has five percent more power than the former engine, allowing for more hydraulic pressure and increased productivity.

Automatic Engine Control and Fuel Delivery

A three-stage control with one-touch command maximizes fuel efficiency and reduces sound levels. Fuel delivery is managed by the ADEM™ A4 Engine Controller for the best performance per liter of fuel used. Flexible fuel mapping allows the engine to respond quickly to varying application needs. Electronic controls govern the fuel injection system. Multiple injection fuel delivery involves a high level of precision and by precisely shaping the combustion cycle lowers combustion chamber temperatures, generates fewer emissions and optimizes fuel combustion. This means more work output for your fuel cost.Prior to starting the machine, the system checks for low engine oil, hydraulic oil and engine coolant fluid levels and warns the operator through a color Liquid Crystal Display (LCD) monitor. The LCD monitor displays vital operating and performance information, in 27 different languages, for operator convenience.

Crankshaft and Pistons

A forged, one-piece, induction hardened crankshaft enhances balance, decreases vibration and improves abrasion resistance. Heat resistant, aluminum alloy pistons have a short compression height for greater efficiency and longer life.The 315D L provides a new cab design that allows the Falling Object Guard System (FOGS) to be bolted directly to the cab, at the factory or as an attachment, enabling the machine to meet specifications and job site requirements. The cab shell is attached to the frame with viscous rubber cab mounts that dampen vibrations and sound levels to enhance operator comfort.Prior to starting the machine, the system checks for low engine oil, hydraulic oil and engine coolant fluid levels and warns the operator through a color Liquid Crystal Display (LCD) monitor. The LCD monitor displays vital operating and performance information, in 27 different languages, for operator convenience.

Economy Mode

Available as a standard feature, economy mode allows you to balance the demands of performance and fuel economy while maintaining the breakout forces and lift capacity enjoyed at standard power.

Electronic Module Control (ECM)

The ECM works as the "brain" of the engine's control system, responding quickly to the operating variables to maximize engine efficiency. Fully integrated with sensors in the engine's fuel, air, coolant and exhaust systems, the ECM stores and relays information on conditions such as rpm, fuel consumption and diagnostics.

Air Cleaner

The radial seal air filter features a double layered filter core for more efficient filtration. A warning is displaced on the monitor when dust accumulates above a preset level.

Outstanding Performance

With two percent more hydraulic pressure for additional lift, swing torque and breakout forces, the 315D L hydraulic system is designed for high efficiency and performance. Auxiliary hydraulic and electrical lines are routed to the boom foot making installation of hydraulic circuits much easier. The new compact design utilizes shorter tubes and lines, reducing friction and pressure drops, resulting in a more efficient use of power.
• Hydraulic snubbers at the rod end of the boom cylinders and both ends of the stick cylinders cushion shock, reduce sound and increase cylinder life.
• Flow is reduced to a minimum when controls are in neutral to reduce fuel consumption and extend component life.
• Electronic Under Speed Control electronically adjusts pump output to not exceed engine power preventing the need to reserve engine power to avoid engine stalls.
• Hydraulic Cross-Sensing System uses two hydraulic pumps to 100 percent of engine power under all operating conditions, improving productivity with faster implement speeds and quicker, stronger pivot turns.

Boom and Stick Regeneration Circuit

The boom and stick regeneration circuit saves energy during boom-down and stick-in operation, increasing efficiency and lowering operating cost.

Easy Operation

Work mode and power mode switches have been eliminated making full power available at all times. Operators do not need to learn different modes, an automatic boom and swing priority function automatically selects the best mode based on joystick movement.

Advanced Engineering and Software

Caterpillar uses advanced engineering and software to analyze all structures, creating a durable, reliable machine for the toughest applications. More than 70 percent of the structural welds are robotic and achieve over three times the penetration of manual welds. These structural components and undercarriage are the backbone of the machine's durability.a

Carbody Design

X-shaped, box section carbody provides excellent resistance to torsional bending. Track roller frames are press-formed, pentagonal units that deliver exceptional strength and service life. Integral to the track roller frame are the standard idler and center guards, which help maintain track alignment when traveling or working on slopes.

Cross Roller Bearing

A cross roller bearing design in the swing bearing gives more surface contact to absorb stresses from high swing torque offered by Caterpillar. This design provides exceptional machine stability and reduces machine pitching during boom down operation.

Travel Motors

Travel motors with automatic speed selection let the 315D L automatically change up and down from high and low speeds in a smooth, controlled manner.

Performance

Built for performance and long service life, Cat booms and sticks are welded, box-section structures with thick multi-plate high strength steel fabrications. The 315D L offers one boom with four different stick options.

Intermediate Stick

A new 2.9 m stick is available to provide long reach and increased digging and lifting capability. When equipped with a coupler or large bucket the new stick will increase overall performance and productivity.

Boom

The boom is designed for maximum digging capability and is robotic welded to ensure consistent quality. This allows excellent all-around versatility and a large working envelope.

Hydraulic and Pilot Configurations

High pressure systems, medium pressure systems and electrical pilot control are available as independant and combinable attachments to configure the most adapted machine to your specific job needs.

Control Levers

Two types of control levers and two types of foot pedals are available as separate attachments.

Work Tools

Caterpillar offers a variety of work tools, including Hammers, Grapples, Shears, Multi-processors, Pulverizers, Compactors and rippers to fit your application needs. Additionally, a large range of Buckets is available to optimize machine performance.

Cat K-series Tooth System

This feature provides a reliable tip retention and easy tooth installation and removal system.

Pin Grabber

This hydraulic tool holder increases versatility of the excavator by easily and quickly changing a large variety of work tools.

Product Link

The 315D L is pre-wired to accept Product link systems to instal in the field or to order from factory. Product link assists with fleet management by tracking hours, location and machine health.

Service and Maintenance

Designed with the service technician in mind, many service locations are at ground level so critical maintenance can be done quickly and efficiently. Longer maintenance intervals reduce cost and increase machine availability.
• Oil level gauge, oil filter, fuel filter and priming pump are on the right side of the upper structure for easy maintenance.
• An optional electronic fuel water sensor is available to alert the operator when the water level is high.
• Product Link assists with fleet management by tracking hours, location and product health.
• New anti-skid plates over the top of the storage box and upper structure help prevent slipping and mud from falling into the upper structure.

Sampling Ports

Equipped with S·O·SSM sampling ports and test ports for hydraulics, engine oil and coolant for quick diagnostics. A test connection for the Cat Electronic Technician (Cat ET) service tool is now located in the cab.

Air Cleaner

A double-layered filter core in the radial seal air filter gives more efficient filtration. A warning is displayed on the monitor when dust accumulates above a preset level. This filter is conveniently located in the compartment behind the cab. An optional pre-cleaner is also available to extend filter life and reduce maintenance costs.

Capsule Filter

Capsule-type, hydraulic return filter is accessible from outside the tank and prevents contaminants from entering the system when changing the hydraulic oil.

Radiator Compartment

Horizontal air conditioner condenser swings out for easy cleaning. Removable screens are located in front of the radiator and hydraulic cooler, reducing cleaning time and effort.

Optional Feature

The 315D L can be equipped with Product Link PL321SR as optional feature. This system provides permanent location, operating hours and machine health information through GPS ways and Internet tools. Product Link improves machine availability and lower operating costs.

Assistance

Your Cat dealer is ready to assist you with your purchase decision and everything after.
• Make comparisons of machines, with estimates of component life, preventative maintenance and cost of production.
• Financing packages are flexible to meet your needs.
• Your Cat dealer can evaluate the cost to repair, rebuild and replace your machine, so you can make the right choice.
• For more information on Cat products, dealer services and industry solutions, visit us at www.cat.com.
