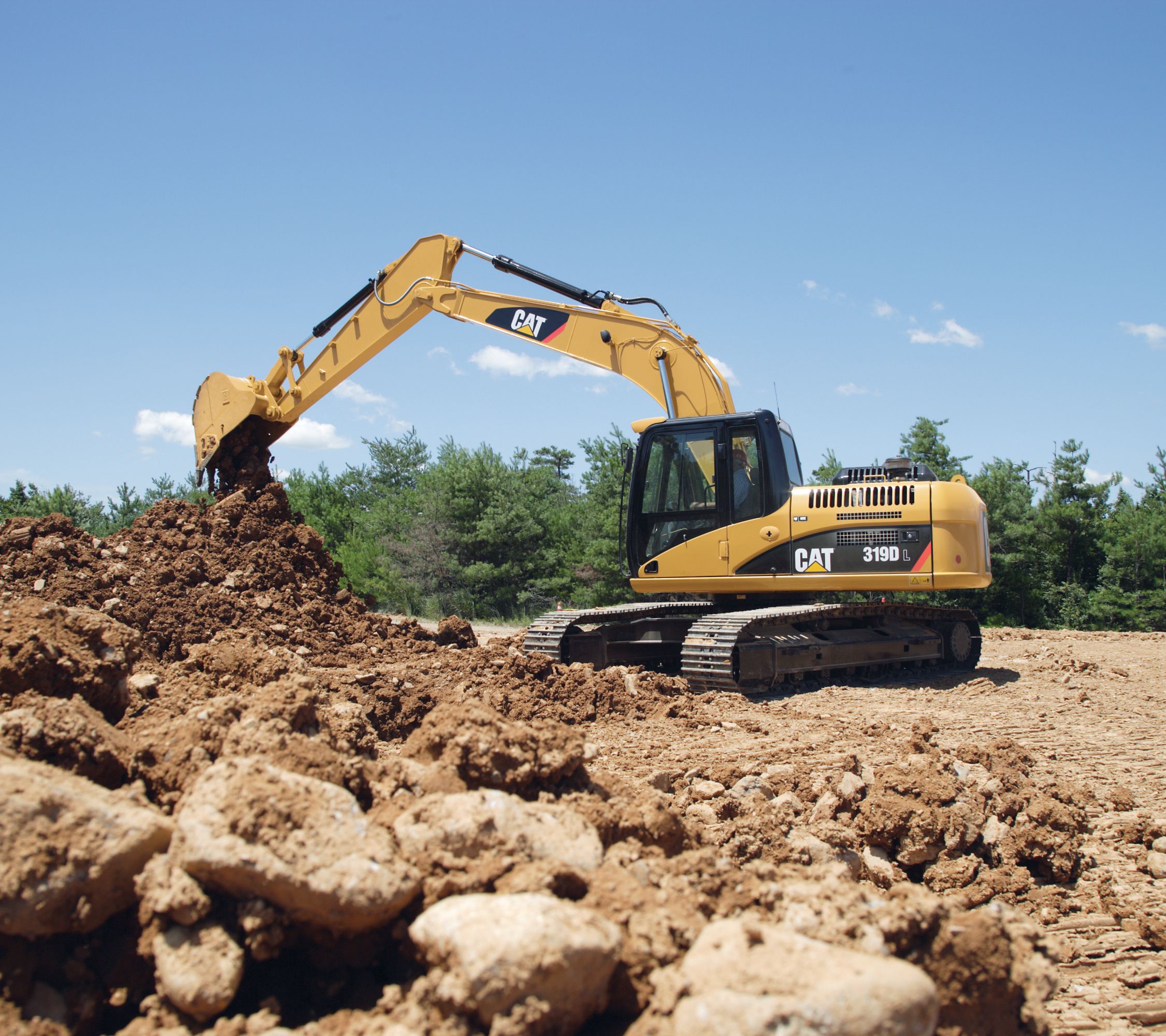

319D L/319D LN^Non-Current

Cab

Experience a spacious, quiet and comfortable operator station. The cab is pressurized to reduce the amount of dust that enters the cab, keeping the operator comfortable the entire shift, while assuring high productivity during long work hours.
• The comfortable seat adjusts to suit the operator's size and weight. Available as an option is a heated, air suspension seat.
• Standard air conditioning with automatic climate control adjusts temperature and airflow.
• Low effort joystick controls are designed to match the operator's natural wrist and arm position. Joysticks can be operated with arms on the armrest. The horizontal and vertical strokes are designed to reduce fatigue.

Prestart Check and Monitor Display

Prior to starting the machine, the system checks for low engine oil, hydraulic oil and engine coolant fluid levels and warns the operator through a color Liquid Display (LCD) monitor. The LCD monitor displays vital operating and performance information in 27 different languages for operator convenience.

Cab Exterior

The 319D L/319D LN provide a new cab design that allows the Falling Object Guard System (FOGS) to be bolted directly to the cab, at the factory or in the field, enabling the machine to meet specifications and job site requirements. The cab shell is attached to the frame with viscous rubber cab mounts that dampen vibrations and sound levels to enhance operator comfort.

Machine Security System

An optional Machine Security System (MSS) utilizes a programmable key, deterring theft, vandalism and unauthorized usage. MSS uses electronically coded keys selected by the customer to limit usage by individuals or time parameters.

The Cat C4.2 engine with ACERT Technology optimizes performance and meets U.S. EPA Tier 3 and EU Stage IIIA regulations. In conjunction with integrated electronics, ACERT Technology reduces emissions during the combustion process by using advanced technology in the air and fuel system. The Cat C4.2 engine delivers exceptional power, allowing more hydraulic pressure to drive productivity and reduce your cost per tone of material moved.

Automatic Engine Control and Fuel Delivery

A two-stage control and one-touch low idle button maximizes fuel efficiency and reduces sound levels. Fuel delivery is managed by the ADEM™ A4 Engine Controller for the best performance per liter (gallon) of fuel used. Flexible fuel mapping allows the engine to respond quickly to varying application needs. Electronic controls govern the fuel injection system. Multiple injection fuel delivery involves a high level of precision and by precisely shaping the combustion cycle, lowers combustion chamber temperatures, generates fewer emissions and optimizes fuel combustion. This means more work output for your fuel cost.

Crankshaft and Pistons

A forged, one-piece, induction hardened crankshaft enhances balance, decreases vibration and improves abrasion resistance. Heat resistant, aluminum alloy pistons have a short compression height for greater efficiency and longer life.

Economy Mode

Accessible through the in-cab monitor, economy mode allows you to balance the demands of performance and fuel economy while maintaining the breakout forces and lift capacity enjoyed at standard power.

Outstanding Performance

With two percent more hydraulic pressure for additional lift and breakout forces, the 319D L/319D LN hydraulic system is designed for high efficiency and performance. Auxiliary hydraulic and electrical lines are routed to the boom foot as standard, making installation of hydraulic circuits much easier. This compact design utilizes shorter tubes and lines, reducing friction and pressure drops, resulting in a more efficient use of power.
• Hydraulic snubbers at the rod end of the boom cylinders and both ends of the stick cylinders cushion shock, reduce sound and increase cylinder life.
• Flow is reduced to a minimum when controls are in neutral to reduce fuel consumption and extend component life.
• Hydraulic Cross-Sensing System uses two hydraulic pumps up to 100 percent of available hydrauilc power under all operating conditions, improving productivity with faster implement speeds and quicker, stronger pivot turns.
• A longer undercarriage (versus 318C L/318C LN) and heavy counterweight option that provides additional 300 kg (600 lb) provide increased stability to better utilize breakout forces and hydraulic lifting capability.

Boom and Stick Regeneration Circuit

The boom and stick electronic regeneration circuit saves energy during boom-down and stick-in operation, increasing efficiency and lowering operating costs.

Easy Operation

Work mode and power mode switches have been eliminated making full power available at all times. Operators do not need to learn different modes, an automatic boom and swing priority function automatically selects the best mode based on joystick movement.

Caterpillar uses advanced engineering and software to analyze all structures, creating a durable, reliable machine for the toughest applications. More than 70 percent of the structural welds are robotic and achieve additional penetration over manual welds. These structural components and undercarriage are the backbone of the machine's durability.

Carbody Design

X-shaped, box section carbody provides excellent resistance to torsional bending. Robot-welded track roller frames are press-formed, pentagonal units that deliver exceptional strength and service life. Integral to the track roller frame are the standard idler and center guards, which help maintain track alignment when traveling or working on slopes.

Grease Lubricated Track

Track links are assembled and sealed with grease to decrease wear and increase life by as much as 25 percent, when compared to dry seal undercarriages.

Travel Motors

Travel motors with automatic speed selection let the 319D L/319D LN automatically change up and down from high and low speeds in a smooth, controlled manner.

Built for performance and long service life, Cat booms and sticks are welded, box-section structures with thick multi-plate high strength steel fabrications. The 319D L/319D LN offers one boom with three different stick options.

Sticks

The three stick options provide flexibility to optimize and match reach, dig depth and lifting and digging forces to the application.

Boom

The boom is designed for maximum digging capability and is robotic welded to ensure consistent quality. This allows excellent all-around versatility and a large working envelope.

Work Tools

Caterpillar offers a variety of work tools including Hammers, Thumbs, Grapples, Multi-Processors, Shears, Pulverizers, Vibratory Compactors and Rippers to fit your needs. A wide range of buckets are also available to optimize machine performance.Auxiliary hydraulic and electrical lines are routed to the boom foot as standard for easier retrofit of auxiliary hydraulic circuits, therefore reducing time, parts and cost required to add a work tool.

Hydraulic Pin Grabber Coupler

An optional hydraulic pin grabber coupler is available to pick up a wide variety of buckets and work tools without having to leave the cab, thus maximizing productivity.

Cat K-Series™ Tooth System

The Cat K-Series Tooth System provides more wear material, a longer tip and adapter life, a one-piece vertical drive retainer, reliable tip retention and easy installation and removal, improving performance and penetration.

Enhanced Systems

Work tool functionality has increased the versatility of the machine with the enhancement of the following:
• Optional Combined Function Circuit enables one or two pump flow in one or two directions. This single hydraulic circuit runs tools such as a hydraulic thumb, hammer, plate compactor, tilting bucket and auger.
• Tool Control System stores up to 10 different tool settings through the in-cab monitor. Cat Work Tools are selectable with preset flows and pressures.
• Optional Priority Flow System offers all the advantages of the Combined Function Circuit plus true priority flow for hydraulic work tools such as rotary mowers.

Transportability

The 319D L/319D LN (depending on overall machine configuration) can typically meet federal gross weight transport limits for truck, trailer and machine combined.The Long Narrow (LN) undercarriage provides additional flexibility to meet the transport width limit of 2590 mm (8 ft 6 in) when equipped with 600 mm (24 in) track shoes, which is critical in some areas. This all adds up to more permit-free transportability, lowering operating costs and allowing frequent movement of the machine with less hassle.

Designed with the service technician in mind, many service locations are at ground level so critical maintenance can be done quickly and efficiently. Longer maintenance intervals reduce cost and increase machine availability.
• LCD monitor has the capability to memorize working hours for filters, fluids, components and work tools. Working time histories and recommended change intervals can be displayed.
• Engine oil level check, fuel filters and priming pump are conviently located on the front of the engine for easy maintenance.
• An optional electronic fuel water sensor is available to alert the operator when the water level is high.
• Product Link assists with fleet management by tracking hours, location and product health.
• New anti-skid plates over the top of the storage box and upper structure help prevent slipping and mud from falling into the upper structure.

Sampling Ports

Equipped with S·O·SSM sampling ports and test ports for hydraulics, engine oil and coolant for quick diagnostics. A test connection for the Cat Electronic Technician (Cat ET) service tool is now located in the cab.

Air Cleaner

A double-layered filter core in the radial seal air filter gives more efficient filtration. A warning is displayed on the monitor when dust accumulates above a preset level. This filter is conveniently located in the compartment behind the cab. An optional pre-cleaner is also available to extend filter life and reduce maintenance costs.

Capsule Filter

Capsule-type, hydraulic return filter is accessible from outside the tank and prevents contaminants from entering the system when changing the hydraulic oil.

Radiator Compartment

Horizontal air conditioner condenser swings out for easy cleaning. Removable screens are located in front of the radiator and hydraulic cooler, reducing cleaning time and effort.

Your Cat dealer is ready to assist you with your purchase decision and everything after.

• Make detailed comparisons of the machines you are considering before you buy - with estimates of component life, preventive maintenance and the true cost of production.
• Customize the machine that is right for you using the Build and Quote application on your dealer's web site or www.cat.com.
• Get the latest training literature and trained staff.
• Repair option programs guarantee the cost of repairs up front.
• Nearly all parts are available at dealer parts counters.
• Financing packages are flexible to meet your needs.
• Your Cat dealer can evaluate the cost involved in repairing, rebuilding and replacing your machine, so you can make the right choice.
