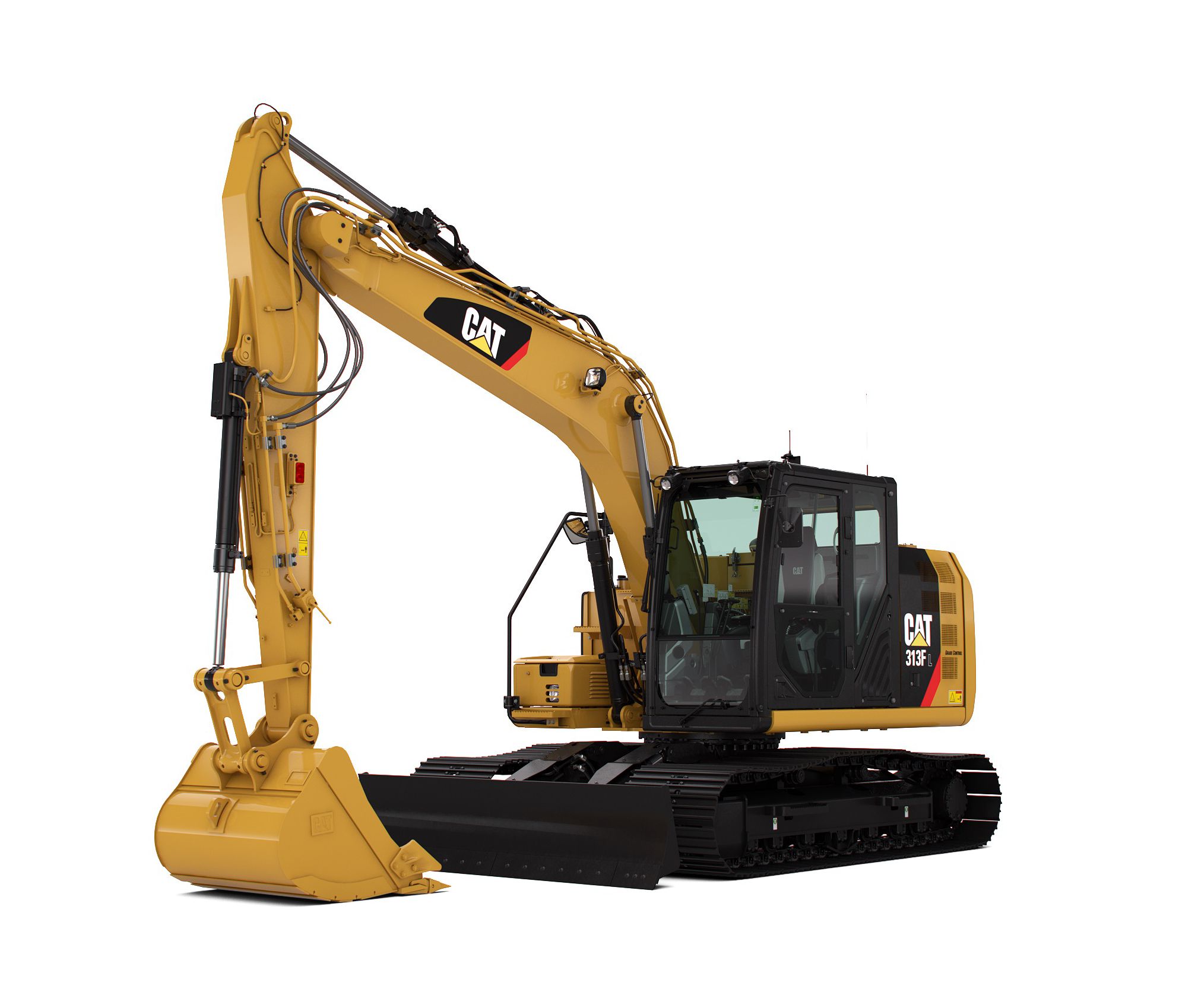

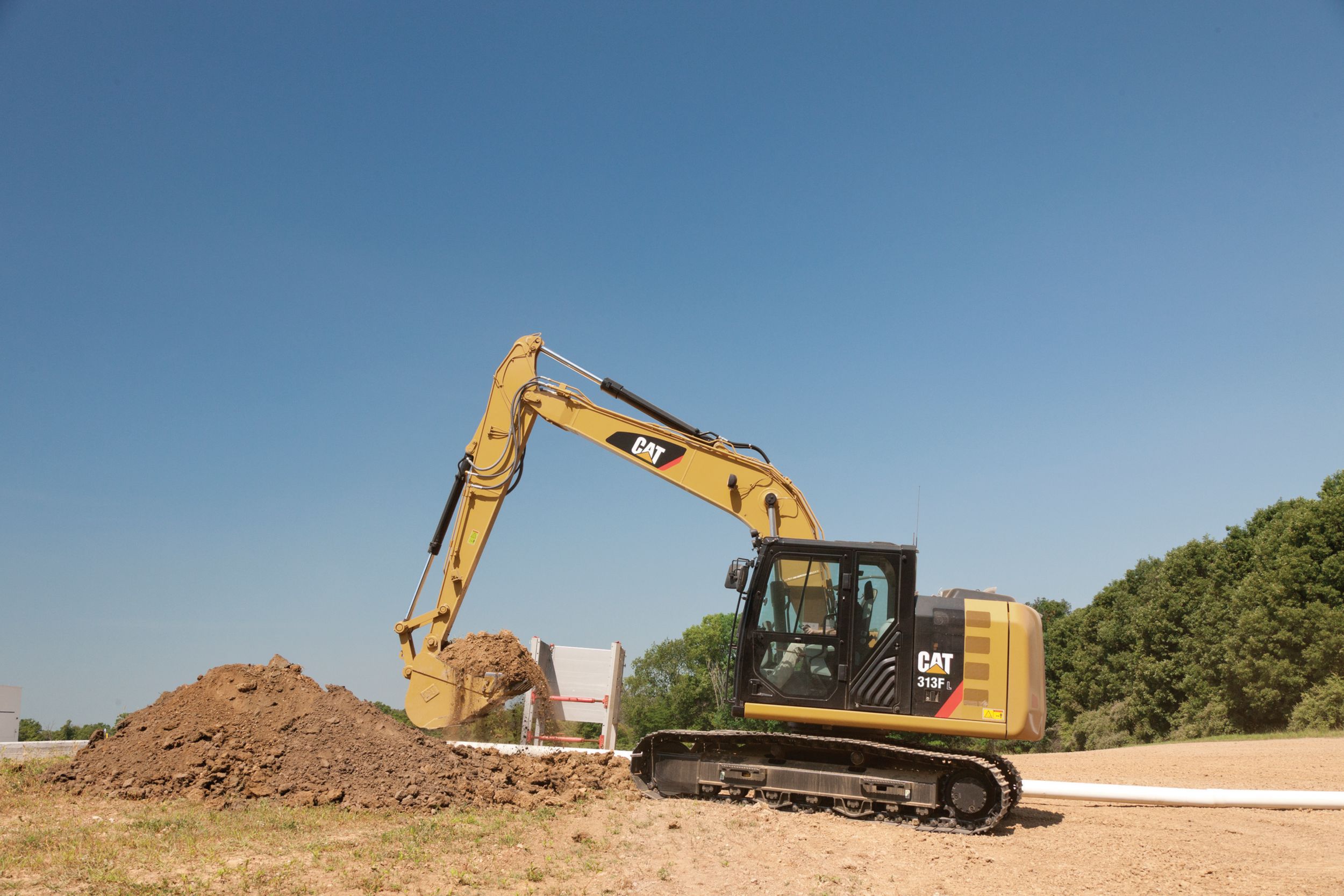

313F L^Non-Current

Engine

Engine Model	C4.4 ACERT
Flywheel Power	—92 km68.5 kW
Bore	—4.13 in105 mm
Stroke	—5 in127 mm
Displacement	—269 in³4.4 l
Gross Power - SAE J1995	74.4 kW (100 hp/101 PS)
Net Power - SAE J1349	68.5 kW (92 hp/93 PS)
Power - ISO 14396	74.4 kW (100 hp/101 PS)

Machine Weight

Operating Weight	—33080 lb15000 kg
Maximum Operating Weight	—33080 lb15000 kg
Minimum Operating Weight	—29770 lb13500 kg

Swing

Swing Speed

—10.9 r/min10.9 r/min

Drive

Maximum Drawbar Pull	—25628 lbf114 kN
Maximum Travel Speed	—3.7 mile/h5.4 km/h

Hydraulic System

Maximum Pressure - Swing	—3336 psi23000 kPa
Maximum Pressure - Equipment	—4424 psi30500 kPa
Pilot System - Maximum Flow	—1336 in³/min21.9 l/min
Maximum Pressure - Travel	—5076 psi35000 kPa
Pilot System - Maximum Pressure	—598 psi4120 kPa
Main System - Maximum Flow - Total	—67 gal/min254 l/min

Service Refill Capacities

Cooling System	—5.81 gal (US)22 l
Final Drive - Each	—0.79 gal (US)3 l
Fuel Tank Capacity	—58.9 gal (US)223 l
Hydraulic Tank Oil	—23.93 gal (US)90.6 l
Swing Drive	—0.63 gal (US)2.4 l
Hydraulic System Oil - Including Tank	—43.32 gal (US)164 l
Engine Oil - With Filter	—3.57 gal (US)13.5 l
DEF Tank Capacity	—5.4 gal (US)20.5 l

Sound Performance

ISO 6396 - Operator Sound Pressure Level	—69 dB(A)69 dB(A)
ISO 6395 - Exterior Sound Power Level	—101 dB(A)101 dB(A)

Bucket & Stick Forces* - Reach Boom - 4.65 m (15'3)

Stick Digging Force - SAE	—12800 lbf57 kN
Bucket Digging Force - ISO	—21400 lbf95 kN
Note	*With 0.53 m³ (0.69 yd³), 900 mm (35 in) bucket.
Bucket Digging Force - SAE	—19200 lbf85 kN
Stick Digging Force - ISO	—13100 lbf58 kN

Dimensions* - Reach Boom - 4.65 m (15'3)

Track Gauge	—6.5 ft1990 mm
Cab Height - With Top Guard	—9.75 ft2970 mm
Cab Height	—9.08 ft2770 mm
Transport Width - 700 mm (28 in) Shoes	—8.83 ft2690 mm
Ground Clearance	—1.42 ft440 mm
Track Length	—12.33 ft3750 mm
Shipping Length	—25.17 ft7670 mm
Length - Center of Rollers	—10 ft3040 mm
Shipping Height	—9.75 ft2980 mm
Counterweight Clearance	—2.92 ft890 mm
Note	*With 0.53 m³ (0.69 yd³), 900 mm (35 in) bucket.
Tail Swing Radius	—7.08 ft2160 mm

Maximum Depth Cut for 2440 mm (8'0") Level Bottom

—19.25 ft5860 mm

Working Ranges* - Reach Boom - 4.65 m (15'3)

Note	*With 0.53 m³ (0.69 yd³), 900 mm (35 in) bucket.
Minimum Loading Height	—5 ft1530 mm
Maximum Cutting Height	—28.58 ft8710 mm
Maximum Vertical Wall Digging Depth	—17.08 ft5200 mm
Maximum Reach - Ground Level	—28.25 ft8620 mm
Maximum Loading Height	—20.75 ft6330 mm
Maximum Digging Depth	—19.83 ft6040 mm
