Overview
The IT14G Brushcutter Attachment is one of the first Caterpillar machines completely designed using state-of-the-art three-dimensional modeling computer technology. The results include a highly responsive hydrostatic transmission, exceptional machine balance and easier serviceability than ever before.
Benefits & Features
Specifications
Benefits & Features
Overview
Totally New Design
One of the first Caterpillar machinescompletely designed using state-of-the-art three-dimensionalmodeling computer technology.
Modern Operator's Environment
Ergonomic controls and seating adjust to any operator. Implement controls are low-effort pilot hydraulic for smooth, precise operation.
Exceptional Performance
The IT14G hydrostatic transmissionprovides continuously variable,uninterrupted torque throughout theentire speed range for a highlyefficient, more productive machine.
Operator Station
Operator Comfort
The IT14G operator station is aspacious work environment thatpromotes productive operation. withremarkable peripheral visibilitycoupled with operators' most requested features.
Low-Effort Operation
New pilot hydraulic controls give theIT14G uncompromised easier operation of lift and tilt functions.

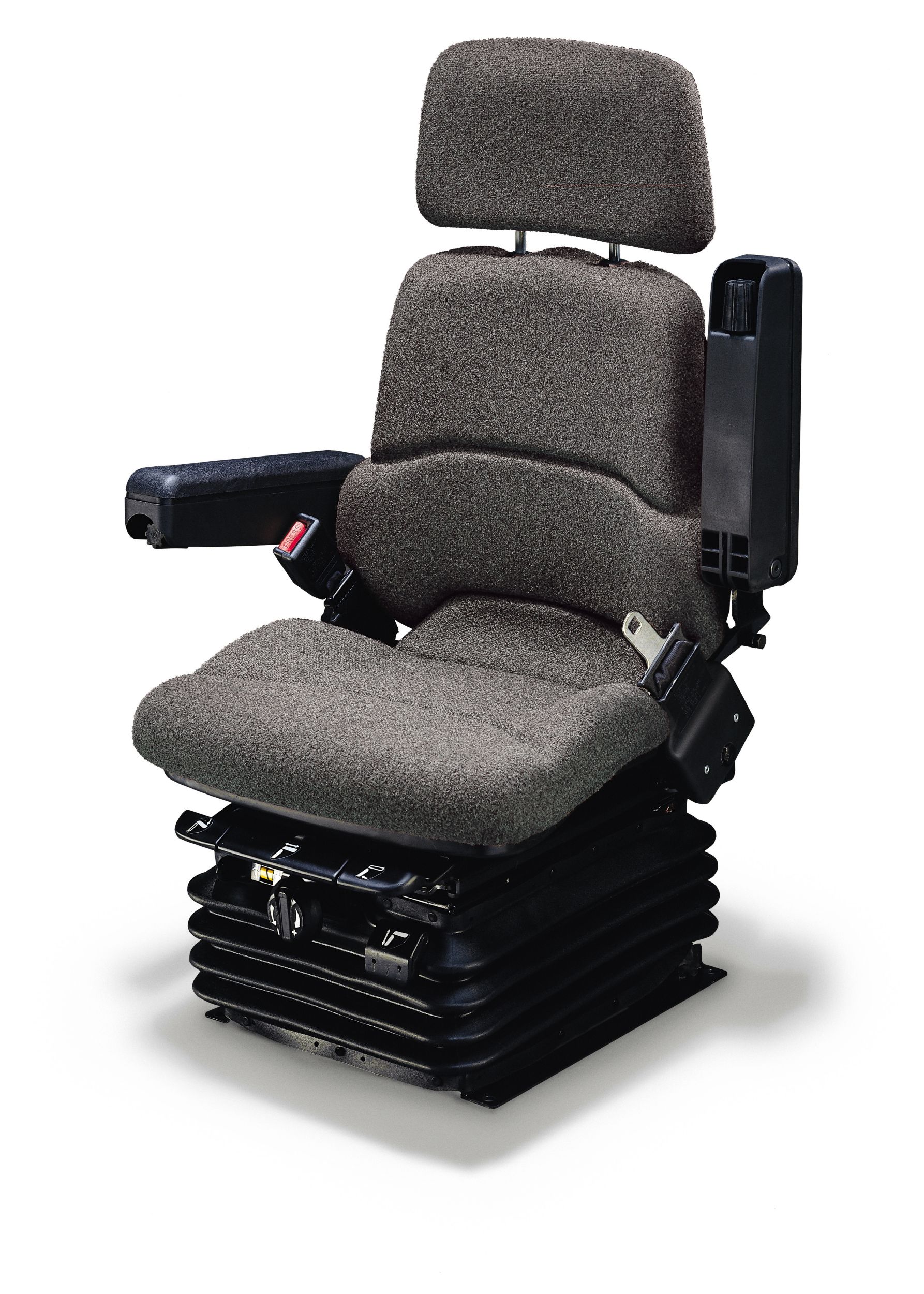

More Seating Options
The Contour Series Seat is the premium seat option and is designed for maximum comfort and fully-adjustable support.
Cab
Ergonomic cab is designed with theoperator in mind. Comfort, visibility,and easy operation are emphasizedin this design.

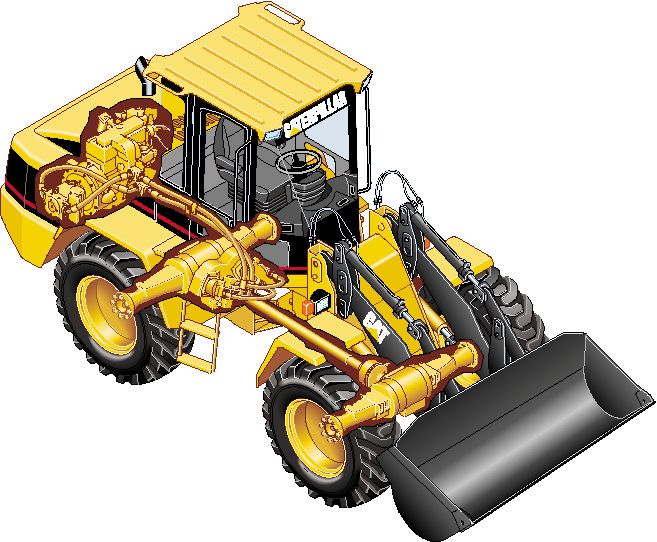

Hystat Power Train
Hydrostatic Transmission
The high-pressure closed-loop hydrostatic transmission delivers high performance with a broader range of power and performance to the ground.
Caterpillar 3054T Diesel Engine
It is designed for rugged, reliableoperation while providing peakperformance over a wide range ofoperating conditions.
Caterpillar Axles and Brakes
Disc Brakes
Hydraulically-actuated disc brakesare standard on both front and rearaxles which provide improvedperformance and low-effort operation.
Duo-Cone Seals on Axles
Patented Duo-Cone Seals on the axle and housing keep oil in and lock contaminants out.
Fixed Front, Oscillating Rear
The fixed front, oscillating rear axle(±11 degree )ensures four-wheel ground contact for optimum traction and stability.
Hydrostatic System
Hydrostatic drive is variablyneutralized during braking. Thehydrostatic system providesadditional hydraulic braking capacity.
Parking Brakes
Parking brake features include thefollowing: (1)Mechanical, shoe-typebrake. (2) Mounted on drive line forpositive manual operation.(3) Transmission is automaticallyneutralized when parking brake isapplied.
Differentials
A choice of standard conventional orlimited Slip differentials adapts themachine to a wide range of operating conditions.
Final Drives
Planetary final drives consist of ringgears and planetary carrier assemblies.
Quick Coupler and Attachments
Attachment Controls
Pilot-operated lift and tilt circuits.Low effort single-lever control of liftand tilt circuits. Controls can belocked for roading.
Data not available.
Standard Equipment
- Brakes
- Service - inboard, oil-immersed
- Parking - mechanical on drive line
- Cab, ROPS, sound suppressed and pressurized
- Ground level door release
- Heater/defroster
- Personal storage space
- Rear view mirrors (2 inside)
- Seat, adjustable suspension
- Seat belt, 75 mm (3 in), retractable
- Tinted safety glass
- Two door cab
- Wiper and washer (front/rear) with intermittent control
- Hydraulic third valve - high flow
- Diverter valve
- Quick disconnects
- Hydraulic lines (high flow)
- Indicators
- Air cleaner service
- Hydraulic oil lever sight gauge
- Instrumentation
- Engine coolant temperature gauge
- Hydraulic oil temperature gauge
- Fuel level gauge
- Battery voltage gauge
- Lighting system
- Brake lights
- Working lights (halogen)
- Warning indicators
- Parking brake
- Service brake oil pressure
- Hydraulic oil temperature
- Engine oil pressure
- Coolant temperature
- Hydraulic filter bypass
- Alternator
Optional Equipment
- Differential, limited slip
- Front axle and/or rear axle
- Hydraulic fourth valve
- Quick disconnects
- Hydraulic lines and control
- Radio prep packages (12V)
- Speakers, antenna, converter, mounts
- Seats
- Heated, fabric, with parking brake alarm
- Caterpillar Contour Series, fabric
- Caterpillar Contour Series, fabric, air suspension
- Tires
- Bias ply, 15.5-25 and 17.5-25
- Radial, 15.5-25 and 17.5-25
Related Products
General Purpose Buckets
Used for loading, carrying, leveling, grading and dumping in a wide variety of applications and materials.
| Model | Width | ||
|---|---|---|---|
| 1.4 m3 (1.8 yd3), Pin On | — | — | — |
| 1.2 m3 (1.6 yd3), Pin On | — | — | — |
| 1.3 m3 (1.7 yd3), Pin On | — | — | — |
