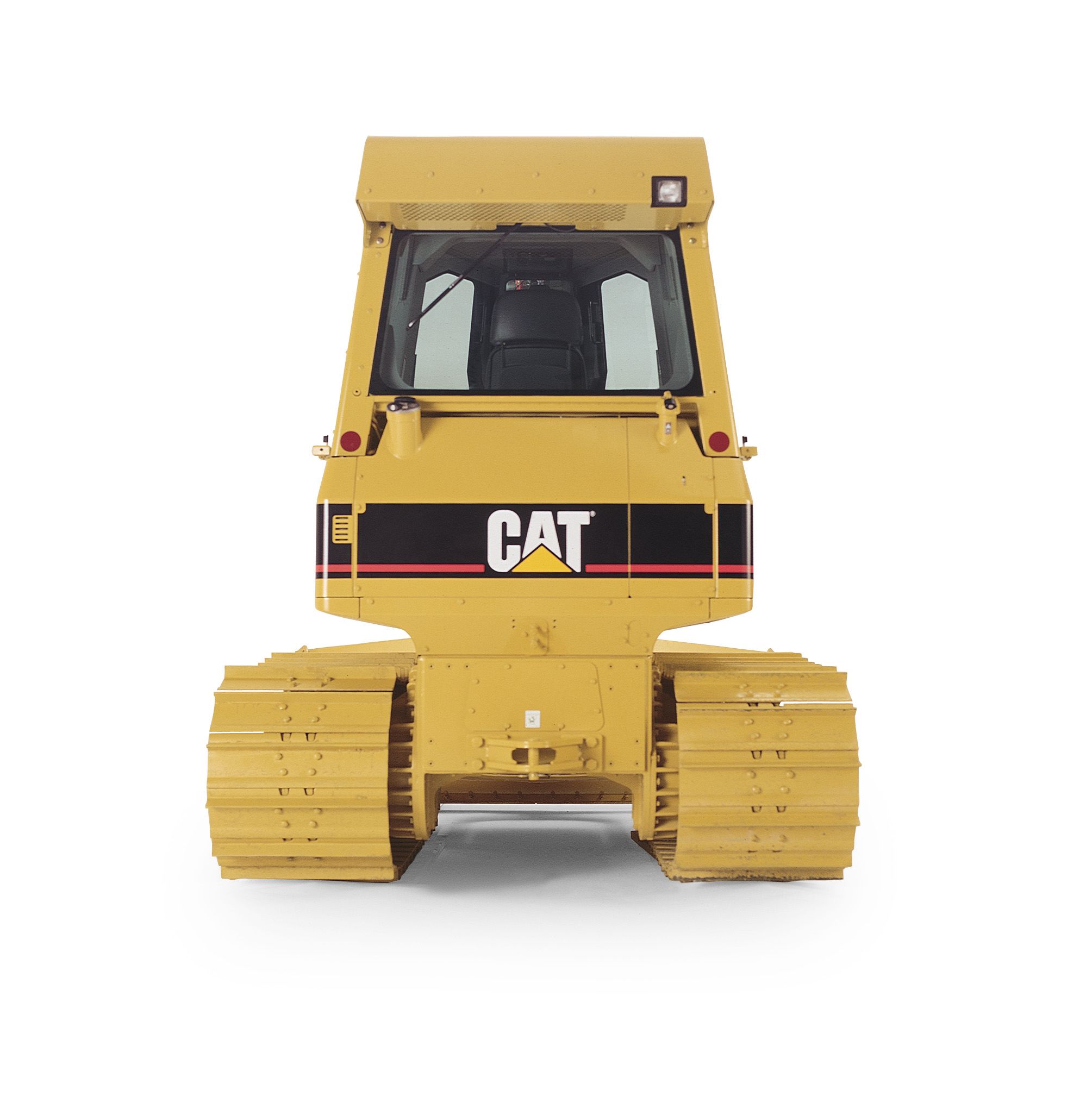

D4G^Non-Current

Redesigned Operator Station

Based on the cab designs of the large Caterpillar track-type tractors, the operator station has been redesigned to be more spacious. The new ergonomic layout emphasizes simplicity, ease of use and comfort. A new climate control system (HVAC), increased leg room and enhanced visibility allow the operator to focus on the job. With 13% more tinted glass area, the operator station provides a clear view to the blade and the surrounding work site.

Other Cab Conveniences

• Vertical & horizontal armrest adjustments
• Directed air vents in key locations
• Wide angle rear view mirror
• Cupholder
• 12 volt power port
• Radio ready factory installed components including speakers, antenna and all wiring brackets
• Dome light
• Coat hook
• Tie down for lunch box
• Air conditioner (standard equipment)

Reduced Sound Levels

Sound levels are greatly reduced to further enhance the operator's comfort.

VPAT Dozer Control

A single lever control handle is used to control all blade lift, angle and tilt functions. The ergonomically designed handle fits comfortably in the operator's hand and delivers superb grading results.

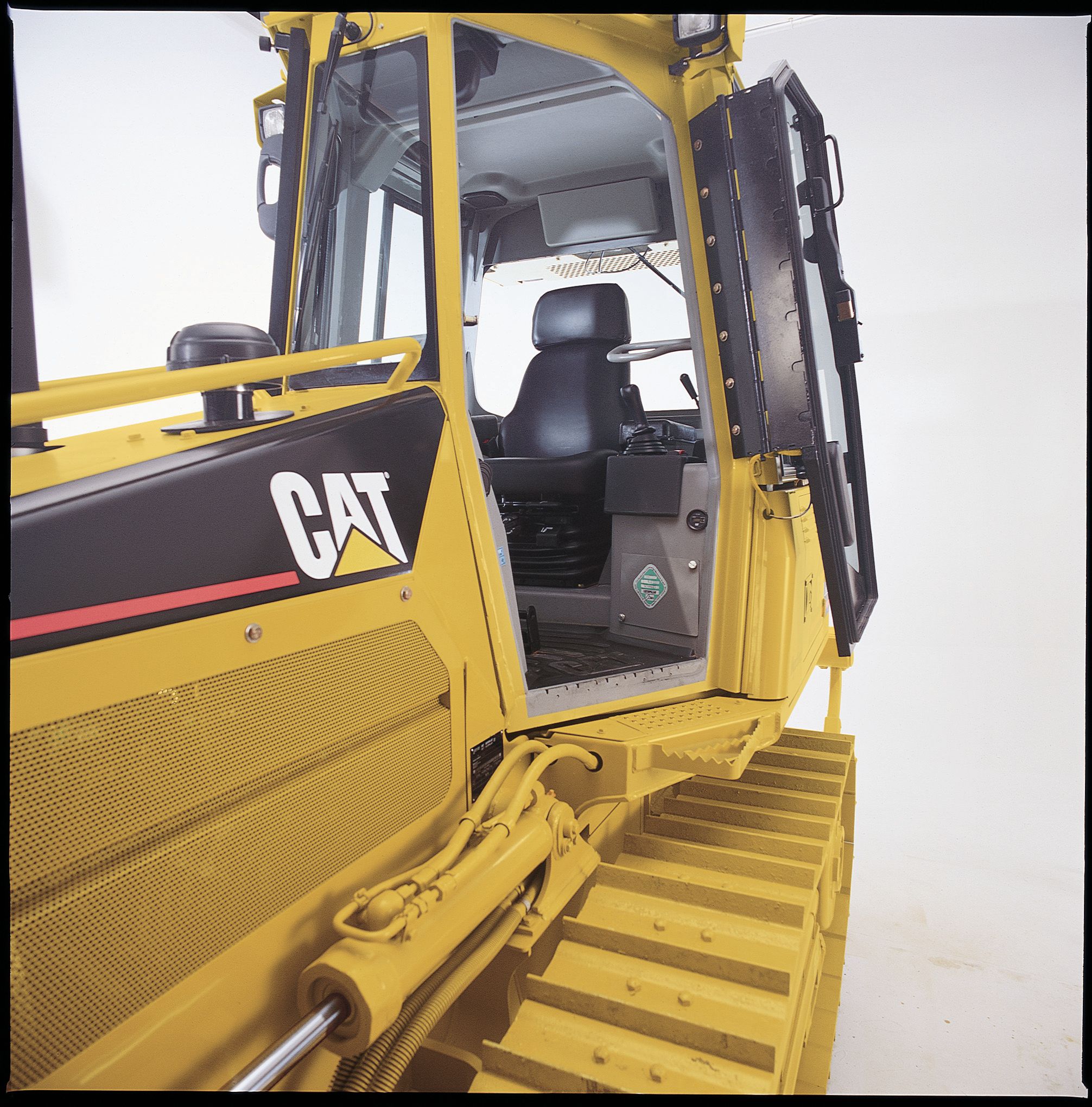

Ease of Entry and Exit

The hexagon shaped cab provides plenty of space to enter the roomy operator compartment. Easy to reach door handles make it easy to enter and exit during the workday. Angled doors allow the operator to walk right into the cab.

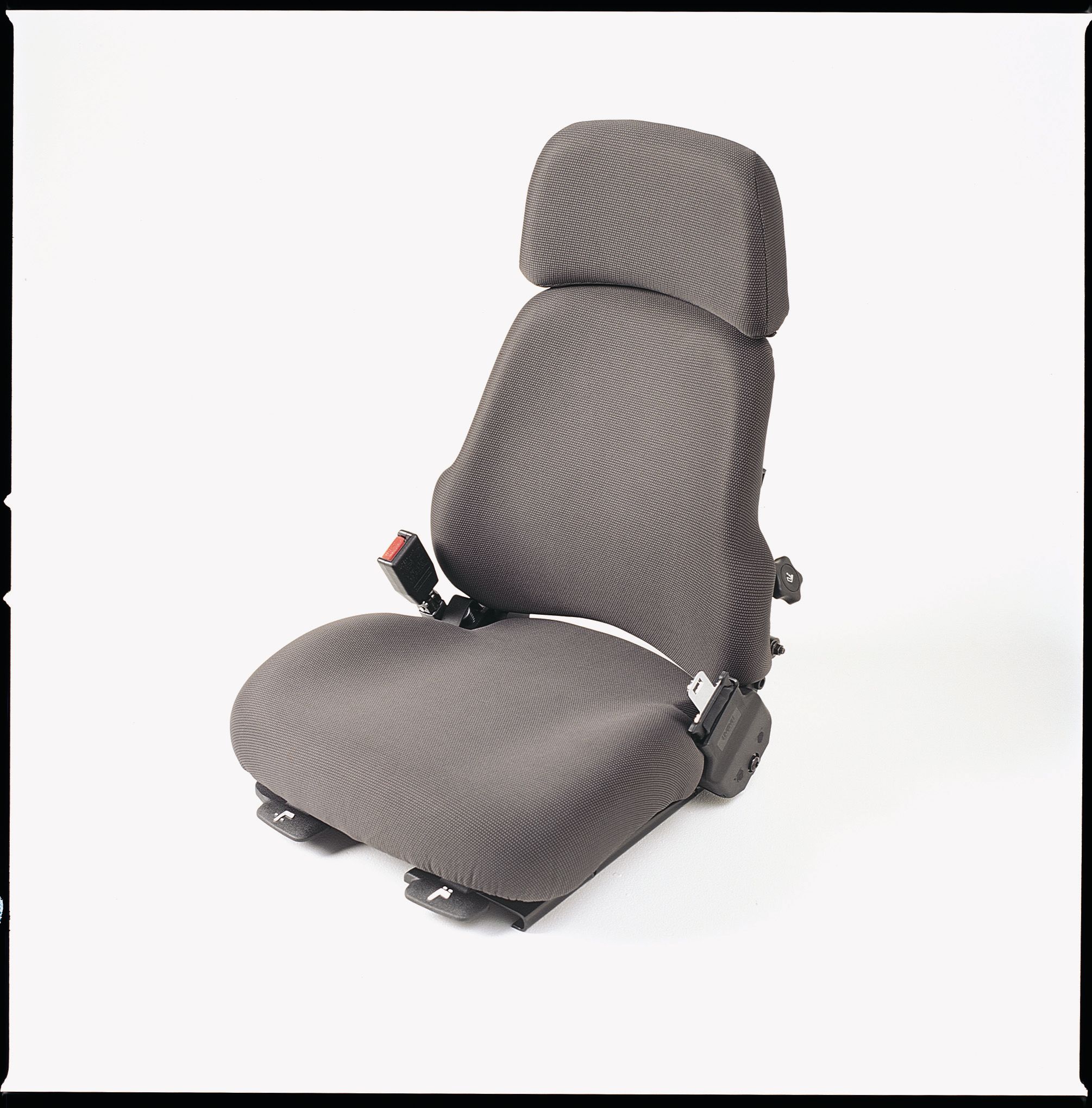

Seat

The Caterpillar Comfort Suspension seat (option) provides adjustable positioning to fit any operator. It is the most comfortable seat in the industry and features:
• 3" wide retractable seatbelt
• Fore/aft positioning
• Back cushion angle adjustment
• Seat cushion tilt
• Back rest extension
• Lumbar adjustment
• Height adjustment
• Cloth seat is standard with cab; vinyl seat is available on open canopy machines
Standard suspension vinyl seat provides basic support.

Decel Pedal

Decelerator allows operator to modulate ground speed effortlessly. Intuitive control enhances operator confidence when maneuvering in and around structures.

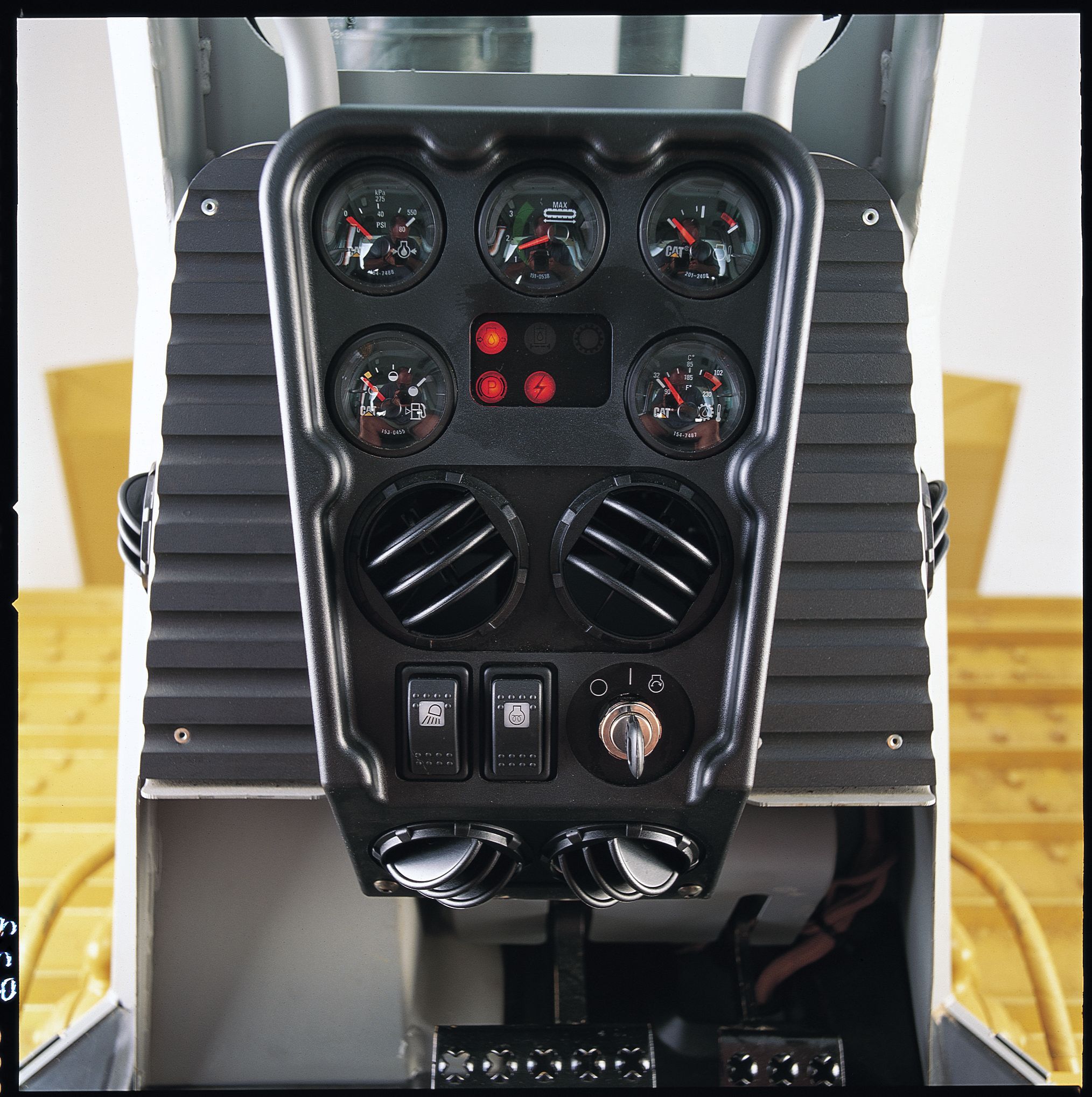

Monitoring Package

The new monitoring package allows the operator to be aware of system conditions without having to constantly view gauges. Fuel level, hydraulic oil temperature, oil pressure, coolant temperature, and maximum speed setting gauges are all included in the instrument panel. Indicator lamps warn operator of:
• Low oil pressure
• Power train oil filter bypass
• Low alternator voltage
• Parking brake engaged
• Electronic control fault

Other Features

• Footrests (dash mounted and adjustable floor mounted) for operator comfort and stability
• New wet arm wipers on the front and rear windshield
• Vandalism guard to protect dash and instruments (canopy machines only)

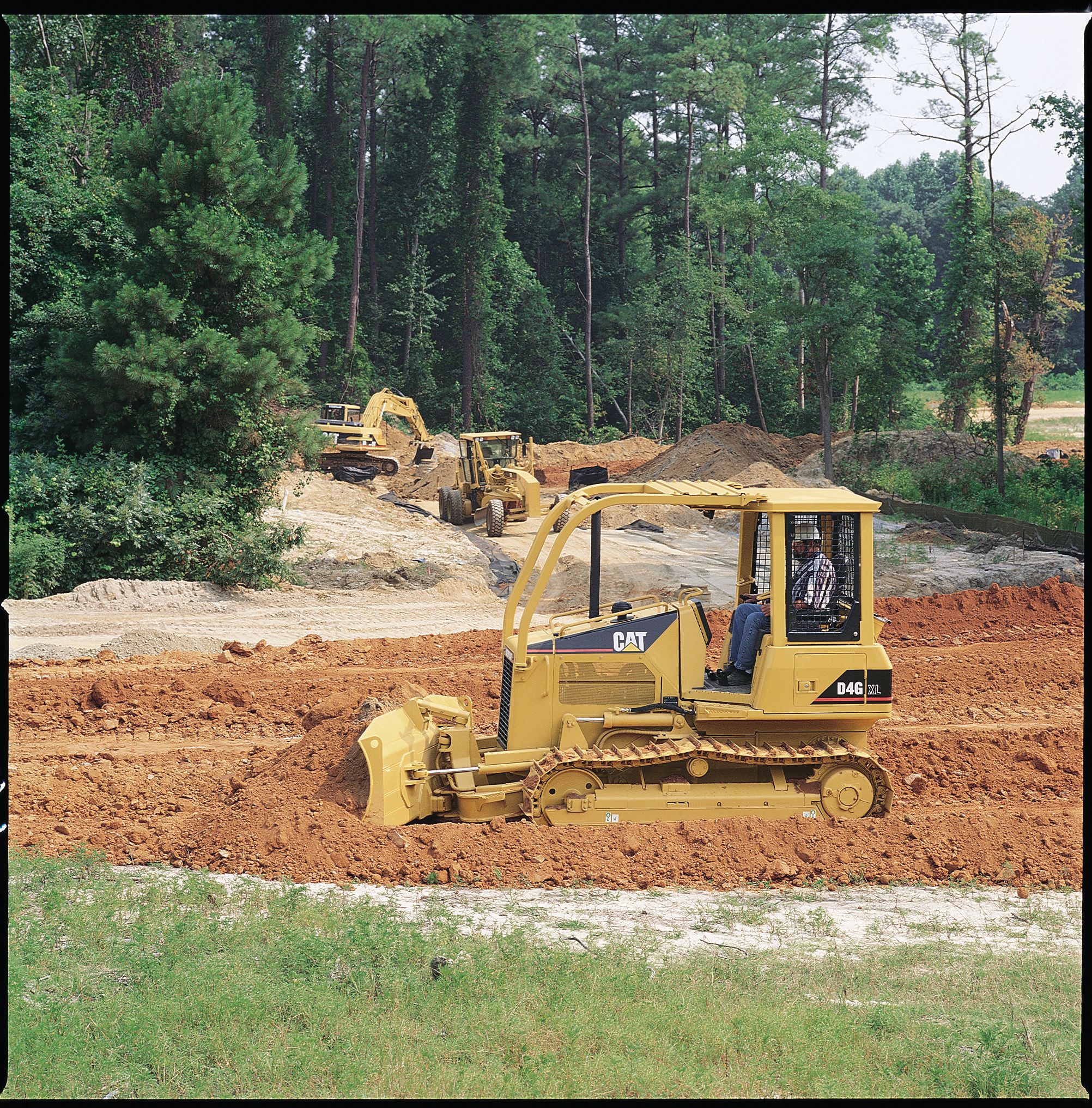

Excellent Visibility

Visibility is key to productive grading. The D4G delivers excellent visibility to the blade corners and edges. No longer does an operator have to grade by feel. He can easily see blade corners and cutting edges. Wide open peripheral vision allows the operator to have an optimum view of the jobsite.

Windows

Large, tinted windows provide excellent visibility to the blade and surrounding work site. Large, sliding side windows provide flow-through ventilation. With 13% more glass area, the operator station delivers an outstanding view all around the machine.

Angled Doors

Angled doors on the left and right hand sides provide virtually unrestricted visibility to the sides of the machine.

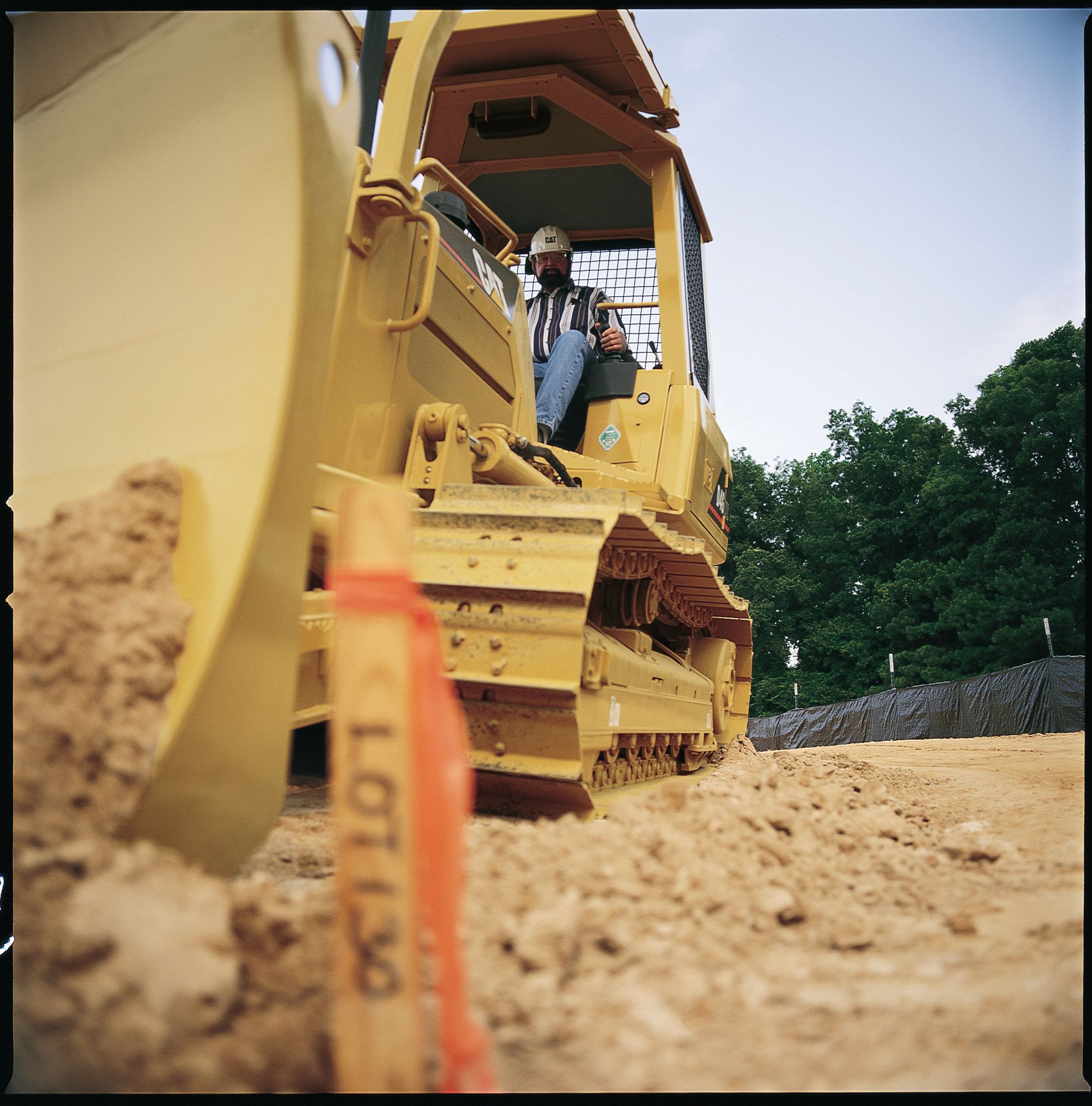

Excellent Line of Sight to Blade

Grade stakes and utility structures are easy to see and maneuver around with the G-Series tractors.

Updated Look

The G-Series machines feature a new, more appealing look with rounder corners, new operator compartment and a sleeker shape.

Solid Machine

The new G-Series machines are solid tractors that are well-equipped. From the hexagon shaped cab which originated on large Caterpillar track-type tractors to the sleek, narrow hood, the D4G combines eye-catching styling with solid, reliable performance.

Caterpillar 3046 Diesel Engine

Designed specifically for small to medium size earthmoving machines, the Cat six-cylinder 3046 engine is inherently balanced, providing low vibration, superior performance and exceptional responsiveness. A 25% torque rise at 1400 RPM provides increased lugging force during heavy loads.

Direct Injection Fuel System

The direct injection fuel system is adjustment free for reduced maintenance. High pressure fuel injection results in reduced fuel consumption and emissions. Electric, internal fuel shut-off solenoid is protected from the elements to provide long life.

Spin-on Oil and Fuel Filters

Spin-on oil and fuel filters are vertically mounted and easily accessible for faster maintenance.

In-cylinder Glow Plugs

In-cylinder glow plugs deliver dependable starts when operating in cold temperatures. A built-in temperature switch helps ensure lasting reliability.

Lubrication System

Gear driven oil pump provides lubrication from a deep sump oil pan. An efficient, multiple-plate, water-cooled oil cooler prolongs engine and lubricant life.

Cooling System

A large diameter fan and full length, water-cooled cylinders, combined with excellent thermal efficiency, minimize heat rejection, prevent overheating and prolong engine life.

Regulations

The Caterpillar 3046 engine meets Tier I EPA, MOC and CE regulations.

Simpler Operation, Improved Control

We listened to our customers and designed the new G-Series machines with even simpler operation and improved control. This allows the operator to concentrate on more important aspects of the job such as blade control.

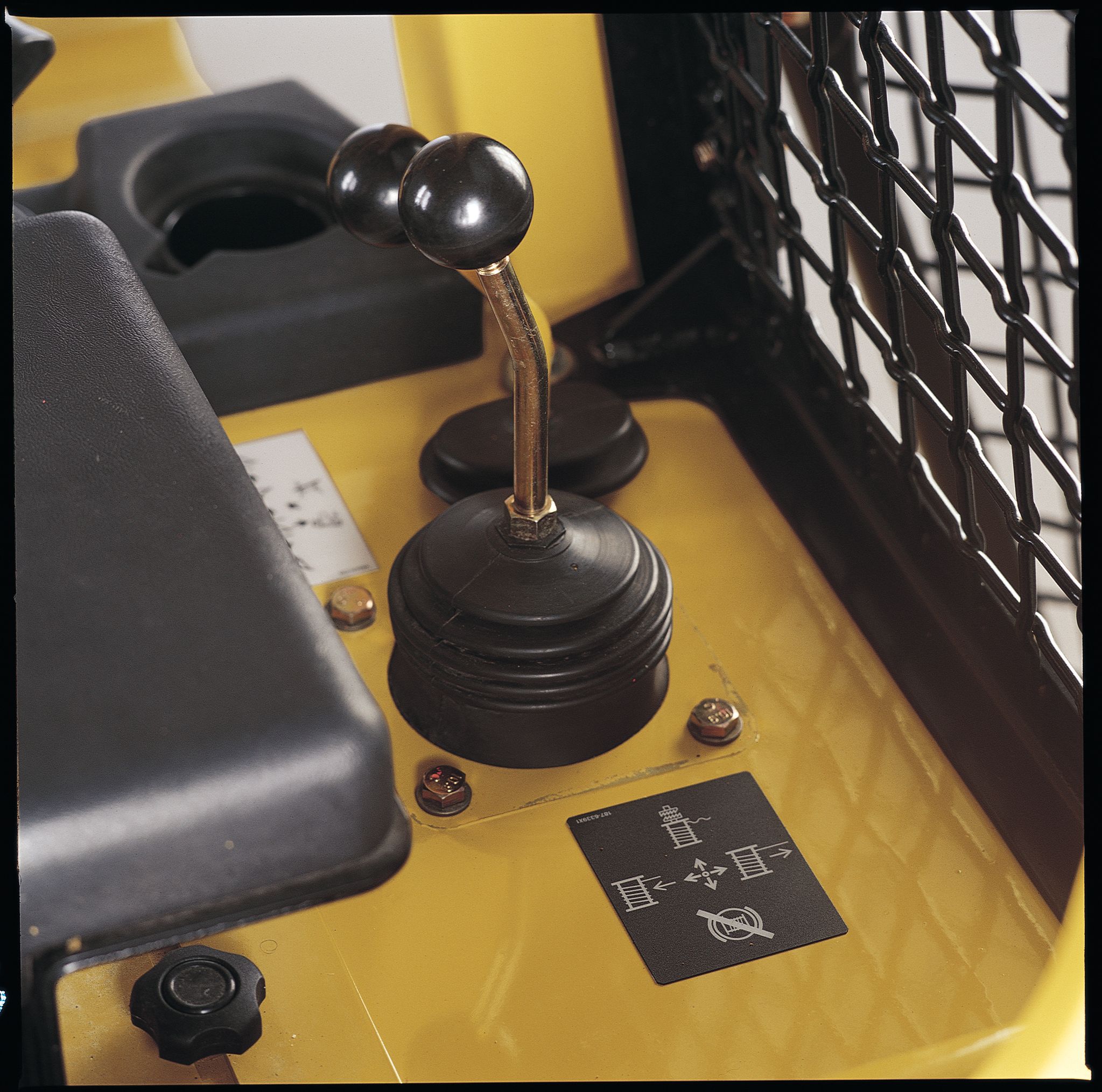

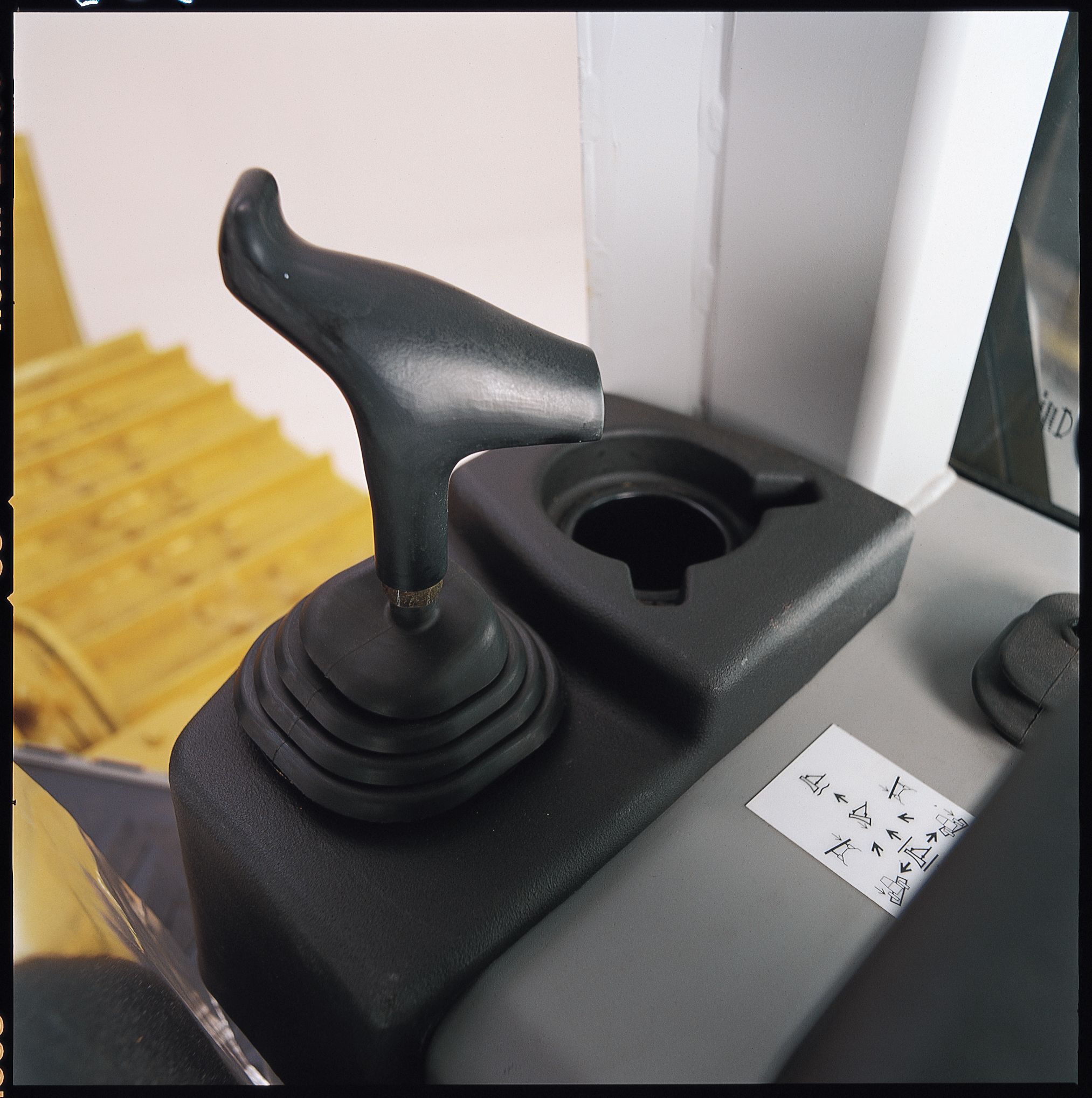

Joystick Control

The joystick control is easy to use. Speed, direction and steering are all controlled with the joystick. The result is easier operation and improved productivity. Ergonomic placement reduces operator effort and fatigue.

Speed and Direction

The joystick has three simple detented positions for travel: forward, reverse and neutral. A new feature is the capability to utilize faster reverse speed as a percentage of forward speed for increased productivity. Two joystick-mounted buttons are used to infinitely increase and decrease speed. An indicator on the dash displays the tractor's current operating speed setting. When the joystick is moved to the neutral position, the machine stops.

Steering

With the machine moving in forward or reverse, move the joystick to the left to turn the machine to the left; move the joystick to the right to turn right. The more the handle is moved to the right or left, the tighter the turn. Regardless of ground conditions, steering is consistent and predictable. Moving the joystick to the far right or left will make the tracks counterrotate for maneuvering in tight work areas.

Counterrotation

The D4G maneuvers easily through side loading blade applications. Simply engage counter- rotation briefly to correct machine position. Counterrotation also provides easy, quick maneuvering in small, confined work areas.

Tracking

The D4G has excellent tracking capabilities which increase productivity on side slopes.

Powerturn

Utilizing active effort of both tracks during a turn allows for more pushing power at the blade and less spillage of material from the blade.

Durable Components

Advanced metallurgy processes produce improved life for bushing and sprocket segments. Segmented sprockets (standard equipment) offer easy serviceability and low replacement cost compared to replacing the complete sprocket hub. Caterpillar undercarriages are designed for long wear and lower owning and operating costs.

Complete Guarding

Caterpillar undercarriages are designed with full length guarding on top of the track roller frame. This prevents abrasive material from falling down on moving parts.

Available Configurations

The D4G is available in either an extra long (XL) or low ground pressure (LGP) undercarriage configuration.

XL Undercarriage

Track length is extended on extra long (XL) undercarriages for increased ground contact area and flotation, superior balance and excellent finish grading.

LGP Undercarriage

The low ground pressure (LGP) undercarriage offers a wider track, increasing ground contact area for optimum flotation and greater stability on sloping and finish grading jobs. In addition, the G-Series LGP undercarriage is offered with an additional roller versus the C-Series.

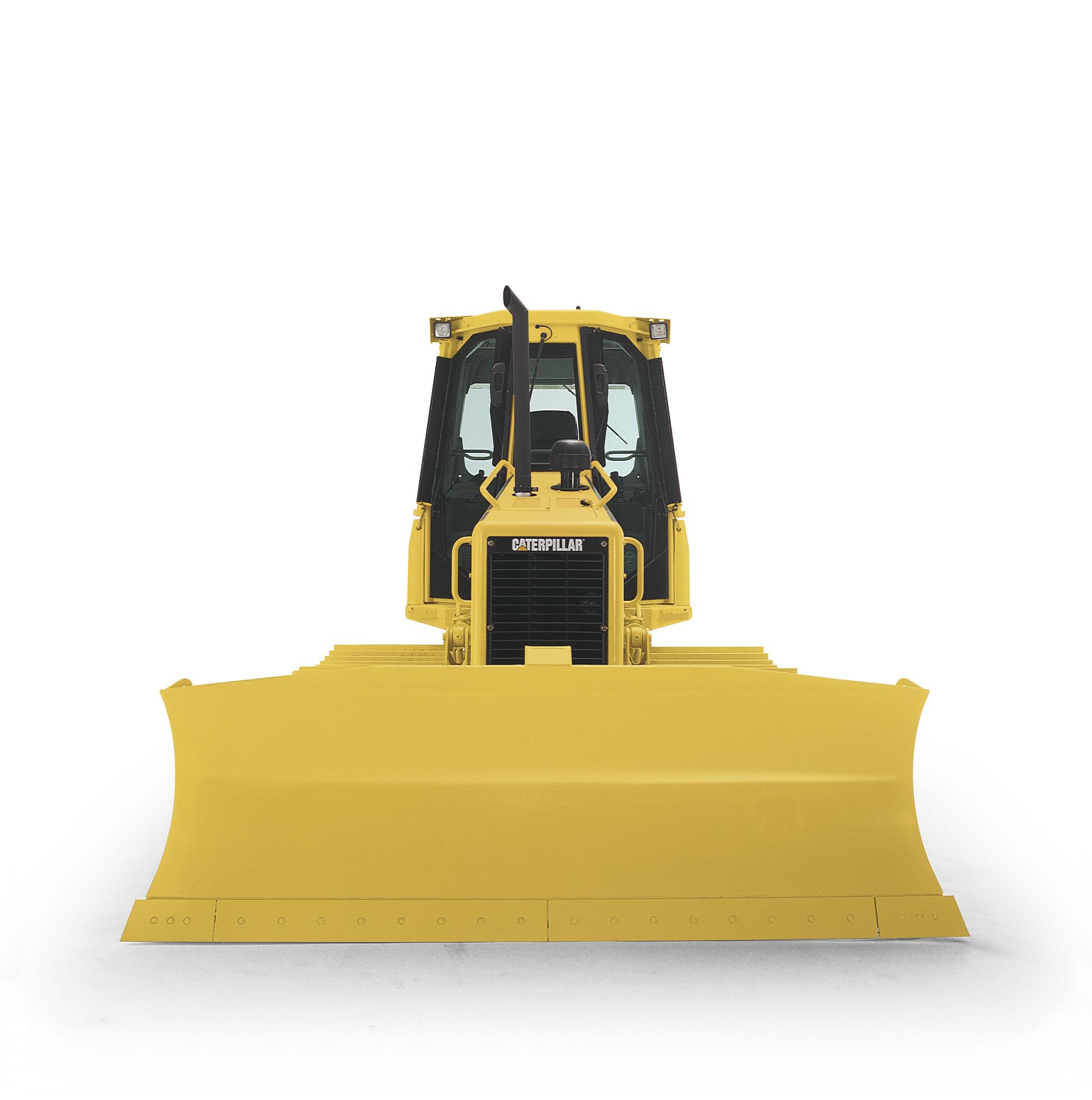

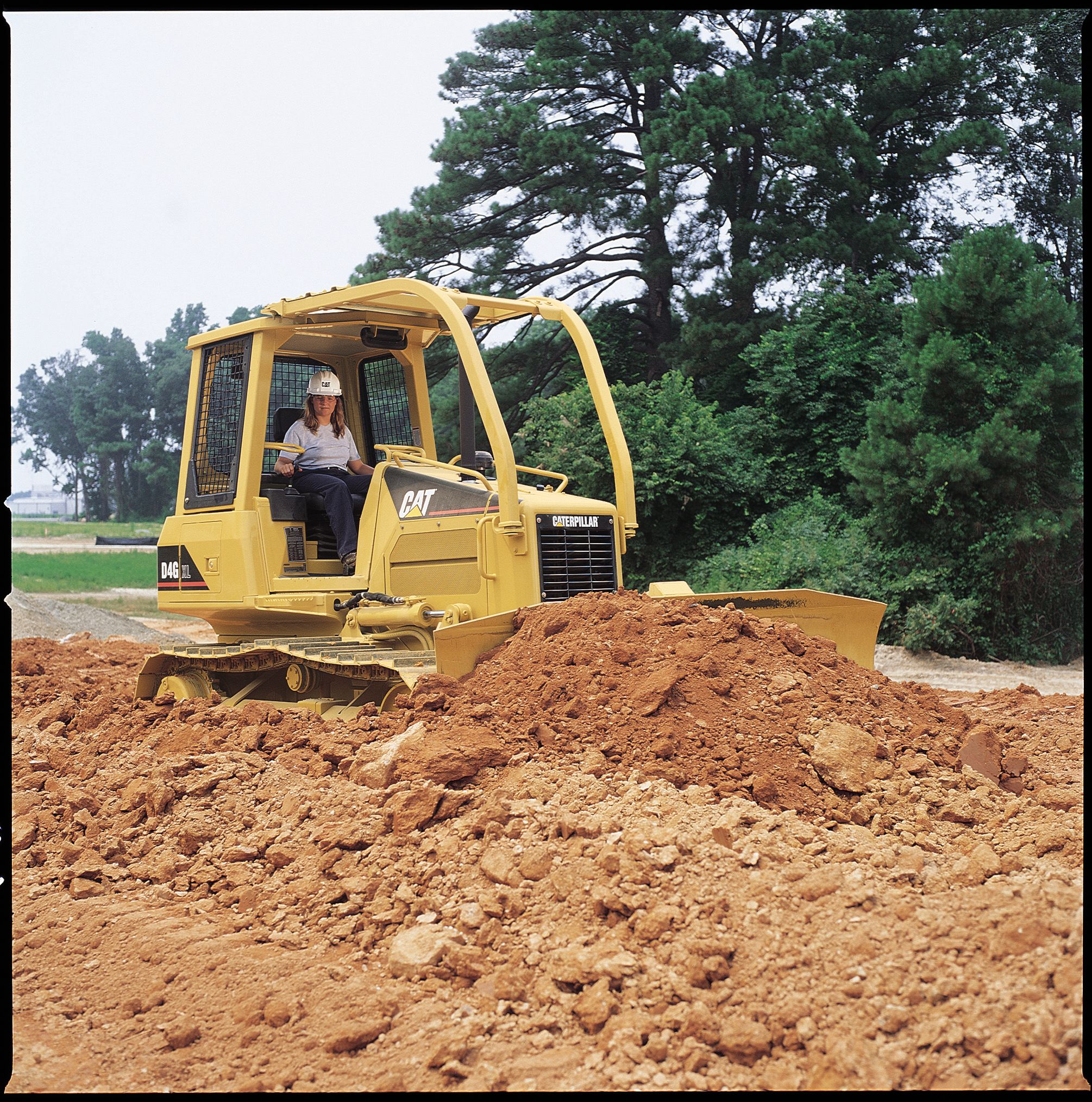

VPAT Blade

The VPAT blade is specifically designed for finish grading, backfilling ditches, cutting V ditches, windrowing, fill spreading, medium land clearing and heavy dozing. VPAT blades are built with four full-width (three on intermediate and LGP), box-section reinforcement cells for unmatched strength and durability.

Increased Blade Capacity

Blade capacity has been increased by 14% to greatly improve productivity.

Larger Trunnion

The blade trunnion ball size has been increased to provide longer life of the trunnion and reduce owning and operating costs. The trunnion is also now mounted on the C-frame instead of the blade.

Adjustable Top Pitch Link

The adjustable top pitch link provides a solid link between the blade and the top of the tilt tower on the C-frame. The turn buckle top pitch link allows the blade pitch to be adjusted without the use of tools. The cutting edge position can be adjusted between 50 and 55 degrees. The pitch link cover has been redesigned to provide better retention.

Improved Pin Joints

Pin joints have been improved to be more durable and provide longer life. Remote lubrication points provide easier service.

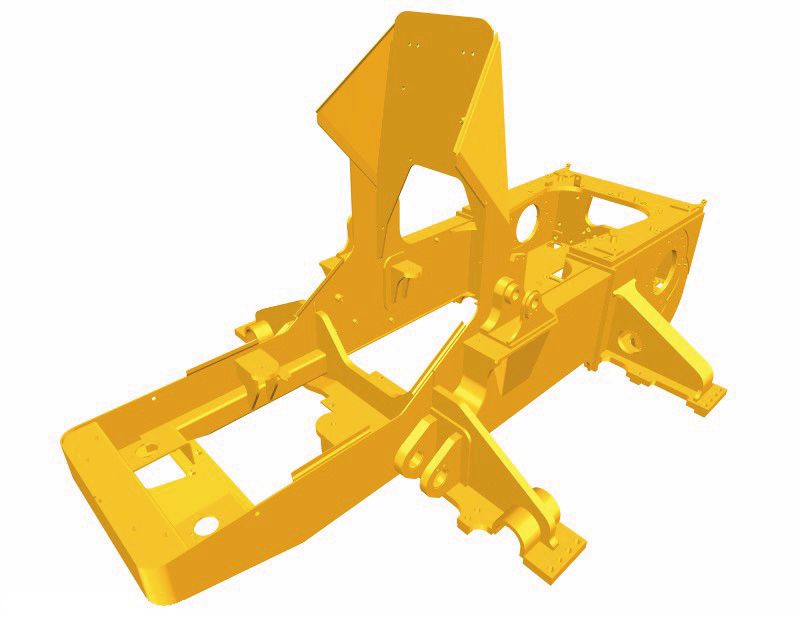

One-Piece Mainframe

Modeled after the large Caterpillar track-type tractors, the mainframe provides a solid back bone for handling forces generated during tough dozing. The robotic welding process delivers reliability and durability throughout the life of the machine.

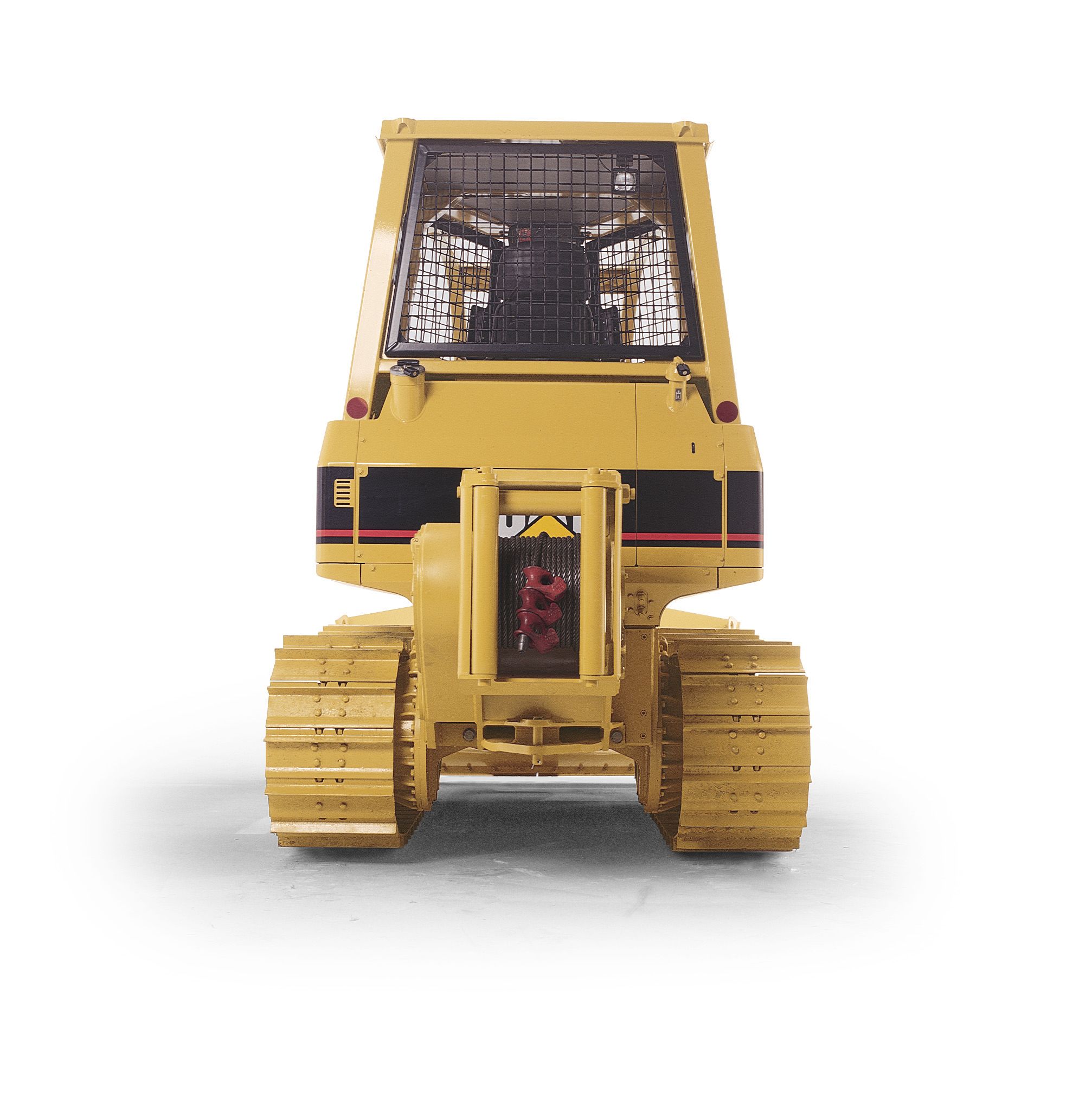

Hydrostatic Winch

Previous mechanical winches were driven by shafts and controlled by brakes and clutches. This new winch is driven by its own closed-loop hydrostatic system consisting of a variable displacement hydraulic piston pump and motor.

Infinitely Variable Speed Control

Similar to the hydrostatic system used to drive and control the tracks of the tractor, this winch offers outstanding control of the load with infinitely variable modulation of speed and pull. Other shaft-driven winches force the operator to choose the gear ratio of the winch. The G-Series hydrostatic winch eliminates this compromise by providing the speed of a standard speed winch and the pull of a low speed winch, all in one package.

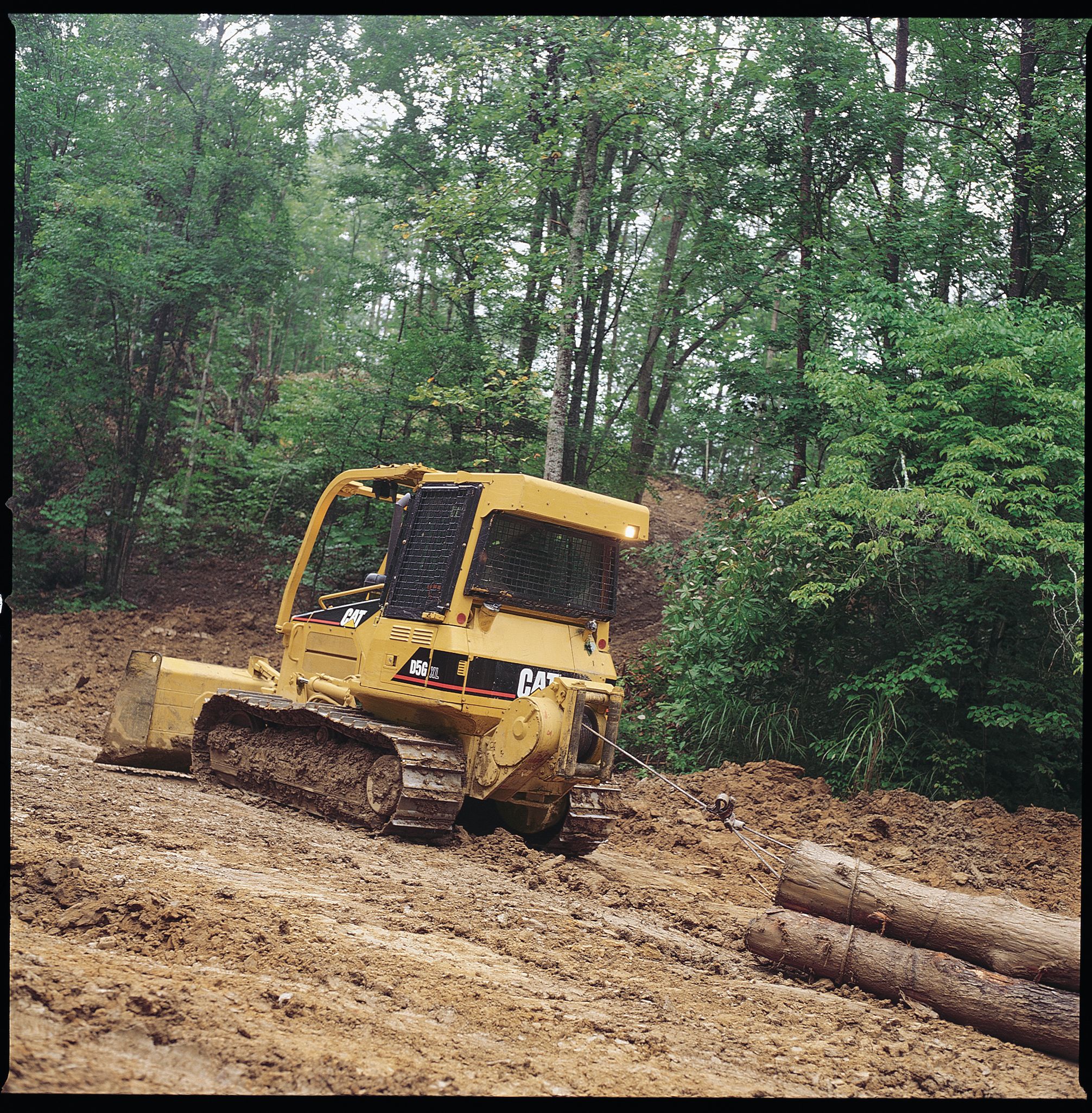

Forestry Segment

A new, easier way to work in the woods. The new hydrostatic winch makes the job easier with:
• Excellent line pull at any speed
• Infinitely variable drum speed
• Lower operator effort
• Excellent load control

360 Degree Guarding

All around screen guarding is available. Canopy version includes screened, hinged doors with dampening device along with side and rear screens. The cab version offers Lexan glass doors for improved visibility while providing protection. Meets OSHA and WCB regulations.

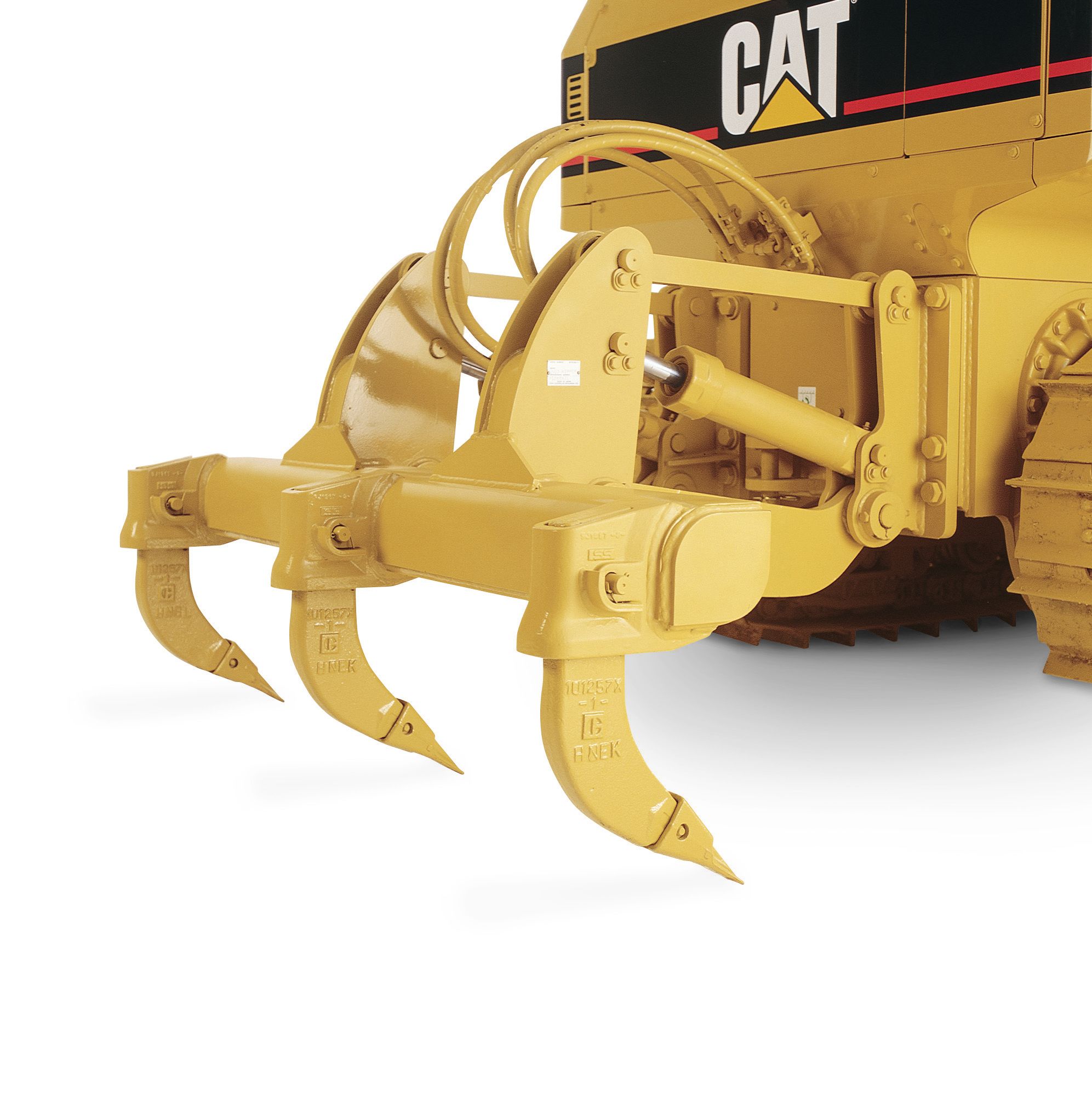

Parallelogram Ripper

This new, larger tool is more aggressive and allows the operator to do more effective ripper work. Heavy duty design provides long life. Parallel linkage design allows for better penetration and maneuverability in tight working areas. A longer shank delivers more work per pass making the machine more productive.

Product Link

This option allows the customer or dealer to obtain machine diagnostics and location from their office, eliminating trips and phone calls. Scheduled service can be completed more efficiently, thus reducing owning and operating costs. The Product Link provides updates on service meter hours and machine location as well as integrated mapping/route planning.

Hydrostatic Winch

The new Caterpillar exclusive hydrostatic winch provides smooth modulation, infinitely variable speed and better control. With its hydrostatic drive, this winch delivers outstanding results with less operator effort.

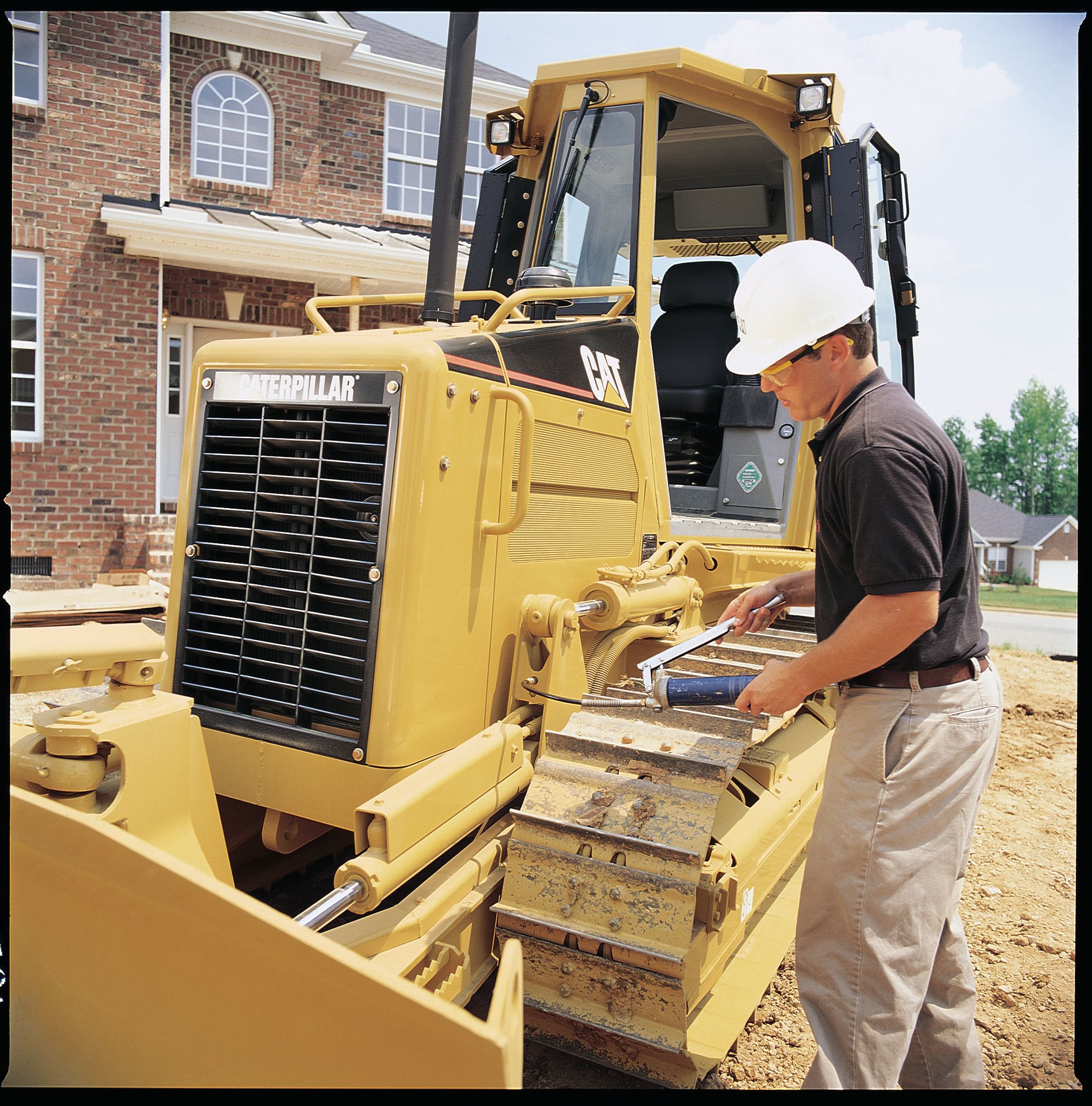

Serviceability

Longer service intervals and easier maintenance result in better machine availability and lower owning and operating costs. The D4G features:
• Side by side radiator/transmission cooler
• Easier filter access
• Centrally located hydraulic pressure tap bank
• Extended oil and oil filter change intervals
• Extended oil dipstick
• Comprehensive on-board diagnostics

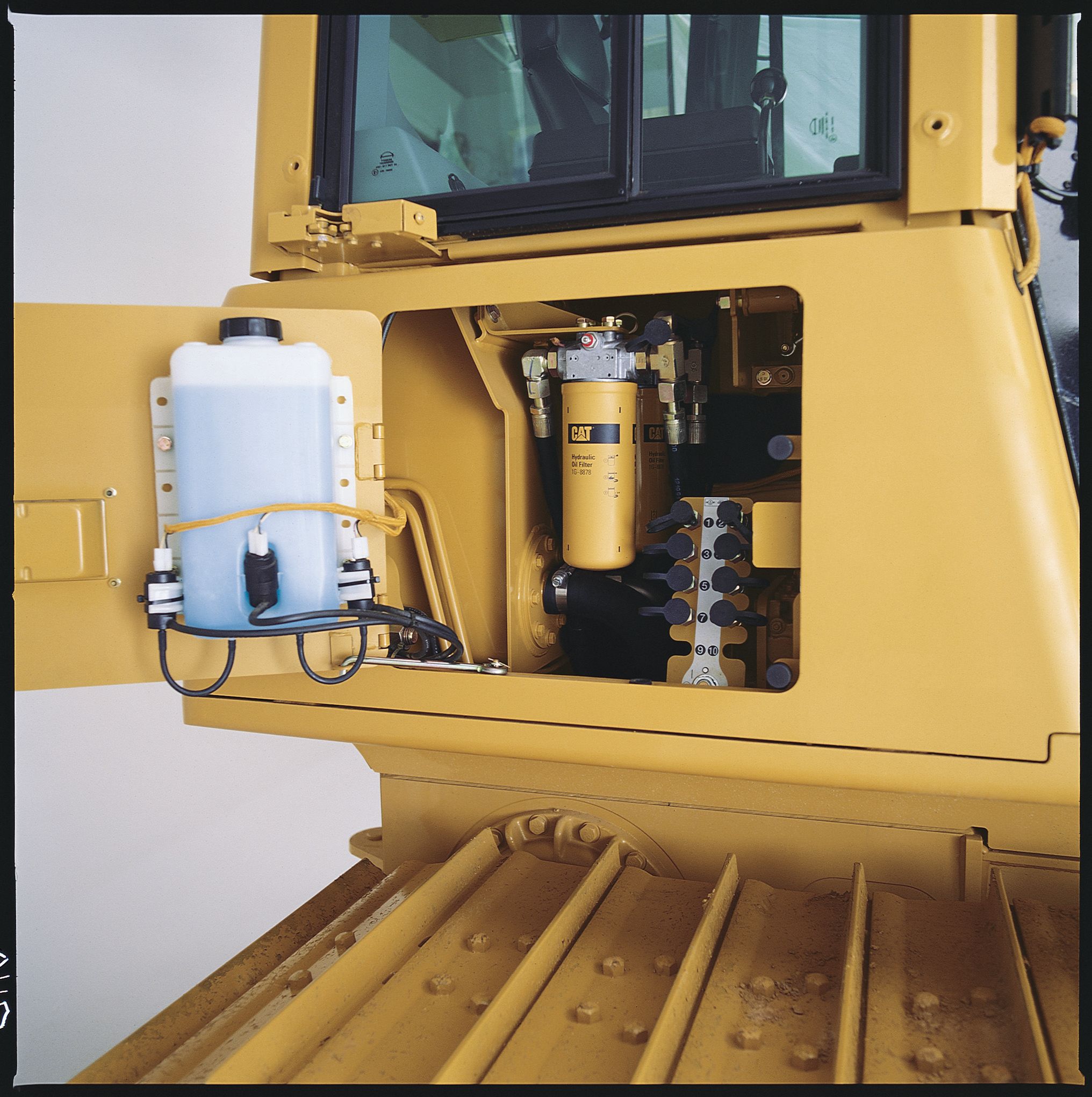

Right Side Access Doors

Access doors provide easy access to diagnostic test bank, hydraulic oil filters and disconnect switch.

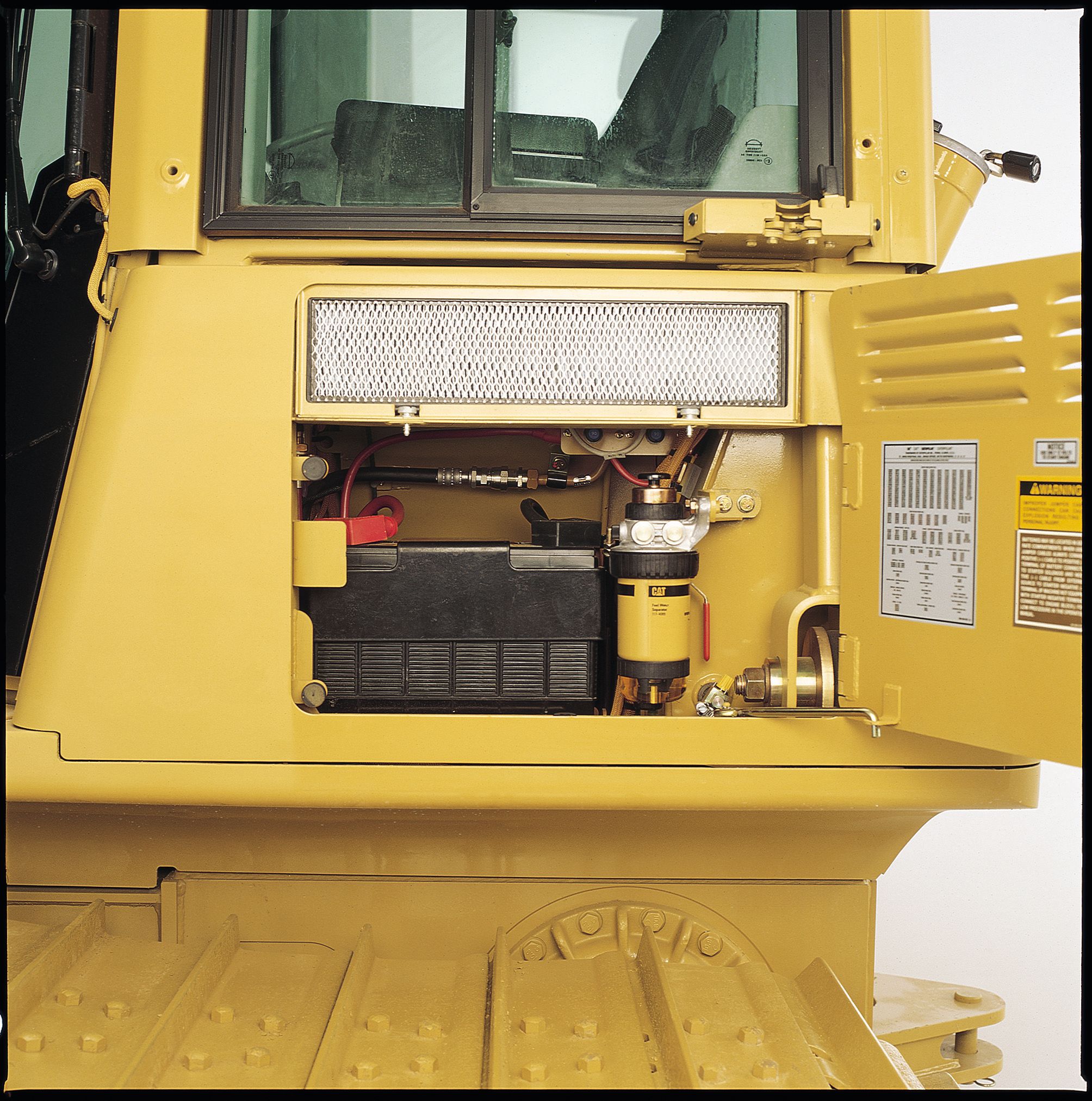

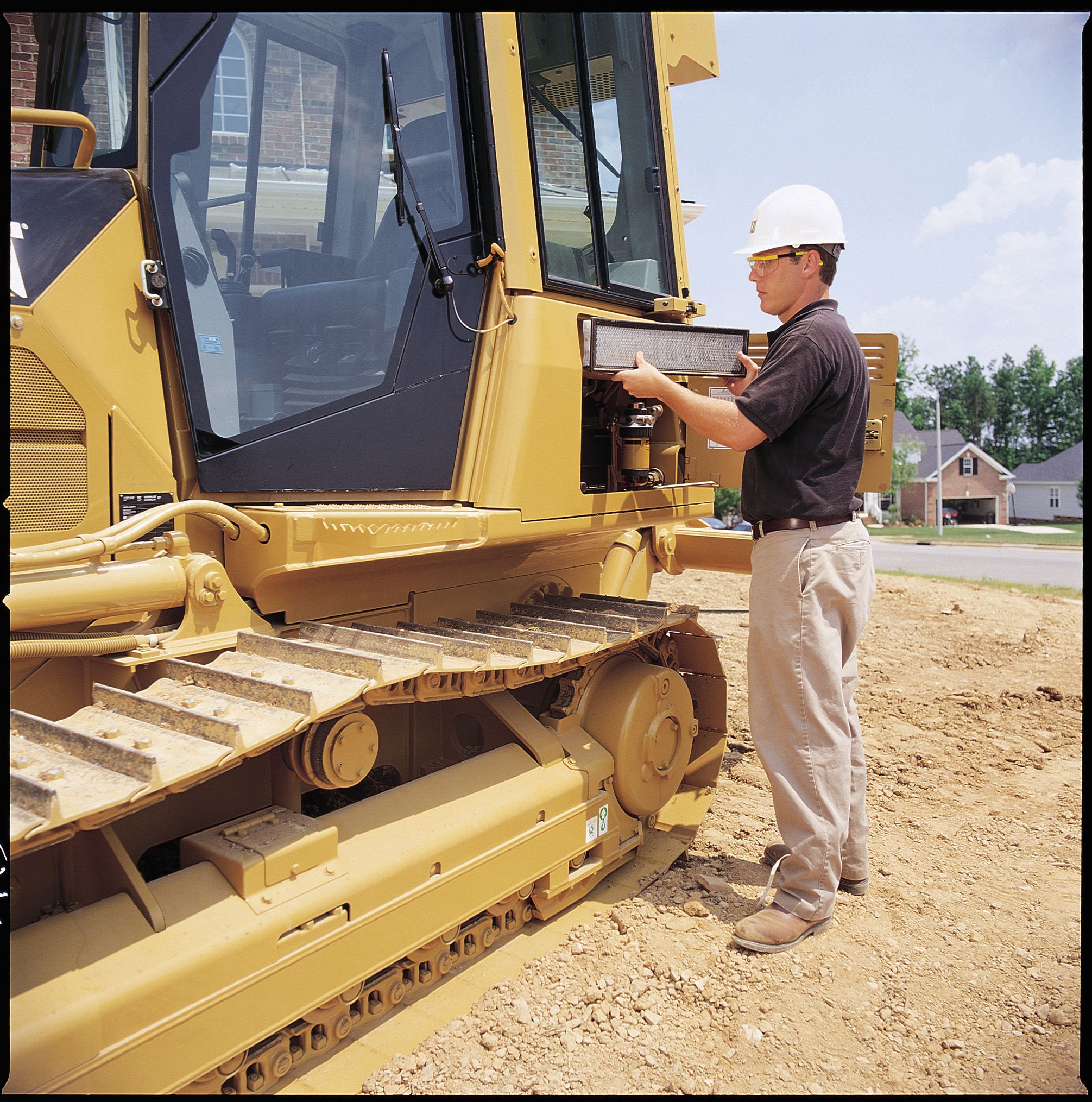

Left Side Access Doors

Left side access doors provide easy access to:
• Cab fresh air filter
• Heavy duty battery
• Fuel/water separator with filter
• Grease gun holder (not pictured)

Selection

Make detailed comparisons of the machines you are considering before you buy. What are the job requirements? What production is needed? What is the true cost of lost production? Your Cat dealer can give you precise answers to these questions.

Purchase

Look at the value G-series tractors offer. Consider all the flexible financing options your Cat dealer offers as well as day-to-day operating costs.

Operation

Improving operating techniques can boost your profits. Your Cat dealer has training literature and other ideas to help you increase productivity.

Maintenance

Repair options guarantee the cost of repairs up front. Diagnostic programs such as Scheduled Oil Sampling and Technical Analysis help you avoid unscheduled repairs.

Replacement

Repair, rebuild or replace? Your Cat dealer can help you evaluate the cost involved so you can make the right choice.

Product Support

You will find high availability of parts at our dealer parts counter. Cat dealers utilize a worldwide computer network to find in-stock parts to minimize machine downtime. Additionally, Caterpillar offers a line of genuine remanufactured components which can help lower repair costs.

Easy Financing

Your Cat dealer can provide a financing package to meet your needs.
