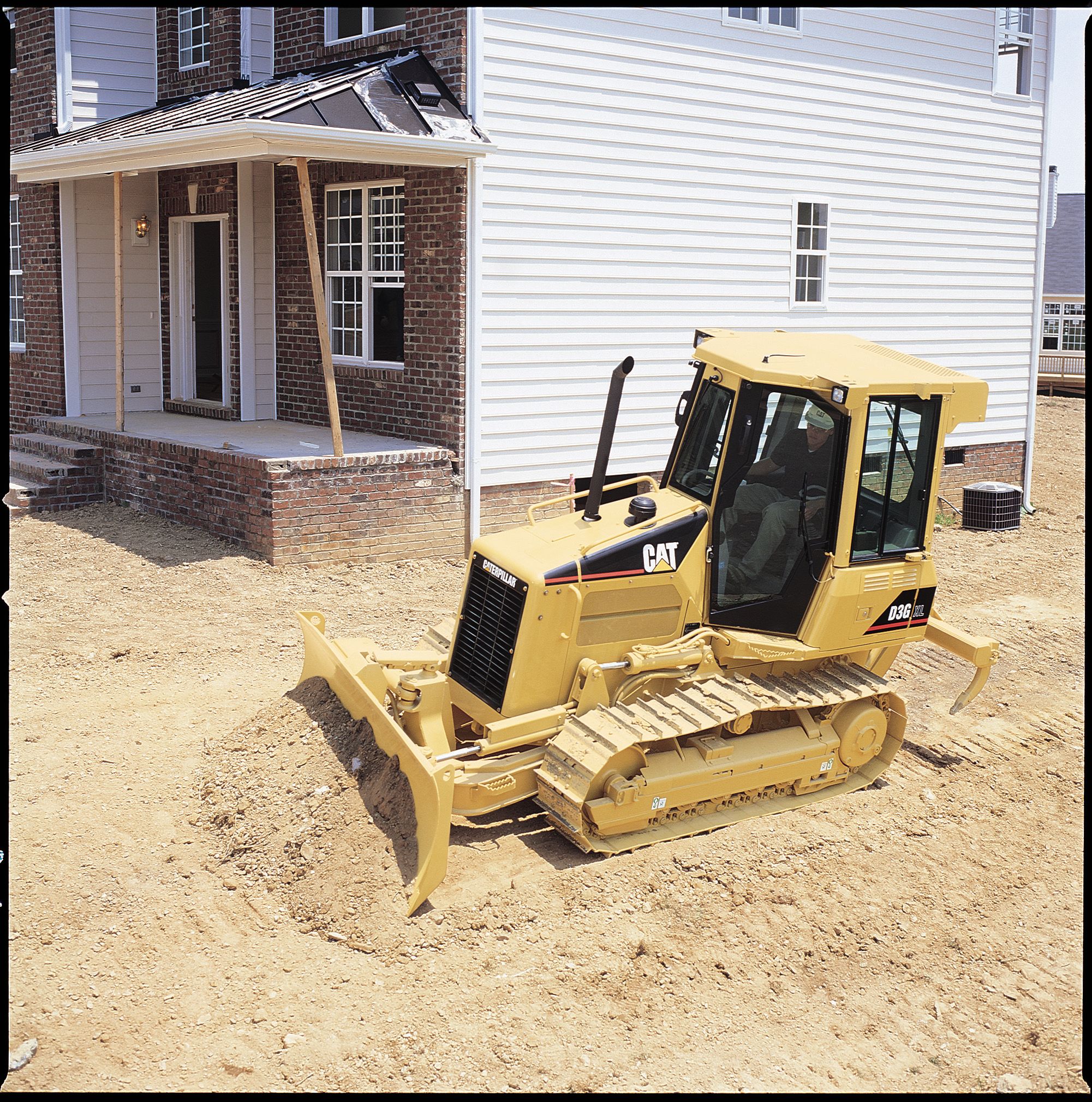

D3G^Non-Current

Advantages

Current earth moving and fine grading processes are labor intensive, dependent on manpower and instruments. Maintaining consistent grade between grade stakes is challenging, even for experienced operators. The AccuGrade Laser Grade Control System reduces labor requirements, aids operators in maintaining a consistent grade across the worksite and reduces material cost.

Simple Operation

The AccuGrade System consists of 4 basic components:
• Laser Transmitter
• Laser Receiver
• Electric Mast
• In-Cab Display

1) Laser Transmitter

An off-board laser transmitter (sold separately) emits a thin beam of light that rotates 360º, creating a grade reference over the work area. The transmitter is mounted on a tripod so the laser beam can rotate unobstructed above the tractor.

2) Laser Receivers

A digital laser receiver, mounted on a telescopic mast above the blade's cutting edge, is used to detect the laser beam. During grade set-up, with the cutting edge placed at finish elevation, the electric mast automatically positions the laser receiver to within 1.5 mm of the center of the laser beam. As the blade moves above or below finish grade elevation during the grading process, correction information is sent to the in-cab display. One receiver is required for single dimension control (lift) and two receivers are required for two-dimensional control (lift and tilt).

3) Electric Masts

Electric adjustable machine-mounted telescopic mast(s) are used for mounting the laser receiver(s) over the cutting edge, ensuring unobstructed laser reception. Powered by an electric motor, the operator can vertically raise and lower the mast(s) from inside the cab for precise positioning of the receiver(s)' elevation.

4) In-Cab Display

The in-cab display with easy to read grade indicator and backlit elevation display delivers all AccuGrade system information to the cab for easy viewing by the operator. The in-cab display arrows show the blade's position relative to grade and indicates cut or fill requirements of the work area. A built-in beeper provides audible tones to indicate grade errors and switch activation. Push button operation allows the operator to easily switch from manual mode for rough grading to automatic for fine grading.

Applications

The AccuGrade System is designed for a wide range of construction earthwork applications requiring tight tolerances and high production rates. The single laser system or dual laser system can be selected depending on the job requirements. The single laser system is ideal for fine grading sites with flat, single slope surfaces. The more versatile dual laser system is well matched for single or dual slope surfaces such as industrial, commercial and residential building sites.

Automatic Blade Control Feature

Automatic control of the blade's lift and/or tilt, depending on single or dual receiver system, provides consistent accuracy with higher productivity by reducing blade control demands on the operator. Based on correction signals, a hydraulic control valve automatically raises or lowers the blade cutting edge to maintain the correct blade cutting edge elevation. A single push button mounted on the blade control lever, allows the operator to easily switch from automatic to manual control for various work conditions.

Weatherproof Design

All components are designed rugged for dependable performance in harsh environments.

Redesigned Operator Station

Based on the cab designs of the large Caterpillar track-type tractors, the operator station has been redesigned to be more spacious. The new ergonomic layout emphasizes simplicity, ease of use and comfort. A new climate control system (HVAC), increased leg room and enhanced visibility allow the operator to focus on the job. With 13% more tinted glass area, the operator station provides a clear view to the blade and the surrounding work site.

Other Cab Conveniences

• Vertical & horizontal armrest adjustments
• Directed air vents in key locations
• Wide angle rear view mirror
• Cupholder
• 12 volt power port
• Radio ready factory installed components including speakers, antenna and all wiring brackets
• Dome light
• Coat hook
• Tie down for lunch box
• Air conditioner (standard equipment)

Reduced Sound Levels

Sound levels are greatly reduced to further enhance the operator's comfort.

VPAT Dozer Control

A single lever control handle is used to control all blade lift, angle and tilt functions. The ergonomically designed handle fits comfortably in the operator's hand and delivers superb grading results.

Ease of Entry and Exit

The hexagon shaped cab provides plenty of space to enter the roomy operator compartment. Easy to reach door handles make it easy to enter and exit during the workday. Angled doors allow the operator to walk right into the cab.

Seat

The Caterpillar Comfort Suspension seat provides adjustable positioning to fit any operator. It is the most comfortable seat in the industry and features:
• 3" wide retractable seatbelt
• Fore/aft positioning
• Back cushion angle adjustment
• Seat cushion tilt
• Back rest extension
• Lumbar adjustment
• Height adjustment
• Cloth seat is standard with cab; vinyl seat is available on open canopy machines

Decel Pedal

Decelerator allows operator to modulate ground speed effortlessly. Intuitive control enhances operator confidence when maneuvering in and around structures.

Monitoring Package

The monitoring package allows the operator to be aware of system conditions without having to constantly view gauges. Fuel level, hydraulic oil temperature, oil pressure, coolant temperature, and maximum speed setting gauges are all included in the instrument panel. Indicator lamps warn operator of:
• Low oil pressure
• Power train oil filter bypass
• Low alternator voltage
• Parking brake engaged
• Electronic control fault
• Water in fuel
• Air inlet restriction
• Air intake heater

Other Features

• Footrests for operator comfort and stability
• Vandalism guard to protect dash and instruments (canopy machines only)

Excellent Visibility

Visibility is key to productive grading. The D3G delivers excellent visibility to the blade corners and edges. No longer does an operator have to grade by feel. He can easily see blade corners and cutting edges. Wide open peripheral vision allows the operator to have an optimum view of the jobsite.

Windows

Large, tinted windows provide excellent visibility to the blade and surrounding work site. Large, sliding side windows provide flow-through ventilation. With 13% more glass area, the operator station delivers an outstanding view all around the machine.

Excellent Line of Sight to Blade

Grade stakes and utility structures are easy to see and maneuver around with the G-Series tractors.

Angled Doors

Angled doors on the left and right hand sides provide virtually unrestricted visibility to the sides of the machine.

Caterpillar 3046T Diesel Engine

Designed specifically for small to medium size earthmoving machines, the Cat six-cylinder 3046T engine is inherently balanced, providing low vibration, superior performance and exceptional responsiveness. The 3046T engine is designed for improved response and performance at lower engine speeds. This is important for earthmoving machines in the under 100 hp size class, allowing operators to work in tight spaces, at part throttle and slower travel speeds without sacrificing responsiveness. The turbocharger also helps reduce fuel consumption and sound levels.

Direct Injection Fuel System

The direct injection fuel system is adjustment free for reduced maintenance. High pressure fuel injection results in reduced fuel consumption and emissions. Electric, internal fuel shut-off solenoid is protected from the elements to provide long life.

Turbocharger

The turbocharger improves response and performance at low to medium engine speeds.

Spin-on Oil and Fuel Filters

Spin-on oil and fuel filters are vertically mounted and easily accessible for faster maintenance.

Air Inlet Heater

The air inlet heater delivers dependable starts when operating in cold temperatures. A built-in temperature switch helps ensure lasting reliability.

Lubrication System

Gear driven oil pump provides lubrication from a deep sump oil pan. An efficient, multiple-plate, water-cooled oil cooler prolongs engine and lubricant life.

Cooling System

A large diameter fan and full length, water-cooled cylinders, combined with excellent thermal efficiency, minimize heat rejection, prevent overheating and prolong engine life.

Regulations

The Caterpillar 3046T engine is EPA Tier 2, MOC Step 2, and CE Stage 2 emissions certified.

Simpler Operation, Improved Control

We listened to our customers and designed the new G-Series machines with even simpler operation and improved control. This allows the operator to concentrate on more important aspects of the job such as blade control.

Joystick Control

The joystick control is easy to use. Speed, direction and steering are all controlled with the joystick. The result is easier operation and improved productivity. Ergonomic placement reduces operator effort and fatigue.

Speed and Direction

The joystick has three simple detented positions for travel: forward, reverse and neutral. A new feature is the capability to utilize faster reverse speed as a percentage of forward speed for increased productivity. Two joystick-mounted buttons are used to infinitely increase and decrease speed. An indicator on the dash displays the tractor's current operating speed setting. When the joystick is moved to the neutral position, the machine stops.

Steering

With the machine moving in forward or reverse, move the joystick to the left to turn the machine to the left; move the joystick to the right to turn right. The more the handle is moved to the right or left, the tighter the turn. Regardless of ground conditions, steering is consistent and predictable. Moving the joystick to the far right or left will make the tracks counterrotate for maneuvering in tight work areas.

Counterrotation

The D3G maneuvers easily through side loading blade applications. Simply engage counter- rotation briefly to correct machine position. Counterrotation also provides easy, quick maneuvering in small, confined work areas.

Tracking

The D3G has excellent tracking capabilities which increase productivity on side slopes.

Powerturn

Utilizing active effort of both tracks during a turn allows for more pushing power at the blade and less spillage of material from the blade.

Durable Components

Advanced metallurgy processes produce improved life for bushing and sprocket segments. Segmented sprockets (standard equipment) offer easy serviceability and low replacement cost compared to replacing the complete sprocket hub. Caterpillar undercarriages are designed for long wear and lower owning and operating costs.

Complete Guarding

Caterpillar undercarriages are designed with full length guarding on top of the track roller frame. This prevents abrasive material from falling down on moving parts.

Available Configurations

The D3G is available in either an extra long (XL) or low ground pressure (LGP) undercarriage configuration.

XL Undercarriage

Track length is extended on extra long (XL) undercarriages for increased ground contact area and flotation, superior balance and excellent finish grading.

LGP Undercarriage

The low ground pressure (LGP) undercarriage offers a wider track, increasing ground contact area for optimum flotation and greater stability on sloping and finish grading jobs.

LGP with Standard Shoes

For increased stability when additional flotation is not required, 406 mm (16") track shoes are available for the D3G LGP.

VPAT Blade

The VPAT blade is specifically designed for finish grading, backfilling ditches, cutting V ditches, windrowing, fill spreading, medium land clearing and heavy dozing. VPAT blades are built with four full-width (three on intermediate and LGP), box-section reinforcement cells for unmatched strength and durability.

Increased Blade Capacity

Blade capacity has been increased by 14% to greatly improve productivity.

Larger Trunnion

The blade trunnion ball size has been increased to provide longer life of the trunnion and reduce owning and operating costs. The trunnion is also now mounted on the C-frame instead of the blade.

Adjustable Top Pitch Link

The adjustable top pitch link provides a solid link between the blade and the top of the tilt tower on the C-frame. The turn buckle top pitch link allows the blade pitch to be adjusted without the use of tools. The cutting edge position can be adjusted between 50 and 55 degrees. The pitch link cover has been redesigned to provide better retention.

Improved Pin Joints

Pin joints have been improved to be more durable and provide longer life. Remote lubrication points provide easier service.

One-Piece Mainframe

Modeled after the large Caterpillar track-type tractors, the mainframe provides a solid back bone for handling forces generated during tough dozing. The robotic welding process delivers reliability and durability throughout the life of the machine.

Hydrostatic Winch

Previous mechanical winches were driven by shafts and controlled by brakes and clutches. This new winch is driven by its own closed-loop hydrostatic system consisting of a variable displacement hydraulic piston pump and motor.

Infinitely Variable Speed Control

This winch offers outstanding control of the load with infinitely variable modulation of speed and pull. Other shaft-driven winches force the operator to choose the gear ratio of the winch. The G-Series hydrostatic winch eliminates this compromise by providing the speed of a standard speed winch and the pull of a low speed winch, all in one package.

Forestry Segment

A new, easier way to work in the woods. The new hydrostatic winch makes the job easier with:
• Excellent line pull at any speed
• Infinitely variable drum speed
• Lower operator effort
• Excellent load control

360 Degree Guarding

All around screen guarding is available. Canopy version includes screened, hinged doors with dampening device along with side and rear screens. The cab version offers Lexan glass doors for improved visibility while providing protection. Meets OSHA and WCB requirements.

Parallelogram Ripper

This new, larger tool is more aggressive and allows the operator to do more effective ripper work. Heavy duty design provides long life. Parallel linkage design allows for better penetration and maneuverability in tight working areas. A longer shank delivers more work per pass making the machine more productive.

Hydrostatic Winch

The new Caterpillar exclusive hydrostatic winch provides smooth modulation, infinitely variable speed and better control.

Product Link

This option allows the customer or dealer to obtain machine diagnostics and location from their office, eliminating trips and phone calls. Scheduled service can be completed more efficiently, thus reducing owning and operating costs. Product Link provides updates on service meter hours and machine location as well as integrated mapping/route planning.

Machine Security System

Secure your investment with the Caterpillar Machine Security System (MSS), a programmable key system that provides optimum machine security for both fleet users and single users. MSS can reduce owning and operating costs by preventing unauthorized machine use, thus saving fuel and maintenance costs. MSS prevents theft and vandalism, which may reduce insurance costs.

Serviceability

Longer service intervals and easier maintenance result in better machine availability and lower owning and operating costs. The D3G features:
• Side by side radiator/transmission cooler
• Easier filter access
• Turbine precleaner
• Centrally located hydraulic pressure tap bank
• Extended oil and oil filter change intervals
• Extended oil dipstick
• Comprehensive on-board diagnostics
• Coolant level sight gauge

Right Side Access Doors

Access doors provide easy access to the diagnostic test bank, hydraulic oil filters and disconnect switch.

Left Side Access Doors

Left side access doors provide easy access to:
• Cab fresh air filter
• Heavy duty battery
• Fuel/water separator with filter
• Grease gun holder

Selection

Make detailed comparisons of the machines you are considering before you buy. What are the job requirements? What production is needed? What is the true cost of lost production? Your Cat dealer can give you precise answers to these questions.

Purchase

Look at the value G-series tractors offer. Consider all the flexible financing options your Cat dealer offers as well as day-to-day operating costs.

Operation

Improving operating techniques can boost your profits. Your Cat dealer has training literature and other ideas to help you increase productivity.

Maintenance

Repair options guarantee the cost of repairs up front. Diagnostic programs such as Scheduled Oil Sampling and Technical Analysis help you avoid unscheduled repairs.

Replacement

Repair, rebuild or replace? Your Cat dealer can help you evaluate the cost involved so you can make the right choice.

Product Support

You will find high availability of parts at our dealer parts counter. Cat dealers utilize a worldwide computer network to find in-stock parts to minimize machine downtime. Additionally, Caterpillar offers a line of genuine remanufactured components which can help lower repair costs.

Easy Financing

Your Cat dealer can provide a financing package to meet your needs.
