906H2Non-Current
906H2 - 2012, Tier 4i, NACD, LACD
Overview

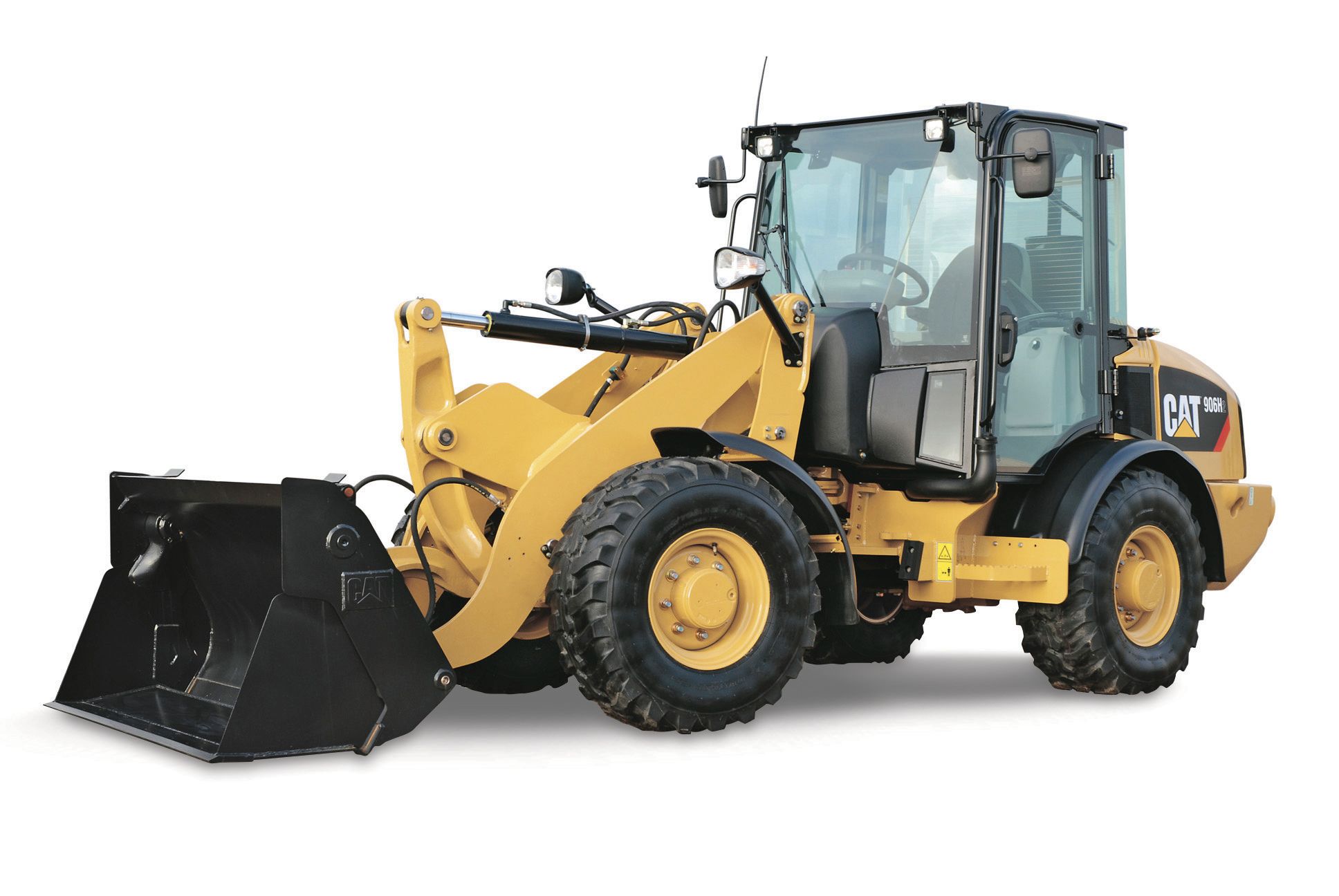

The Cat 906H2 Compact Wheel Loader delivers performance with versatility. Spacious, comfortable cab with the joystick control allows you to get more done. Loader design delivers strength and durability with parallel lifting. The work tool quick coupler allows the use of Cat Skid Steer, Multi Terrain and Compact Track Loader hydromechanical work tools on the Cat Compact Wheel Loader for greater machine versatility. Expand your business with the Cat H2 Series Compact Wheel Loaders.
Specifications
| Net Power | — |
| Operating Weight | — |
| Rated Bucket Capacity | — |
Benefits & Features
Specifications
| Net Power | — |
| Model | Cat� C3.3B DIT (meets U.S. EPA Tier 4 Interim emission standards) |
| Bore | — |
| Displacement | — |
| Gross Power - 2,500 rpm - SAE J1995 | — |
| Rated Net Power - 2,500 rpm - SAE J1349 | — |
| Maximum Net Power - SAE J1349 | — |
| Maximum Gross Power - SAE J1995 | — |
| Maximum Gross Power - ISO 14396 | — |
| Stroke | — |
| Net Power - 2,500 rpm - SAE J1349 | — |
| Maximum Net Power - ISO 9249 | — |
| Operating Weight | — |
| Rated Bucket Capacity | — |
| Tire Size | 405/70 R18 |
| Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 500 mm [20 in] Load Center) (80% of FTSTL) | — |
| Breakout Force | — |
| Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 500 mm [20 in] Load Center) (60% of FTSTL) | — |
| Rated Operating Load at Full Turn - Bucket | — |
| Hydraulic Lift Capacity | — |
| Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 500 mm (20 in) Load Center, Transport 100 mm (4 in) Above Ground) | — |
| Straight Tipping Load - Bucket | — |
| Full Turn Static Tipping Load - Bucket | — |
| Rack Back - Transport Position | — |
| Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 1.25 Stability and 500 mm [20 in] Load Center) | — |
| Rated Operating Load at Full Turn - Forks (SAE J1197, Load Center at Tine Mid-Point, 1220 mm [48 in] Tines) (50% FTSTL) | — |
| Rated Operating Load Straight Back - Forks (SAE J1197, Load Center at Tine Mid-Point, 1120 mm [44 in] Tines) (50% FTSTL) | — |
| Rated Operating Load Straight Back - Forks (SAE J1197, Load Center at Tine Mid-Point, 1220 mm [48 in] Tines) (50% FTSTL) | — |
| Rated Operating Load at Full Turn - Forks (SAE J1197, Load Center at Tine Mid-Point, 1120 mm [44 in] Tines) (50% FTSTL) | — |
| Travel Speed 1 | — |
| Travel Speed 2 | — |
| High Speed | — |
| Machine Width | — |
| Cab Height | — |
| Maximum Reach | — |
| Tire Gauge | — |
| Fork Reach at Maximum Height | — |
| Maximum Dump Height | — |
| Turning Radius - Over Bucket | — |
| Fork Height at Maximum Reach | — |
| Width - Over Bucket | — |
| Articulation Angle - Degrees | — |
| Overall Length - With Forks | — |
| Maximum Fork Height | — |
| Reach at Ground Level | — |
| Departure Angle - Degrees | — |
| Dump Angle at Maximum Height - Degrees | — |
| Fork Depth Above Ground | — |
| Ground Clearance | — |
| Hinge Pin at Maximum Height | — |
| Wheel Base | — |
| Dig Depth | — |
| Overall Length - With Bucket | — |
| Turning Radius - Inside Tire | — |
| Reach at Maximum Dump Height | — |
| Load Over Height | — |
| ROPS | SAE J1040 MAY94, ISO 3471-1994 |
| FOPS | SAE J/ISO 3449 APR98 Level II, ISO 3449 1992 Level II |
| Hydraulic Cycle Time - Lift | 5 Seconds |
| Hydraulic Cycle Time - Dump | 2 Seconds |
| 3rd Auxiliary Flow - High Flow | — |
| Hydraulic Cycle Time - Lower, Float | 4 Seconds |
| Main Relief | — |
| Hydraulic Cycle Time - Rackback | 2.5 Seconds |
| 3rd Auxiliary Flow - Standard Flow | — |
| Cooling System | — |
| Fuel Tank | — |
| Hydraulic System | — |
| Engine Oil | — |
| Bucket Capacities | 0.75-1.2 m3 (0.98-1.6 yd3) |
| Rated Capacity | — |
| Dump Height | — |
| Bucket Width | — |
| Maximum Material Density | — |
| Dump Height | — |
| Maximum Material Density | — |
| Rated Capacity | — |
| Bucket Width | — |
| Dump Height | — |
| Rated Capacity | — |
| Maximum Material Density | — |
| Bucket Width | — |
| Radio-Ready Kit (Wiring, Speaker, Antenna and Grilles) | Standard |
| Heated Rear Window | Standard |
| Cloth Electric Air Suspension Seat, Arm/Head Rest, Lumbar Support, Heated Back Seat | Standard |
| External Mirrors (2) - Knock Back | Standard |
| Lockable Storage Box | Standard |
| Coat Hook | Standard |
| Air Conditioning | Standard |
| Cat Radio/CD/MP3/WMA Player | Optional |
| Two Access Doors | Standard |
| Adjustable Steering Column | Standard |
| Cabin Light | Standard |
| Rear Blind | Optional |
| Sun Visor | Standard |
| Heater | Standard |
| Adjustable Internal Mirror | Standard |
| Left Window - Sliding | Standard |
| Right Window - Sliding | Standard |
| Cabin Light | Standard |
| Two Access Doors | Standard |
| External Mirrors (2) - Knock Back | Standard |
| Lockable Storage Box | Standard |
| Heater | Standard |
| Adjustable Internal Mirror | Standard |
| Radio-Ready Kit (Wiring, Speaker, Antenna and Grilles) | Standard |
| Adjustable Steering Column | Standard |
| Cloth Suspension Seat, Arm Rest | Standard |
| Cat Radio/CD/MP3/WMA Player | Optional |
| Sun Visor | Standard |
| Rear Blind | Optional |
| Heated Rear Window | Standard |
| Left Window - Sliding | Standard |
| Coat Hook | Standard |
| External Mirrors (2) - Knock Back | Standard |
| Vinyl Suspension Seat | Standard |
| Adjustable Internal Mirror | Standard |
| Coat Hook | Standard |
| Lockable Storage Box | Standard |
| Fixed Steering Column | Standard |
| Sun Visor | Standard |
Benefits & Features
Operator Station
Cab Comfort
Spacious, comfortable cab helps you stay productive throughout the work day. Low effort joystick and steering, intuitively laid out controls, two armrests and an adjustable wrist rest are some of the many features built into the H2 Series Compact Wheel Loader for maximum operator comfort. A variety of options makes it easy to customize the cab to your requirements. Select the operator station that meets your needs - Canopy, Comfort Cab or Deluxe Cab. Optional air conditioning system is standard in the Deluxe Cab for additional operator comfort. All cabs are fully pre-wired, making it easy to install future options.
Low Effort Controls
Pilot hydraulics keep operator fatigue low. The single multi functional joystick contains FNR (Forward/Neutral/Reverse), travel speed, third function auxiliary hydraulics (for hydromechanical work tools), differential lock and continuous flow controls.
Excellent Visibility
Work site visibility has been maximized with two fully glazed doors, front low-level glazing, excellent rear visibility and a clear view to the work tool through the loader arms.
Low Cab Height
The 906H2 features a low cab height of 2465 mm (8 ft 1 in) to provide access to more areas on the job site.
Power Train
Cat 3.3B DIT U.S. EPA Tier 4 Interim Compliant Engine
Engine service area features eco-friendly drains, easily accessible filters, ground level service points, and separate coolers for cleaning. The electric fuel pump self-primes dry, fresh filters to make servicing fast and contamination free.
Chassis and Heavy Duty Axles
With 18 degrees of motion, the oscillating chassis assures four wheel ground contact. Heavy duty axles with outboard planetary reduction gears are more durable. Standard differential locks in both axles can be engaged on the move.
Two Speed Options
The hydrostatic drive line offers two speeds in “Low” range: 1st Gear - 7 km/h (4.3 mph) and 2nd Gear - 20 km/h (12.4 mph). The optional speeder transmission provides up to 35 km/h (21.7 mph) in “High” range. Both versions feature smooth inching with the brake pedal as standard. Additionally, an optional transmission control upgrade offers creeper control, rimpull control and hand throttle. The combination of creeper and hand throttle is used for powering hydromechanical work tools such as snowblowers or cold planers. The rimpull control reduces the amount of tire slippage in soft or loose underfoot conditions, adjusted between 60% and 100% tractive force.
Ride Control
The optional Ride Control improves operator comfort, material retention, machine controllability, and higher productivity. Three modes are available - auto, on and off. This feature is highly recommended if the machine is equipped with the 35 km/h (21.7 mph) speeder option.
Loader Linkage
Parallel Lift Z-bar Design
The high performance Z-bar loader design is built for strength and excellent work tool visibility. The standard skid steer loader style quick coupler ensures maximum versatility. The Z-bar linkage gives the operator a clear view to the work tool and excellent dump clearance while maintaining good cycle times and parallel lift.
Work Tools
The Right Tool for the Job
- Increase the versatility of the machine with the wide range of Cat buckets, forks and hydraulically powered work tools. Work tools can be changed quickly and easily with the machine's quick coupler system. Available work tools include:
- Buckets
- Material Handling Arm
- Forks
- Power Box Rakes
- Augers
- Snow Removers
- Brooms
- Stump Grinders
- Cold Planers
- Trenchers
- Landscape Rakes
- Vibratory Compactors
- Landscape Tillers
Additional Options to Increase Productivity
- Caterpillar offers the following options to further increase your productivity:
- Return to dig work tool positioner automatically returns the bucket to level position after dumping.
- Work tool wiring harness for fourth hydraulic function such as broom angling.
- Transmission control upgrade includes speed control, rimpull control and hand throttle control. Speed control (creeper) provides variable control of ground speed while maintaining optimal hydromechanical work tool speed, such as using snow blowers, cold planers or wheel saws. Rimpull control optimizes bucket loading and reduces wheel spin under soft or loose underfoot conditions. Hand throttle control provides infinitely variable means of fixing engine speed, ideal for steady operation of hydromechanical work tools.
- High flow auxiliary hydraulics at 125 L/min (33 gal/min) for high flow work tools.
Skid Steer Loader Style Coupler
The universal skid steer loader style coupler allows the use of many Cat Skid Steer, Multi Terrain and Compact Track Loader hydromechanical work tools. Auxiliary lines and connectors are standard equipment. Using either the standard flow or optional high flow hydraulics, this coupler system allows the H2 Series Compact Wheel Loaders to easily integrate into a Cat Skid Steer, Multi Terrain or Compact Track Loader fleet.
Serviceability & Customer Support
Convenient Service Features
- High opening, easy to lift engine hood and side service doors provide easy access to all major components and service points from ground level.
- Valves and pressure taps are conveniently located in the engine bay for S·O·SSM analysis of engine and hydraulic system cleanliness and service requirements, prolonging machine life.
- Two stage air cleaner with a built-in centrifugal precleaner, secondary element and a visual restriction indicator improves service life.
- Auxiliary fuses, diagnostic sockets, master disconnect switch and other regular service points are all located together for ease of servicing.
- Spin-on engine and hydraulic oil filters and fuel filter with water separator are located for easier servicing.
- Heavy-duty wiring increases electrical durability and is multicolored to ease diagnosis and fault finding. Water resistant sealed connectors prevent dust and moisture from interfering with the electronics.
- Hydraulic oil cooler swings out using a handle in the engine bay for easy access to the radiator and cooler for cleaning.
- Electronic Technician allows advanced diagnostics and fault code investigation using Cat service tools.
- Eco drain line and quick coupling for coolant is located on-board for mess free flushing.
Superior Dealer Service
- Your Cat dealer is ready to assist you with your purchase decision and everything after.
- Make comparisons of machines, with estimates of component life, preventative maintenance and operational costs.
- Financing packages are flexible to meet your needs.
- Your Cat dealer can evaluate the cost to repair, rebuild or replace your machine, so you can make the right choice for your business.
- For more information on Cat products, dealer services and industry solutions, visit us at www.cat.com.
Data not available.
Standard Equipment
- TRANSMISSION/HYDRAULICS
- Transmission, 20 km/h (12.4 mph); standard axles with hydraulically actuated dry disc brakes
- Transmission inching function
- Hydrostatic drive
- 100% Differential Lock on both axles, selectable on the move
- Frame mounted heavy duty axles with outboard planetary reduction
- Maintenance free, sealed for life, prop shaft and universal joints
- LOADER
- Skid steer loader style hydraulic quick coupler
- Proportional auxiliary hydraulic circuit
- Loader arm float function
- Connect under pressure hydraulic quick connector
- Parallel lift Z-bar loader
- ENGINE
- C3.3B DIT engine meets U.S. EPA Tier 4 Interim emission certified
- Two stage air cleaner with visual indicator
- Cat Extended Life Coolant, protects to -36° C (-33° F)
- Lockable engine compartments
- Easy quick release fuel filter/water separator
- Engine oil drain valve (non spill eco drain)
- Closed circuit breather
- Hydraulically driven suction fan
- Cold start plugs
- Electric fuel priming pump
- Lockable side door compartments
- Hydraulic oil level sight gauge
- Lockable fuel filler cap
- Radiator expansion bottle
- ELECTRICAL
- Cab mounted fuse panel
- Master battery disconnect switch
- Heavy duty, vibration resistant, maintenance free battery, 12V
- Engine cold start aid
- Alternator, 90 Amp
- Service point connector for electronic diagnostics (ET)
- Roading lights
- Back up alarm
- Reversing light
- High intensity rear lights
- Self-cancelling direction indicators
- GENERAL
- Electrostatically applied paint primer
- Hydraulic pressure test points
- Recovery hitch and pin
- Scheduled Oil Sampling (S·O·S) ports
- Lockable fuel filler cap
- Secondary and parking brake
- Recovery hitch and pin
- Front and rear fenders
- Machine lifting/tie down points
- OPERATOR ENVIRONMENT
- Multifunction joystick with FNR direction control
- Proportional auxiliary control
- Two external mirrors - knock back
- Warning indicators for major systems
- Easy clean cab floor
- Cup holder
- Sun visor
- ROPS and FOPS certified
- Adjustable wrist rest
- Seat belt, 75 mm (3 in), retractable
- Cabin light
- Internal mirror
- Auxiliary power sockets
- Coat hook
- On board digital LCD display cluster
- Sound suppression
- Heavy duty floor mat
- Storage tray
- Lockable storage box
- Self-cancelling direction indicators
- Interior/exterior auxiliary power sockets
- Suspended brake/accelerator pedals
Optional Equipment
- TRANSMISSION/HYDRAULICS
- Transmission control upgrade (includes creeper control, rimpull control and hand throttle)
- Ride control
- Speeder, 35 km/h (21.7 mph) with secondary steering and front axle with hydraulically boosted oil immersed disc brakes
- LOADER
- High flow auxiliary hydraulics with pressure relieving quick disconnect manifold
- Return to dig work tool positioner
- ENGINE
- Engine block heater, 120V
- Cat extended life coolant, protects to -50° C (-58° F)
- Precleaner for engine air filter
- ELECTRICAL
- Machine Security System (MSS)
- Rotating beacon
- Work tool wiring harness
- Working lights, two front and two rear
- GENERAL
- Custom color paint
- Rear light guard kit
- Tire options including heavy duty tires
- WORK TOOLS
- For all work tools and standard/high flow options, consult your Cat dealer
- OPERATOR ENVIRONMENT
- Cat radio/CD/MP3/WMA
- Rear sun screen
- Canopy includes: - Steering column, fixed - Seat, adjustable suspension, vinyl
- Cab, Comfort (pressurized) includes: - Two doors (left door includes sliding window) - Seat, adjustable suspension, cloth - Steering column, tilt - Heater with window, side and foot vents - Heated rear window - Wiper/washer front and rear - Radio-ready kit including speakers
- Cab, Deluxe (pressurized) includes all of the operator benefits of the Cab Comfort model plus: - Air conditioning - Heated cloth air suspension seat - Right sliding window
Related Products
Angle Brooms
Used for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.
| Model | Overall Width | ||
|---|---|---|---|
| BA22 Hydraulic | — | — | — |
Multi-Purpose Buckets
Clam design enables superior performance in a wide variety of applications.
| Model | Width | ||
|---|---|---|---|
| 0.8 m3 (1.0 yd3), Skid Steer Coupler | — | — | — |
