914G2Non-Current
914G2 - 2012, Tier 3, Stage IIIA, HRC
Overview

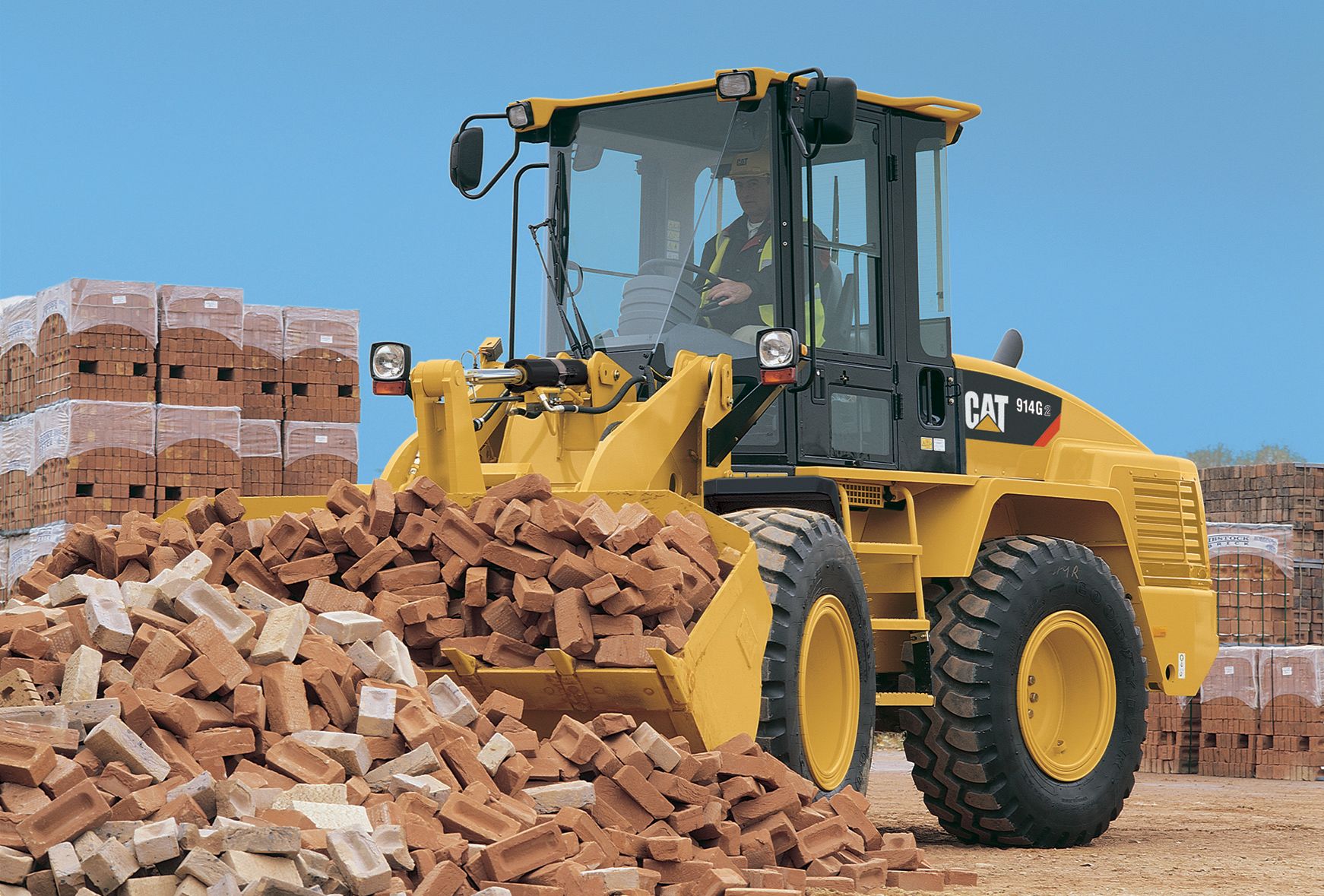

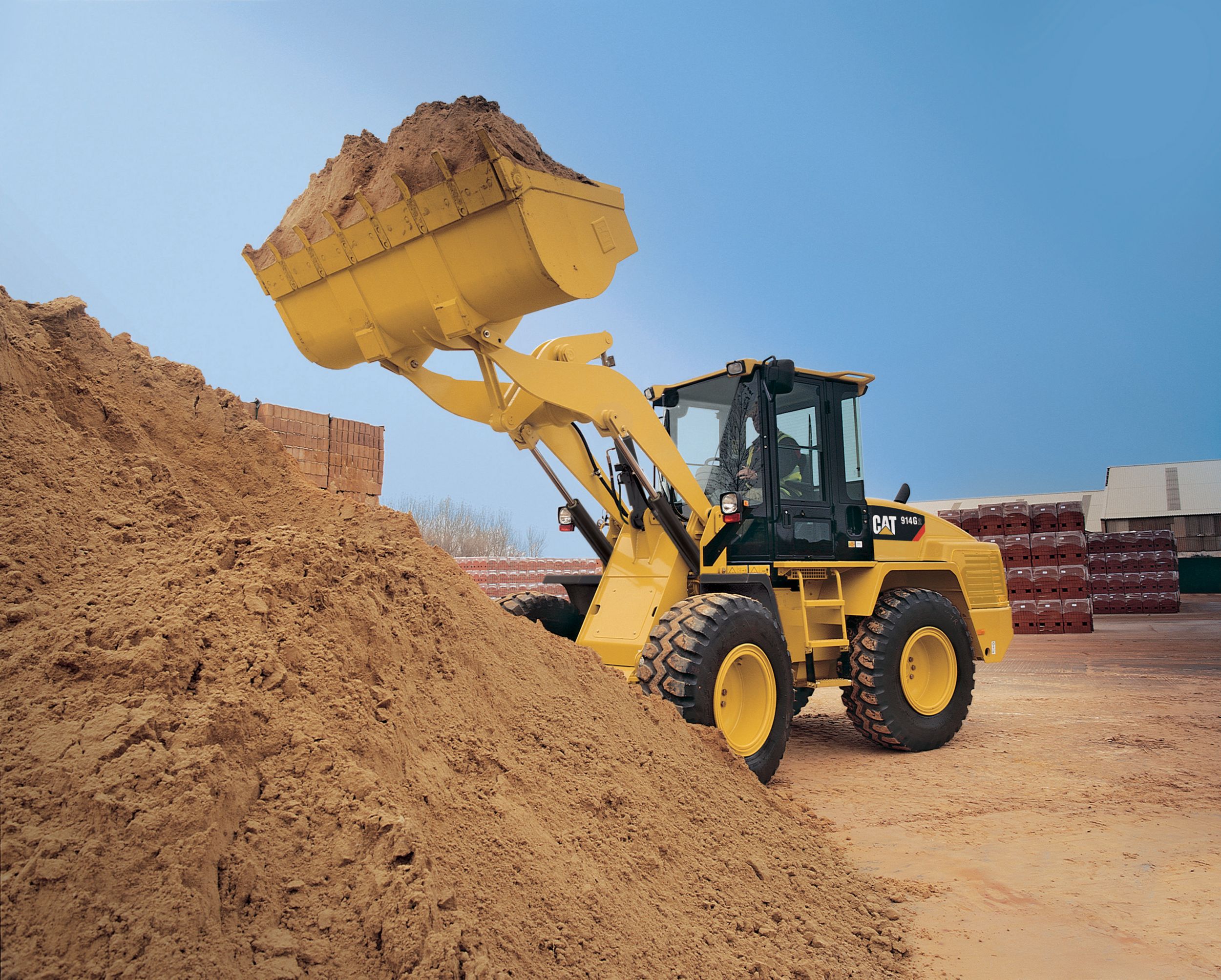

The Cat® 914G2 delivers strong performance, high productivity and proven reliability. Spacious cab with joystick control keeps you comfortable throughout the work day, allowing you to get more done. Loader design provides strength and durability with superior control. Expand your business with the 914G2.
Specifications
| Net Power | — |
| Operating Weight | — |
| Rated Bucket Capacity | — |
Benefits & Features
Specifications
| Net Power | — |
| Model | Cat� C4.4 Electronic |
| Maximum Gross Power - ISO 14396 | — |
| Rated Net Power - 2,300 rpm - SAE J1349 | — |
| Net Power - SAE J1349:2011 | — |
| Maximum Gross Power - ISO 14396 (DIN) | — |
| Rated Net Power - 2,300 rpm - ISO 9249 (DIN) | — |
| Net Power - ISO 9249 (DIN) | — |
| Rated Net Power - 2,300 rpm - ISO 9249/EEC | — |
| Net Power - ISO 9249 EEC | — |
| Bore | — |
| Stroke | — |
| Displacement | — |
| Operating Weight | — |
| Optional Counterweight* | — |
| Rated Bucket Capacity | — |
| Tire Size | 17.5-25 |
| Breakout Force | — |
| Full Turn Static Tipping Load - Bucket | — |
| Dump Height at Full Lift | — |
| Articulation | — |
| Oscillation +/- | — |
| Travel Speed 1 | — |
| Travel Speed 2 | — |
| ROPS | SAE J394, SAE J1040, ISO 3471 |
| FOPS | SAE J231, ISO 3449 |
| Sound | 74 dB(A) |
| Hydraulic Cycle Time - Lift | 5.6 |
| Hydraulic Cycle Time - Dump | 2.1 |
| Hydraulic Cycle Time - Lower, Float | 3.2 |
| Main Relief | — |
| Flow | — |
| Tilt Cylinder, Double Acting | 102 � 400 mm (4.0 � 15.8 in) |
| Lift Cylinder, Double Acting | 89 � 672 mm (3.5 � 26.5 in) |
| Cooling System | — |
| Fuel Tank | — |
| Hydraulic System | — |
| Hydraulic Tank | — |
| Bucket Capacities | 1.2-1.4 m3 (1.6-1.8 yd3) |
| Brakes | Standards |
Benefits & Features
Operator Station
Cab
The ergonomic cab provides a comfortable work environment with large windows, spacious interior room, generous storage areas and low interior sound levels. The two-door design allows easy entry and exit. Both doors open fully and lock flush against the cab. Steps leading up to the cab are wide and angled out for secure footing. The optional air suspension seat is designed for maximum comfort and fully-adjustable support. Generous storage space includes a lockable compartment, coat hook and compartments designed to hold a lunchbox/cooler, cup or can. A tool box is also provided.
Low Effort Controls
Hydraulic pilot controls provide easy operation of lift and tilt functions. A remote transmission control option adds a forward/neutral/reverse control switch on the implement lever for easier operation and enhanced productivity. Third and fourth function controls are also available for use with special work tools. Hydrostatic, closed-center steering system with flow amplification provides fast or slow steering response, depending on the operational requirement. With the optional Engine Speed Control, a specific engine RPM can be set and maintained with a switch in the cab. The creeper control option allows variable function of travel speeds with full engine RPM.
Visibility
The loader arms have been designed to provide excellent visibility throughout the production cycle.
Power Train
Cat Engine
The Cat C4.4 Electronic engine has a proven reputation for rugged, reliable operation while providing peak performance in a wide range of operating conditions. High horsepower and torque help you get more work done in a day.
Transmission
The high-pressure closed-loop hydrostatic transmission delivers high performance with a broad range of power to the ground.
Axles
Heavy-duty axle design features strong gears and bearings for durable performance. The fixed front, oscillating rear axle helps assure four-wheel ground contact for optimum traction and stability. Patented Duo-Cone™ seals on the axle and housing keep oil in and lock contaminants out. A choice of standard conventional or Limited Slip Differentials adapts the machine to a wide range of operating conditions.
Brakes
Hydraulically-actuated disc brakes are standard on both the front and rear axles and provide low effort operation. The mechanical, shoe-type parking brake also automatically neutralizes the transmission when applied.
Loader
Z-Bar Linkage Design
The high performance Z-bar loader linkage design on the 914G2 is built for strength, visibility and versatile attachment usage.
Work Tools
The Right Tool for the Job
With a variety of Cat Work Tools, the 914G2 is ideal for a wide range of applications. Work tool controls feature pilot operated lift and tilt circuits with low effort single-lever control.
Quick Coupler
Work Tools can be changed quickly and easily with the integral quick coupler system, optional on the 914G2.
Auxiliary Hydraulics
Optional 3rd and 4th function hydraulics are available for use with work tools that require hydraulic power such as rotary brooms.
Serviceability
Convenient Service Features
- One-piece engine enclosure hood with gas struts lifts for exceptional access to filters and service points. All service points are accessible from ground level.
- Radiator and oil coolers are easily accessible for cleaning.
- Easily check radiator coolant and hydraulic oil levels with sight gauges.
- Swing-out oil cooler allows quick, easy cleaning and service to the radiator.
- S•O•SSM ports are factory installed for improved access to engine, transmission and hydraulic oils. S•O•S ports make oil sampling quicker, cleaner and provide the best oil sample for analysis.
- Spin-on filters for engine oil and hydraulic oil are vertically mounted for easier servicing.
- Cat Extended Life Coolant/Antifreeze allows extended operation (up to 6,000 hours) between changes.
Customer Support
Superior Dealer Service
- Your Cat dealer is ready to assist you with your purchase decision and everything after.
- Make comparisons of machines, with estimates of component life, preventative maintenance and cost of production.
- Financing packages are flexible to meet your needs.
- Your Cat dealer can evaluate the cost to repair, rebuild and replace your machine, so you can make the right decision.
- For more information on Cat products, dealer services and industry solutions, visit us at www.cat.com.
Data not available.
Standard Equipment
- ELECTRICAL
- 24V direct electric starting
- Alarm, back-up
- Alternator, 80-ampere
- Batteries, two 900 CCA maintenance free
- Battery disconnect switch
- Glow plug starting aid
- Horn, front, warning (electrical)
- Ignition key start/stop switch
- Lighting system: brake lights, interior light, turn signals (front and rear), halogen working lights (front and rear)
- Power receptacles; internal and external
- LOADER
- Linkage, sealed Z-bar design loader
- Bucket/fork positioner, automatic
- Lift kickout, automatic
- Lift/tilt kickout neutralizer
- HYDRAULICS
- Hydraulic control, pilot-operated implement, single lever, 2 valve
- Hydraulic oil cooler, tiltable
- Hydraulic diagnostic connectors
- S•O•S port - hydraulic oil
- Standard hydraulic oil cooler
- Steering, hydraulic
- OPERATOR ENVIRONMENT
- Bucket control, single lever, pilot
- Cab, ROPS (sound suppressed and pressurized):
- Adjustable steering column
- Cigar lighter
- Cup holder
- Ground level door release
- Heater/defroster
- Rearview mirrors, inside (2)
- Storage space, lockable
- Seat, adjustable fabric suspension
- Retractable seat belt
- Tinted safety glass
- Two doors
- Wiper and washer (front and rear), front intermittent
- Defroster, rear window, wired glass
- Indicators:
- Air cleaner
- Air filter
- Brake charge pressure
- Engine oil pressure
- Electrical system voltage
- Hystat oil filter bypass
- Parking brake
- Primary steering
- Instrumentation:
- Battery voltage gauge
- Engine coolant temperature gauge
- Fuel level gauge
- Digital hour meter
- Hydraulic oil level sight gauge
- Hydraulic oil temperature gauge
- Single lever transmission control
- POWER TRAIN
- Air cleaner, radial seal
- Antifreeze (protected to -36° C/-33° F)
- Extended life coolant antifreeze
- Brakes, Service - inboard, oil-immersed, enclosed, wet-disc full hydraulic
- Brakes, Parking - mechanical on drive line, secondary
- Differentials, conventional (front and rear)
- Driveshaft, lubed for life
- Electric fuel pump
- Engine: Cat C4.4 Electronic diesel turbocharged, EU Stage IIIA and U.S. EPA Tier 3 emission compliant
- Engine enclosure, lockable
- Muffler
- Radiator, serviceable unit core
- Radiator expansion bottle
- S•O•SSM port - engine oil
- Suction fan
- Transmission, hydrostatic
- OTHER
- Fenders (front/rear)
- Hitch, drawbar
- Pressure test points
- Vandalism protection-locked service points
Optional Equipment
- ELECTRICAL
- Electrical Accessories Package (12V converter, accessory plug outlet, wiring)
- Lighting, auxiliary front: 2 additional cab-mounted halogen working lights
- Machine Security System
- Rotating beacon, magnetic
- HYDRAULICS
- Drain valves, ecological
- Hydraulic third and fourth valves
- Steering, secondary
- OPERATOR ENVIRONMENT
- Air conditioner (R-134a refrigerant)
- Canopy, ROPS
- Mirrors, two external
- Radio prep package (12V) includes speakers, antenna, converter and mounts (radio not included)
- Ride Control System
- Seats:
- Heated, fabric, with parking brake alarm
- Cat Comfort Series, fabric, air suspension
- Sliding door window
- Speedometer
- Sun screen, rear window
- Sun visor
- POWER TRAIN
- Antifreeze (protected to -50° C/-58° F)
- Creeper control, transmission
- Differential, Limited Slip (front and/or rear axle)
- Engine air filter precleaner, cyclone
- Engine Speed Control (ESC)
- Forward/Neutral/Reverse (FNR) remote transmission control
- Starting aid, engine block heater, 120V
- OTHER
- Bottom guard, hystat
- Counterweight, 150 kg/330 lb
- Fenders, roading
- Guard, windshield
- Ground engaging tools, bucket
- Low sound package
- “Blue Angel” low sound package
- Quick coupler
- Tires:
- Bias ply, 15.5 × 25 and 17.5 × 25
- Radial, 17.5 × R25
- Tire rims, 1- and 3-piece
- Tool box, lockable
- Tool kit
