Overview

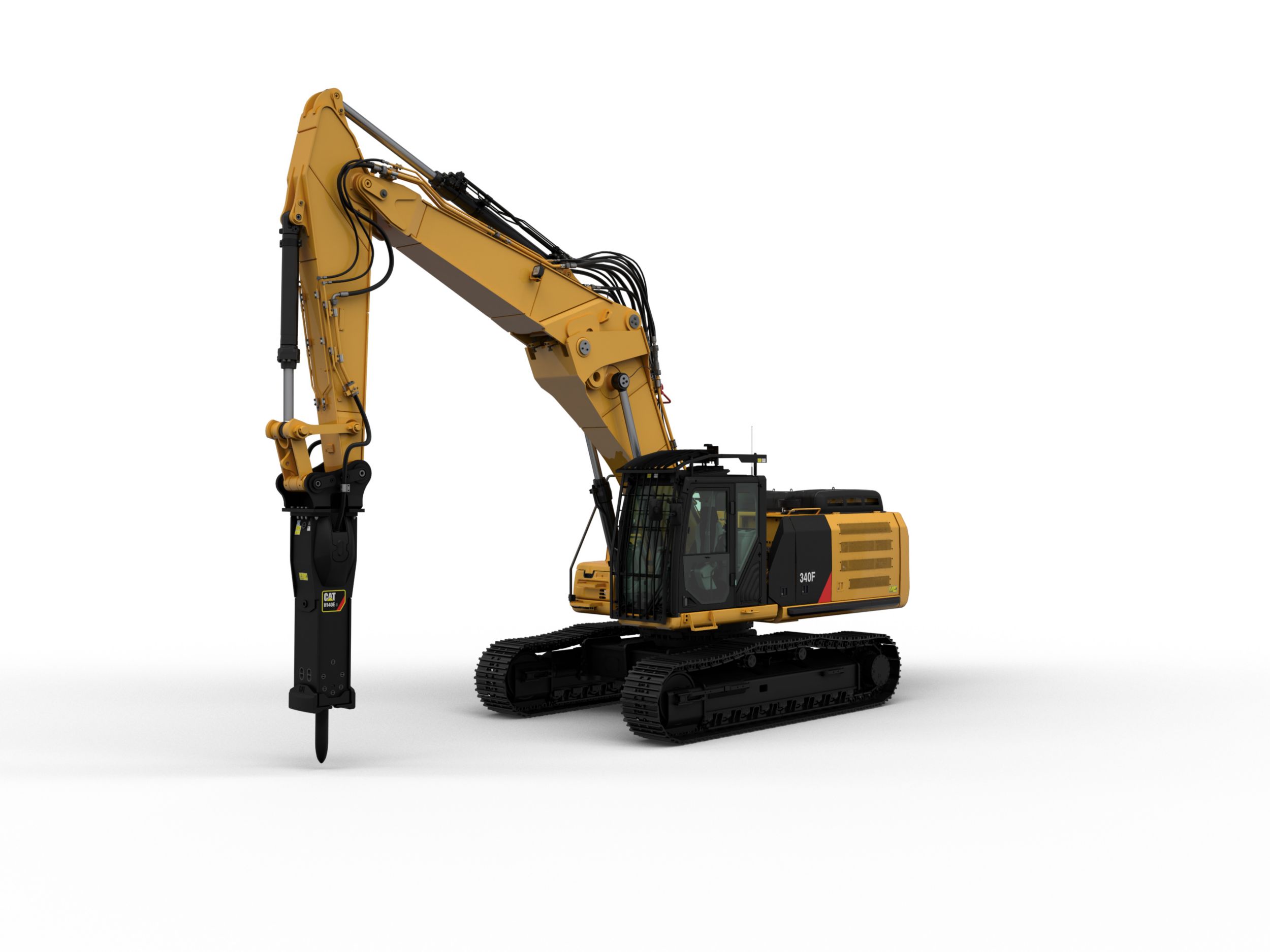

A high reach demolition machine designed and manufactured by Caterpillar, distributed through the Cat® dealer network, offering the same warranty and unmatched product support as any other Cat products.
Specifications
Units:
| Engine Model | Cat C9.3 ACERT |
| Net Power | — |
| Operating Weight | — |
Benefits & Features
Performance
- UHD front parts can reach up to 22 m of vertical pin height, capable of carrying 3.6 tons up to 14 m horizontal reach.
- C9.3 ACERT™ engine meets EU Stage IV emission standards. Engine speed control automatically lowers rpm when the machine doesn't need it to help you save fuel.
- Auto engine idle shutdown helps reduce fuel consumption.
- Three power modes – high, standard, and eco – and auto engine speed control help manage fuel consumption.
Technology and Safety
- Cat active stability monitoring system continuously informs operator of work tool position within the safe working range, and warns him when approaching the stability limit.
- Standard rearview camera gives a clear view on the monitor.
- Cat Product Link™ and VisionLink® enable owners access to location, hours, fuel consumption, idle time, events, and diagnostic codes.
Versatility
- New boom coupling system enables the operator to easily and quickly install or remove high reach and short front parts. New hydraulic pin system safely locks the front parts together.
- Short boom nose can be positioned in either bent or straight position and can be fitted with three stick lengths options.
- Multiple Cat Work Tools – designed specifically for Cat machines – are available for a wide range of applications.
- Cat quick couplers allow you to switch from one tool to another in a matter of minutes.
- Cat tool control remembers pressures and flows for up to 10 tools so you can quickly get to work after each tool change.
August 29, 2025
Specifications
Units:
| Engine Model | Cat C9.3 ACERT |
| Net Power | — |
| Gross Power - SAE J1995 | 238 kW (324 PS) |
| Power - ISO 14396 | 234 kW (318 PS) |
| Net Power - ISO 9249 | 228 kW (310 PS) |
| Displacement | — |
| Stroke | — |
| Bore | — |
| Operating Weight | — |
| Maximum Pressure - Swing | — |
| Maximum Pressure - Travel | — |
| Main System - Maximum Flow - Total | — |
| Swing System - Maximum Flow | — |
| Maximum Pressure - Equipment - Normal | — |
| Maximum Pressure - Equipment - Heavy Lift | — |
| Maximum Vertical Pin Height* | — |
| Maximum Weight at Stick Nose* | — |
| Maximum Horizontal Pin Reach/Height*** | 11 030 mm/13 080 mm (36.19 ft/42.91 ft) |
| Note (3) | ***Over-the-side |
| Note (1) | *Over-the-front and over-the-side |
| Maximum Working Pin Height at Stick Nose | 18 550 mm**/18 860 mm*** (60.86 ft**/61.88 ft***) |
| Maximum Horizontal Pin Reach/Height** | 13 350 mm/12 440 mm (43.80 ft/40.81 ft) |
| Note (2) | **Over-the-front |
| Front Parts (B-linkage) | UHD |
| Track Width - 600 mm - Extended | — |
| Track Length | — |
| Tail Swing Radius | — |
| Counterweight Clearance | — |
| Ground Clearance | — |
| Shipping Height | — |
| Track Width - 600 mm - Retracted | — |
| Cab Height - With FOGS | — |
| Shipping Length | — |
| Boom | UHD |
| Track Gauge - Extended | — |
| Stick | UHD |
| Track Gauge - Retracted | — |
| Length - Center of Rollers | — |
| 340F L, UHD Fronts, 600 mm TG HD Tracks | — |
| 340F L HVG, UHD Fronts, 600 mm TG HD Tracks | — |
| 340F L HVG, 3.2 m Stick, 600 mm TG HD Tracks | — |
| 340F L, 3.2 m Stick, 600 mm TG HD Tracks | — |
| Track Gauge - Retracted | — |
| Shipping Length | — |
| Track Gauge - Extended | — |
| Track Width - 600 mm - Extended | — |
| Track Length | — |
| Length - Center of Rollers | — |
| Track Width - 600 mm - Retracted | — |
| Shipping Height | — |
| Cab Height - With FOGS | — |
| Tail Swing Radius | — |
| Stick | UHD |
| Counterweight Clearance | — |
| Ground Clearance | — |
| Boom | UHD |
| Boom | Retrofit – Bent |
| Bucket | — |
| Stick | — |
| Shipping Height | — |
| Shipping Length | — |
| Exterior Sound Power Level - ISO 6395:2008* | 106 dB(A)* |
| Operator Sound Pressure Level - ISO 6396:2008 | — |
| Note | *As per European Union Directive 2000/14/EC as amended by 2005/88/EC. |
| Maximum Weight at Stick Nose* | — |
| Note (2) | **Over-the-front |
| Maximum Vertical Pin Height* | — |
| Maximum Horizontal Pin Reach/Height*** | 11 960 mm/12 910 mm (39.24 ft/42.36 ft) |
| Maximum Horizontal Pin Reach/Height** | 14 040 mm/12 160 mm (46.06 ft/39.90 ft) |
| Note (3) | ***Over-the-side |
| Front Parts (B-linkage) | UHD |
| Note (1) | *Over-the-front and over-the-side |
| Maximum Working Pin Height at Stick Nose | 18 590 mm**/18 850 mm*** (60.99 ft**/61.84 ft***) |
| Swing Torque | — |
| Swing Speed | — |
| Stick | — |
| Shipping Height | — |
| Bucket | — |
| Boom | Retrofit – Bent |
| Shipping Length | — |
| Maximum Drawbar Pull | — |
Benefits & Features
Performance
- UHD front parts can reach up to 22 m of vertical pin height, capable of carrying 3.6 tons up to 14 m horizontal reach.
- C9.3 ACERT™ engine meets EU Stage IV emission standards. Engine speed control automatically lowers rpm when the machine doesn't need it to help you save fuel.
- Auto engine idle shutdown helps reduce fuel consumption.
- Three power modes – high, standard, and eco – and auto engine speed control help manage fuel consumption.
Technology and Safety
- Cat active stability monitoring system continuously informs operator of work tool position within the safe working range, and warns him when approaching the stability limit.
- Standard rearview camera gives a clear view on the monitor.
- Cat Product Link™ and VisionLink® enable owners access to location, hours, fuel consumption, idle time, events, and diagnostic codes.
Versatility
- New boom coupling system enables the operator to easily and quickly install or remove high reach and short front parts. New hydraulic pin system safely locks the front parts together.
- Short boom nose can be positioned in either bent or straight position and can be fitted with three stick lengths options.
- Multiple Cat Work Tools – designed specifically for Cat machines – are available for a wide range of applications.
- Cat quick couplers allow you to switch from one tool to another in a matter of minutes.
- Cat tool control remembers pressures and flows for up to 10 tools so you can quickly get to work after each tool change.
Comfort
- Demolition cab includes P5A reinforced windshield and top glass, with parallel wipers, as well as front and top Falling Object Guards.
- Enlarged top window offers enhanced upwards visibility.
- Cab can be tilted back to offer a more ergonomic operator position in high reach applications.
- Automatic climate control system helps maintain consistent cab temperature.
- Heated and cooled seat options.
- Joysticks and armrests adjust for operator preference.
- LCD monitor programmable in 44 languages.
Serviceability
- Mesh screens are fitted on side doors to prevent radiators clogging.
- Easy diagnostics and fluids quality monitoring are done thanks to S·O·SSM sampling ports for the hydraulic system, engine oil and coolant.
- Hydraulic oil and engine oil can be fast drained thanks to the QuickEvac™ drains located in pump compartment.
- Routine maintenance items like grease points, fluid taps, filters, and drain tubes can be reached at ground level. Safe access with ample handrails, anti-skid plate on steps and top deck platform.
Durability
- Structures are purpose built for long service life in demolition applications.
- Track shoes, links, rollers, idlers, and final drives are built with high-tensile strength steel.
- Grease-lubricated track link prevents dirt and debris from entering.
Data not available.
