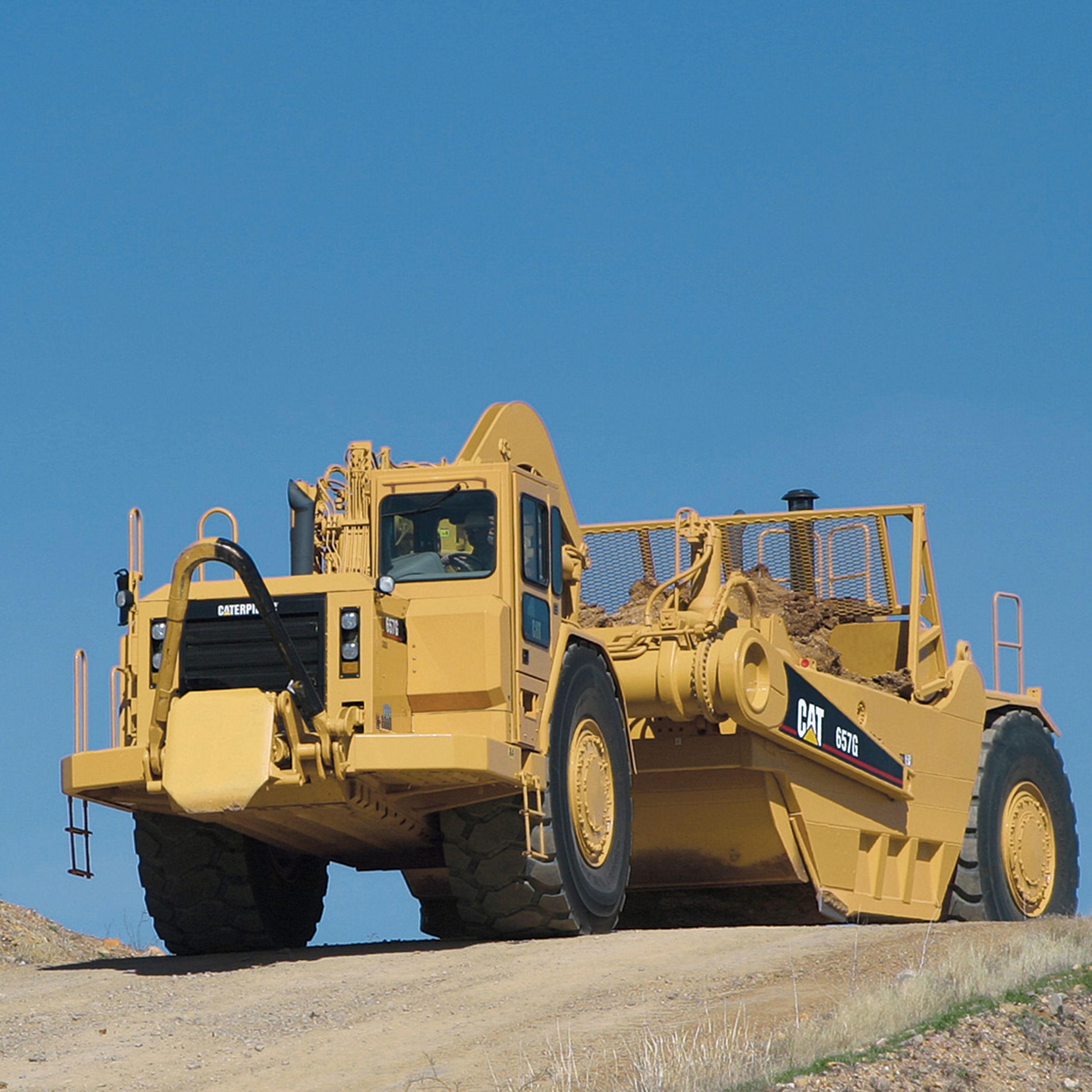

Quick loading, high travel speeds and the ability to load and dump on the run yield fast cycle times, allowing Caterpillar® Wheel Tractor-Scrapers to consistently deliver high productivity.
The tractor for the 657G is powered by the C18 engine with ACERT™ Technology. The large displacement and high torque rise allow the scraper to cut through tough material. Matched to the high efficiency torque converter and electronically controlled power shift transmission, it will provide years of dependable service.
The 657G is tandem-powered, adding a Cat C15 engine with ACERT Technology for the scraper.
The C18 and C15 engines have dual horsepower capability with the low power setting in torque converter drive and the high power setting in direct drive. If the auger is engaged while the machine is in torque converter drive, the machine automatically goes to the high power setting.
The MEUI system with variable shaped injection patterns provides for optimum combustion based on altitude and temperature. The Cat MEUI fuel system is a highly evolved fuel system with a proven record of reliability in the field. The system combines the technical advancement of an electronic control system with the simplicity of direct mechanically controlled unit fuel injection pressure. These features allow the C18 and C15 to completely control injection timing, duration and pressure.
The standard radiator for the tractor is the Next Generation Modular Radiator (NGMR), which features 9 fins per inch rather than 33 fins per inch found on previous models. The increased radiator fin spacing for both the tractor and the scraper reduces clogging in severe applications. Two-piece service doors improve access to clean out debris.
Oil change intervals in both the C18 and C15 engines can be extended to 500 hours with the use of S•O•SSM analysis.
Electronically controlled Caterpillar planetary powershift transmission with eight forward and one reverse speed. Tractor gears 1 & 2 operate in converter drive for increased torque capability during cut and fill operations. Gears 3-8 operate in direct-drive for drive train efficiency during the haul. All scraper gears operate in converter drive for increased torque capability during the cut and fill.
Outboard-mounted, planetary design final drives reduce torque loads on other power train components. Large-capacity, double-row roller bearings and Caterpillar Duo-Cone® seals deliver exceptional reliability in the toughest applications.
Expanding-shoe type brakes use a cam-operated design, which is air-applied and spring released. The secondary braking system uses independent front and rear circuits that are automatically applied if the service air pressure drops to 380 kPa (55 psi). Audible and visual action alert indicators inform the operator when the service air pressure drops to 518 kPa (75 psi).
Full hydraulic power steering provides automotive feel with positive, modulated flow control for constant steering response. An optional secondary steering system is ground-driven and provides hydraulic power for steering if needed.
Increases legroom a full 3.5 in (89 mm), and reduces knee contact.
Standard air conditioning system with relocated louvers enhances airflow in the cab.
Convenient storage location includes space for a lunch box and first aid kit. The cab also has a cup holder as well as an ashtray.
The redesigned hood has sloped corners to maximize visibility while accommodating the low emissions engine. The redesigned hood and front shroud are wider to enclose the air-to-air aftercooler (ATAAC), ether starting aid, and lights. The exhaust is located at the back of the hood for good visibility to the right side.
Features a new quad-gauge layout showing engine coolant temp, transmission / torque converter oil temp, fuel level, and system air pressure. The 657G tachometer can monitor either front or rear engine speeds. Once the 657G tractor engine has been started, the operator can start the rear engine from inside the cab using a switch on the instrument panel. EMS III can display both front and rear engine information right in the cab.
Enhances operation during long haul cycles by allowing the operator to maintain a desired engine speed, without maintaining pressure on the throttle.
Simplifies gear selection (1st, 2nd, Drive and Reverse) and allows operator-defined top gear control. Relocating the gear control to the rear increases operator legroom.
The neutral lock thumb control must be pressed to move the shifter from neutral. To use the top gear button, the operator must hold the yellow button until the gear display indicates the desired top gear. Releasing the yellow button sets the top gear.
The grab handle/hand rest located next to joystick controller helps operators when adjusting seat swivel, and gives them a place to rest their hand while on the haul and return roads.
The electrical system has been redesigned to utilize three electronic control modules (ECM) on the tractor instead of four. The rear-powered scraper now has two ECMs rather than three.
Combined monitoring systems, easy access diagnostics and more durable components make routine maintenance and servicing simple and fast.
Product Link is a wireless system that allows the customer to track machine data such as location, service meter hours as well as machine health information. The system can automatically issue alerts when the machine is operated beyond owner-defined time and location limits. Product Link is available as a factory attachment or it may be installed in the field in that there is a mounting location for the module as well as an antenna on the machine. A wiring breakout is standard, eliminating the need to splice into existing wires.
Electronic controls optimize the timing setting for varying conditions. The ADEM A4 controller matches timing to the load on the engine, engine rpm and temperature.
The ADEM A4 controller reads electronic sensors to determine the optimum fuel/air ratio. Fuel is precisely controlled during cranking, starting and acceleration to reduce smoke. The engine electronics are faster and more efficient than mechanically controlling the governor rack position.
Cat bulldozer ejection system offers constant spreading control with minimal material carry back. A spill guard helps retain material and keep it from spilling over onto the rear of the scraper (standard on tandem engine scrapers, optional on single engine open bowl scrapers).
May be adjusted according to job conditions. The stinger (drop down) position provides good penetration and efficient flow of material into the bowl whereas the level cutting edge is used for finish work or very high impact conditions.
Two engines ensure the power to handle steep grades, and makes possible all wheel drive to handle soft, slippery underfoot conditions.
The 657G rear engine has dual horsepower capability that results in better performance on the haul roads.
Well suited to handle a wide variety of material from clay to shot rock.
This optional arrangement concentrates the combined horsepower of two machines onto one cutting edge. The push-pull attachment allows two individual machines to act as a self-loading system, typically loading both machines in less than a minute.
This system provides a more balanced, flexible fleet using fewer machines and less investment than comparable self-loading or push-loading systems.
The push-pull arrangement uses a hydraulically actuated bail and cushioned plate bolted to the front of the tractor, and a hook that is attached to the rear of the scraper. There is an actuator indicator light on the dash that will turn on when the trigger is engaged to actuate the push-pull bail or auger.
The auger has a wide material appetite ranging from rock to free flowing material such as sand.
The auger lifts material off of the cutting edge and carries it to the top of the load for true self-loading capability. Material is distributed evenly throughout the bowl, resulting in consistent loads.
Tractor engine automatically reverts to the higher setting when the auger motor is engaged.
Prevents rear wheel spin during loading.
Single hydraulic system for entire machine with separate implement pumps/valves simplifies maintenance and improves reliability.
The 657G features full electro-hydraulic controls, which simplify serviceability and reduce noise by replacing the cab pilot valves with a single-lever joystick control. The high efficiency oil filter provides cleaner oil for the pilot system.
You will find nearly all parts at our dealer parts counter. Cat dealers use a world-wide computer network to find in-stock parts to minimize machine down time. Save money with genuine Cat Reman parts whenever possible. You receive the same warranty and reliability as new products at substantial cost savings.
Make detailed comparisons of the machines under consideration before purchase. Cat dealers can estimate component life, preventive maintenance cost, and the true cost of lost production.
Look past initial price. Consider the financing options available as well as day-to-day operating costs. Look at dealer services that can be included in the cost of the machine to yield lower equipment owning and operating costs over the long run.
Cat dealers offer a variety of product support agreements, and work with customers to develop a plan that best meets specific needs. These plans can cover the entire machine, including attachments, to help protect the customer's investment.
Improving operating techniques can boost your profits. Your Cat dealer has videotapes, literature and other ideas to help you increase productivity, and Caterpillar offers certified operator training classes to help maximize the return on your machine investment.
Talk to your dealer about the range of available maintenance services. Repair option programs guarantee the cost of repairs up front. Diagnostic programs such as S•O•SSM Analysis and Coolant Sampling and Technical Analysis help avoid unscheduled repairs.
Repair, rebuild or replace? Your Cat dealer can help you evaluate the cost involved so you can make the right choice.
Data not available.
