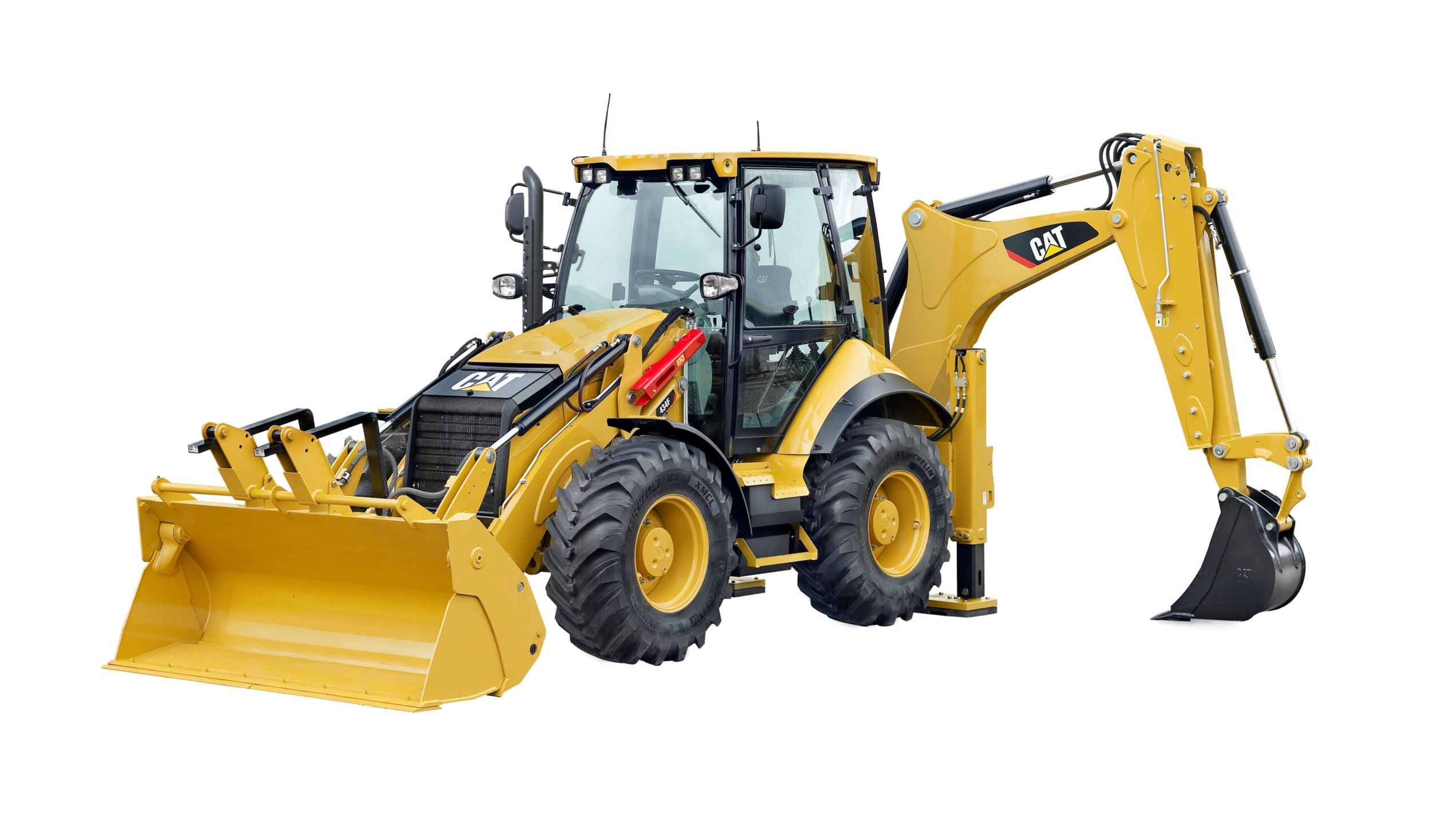

434F^Non-Current

Passive DPF System

Service free diesel particulate filter requires no operator interaction, with built-in self-cleaning. That's just one less thing to think about.

Auto Align Steering

Switching between steering modes is now even simpler; with an auto align steering system which engages steer modes when the wheels are turned through the machine centerline.

Axles

All Wheel Drive (AWD) - Standard.
• Heavy-duty rear axle with self adjusting inboard brakes, differential lock and final drives.
• AWD is engaged by front console panel switch or by brake pedal during all-wheel-braking operation. AWD can be engaged on the move, under load, in any gear, forward or reverse. AWD has outer final drives for easy maintenance.
• AWD front axle is pendulum mounted and permanently sealed and lubricated, requiring no daily maintenance. Also features double- acting steering cylinder with 52° steering angle for increased maneuverability.

Axles and Differential Lock

The heavy-duty Cat axles fitted to the 434F have been designed to be used in the most arduous of conditions and the rear axle Differential Lock ensures that traction is maintained in all types of ground conditions.

Brakes

Fully enclosed boosted, hydraulic, multiple discs.
• Inboard oil-immersed, hydraulically actuated multiple Kevlar discs on final drive input shaft.
• Completely enclosed and sealed.
• Self-adjusting.
• Dual foot-operated boosted brake pedals can be interlocked for roading.
• Parking/secondary brakes are independent of the service brake system. Parking brake is mechanically applied through a hand lever located in the right side console.
• Meets ISO 3450:1996 requirements.

Drive Control

Switch between 2 wheel drive (2WD) and all wheel drive (AWD) using the three position drive selector. A third mode, 2WD with all wheel braking, activates AWD when braking and returns to 2WD when brake pedal is released, ensuring positive braking effort in hazardous driving conditions, and reducing tire wear.

High Residuals

Your 434F is protected by an undercoat of electro-deposited (E-Coat) primer, which completely seals each metallic component, offering premium protection from damage and corrosion. Combine this with the high solids polyurethane top coat, and your 434F will remain in prime condition longer, giving you outstanding resale value.

Engine Air Filter

A dry type axial air cleaner with an integral precleaner and automatic integrated dust ejection system extends the life of the air filter when working in dusty conditions, reducing service time and costs.

Extreme Conditions

Our proven engines are tried and tested in the harshest environments. Dependant on regional requirements, our machines can be equipped to handle extreme cold and extreme heat (up to 50° C).

Work Lights

The 434F has adjustable front and rear work lights. This allows the operator to direct the light wherever needed, providing maximum illumination to the work area whatever the ambient light conditions.

Improved Flotation

The 434F can operate in conditions that push the limits of unequal size tire machines. High flotation and lower ground pressure exerted by the tires allows the machine to work in very poor underfoot conditions, such as greenfield construction sites and agricultural applications such as farm maintenance. Areas which are off limits to other types of machine are accessible with a Cat equal size tire Backhoe Loader, increasing productivity and machine utilization.

Increased Loader Performance

More lift height, a large bucket and stronger breakout forces enable the 434F to perform high productivity loading duties, such as hopper charging, bulk material transfer, grading and loading.

Tire Options

The 434F is available with either 24" or 28" tires, in bias or radial ply variants. This allows the correct choice of tire to suit any application or budget.

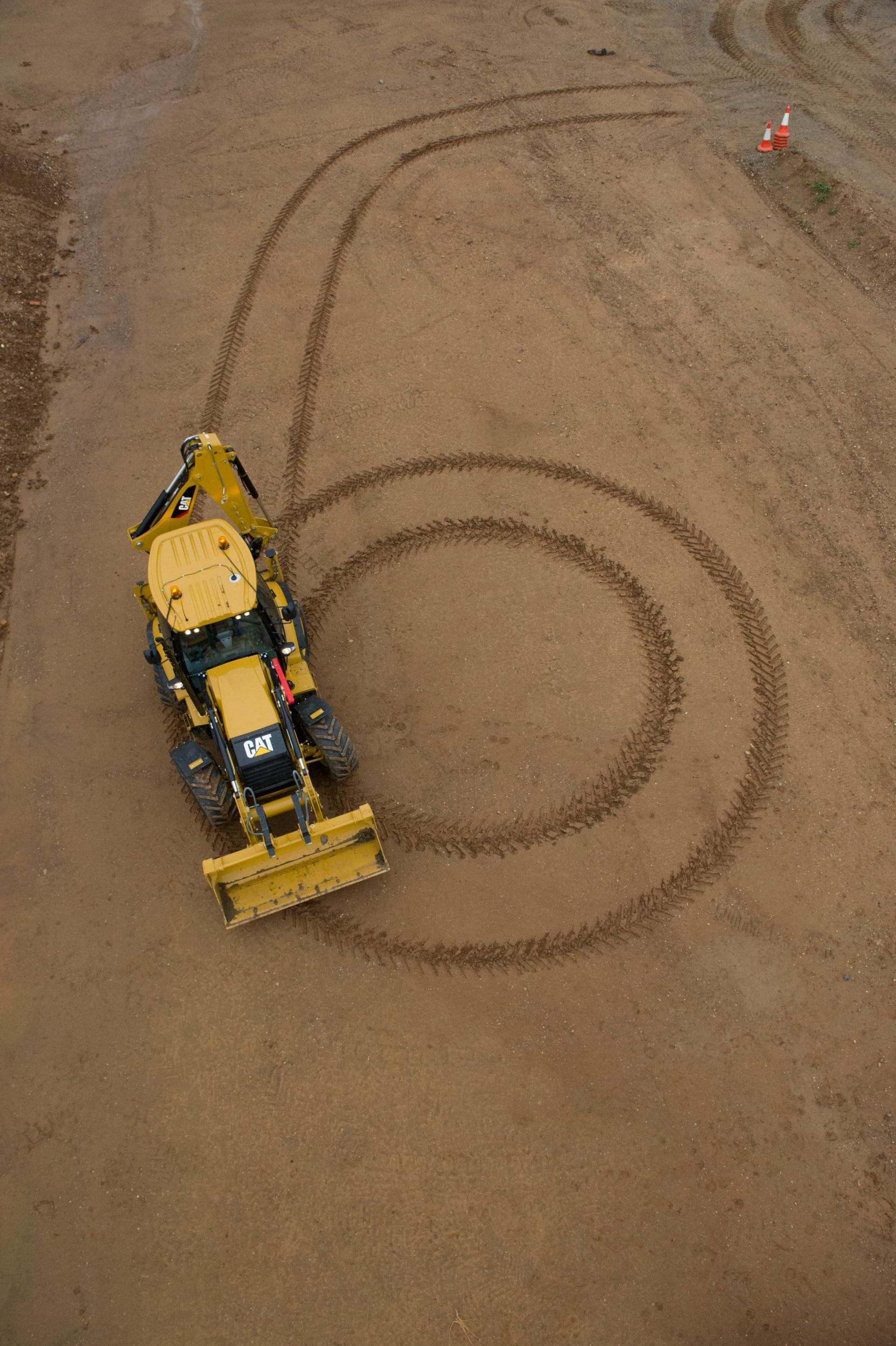

All Wheel Steer (AWS)

An AWS system, which can be switched into 2WS, Circle Steer, or Crab Steer is fitted as standard. This provides an excellent turning circle and good maneuverability for working in confined working areas.

A spacious interior with modern styling accommodates the operator with comfort and ease of operation, to meet the demands of even the most demanding operator. Cab width makes turning from loader-facing to backhoe-facing position simple, with no obstruction. Comfort is further enhanced with the first-class Cat air suspension seat, reducing fatigue on the body during those long working days. An easy opening single piece rear window enhances visibility of the surrounding area, and provides the operator with ventilation in warm conditions. The rear wiper maintains visibility in wet or dusty conditions by cleaning a large area of the rear screen. Excellent ergonomics ensure that all controls are within easy reach of the operator, and tinted glass is standard in all cabs. Other features such as remote stabilizer controls, large adjustable vents throughout the cab, and clear gauges provide the operator with a comfortable operating environment designed to reduce operator fatigue and increase productivity.

Backhoe Controls

Pressure compensated, well placed levers ensure low efforts and good controllability for maximum productivity. Mechanical levers for operating the backhoe can be configured to; Backhoe (SAE), Excavator (ISO) or universal controls (X pattern), ensuring all operators can get the most out of their machine.

Air Suspension Seat

The key interface between the machine and the operator is the seat. The Cat air suspension seat provides the operator with a comfortable working platform to ensure high levels of productivity with the minimum of fatigue.

Cab Mounts

The cab is attached to the mainframe with resilient mounts, reducing vibration and sound providing the operator with an all round comfortable working environment.

Cab Cooling

The 434F can be equipped with a powerful air conditioning system, helping you keep cool when working in warm temperatures. The ventilation system also provides plenty of demisting, defrosting and heating capability.

Loader Performance

Designed with performance in mind, the 434F has higher breakout forces, load over height and reach, making light work of applications such as truck loading or shoveling. Parallel Lift Loader arms offer self-leveling as standard, providing safe lifting of any palletized load. Versatility is enhanced with the choice of a General Purpose or Multi Purpose bucket, and visibility is further enhanced with a new, lower hood line design, providing a clear line of sight to the top of the bucket.

Return-To-Dig

Your 434F is equipped with a Return-To-Dig system, as standard. This system reduces loading cycle times by bringing the loader bucket back to the dig position automatically when lowering the arms. By the time the loader arms have been lowered to ground level, the bucket is in the correct position ready for the next load.

Ride Control

The Cat Ride Control system is an option designed to reduce machine pitching and bouncing, giving operators a smooth ride in all applications, including load and carry, roading, or simply moving around the job site. The system is controlled by a switch on the front console.

Excavator-Style Backhoe

Whether you're close-up truck loading on a single road carriageway, or digging over obstacles such as walls, the excavator-style boom tackles the toughest jobs with ease. Combining versatility with powerful breakout forces, the controllability of the load sensing, flow-sharing hydraulic system, the 434F is capable of producing high levels of productivity with the minimum of operator effort. The boom is a narrow design, ensuring maximum visibility to the work tool.

Extendible Stick

The 434F is available with an extendible stick that increases dig depth and reach capability, enhancing the machines versatility and utilization. A sliding inner section design keeps the wear pads out of the dirt, extending adjustment and replacement intervals. Auxiliary lines for operating work tools have been routed so that they are protected from damage when working in the narrowest of trenches.

Slider Frame and Swing Frame

Designed to make necessary maintenance easier to perform, the F Series cast slider frame has exterior lock clamps, with no backhoe disassembly needed when servicing. The Swing Frame/Boom Foot pins have replaceable bushings in the bores.

Powered Side Shift

Provides a hydraulic service to enable the operator to easily position the backhoe across the full width of the H-frame without the need to place the bucket on the ground. Ideal for use in utility applications such as gas, electrical, telecoms, etc.

Load Sensing Hydraulics

It's rare that you'll be working at full production 100% of the time. So why should the machine be working flat out, using more fuel, making more noise, and increasing wear? The 434F has a load-sensing, closed center hydraulic system, which actively matches hydraulic power and flow to meet the demand needed by the task being performed. So whether you're trenching at full force, or delicately digging around services, you are in total control. As there is minimal demand on the system unless needed, there are less parasitic power losses, unlocking the true potential of the engine - providing better loading and roading performance.

Flow-Sharing Valves

The 434F also features flow-sharing hydraulic valves, ensuring the correct flow of oil reaches the implement cylinders, providing greater control and eliminating oil starvation when operating multiple functions.

Hardware

The 434F is equipped with a highly efficient variable displacement piston pump. The reliable high performance hydraulic hose is constructed from two strong steel braided layers and O-ring face seal fittings provide a robust system ensuring excellent durability and resistance to damage from pressure spikes and hydraulic pulsing.

Engine

• Three ring pistons made of lightweight silicon/aluminum alloy for strength and maximum thermal conductivity.
• Poly vee front end and auxiliary drive belt that is automatically tensioned for long life reducing operating costs.
• Direct injection fuel system provides accurate fuel delivery. Self priming electric lift pump for improved cold start capability. One filter fuel system for reduced maintenance costs.
• High torque at low engine speeds for fuel efficient performance.
• Dry type, axial seal air cleaner with automatic, integrated dust ejection providing more efficient pre-separation.
• Direct electric 12 volt starting and charging system with 750 CCA group 31 maintenance free battery.

Torque Converter

A 2.64:1 ratio torque converter in the 434F delivers incredible pushing power and acceleration when either roading or loading.

Auto-shift Transmission

With smooth automatic gear selection, you can concentrate on the job, leaving the transmission to perfectly match gear to task.

Boosted Braking

Assisted brakes provide less pedal effort, for safer, more efficient braking. Dual brake pedals can be split for braking in tight corners.

Lock-Up Torque Converter

If roading is an important part of your daily routine, the optional lock-up torque converter (available on the auto-shift transmission only) will enable you to maintain high speeds and reduce fuel consumption, saving you both time and money.

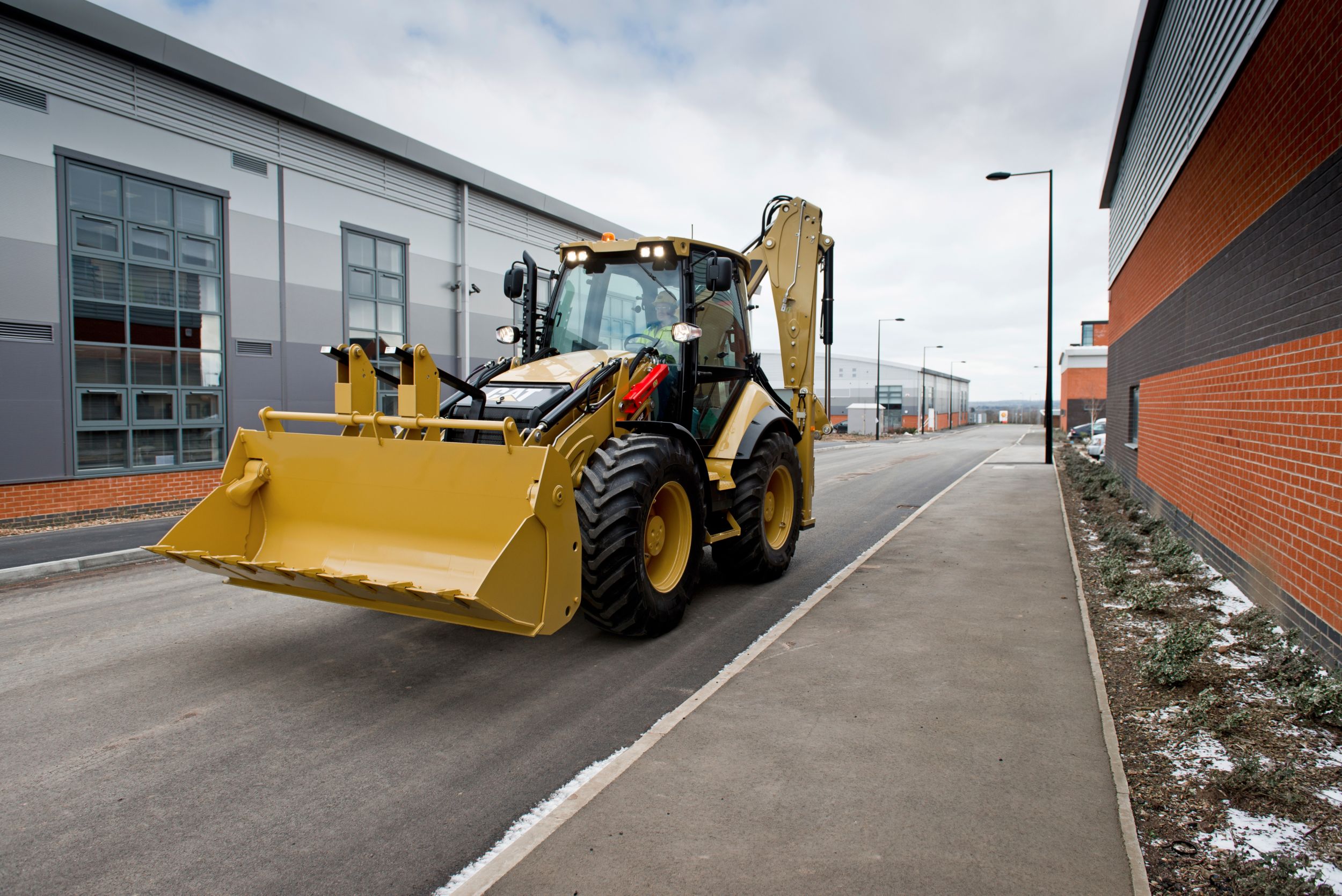

40 km/h Roading

The 434F is equipped with a standard power-shuttle transmission capable of high speed travel up to 40 km/h. It utilizes a constant mesh, synchronized, four speed system for both forward and reverse. Directional changes are made using a conveniently located lever on the steering column, and the gear selection is from the floor mounted shift lever. Get to work faster, with the Cat Backhoe Loader.

The Backhoe Loader can be found in many different applications, and sometimes a bucket just won't do. Discuss your needs and wants with your dealer, and they will be able to recommend the right tool for the right application, giving you a tailored machine that's perfectly matched to your needs.

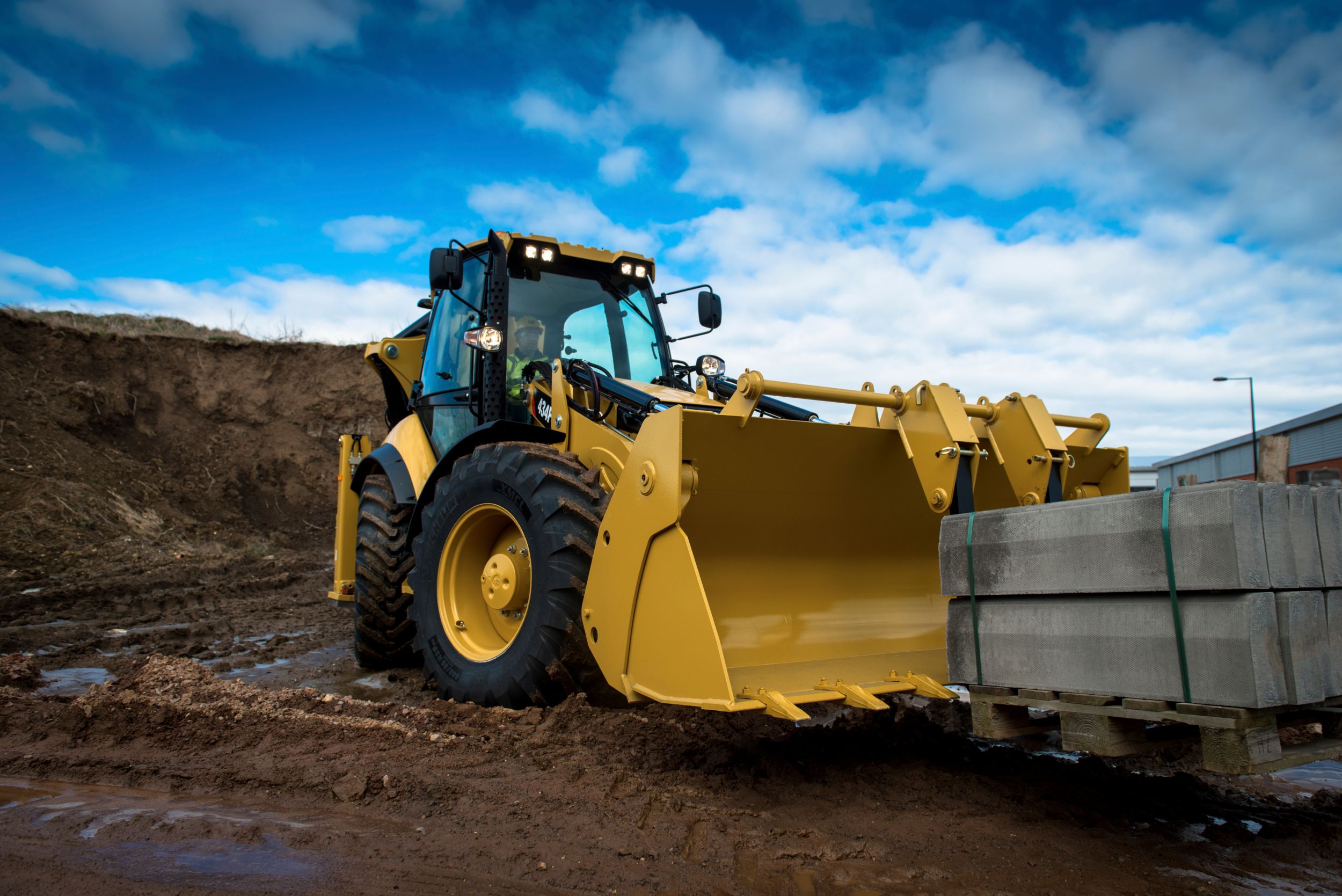

Loader Buckets

General Purpose and hydraulic Multi Purpose buckets are available on the 434F. They can be fitted with either cutting edge or bolt on teeth. MP buckets are optional with fold over pallet forks.

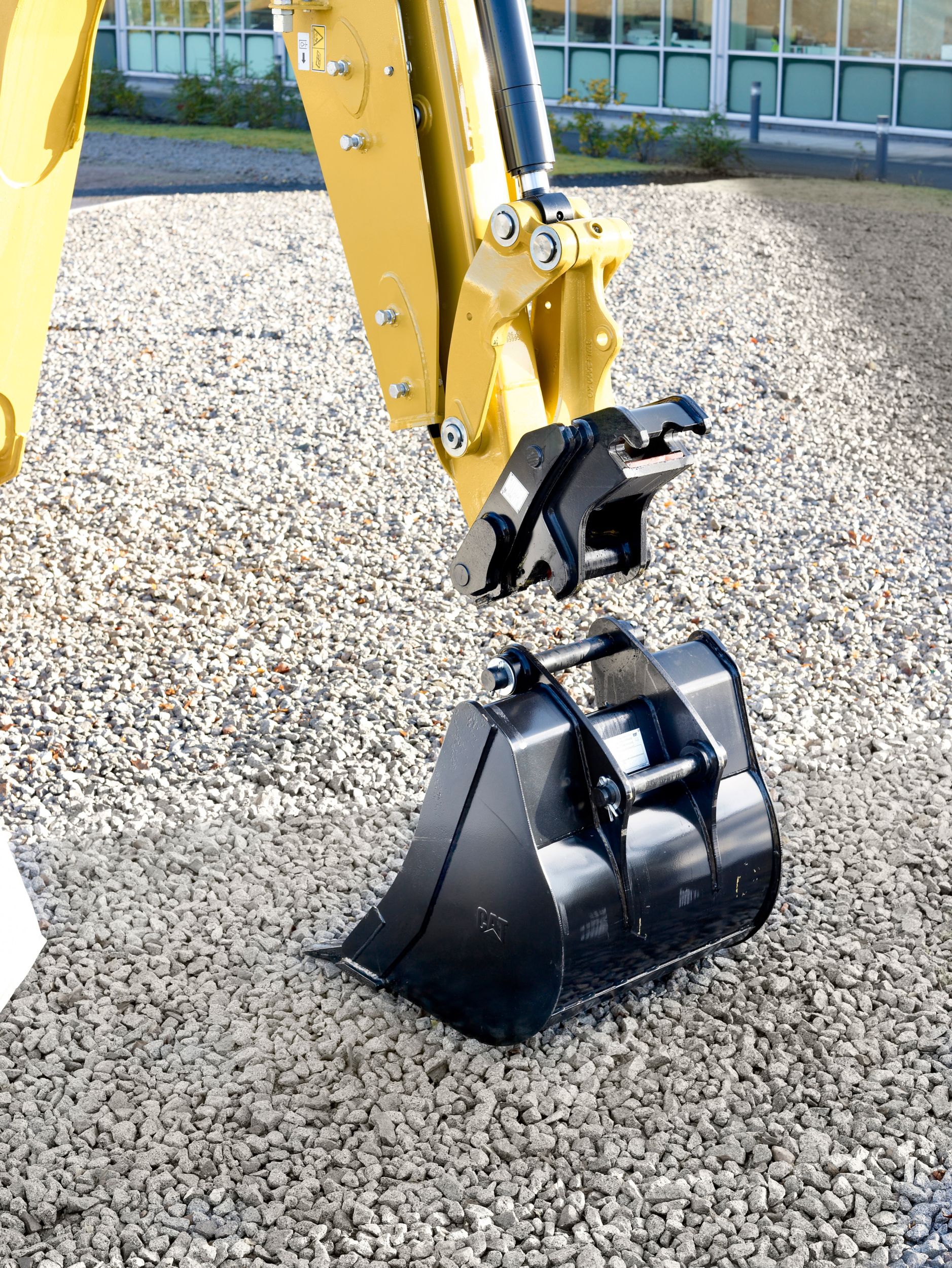

Backhoe Buckets

For different soil types and digging applications there are multiple bucket designs available, including; Standard Duty, Heavy Duty, High Capacity and Extreme Service (Rock) Buckets. Either bolt on teeth or weld on adapters with pin on teeth can be fitted. Ditch Cleaning, Cribbing and Trapezoidal Buckets are also available.

Auger

The Cat Auger is designed for drilling holes in the earth for a wide variety of applications. A wide variety of Auger bits and drive systems are available, to provide you with the best tool for the job.

Cold Planer

The Cat Cold Planer is designed for both asphalt and concrete planing work, having features like depth control and self-leveling.

Compactor Plate

The Cat Vibratory Plate Compactor can be used to compact soil, sand or gravel in trenching and sloping applications prior to pouring concrete or laying asphalt.

Hammer

Cat Hydraulic Hammers are designed to break up concrete, asphalt or rock and deliver constant power when operated. Silencing options are available to meet with local regulations.

Customer Support Agreements (CSA's)

Your Cat dealer can offer a comprehensive range of CSA's which can be individually tailored to suit your finances and requirements. Dealers can offer a range of options from a full Preventative Maintenance with S·O·SSM package to a Parts Only CSA. Protect your valuable investment and know exactly what your monthly payments will be to help you run your business.

Finance

Have you explored the range of options available from your dealer to finance your machine? They can offer a selection of attractive packages tailored exactly to your needs.

Machine Selection and Training

Your dealer can help guide you with your machine purchase decision, based on your requirements and help keep operating costs to a minimum. Is the machine you have in mind exactly the best for your job, or could there be a more suitable solution? Your dealer can also advise on operating techniques for your machine which will minimize wear and tear, maximize productivity, and lower owning and operating costs.

Reduced Maintenance

The new, easy access engine cover sets the benchmark for access to all daily check points, such as; fill points, air cleaner, washer bottles, visual indicators, etc. It includes a first-in-class hinged cooling pack, making regular maintenance even more convenient for the operator. The F Series continues to provide sealed for life axle oscillation, driveshaft universal joints, trunnions, etc. Daily maintenance, which can be a chore for the busy operator, is kept to a minimum on the 434F.

Boom and Stick Design

The Boom and Stick design allows all wear adjustment to be done with Stick in-situ, using a simple wedge adjustment mechanism - no dismantling required. The Stabilizer legs are also externally adjustable, reducing machine downtime and inconvenience.
