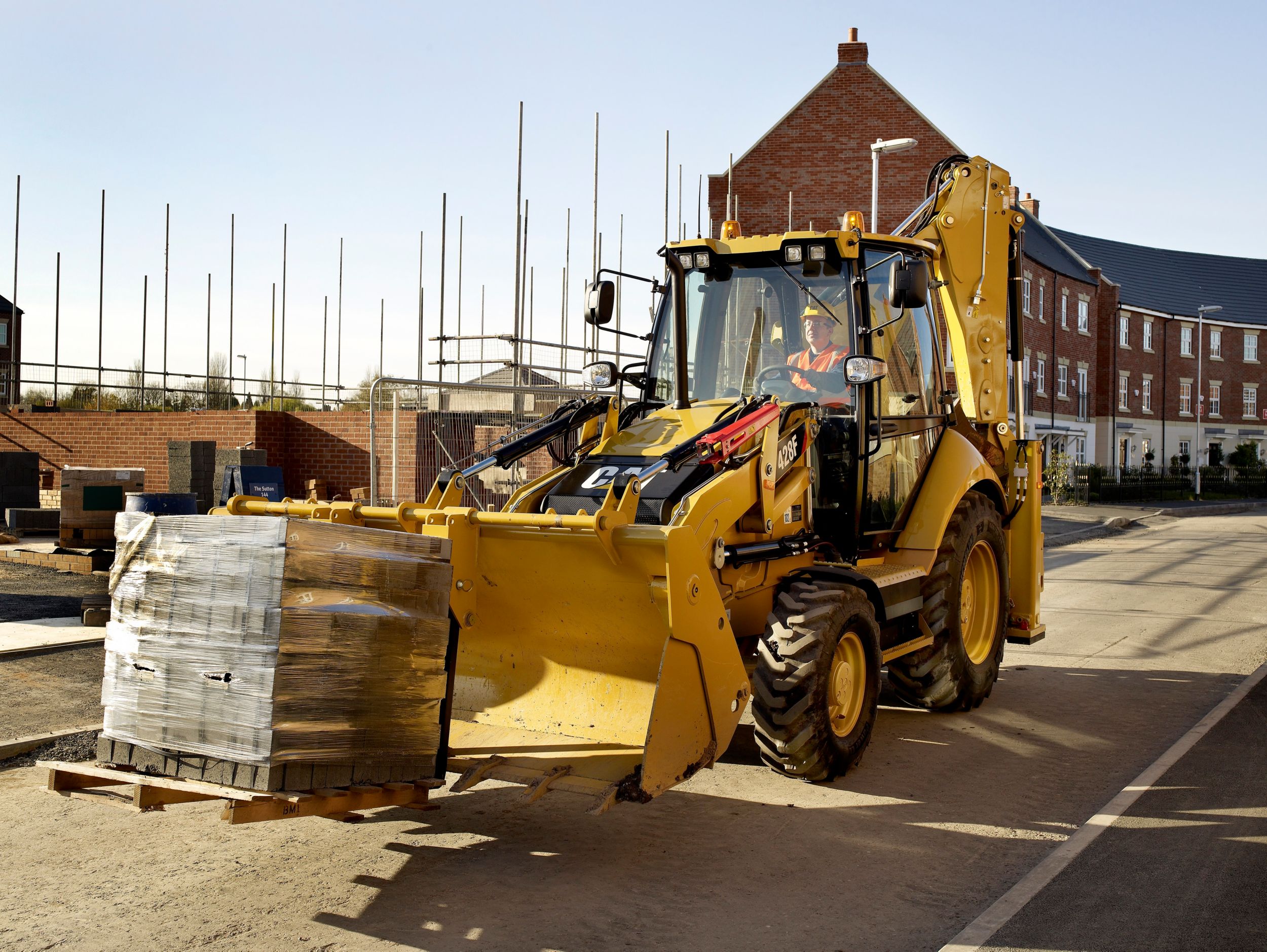

428F^Non-Current

New Hydraulic Quick Coupler

Easy interchanging of backhoe work tools, the new powered coupler engages tools hydraulically, so you can switch tools from the comfort and safety of the seat.

Lock-up Torque Converter

With a 16% increase in fuel efficiency and 11% higher average speed, the lock-up torque converter is an invaluable addition for those traveling between sites.

Extreme Conditions

Our proven engines are tried and tested in the harshest environments. Dependant on regional requirements, our machines can be equipped to handle extreme cold and extreme heat (up to 50° C).

Air Filter

A dry type axial air cleaner with an integral precleaner and automatic integrated dust ejection system extends the life of the air filter when working in dusty conditions, reducing service time and costs.

Storage

Having somewhere to keep your tools is important on any machine, and that is why on the 428F we provide plenty of storage space in a secured external storage box.

Large Fuel Tank

A large 160 L non-metallic fuel tank in combination with the Cat engine and efficient hydraulic system ensures longer periods between fill ups and less inconvenience. The composite material prevents rust forming in the tank, protecting fuel injection components.

High Residuals

The 428F is protected by an undercoat of electro-deposited (E-Coat) primer, which completely seals each metallic component and offers a premium degree of protection from damage and corrosion. Coupled with the high solids polyurethane top coat, the 428F will stay looking good for longer, ensuring optimum resale value.

New C4.4 ACERT Engine

Meeting the new EU Stage IIIB emission standards, our new electronic C4.4 ACERT engine delivers a host of features and improvements.

Engine Features

• Three ring pistons made of lightweight silicon/aluminum alloy for strength and maximum thermal conductivity.
• Poly vee front end and auxiliary drive belt that is automatically tensioned for long life reducing operating costs.
• Direct injection fuel system provides accurate fuel delivery. Self priming electric lift pump for improved cold start capability. One filter fuel system for reduced maintenance costs.
• High torque at low engine speeds for fuel efficient performance.
• Dry type, axial seal air cleaner with automatic, integrated dust ejection providing more efficient pre-separation.
• Direct electric 12 volt starting and charging system with 750 CCA group 31 maintenance free battery.

Power Boost

For operators looking for more power, the C4.4 ACERT engine delivers up to 74.5 kW (101 hp), and 10% more torque.

Passive DPF System

Service free diesel particulate filter requires no operator interaction, with built-in self-cleaning. That's just one less thing to think about.

Axles and Differential Lock

The heavy duty Cat axles fitted to the 428F have been designed to be used in the most arduous of conditions and the rear axle Differential Lock ensures that traction is maintained in all types of ground conditions.

Axle Features

Standard All Wheel Drive.
• Heavy-duty rear axle with self adjusting inboard brakes, differential lock and final drives.
• All Wheel Drive (AWD) is engaged by front console panel switch or by brake pedal during all-wheel-braking operation. AWD can be engaged on-the-go, under load, in any gear, forward or reverse. AWD has outer final drives for easy maintenance.
• AWD front axle is pendulum mounted and permanently sealed and lubricated, requiring no daily maintenance. Also features double- acting steering cylinder with 52° steering angle for increased maneuverability.

Boosted Braking

Assisted brakes provide less pedal effort, for safer, more efficient braking. Dual brake pedals can be split for braking in tight corners.

Brake Features

Fully enclosed boosted, hydraulic, multiple discs.
• Inboard oil-immersed, hydraulically actuated multiple Kevlar discs on final drive input shaft.
• Completely enclosed and sealed.
• Self-adjusting.
• Dual foot-operated boosted brake pedals can be interlocked for roading.
• Parking/secondary brakes are independent of the service brake system. Parking brake is mechanically applied through a hand lever located in the right side console.
• Meets ISO 3450:1996 requirements.

Auto-shift Transmission

This optional five-speed transmission will perfectly match itself to the application, carefully selecting the appropriate gear whether you're driving between job sites or charging into hard bank. To take full control of any situation, you can choose to select a gear manually with a simple twist of a hand lever. The spacing of the gears optimizes shift comfort, for exceptionally smooth acceleration.

Backhoe Controls

Pressure compensated, well placed levers ensure low efforts and good controllability for maximum productivity. Mechanical levers for operating the backhoe can be configured to; Backhoe (SAE), Excavator (ISO) or universal controls (X pattern), ensuring all operators can get the most out of their 428F.

Drive Control

Switch between 2 wheel drive (2WD) and all wheel drive (AWD) using the three position drive selector. A third mode, 2WD with all wheel braking, activates AWD when braking and returns to 2WD when brake pedal is released, ensuring positive braking effort in hazardous driving conditions, and reduces tire wear.

Air Suspension Seat (Only available on Cab)

The major interface between the machine and the operator, the air suspension seat, fitted as standard, provides the operator with a comfortable working platform to ensure high levels of productivity with the minimum of fatigue.

Cab Mounts

The cab is attached to the mainframe with resilient mounts, reducing vibration and sound providing the operator with an all round comfortable working environment.

Cab Air Filter

The 428F has an easy access cab air filter, situated within the right hand rear fender. The cab air intake is positioned high up to minimize dust intake into the air filter.

Cab Cooling

The 428F can be equipped with a powerful air conditioning system, helping you keep cool when working in warm temperatures. The ventilation system also provides plenty of demisting, defrosting and heating capability.

Loader Performance

Designed with performance in mind, the 428F has higher breakout forces, load over height and reach, making life easier for you when truck loading or shoveling. Parallel Lift Loader arms offer self-leveling as standard, providing safe lifting of any palletized load. Versatility is enhanced with the choice of a General Purpose or Multi Purpose bucket, and visibility is excellent with the lower hood line enabling a clear line of sight to the top of the bucket.

Ride Control

The Cat Ride Control system is an option designed to reduce machine pitching and bouncing, giving operators a smooth ride in all applications, including load and carry, roading, or simply moving around the job site. The system is engaged by a switch on the front console.

Return to Dig

The 428F is equipped with a standard Return to Dig system. This system reduces loading cycle times by bringing the loader bucket back to the dig position automatically when lowering the arms. By the time the loader arms have been lowered to ground level, the bucket is in the correct position ready for the next load.

Excavator-Style Backhoe

Whether close-up truck loading on a single road carriageway, or digging over obstacles such as walls, the excavator boom tackles the toughest jobs with ease. Combining versatility with the powerful breakout forces, the controllability of the load sensing, flow-sharing hydraulic system and the 428F is capable of producing high levels of productivity with the minimum of operator effort. The boom is a narrow design, ensuring maximum visibility to the work tool.

Extendible Stick

The 428F is available with an extendible stick that increases dig depth and reach capability increasing the machines versatility and utilization. A sliding inner section design keeps the wear pads out of the dirt, extending adjustment and replacement intervals. Auxiliary lines, for operating work tools, have been routed so that they are protected from damage when working in the narrowest of trenches.

Slider Frame and Swing Frame

The F Series cast slider frame has exterior lock clamps, with no backhoe disassembly needed when servicing. The Swing Frame/Boom Foot pins have replaceable bushings in the bores.

Cat Cushion Swing

The 428F is equipped with Cat Cushion Swing, which enables very fast trenching by damping the boom oscillation down when returning to trench with the hoe.

Powered Side Shift (Optional)

Provides a hydraulic service to enable the operator to easily position the backhoe across the full width of the H-frame without the need to place the bucket on the ground. Ideal for use in utility applications such as gas, electrical, telecoms, etc.

Load Sensing Hydraulics

It's rare that you'll be working at full production 100% of the time. So why should the machine be working flat out, using more fuel, making more noise, and increasing wear? The 428F has a load-sensing, closed center hydraulic system, which actively matches hydraulic power and flow to meet the demand needed by the task being performed. So whether you're trenching at full force, or delicately digging around services, you are in total control. As there is minimal demand on the system unless needed, there are less parasitic power losses, unlocking the true potential of the engine - providing better loading and roading performance.

Flow-Sharing Valves

The 428F features flow-sharing hydraulic valves, ensuring that the correct flow of oil reaches the implement cylinders, providing greater control and eliminating oil starvation when operating multiple functions.

Hardware

The 428F is equipped with a highly efficient variable displacement piston pump. The reliable high performance hydraulic hose is constructed from two strong steel braided layers and O-Ring face seal fittings provides a robust system ensuring excellent durability and resistance to damage from pressure spikes and hydraulic pulsing.

The Backhoe Loader can be found in many different applications, and sometimes a bucket just won't do. Discuss your needs and wants with your dealer, and they will be able to recommend the right tool for the right application, giving you a tailored machine that's perfectly matched to your needs.

Loader Buckets

General Purpose and hydraulic Multi Purpose buckets are either Pin-on mounted or attached to the quick coupler. They can be fitted with either cutting edge or bolt on teeth. MP buckets are optional with fold over pallet forks.

Backhoe Buckets

For different soil types and digging applications there are multiple bucket designs available, including; Standard Duty, Heavy Duty, High Capacity and Extreme Service (Rock) Buckets. Either bolt on teeth or weld on adapters with pin on teeth can be fitted. Ditch Cleaning, Cribbing and Trapezoidal Buckets are also available.

Auger

The Cat Auger is designed for drilling holes in the earth for a wide variety of applications. A wide variety of Auger bits and drive systems are available, to provide you with the best tool for the job.

Cold Planer

The Cat Cold Planer is designed for both asphalt and concrete planing work, having features like depth control and self-leveling.

Compactor Plate

The Cat Vibratory Plate Compactor can be used to compact soil, sand or gravel in trenching and sloping applications prior to pouring concrete or laying asphalt.

Hammer

Cat Hydraulic Hammers are designed to break up concrete, asphalt or rock and deliver constant power when operated. Silenced options are available to meet with local regulations.

Effortless Maintenance

Make light work of daily checks, with the remodeled front nose, which swings open to reveal a hinged cooling pack for debris removal, keeping cooling performance to an optimum. All daily check points such as; fill points, air cleaner, washer bottles, indicators etc. are found above the engine bay, accessed with a simple release of the engine hood, removing the stresses of access in-and-amongst the engine bay. Sealed for life axles and driveshafts remove the need for operators to grease the time-consuming, awkward areas below the machine. Daily maintenance, which can be a chore for the busy operator, is kept to a minimum on the 428F.

Wear Pad Adjustment

The stabilizers and backhoe are designed to allow all wear pad adjustment to be done in-situ, using a simple adjustment mechanism. When wear pad adjustment is necessary, the adjustment bolts are easy to access, taking minutes to adjust, without the need for disassembly.

Cat Filters

All Cat filters are vertically mounted for spill free servicing and reduced oil contamination. These low micron filters remove microscopic particles from the oil, keeping the engine, transmission and hydraulic system running smoothly for years.

Scheduled Oil Sampling

Your Cat dealer will be able to provide the Cat S·O·SSM. This enables your dealer to analyze wear before problems arise, so that premature failure can be avoided, and corrective action can take place to reduce costs and downtime.

Customer Support Agreements (CSA's)

Your Cat dealer can offer a comprehensive range of CSA's which can be individually tailored to suit your finances and requirements. Dealers can offer a range of options from a full Preventative Maintenance with S·O·S package to a Parts Only CSA. Protect your valuable investment and know exactly what your monthly payments will be to help you run your business.

Finance

Have you explored the range of options available from your dealer to finance your machine? They can offer a selection of attractive packages tailored exactly to suit your requirements.

Machine Selection

Your dealer can help guide you with your machine purchase decision, based on your requirements and help keep operating costs to a minimum. Is the machine you have in mind exactly the best for your job, or could there be a more suitable solution? Your dealer can also advise on operating techniques for your machine which will minimize wear and tear, maximize productivity, and lower owning and operating costs.
