Overview

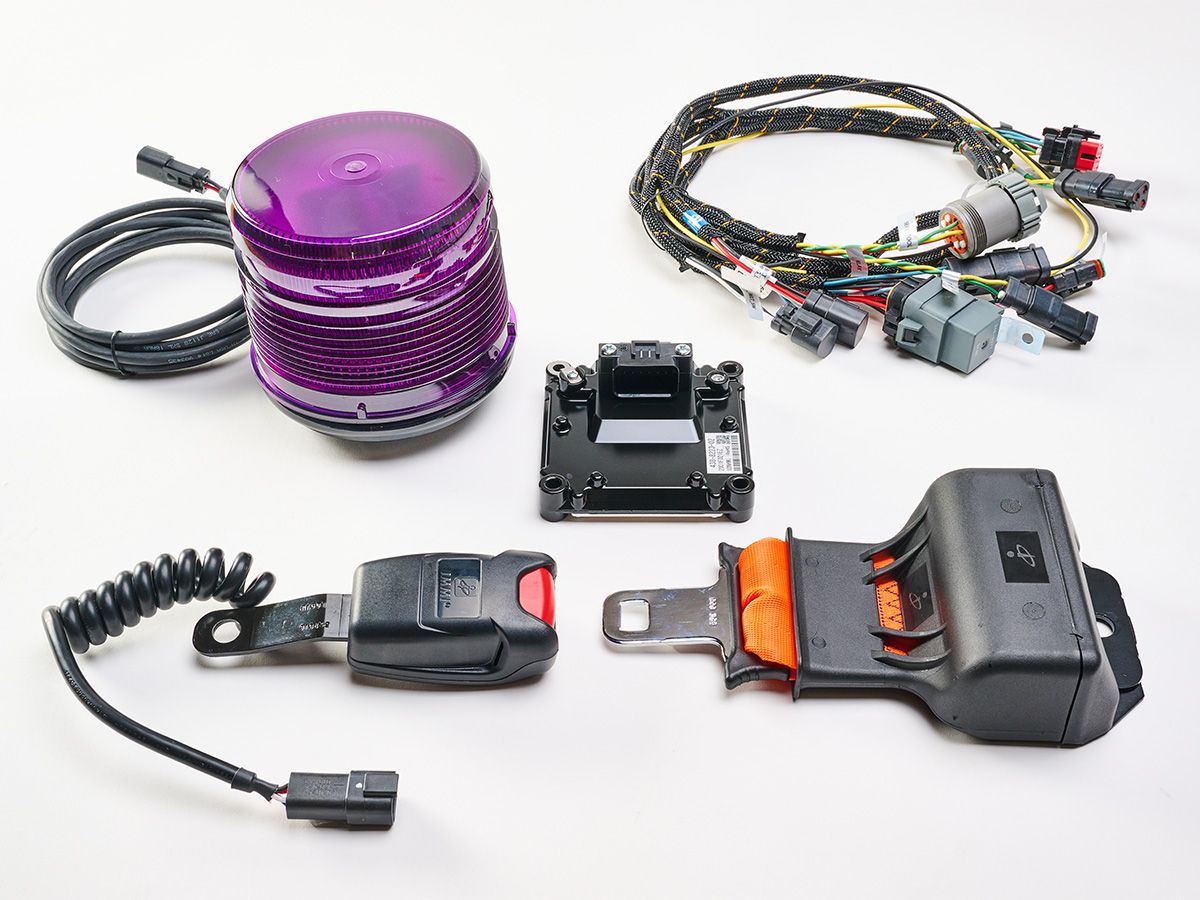

The Cat® Seat Belt Reminder uses audible and visual alerts to ensure operators stay buckled while operating equipment. It's easy to install and compatible with all equipment brands, effective for a single machine or an entire fleet.
Benefits & Features
WHAT IT DOES
- The Seat Belt Reminder utilizes in-cab alerts that notify the operator to buckle up.
- The Seat Belt Reminder connects to VisionLink™, a subscription-based telematics software that delivers customizable dashboards with real-time updates on the condition of your equipment.
- VisionLink™ notifies supervisors and creates a log of the instances when a seat belt is not fastened while the machine is in motion to maintain safety records.
HOW IT WORKS
- The Seat Belt Reminder detects when the seat belt should be in use by monitoring the machine’s parking brake switch.
- In order to operate the machine, the operator must turn off the parking brake.
- If the seat belt is not buckled when the parking brake is disengaged, the Seat Belt Reminder alarm will sound (audible alert) and a continuous light will be visible in the buckle (visual alert).
- An optional, external purple beacon provides a visual alert for those on site to easily monitor potentially unsafe situations. When the machine is in motion and no seat belt is detected, the beacon will illuminate.
SIMPLE INSTALLATION
- The Seat Belt Reminder can be installed on all brands of equipment – ideal for Cat or mixed fleets.
- Installation takes 2 hours or less when using existing seat belt mount locations.
- The Seat Belt Reminder is compatible with 12V or 24V systems.
- Seat belts are available in various types and sizes to provide the flexibility required for mixed fleet installations.
- Optional dashboard light, amplified alarm, and external beacon are available.
- Talk to your Cat dealer for more information on the Cat® Seat Belt Reminder and how to order it for your equipment.
Specifications
Benefits & Features
WHAT IT DOES
- The Seat Belt Reminder utilizes in-cab alerts that notify the operator to buckle up.
- The Seat Belt Reminder connects to VisionLink™, a subscription-based telematics software that delivers customizable dashboards with real-time updates on the condition of your equipment.
- VisionLink™ notifies supervisors and creates a log of the instances when a seat belt is not fastened while the machine is in motion to maintain safety records.
HOW IT WORKS
- The Seat Belt Reminder detects when the seat belt should be in use by monitoring the machine’s parking brake switch.
- In order to operate the machine, the operator must turn off the parking brake.
- If the seat belt is not buckled when the parking brake is disengaged, the Seat Belt Reminder alarm will sound (audible alert) and a continuous light will be visible in the buckle (visual alert).
- An optional, external purple beacon provides a visual alert for those on site to easily monitor potentially unsafe situations. When the machine is in motion and no seat belt is detected, the beacon will illuminate.
SIMPLE INSTALLATION
- The Seat Belt Reminder can be installed on all brands of equipment – ideal for Cat or mixed fleets.
- Installation takes 2 hours or less when using existing seat belt mount locations.
- The Seat Belt Reminder is compatible with 12V or 24V systems.
- Seat belts are available in various types and sizes to provide the flexibility required for mixed fleet installations.
- Optional dashboard light, amplified alarm, and external beacon are available.
- Talk to your Cat dealer for more information on the Cat® Seat Belt Reminder and how to order it for your equipment.
Data not available.
