Overview

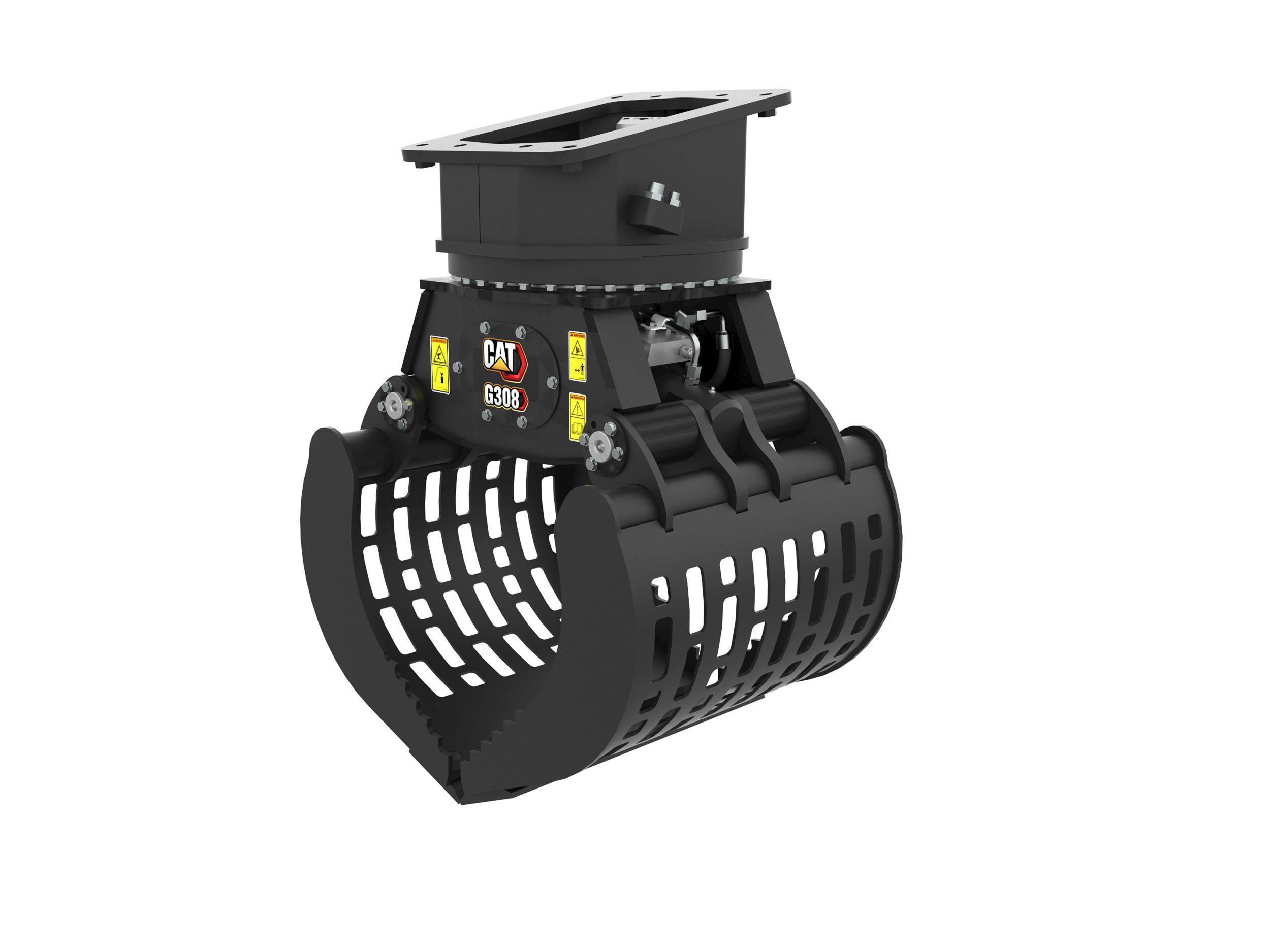

Cat® Demolition & Sorting Grapples are designed for fast, productive material handling. Capable of high-volume, production loading and precise sorting, they enhance the productivity and efficiency of your operation. The grapples can handle anything from primary and secondary demolition to recycling to get the job done.
Specifications
| Grapple Area | — |
| Weight | — |
| Machine Class | Mini Hydraulic Excavator 7-10 Ton |
Benefits & Features

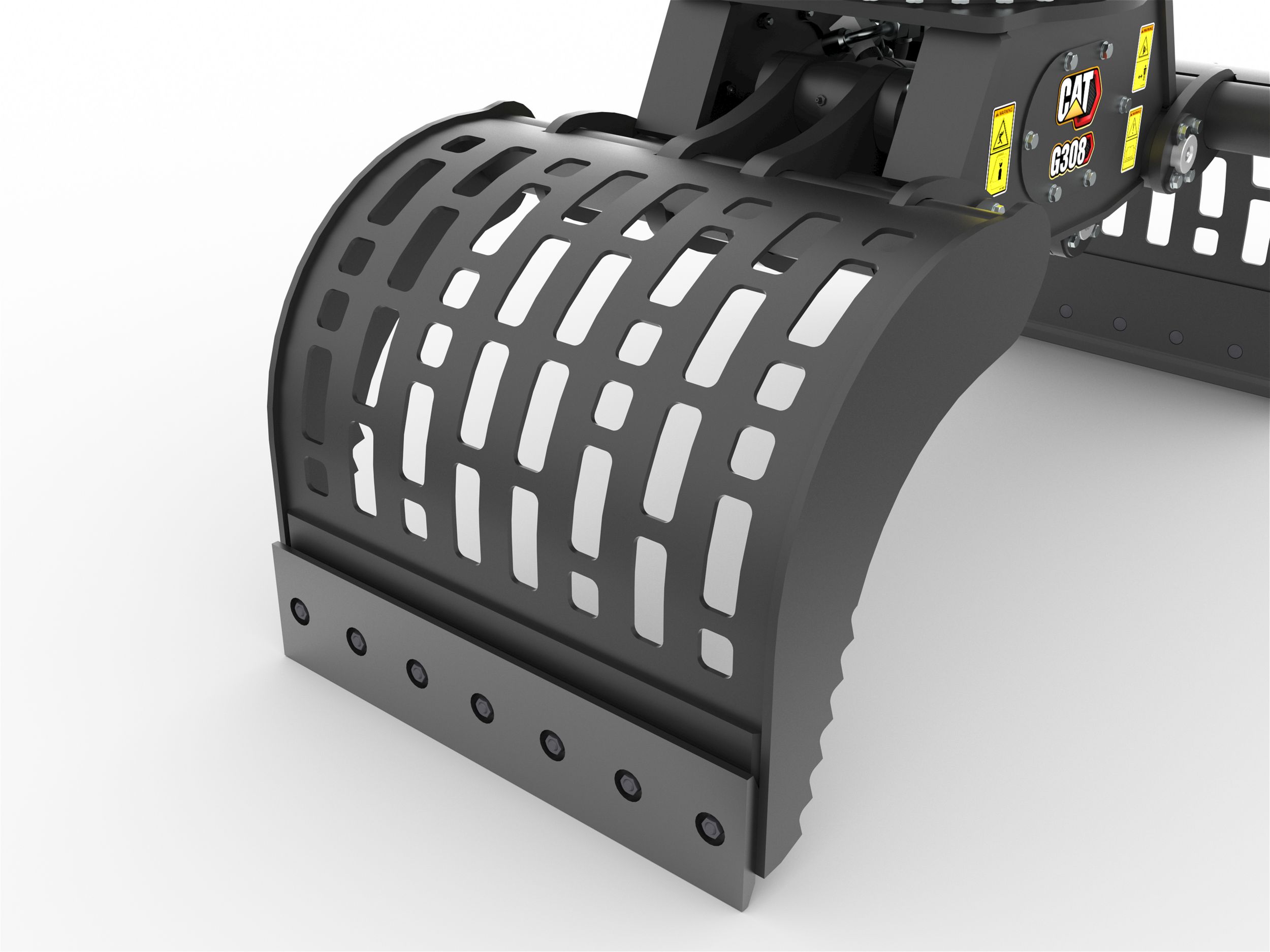

Vertically Perforated Side Plates
Better load visibility and easier positioning. Plates are hardened to HB450 standards providing higher wear resistance.

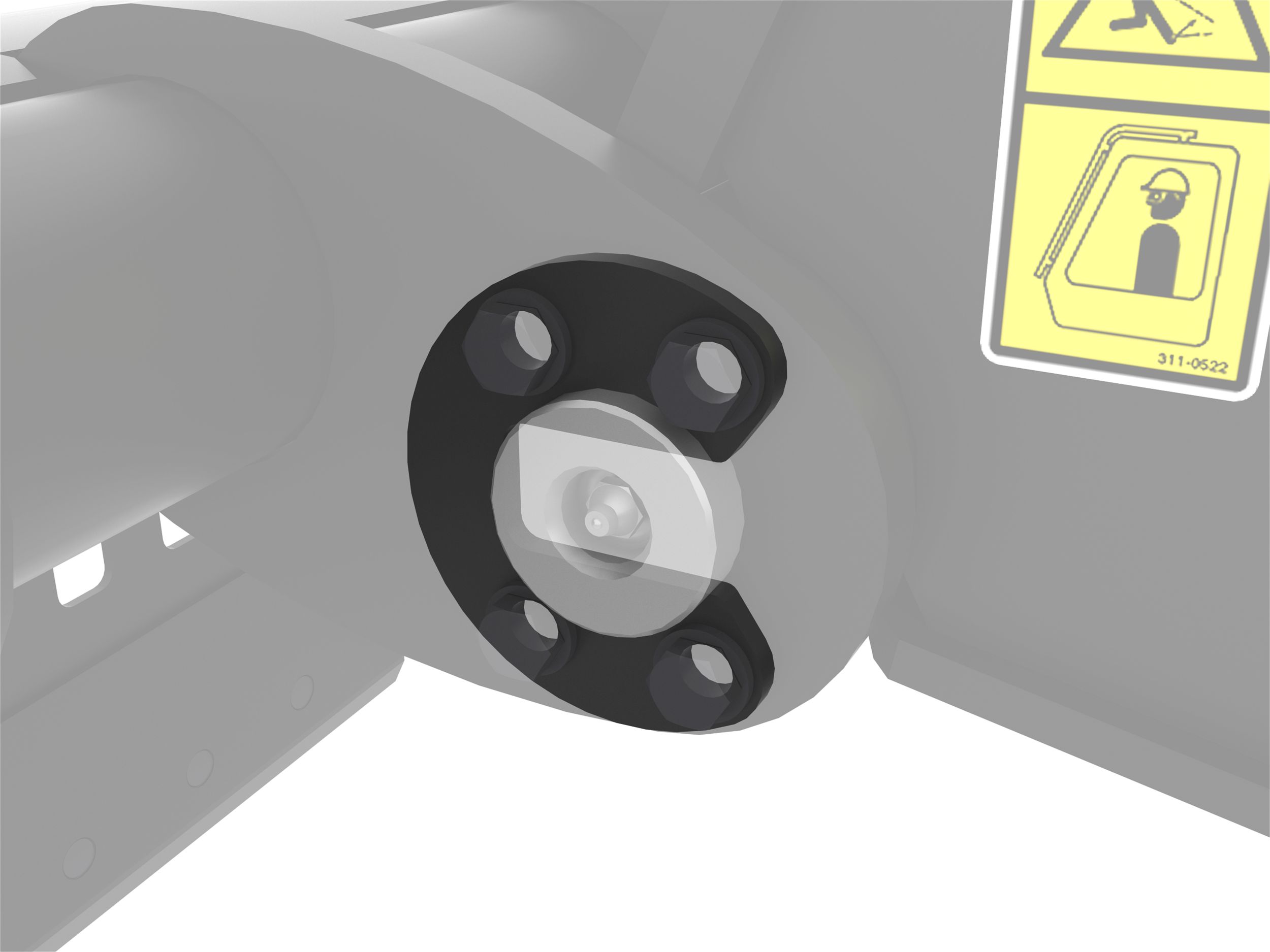

Specially Designed Pins
Oversized pins have high resistance against torque forces and increased durability. Grooved bushings allow for easy greasing.

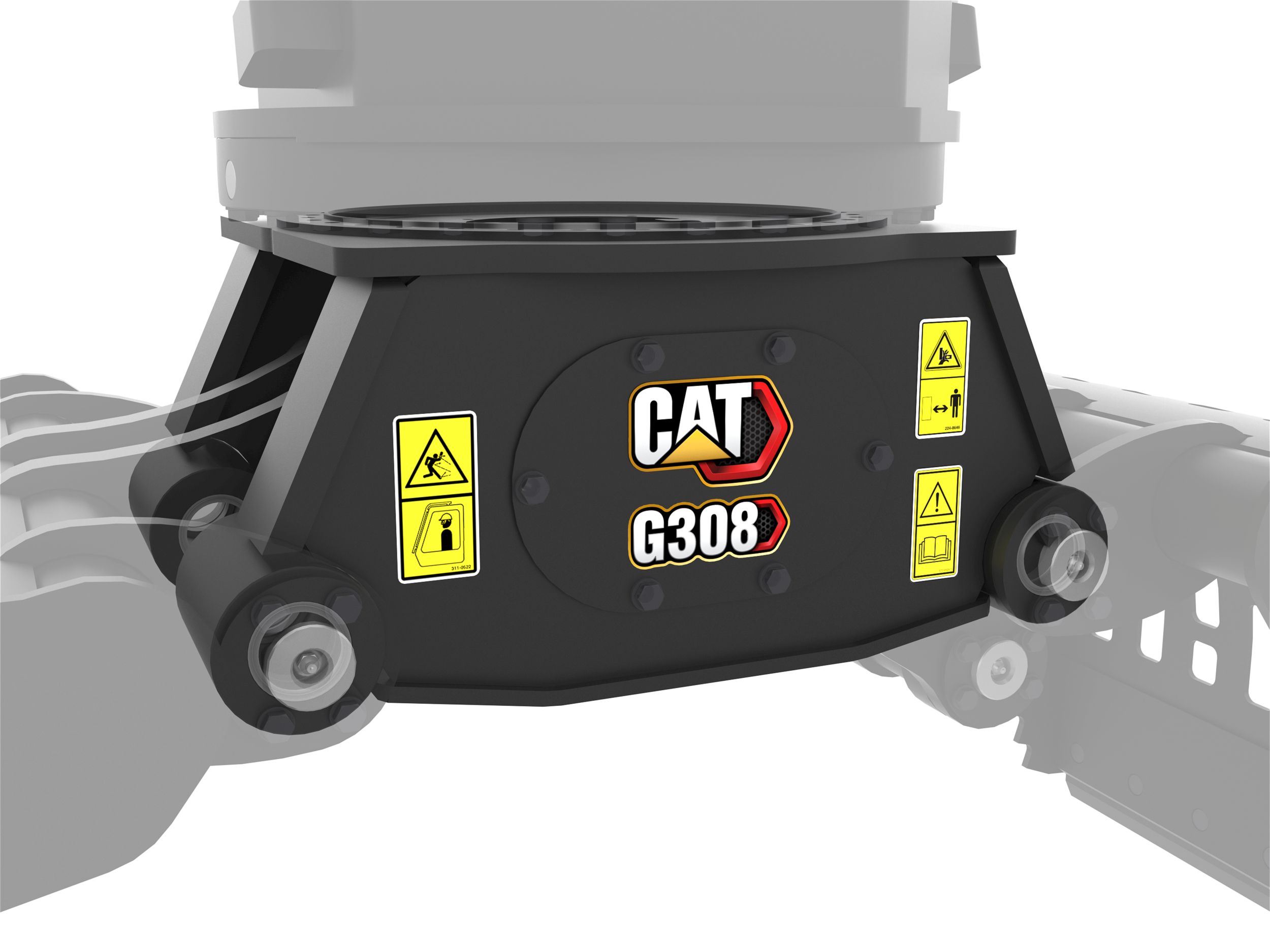

Optimally Designed Linkage
Minimal height increase when opening and closing. Optimal cylinder guidance ensures high clamp forces during closing.
Specifications
| Grapple Area | — |
| Weight | — |
| Machine Class | Mini Hydraulic Excavator 7-10 Ton |
| Maximum Jaw Opening | — |
| Outer Wrapper Thickness | — |
| Outer Wrapper Thickness | — |
| Overall Width (Jaws Open) | — |
| Overall Width (Jaws Closed) | — |
| Overall Height (Jaws Open) | — |
| Overall Height (Jaws Closed) | — |
| Overall Depth | — |
| Interface Type | S45, S50, CW-10, Pin On, Pin Lock |
| Required Hydraulics | 2nd Auxiliary |
| Edge Material | HB500 Equivalent |
| Optimal Hydraulic Flow | Grab 131 L/min (35 gpm) | Rotation 33 L/min (9 gpm) |
Benefits & Features
Vertically Perforated Side Plates
Better load visibility and easier positioning. Plates are hardened to HB450 standards providing higher wear resistance.
Specially Designed Pins
Oversized pins have high resistance against torque forces and increased durability. Grooved bushings allow for easy greasing.
Optimally Designed Linkage
Minimal height increase when opening and closing. Optimal cylinder guidance ensures high clamp forces during closing.

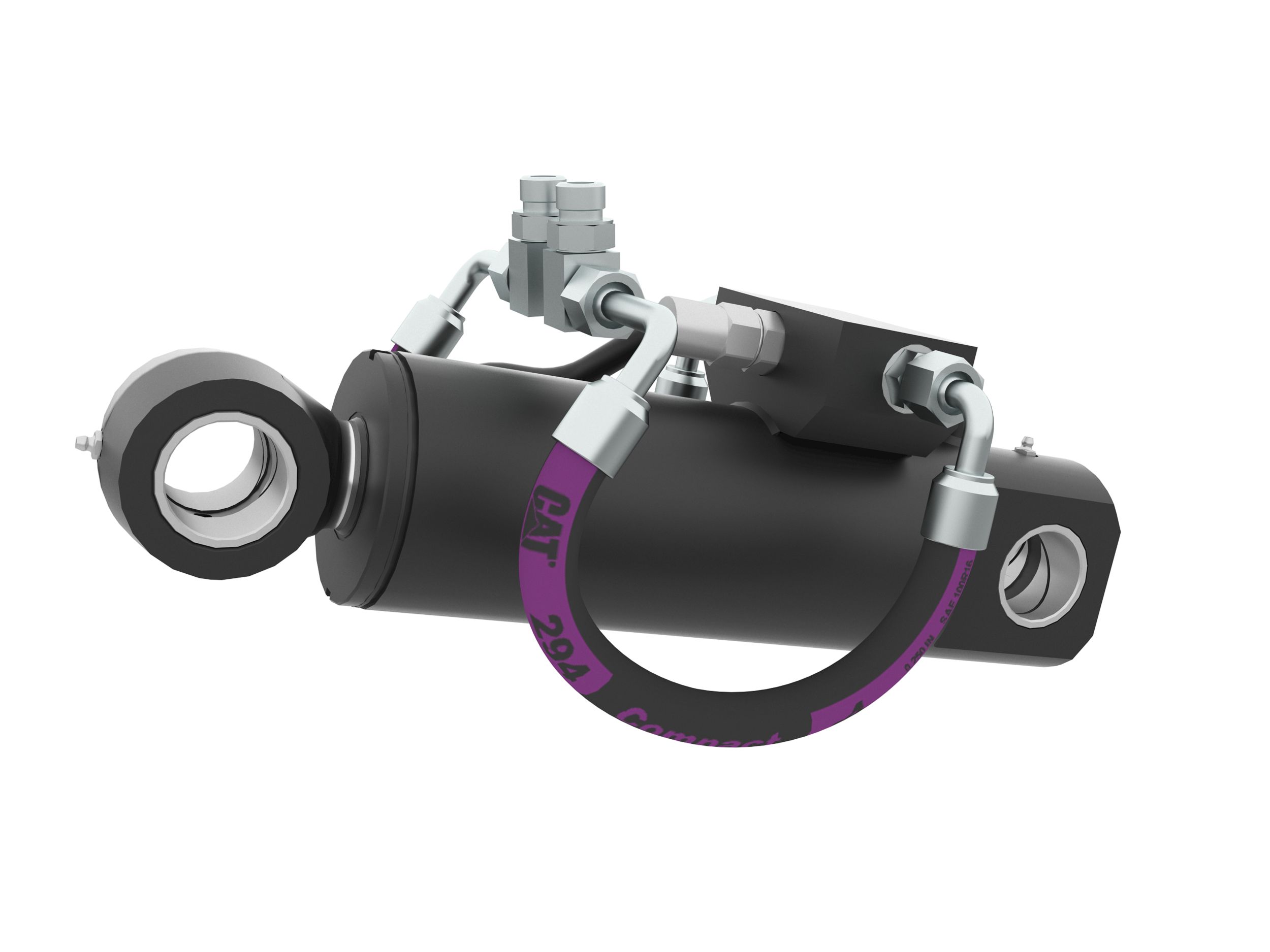

Oversized Cylinder with Load Holding Valve
Ensures even, high clamping force to prevent loss of load. Load holding valve keeps clamp force constant even when maneuvering grapple or machine to ensure controlled load movement.

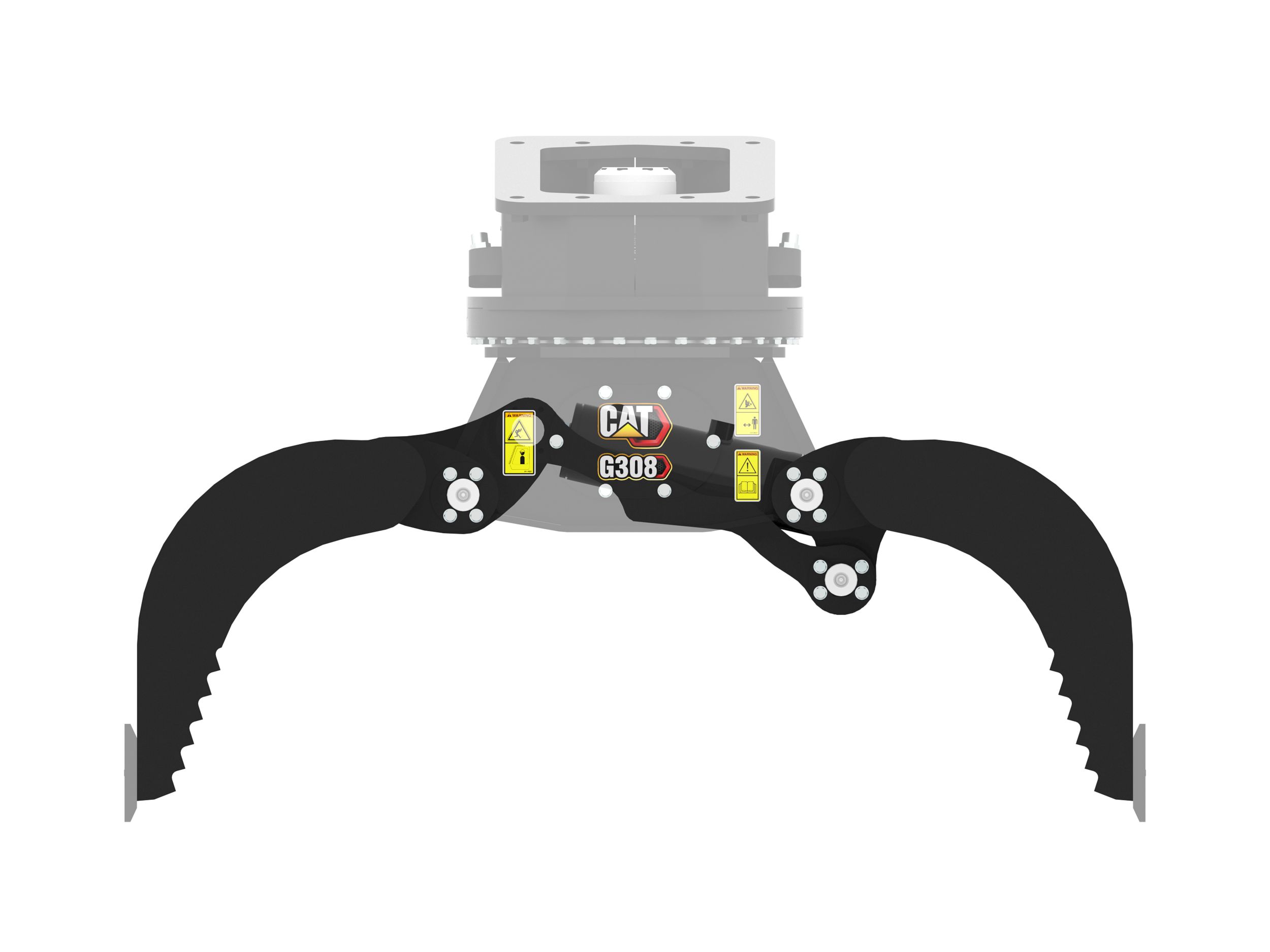

Slim Design
Easier maneuvering within building construction or containers in demolition and recycling applications. Optimal jumper lines routing avoids damage.

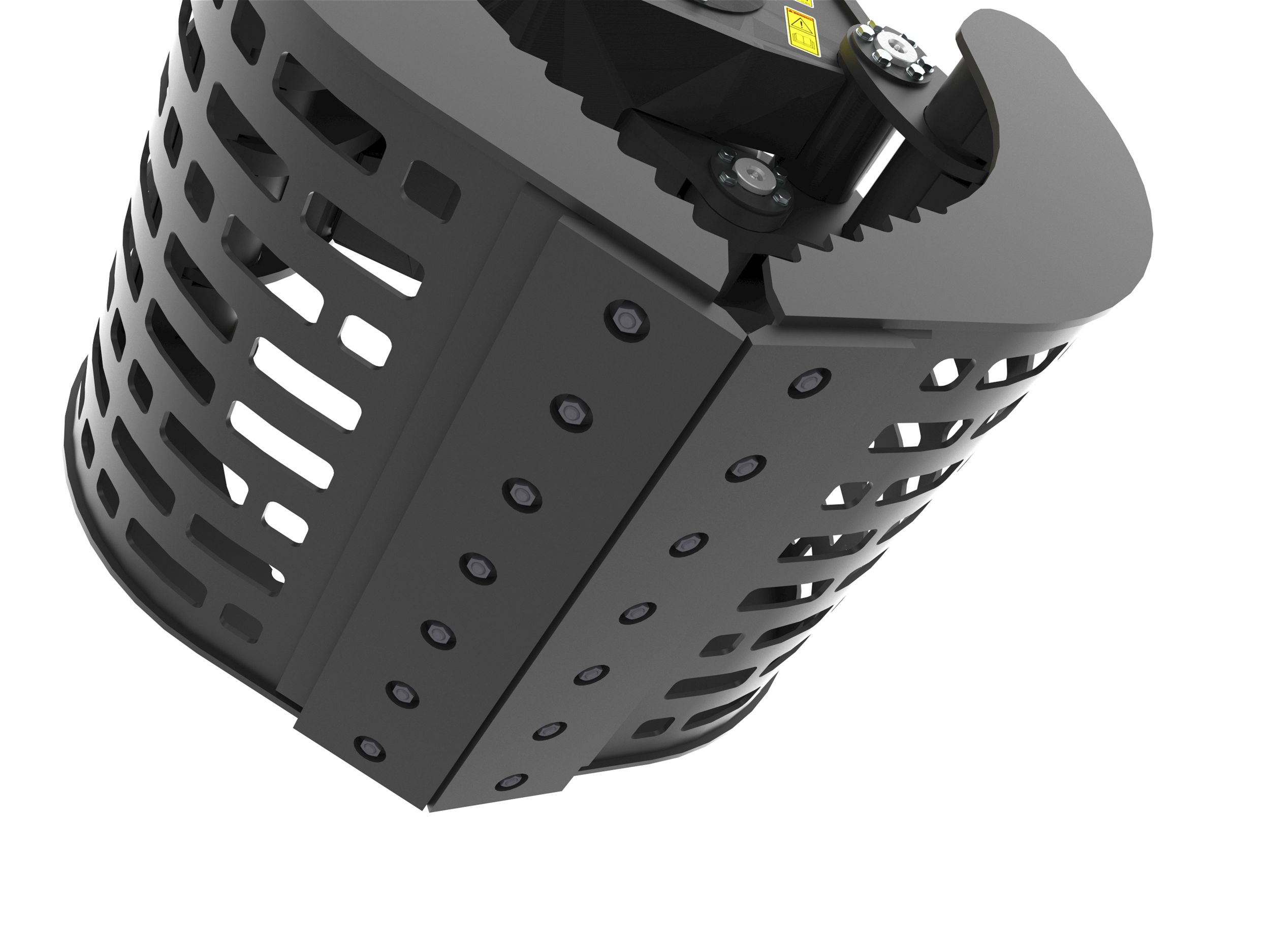

Robust Bolt-on Cutting Edge
Provides high wear lifetime. Plow bolts utilize recessed nuts and are fully protected.

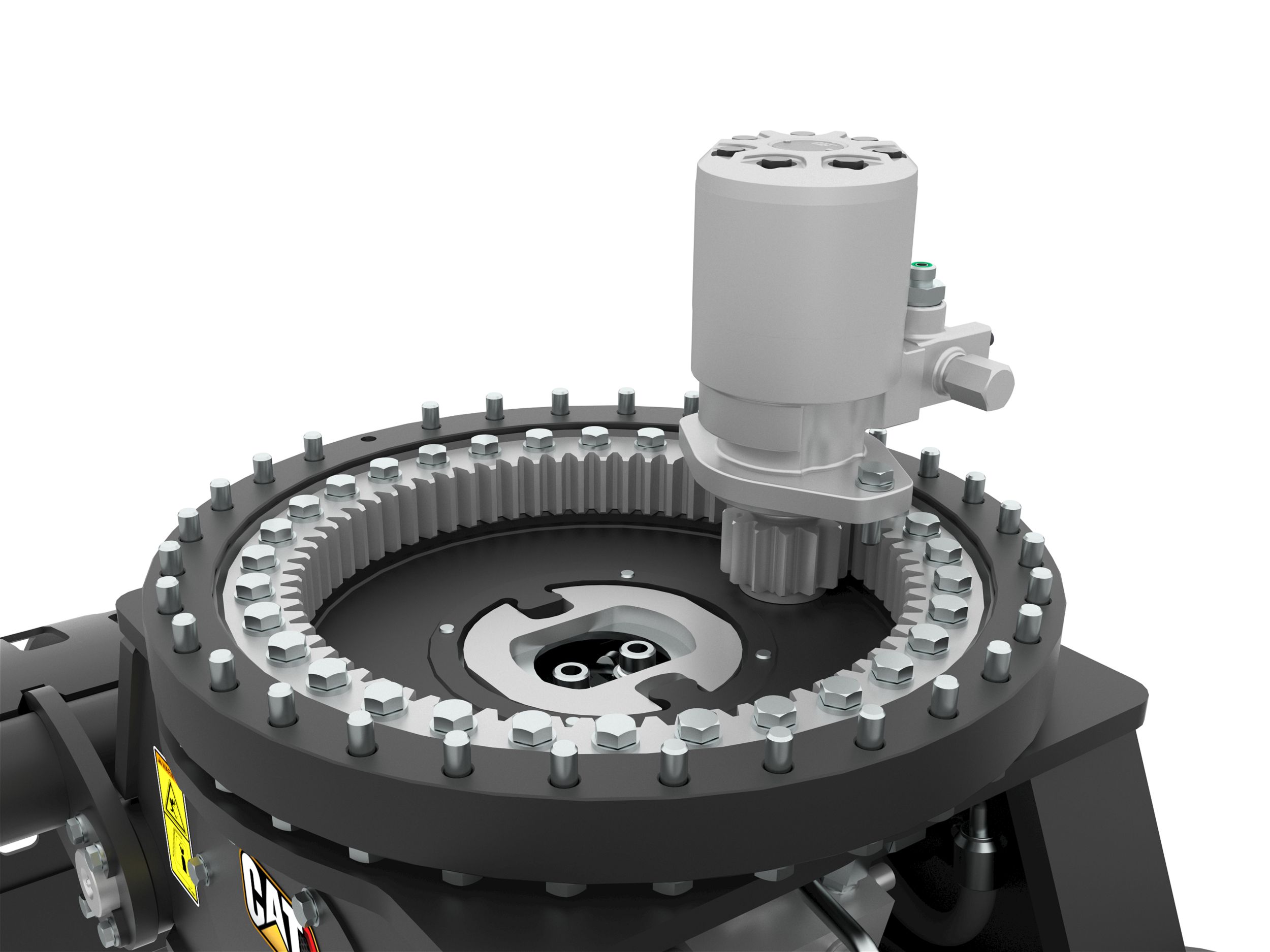

High Displacement Motor
Robust hydraulic design maximizes rotation torque and optimizes rotation speed.
Widest Frame in Class
Strong design protects internal components from debris damage.

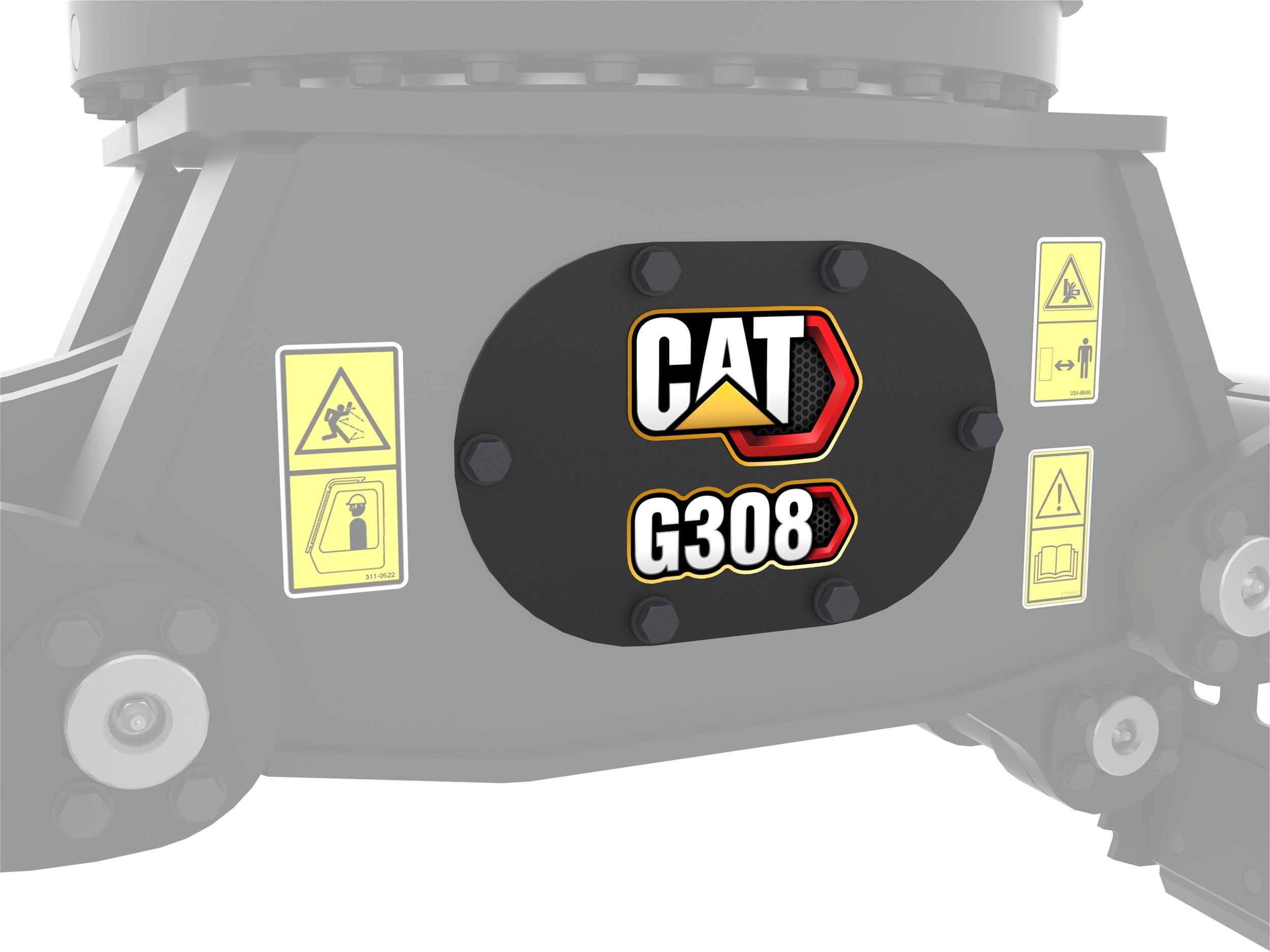

Oval Service Access Panels
Easy service through two access panels; one on front and one on back.
Data not available.
