Overview

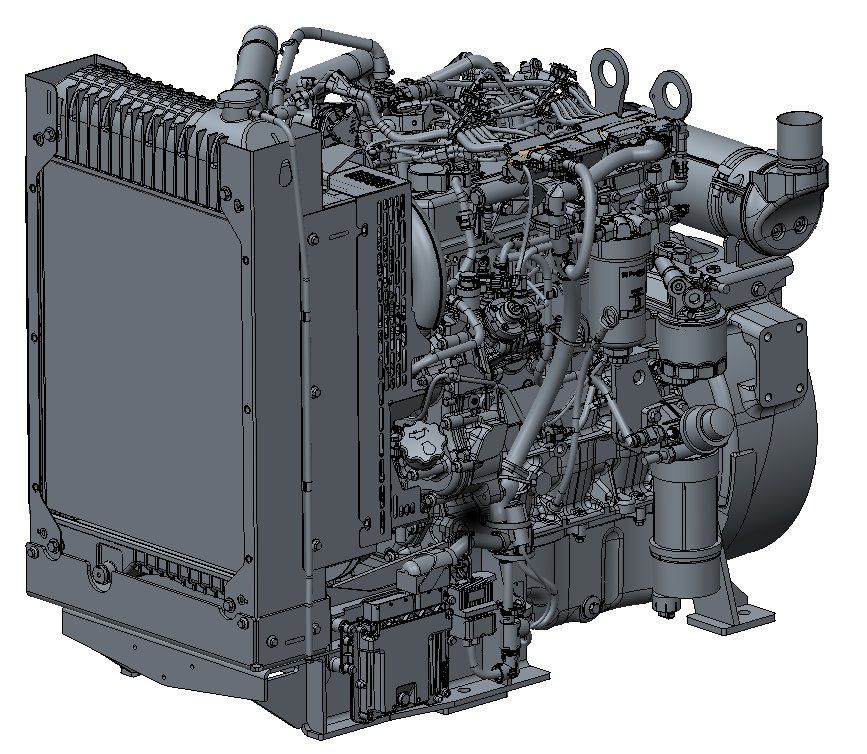

Building on its strong Tier 4 Final range, Perkins is pleased to announce the introduction of the new Perkins® 850 Series ElectropaK. This product brings you class-leading power density while meeting the toughest emission standards. Building on more than 80 years of Perkins innovation and customer insights, the 854F-E34TG1 is designed to deliver U.S. EPA Tier 4 Final emissions legislation in North America while offering competitive performance.
No additional fluids or additives are required, which lowers your operating costs .
Specifications
| Gross Mechanical Output | 50-55 kWm |
| Typical Electrical Output | 55-59 kVA (43-47 kWe) |
| Emissions | U.S. EPA Tier 4 Final |
Benefits & Features
Dependable power
Turbocharging with smart wastegate available on all ratings
Lifetime of low cost
Low ownership costs are enabled by a 3,000 hour service interval for the multi vee belts, service-free tappets and no requirement for aftertreatment ash servicing
Local support, global coverage
To find your local distributor: www.perkins.com/distributor
Specifications
| Gross Mechanical Output | 50-55 kWm |
| Typical Electrical Output | 55-59 kVA (43-47 kWe) |
| Rated Speed | 1800 rpm |
| Prime | 43 kWe |
| Standby | 47 kWe |
| Emissions | U.S. EPA Tier 4 Final |
| Number of Cylinders | 4 inline |
| Bore | — |
| Stroke | — |
| Displacement | — |
| Compression Ratio | 17.0:1 |
| Aspiration | Turbocharged |
| Combustion System | Direct injection |
| Rotation from Flywheel End | Anti-clockwise |
| Cooling System | Liquid |
| Aftertreatment | DOC+DPF |
| Typical Alternator Efficiency | 89% |
| Switchable | No |
| Length | — |
| Width | — |
| Height | — |
| Dry Weight | — |
| Length | — |
| Width | — |
| Height | — |
| Weight | — |
| Note 1 | *Final dimensions dependent on selected options |
| Note 2 | ESE (1800 rpm - Certified model) only - Emergency Stationary Equipment |
| Prime Power | Power available at variable load in lieu of a main power network. Overload of 10% is permitted for one hour in every 12 hours of operation. |
| Standby Power | Power available at variable load in the event of a main power network failure. No overload is permitted. |
Benefits & Features
Dependable power
Turbocharging with smart wastegate available on all ratings
Lifetime of low cost
Low ownership costs are enabled by a 3,000 hour service interval for the multi vee belts, service-free tappets and no requirement for aftertreatment ash servicing
Local support, global coverage
To find your local distributor: www.perkins.com/distributor
Data not available.
Standard Equipment
- Air inlet system
- Standard air cleaners
- Control system
- All connectors and wiring looms waterproof and designed to withstand harsh off-highway environments
- Flexible and configurable software features and J1939 standard communications I/O
- Full electronic control system
- Oil pressure and coolant temperature switches
- Cooling system
- 50:50 water glycol mix
- Engine mounted radiator with top tank temperature of 108�C
- Detailed guidance on cooling system design and validation available to ensure machine reliability
- Flywheel and flywheel housing
- High inertia flywheel to SAE J620 size 7½ heavy
- Wide choice of drivetrain interfaces, supplied with SAE3 configuration as standard
- Fuel system
- Electronic high pressure common rail
- Engine-mounted fuel filters
- General
- Pusher fan as standard
- Standard emissions control equipment
- NRS � NOx Reduction System
- Oil system
- Spin-on full flow lubricating oil filter
