Overview

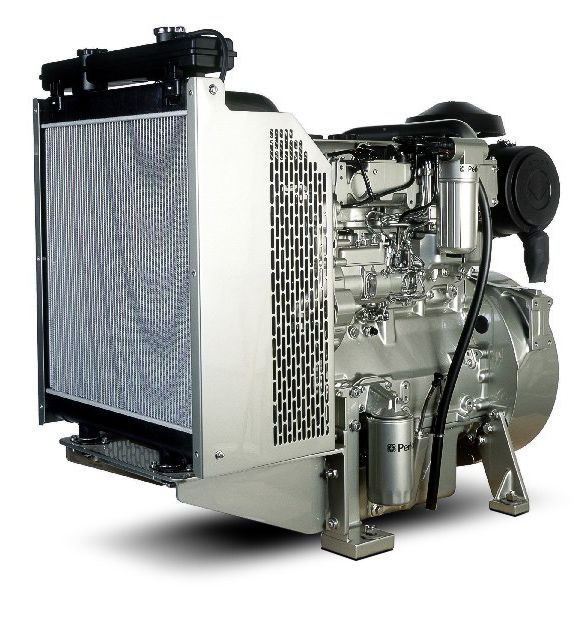

Our 1104 ElectropaK engines set the industry standard for prime and standby power generation. The 4 cylinder, 4.4 litre engines are smooth and quiet in operation. They can also be electronically controlled, giving you the right fuel combustion for the load applied to the engine. The engines deliver 43.7-126.5 kVA, meeting the key power nodes.
Designed for use in unregulated territories.
Specifications
| Gross Mechanical Output | 59.6 -94.5 kWm |
| Typical Electrical Output | 65-100 kVA (52-80 kWe) |
| Emissions | Fuel Optimised |
Benefits & Features
Reliable operation
With low fuel and oil consumption, and 500 hour service intervals, your 1104 range engine will run and run.
Simple installation
Common front and rear ends, connection points and components across the range mean that you can easily install a different 1100 Series engine in your application.
Specifications
| Gross Mechanical Output | 59.6 -94.5 kWm |
| Typical Electrical Output | 65-100 kVA (52-80 kWe) |
| Rated Speed | 1500/1800 rpm |
| Prime | 65-80 kVA |
| Standby | 71.5-88 kVA |
| Prime | 60.8-73 kWe |
| Standby | 66.9-80.3 kWe |
| Emissions | Fuel Optimised |
| Number of Cylinders | 4 vertical inline |
| Bore | — |
| Stroke | — |
| Displacement | — |
| Compression Ratio | 17.25:1 |
| Aspiration | Turbocharged |
| Combustion System | Direct injection |
| Rotation from Flywheel End | Anti-clockwise |
| Cooling System | Liquid |
| Aftertreatment | - |
| Typical Alternator Efficiency | 89% |
| Switchable | Yes |
| Length | — |
| Width | — |
| Height | — |
| Dry Weight | — |
| Note 1 | *Final dimensions dependent on selected options |
| Prime Power | Power available at variable load in lieu of a main power network. Overload of 10% is permitted for one hour in every 12 hours of operation. |
| Standby Power | Power available at variable load in the event of a main power network failure. No overload is permitted. |
Benefits & Features
Reliable operation
With low fuel and oil consumption, and 500 hour service intervals, your 1104 range engine will run and run.
Simple installation
Common front and rear ends, connection points and components across the range mean that you can easily install a different 1100 Series engine in your application.
Data not available.
Standard Equipment
- Air inlet system
- Mounted air filter
- Control system
- 12 volt starter motor and 12 volt 65 amp alternator with DC output
- 12 volt shutdown solenoid energised to run
- Cooling system
- Mounted radiator and piping
- Thermostatically controlled system with gear-driven circulation pump and belt-driven pusher fan
- Flywheels and flywheel housing
- High inertia flywheel to SAE J620 size 10/11½
- SAE 3 flywheel housing
- Fuel system
- Ecoplus fuel filter
- Rotary type pump
- General
- Glow plug cold start aid
- Oil system
- Wet sump with filler and dipstick
- Spin-on oil filter
