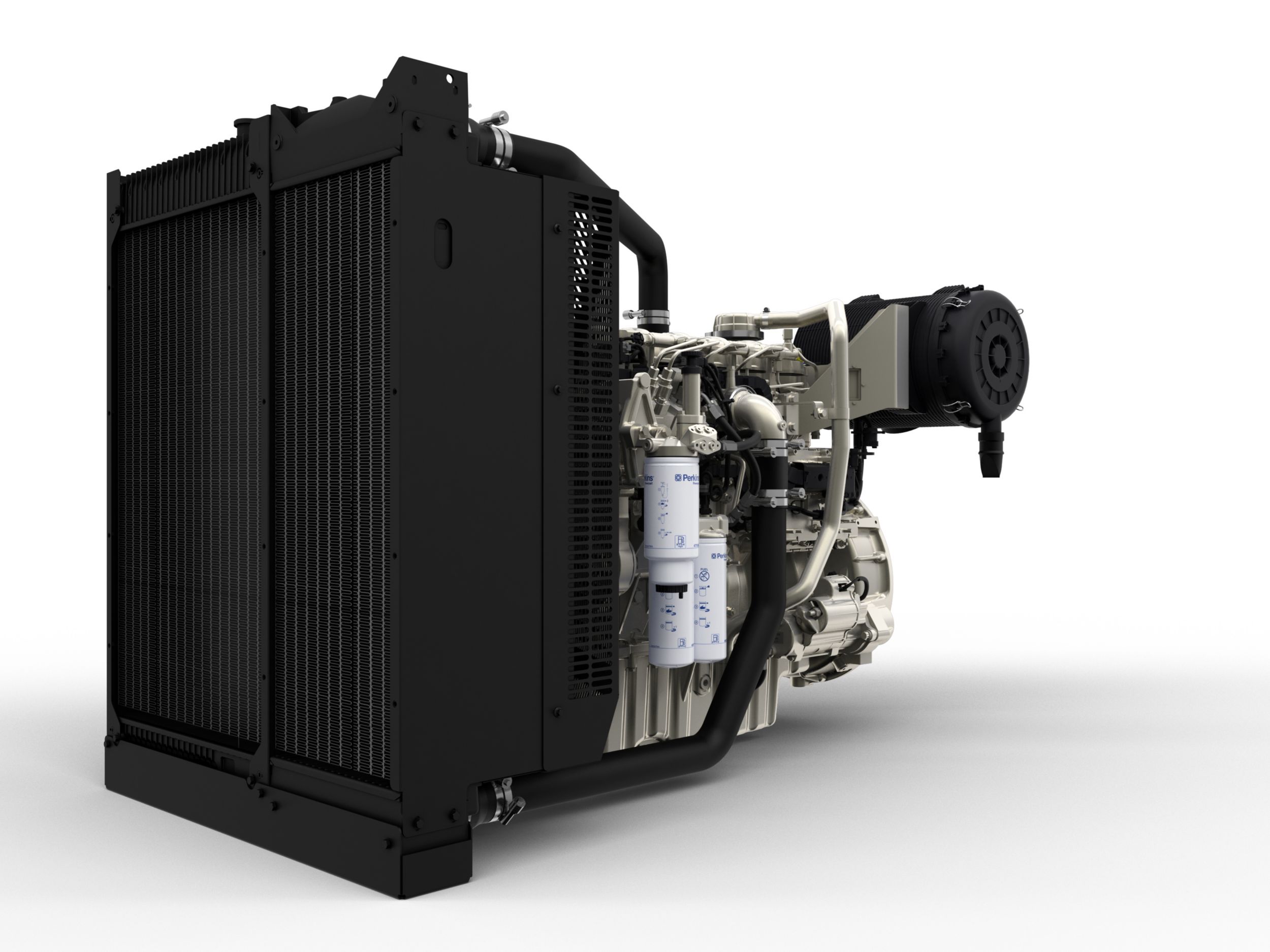

Overview
The Perkins® 1700 Series is engineered to provide class leading performance and maximise competitive advantage for our customers.
Developed on a latest generation 9.3 litre core, the 1706 offers greater capability and more flexibility to our customers from a simple plug and play product.
Emissions - fuel optimised
Specifications
| Minimum Power | — |
| Maximum Power | — |
| Electrical Output | 339-395 kVA (220-316 kWe) |
Benefits & Features
A lifetime of low cost
Fuel consumption optimized prime power and continuous running applications. No additional fluids or additives are required which lowers operating costs. Vee belts and 500-hour oil change intervals enable low?cost maintenance. Perkins Platinum Protection � there is also an option to buy a Perkins Platinum Protection policy to cover you beyond the standard warranty period. Discover more: https://www.perkins.com/en_GB/aftermarket/perkins-platinum-protection.html
Flexibility
Tropical radiator is supplied as standard.
Dependable power
World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life. A high power density product that combine dependable power and high efficiency at the same time. Driving lower cost of ownership along with better performance. To find more, visit: www.perkins.com/powerdensity
Specifications
| Length | — |
| Minimum Power | — |
| Maximum Power | — |
| Electrical Output | 339-395 kVA (220-316 kWe) |
| Rated Speed | 1500/1800 rpm |
| Maximum Torque | — |
| Emissions | Fuel optimised |
| Bore | — |
| Stroke | — |
| Displacement | — |
| Aspiration | Turbocharged aftercooled |
| Rotation from Flywheel End | Anti-clockwise |
| Cooling System | Liquid |
| Cycle | 4 stroke |
| Combustion System | Direct injection |
| Compression Ratio | 16.5:1 |
| Number of Cylinders | 6 vertical inline |
| Height | — |
| Width | — |
| Length | — |
| Dry Weight | — |
| Note 1 | Final dimensions dependent on selected options |
Benefits & Features
A lifetime of low cost
Fuel consumption optimized prime power and continuous running applications. No additional fluids or additives are required which lowers operating costs. Vee belts and 500-hour oil change intervals enable low?cost maintenance. Perkins Platinum Protection � there is also an option to buy a Perkins Platinum Protection policy to cover you beyond the standard warranty period. Discover more: https://www.perkins.com/en_GB/aftermarket/perkins-platinum-protection.html
Flexibility
Tropical radiator is supplied as standard.
Dependable power
World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life. A high power density product that combine dependable power and high efficiency at the same time. Driving lower cost of ownership along with better performance. To find more, visit: www.perkins.com/powerdensity
Data not available.
Standard Equipment
- Air inlet system
- Standard air cleaners
- Control system
- All connectors and wiring looms waterproof and designed to withstand harsh off-highway environments
- Flexible and configurable software features and well-supported SAE J1939 CAN bus enables highly integrated machines
- Full electronic control system
- Cooling system
- Tropical radiator as standard ensures optimal cooling performances all year round in any state
- 50:50 water glycol mix
- Flywheels and flywheel housing
- SAE1 flywheel housing
- Fuel system
- Electronic high pressure common rail
- Aluminium sump
