Overview

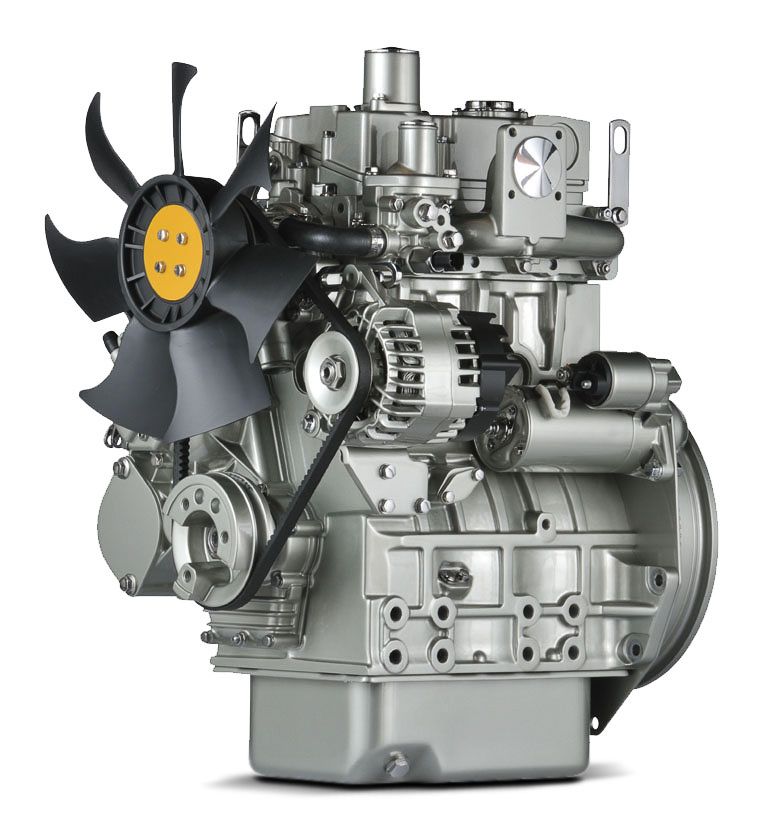

The Perkins 400 Series is an extensive family of engines in the 0.5-2.2 litre range. The 3 cylinder 403-17 model is a mid-range 400 Series engine, combining performance, low operating costs and a compact package. From a packaging point of view, the 403-17 is the ideal engine for small industrial applications. It is offered with both indirect (IDI) and common rail fuel injection systems.
A very quiet 1.7 litre unit that delivers improved performance and reduced operating costs in a small, efficient package. Designed to meet EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent emission standards.
Specifications
| Maximum Power | — |
| Maximum Torque | — |
| Emissions | EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent |
Benefits & Features
A lifetime of low cost
The 400 Series offers highly competitive performance and fuel economy. Through appropriate use of technology, these engines have been designed to be reliable and to offer low cost of ownership in the wide variety of markets they serve.
Across an extensive power band, the 400 Series range offers you the ability to configure a solution to your specific machine, territory and market requirements. Overlapping power bands between models and an extensive range of options gives the opportunity to optimise performance and functionality, adding customer value to the application. We provide one year warranties for constant speed engines and two year warranties for variable speed models as standard. As a 400 Series end user, you also benefit from Perkins world class product support and service coverage that comes from being a full range power solutions provider.Compact design
The compact design of these engines makes them suitable for a range of applications, including skid steer loaders, mini excavators, wheel loaders, welders, lift platforms, lighting towers, small tractors, air compressors, turf care machinery and materials handling machinery.
Each of the six core engines of the 400 Series is configured for either Stage IIIA/Tier 4 Interim or Stage IIIB/Tier 4 Final emission standards, giving you flexibility depending on your market.Performance and refinement
The 400 Series lineup gives you a seamless power range of 8.2-50 kW (11-67 hp) in 2, 3 and 4 cylinder models designed with a family look and feel. The range offers a wide variety of ratings and configurations that can be tailored to meet the most exacting needs.
The selective use of indirect and direct injection fuel systems enables Perkins to offer world-class engine refinement and low noise levels.Specifications
| Maximum Power | — |
| Maximum Torque | — |
| Rated Speed | 2400-2600 rpm |
| Minimum Power | — |
| Emissions | EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent |
| Number of Cylinders | 3 inline |
| Cycle | 4 stroke |
| Bore | — |
| Stroke | — |
| Displacement | — |
| Compression Ratio | 23.0:1 |
| Aspiration | Naturally aspirated |
| Combustion System | Indirect injection |
| Rotation from Flywheel End | Anti-clockwise |
| Cooling System | Liquid |
| Length | — |
| Width | — |
| Height | — |
| Dry Weight | — |
| Note 1 | *Final dimensions dependent on selected options |
Benefits & Features
A lifetime of low cost
The 400 Series offers highly competitive performance and fuel economy. Through appropriate use of technology, these engines have been designed to be reliable and to offer low cost of ownership in the wide variety of markets they serve.
Across an extensive power band, the 400 Series range offers you the ability to configure a solution to your specific machine, territory and market requirements. Overlapping power bands between models and an extensive range of options gives the opportunity to optimise performance and functionality, adding customer value to the application. We provide one year warranties for constant speed engines and two year warranties for variable speed models as standard. As a 400 Series end user, you also benefit from Perkins world class product support and service coverage that comes from being a full range power solutions provider.Compact design
The compact design of these engines makes them suitable for a range of applications, including skid steer loaders, mini excavators, wheel loaders, welders, lift platforms, lighting towers, small tractors, air compressors, turf care machinery and materials handling machinery.
Each of the six core engines of the 400 Series is configured for either Stage IIIA/Tier 4 Interim or Stage IIIB/Tier 4 Final emission standards, giving you flexibility depending on your market.Performance and refinement
The 400 Series lineup gives you a seamless power range of 8.2-50 kW (11-67 hp) in 2, 3 and 4 cylinder models designed with a family look and feel. The range offers a wide variety of ratings and configurations that can be tailored to meet the most exacting needs.
The selective use of indirect and direct injection fuel systems enables Perkins to offer world-class engine refinement and low noise levels.Data not available.
Standard Equipment
- Air System
- Cast iron exhaust manifold - side outlet
- Inlet manifold
- Electrical and Electronics
- 12 volt and 24 volt alternator
- 12 volt and 24 volt starter motor
- Electronic Shut Off Solenoid (ESOS)
- Cooling System
- Coolant pump belt driven
- Coolant temperature switch
- Cooling fan
- Fuel System
- CTD fuel injection pump
- Spin-on fuel filter
- General
- Cast iron engine block
- Glow plug starting aid
- Cold start capability to –20°C (-4°F) (aided)
- Oil System
- Lubricating oil pressure switch
- Lubricating oil sump
- Spin-on lubricating oil filter
- Power Take-Off (PTO)
- SAE A PTO
