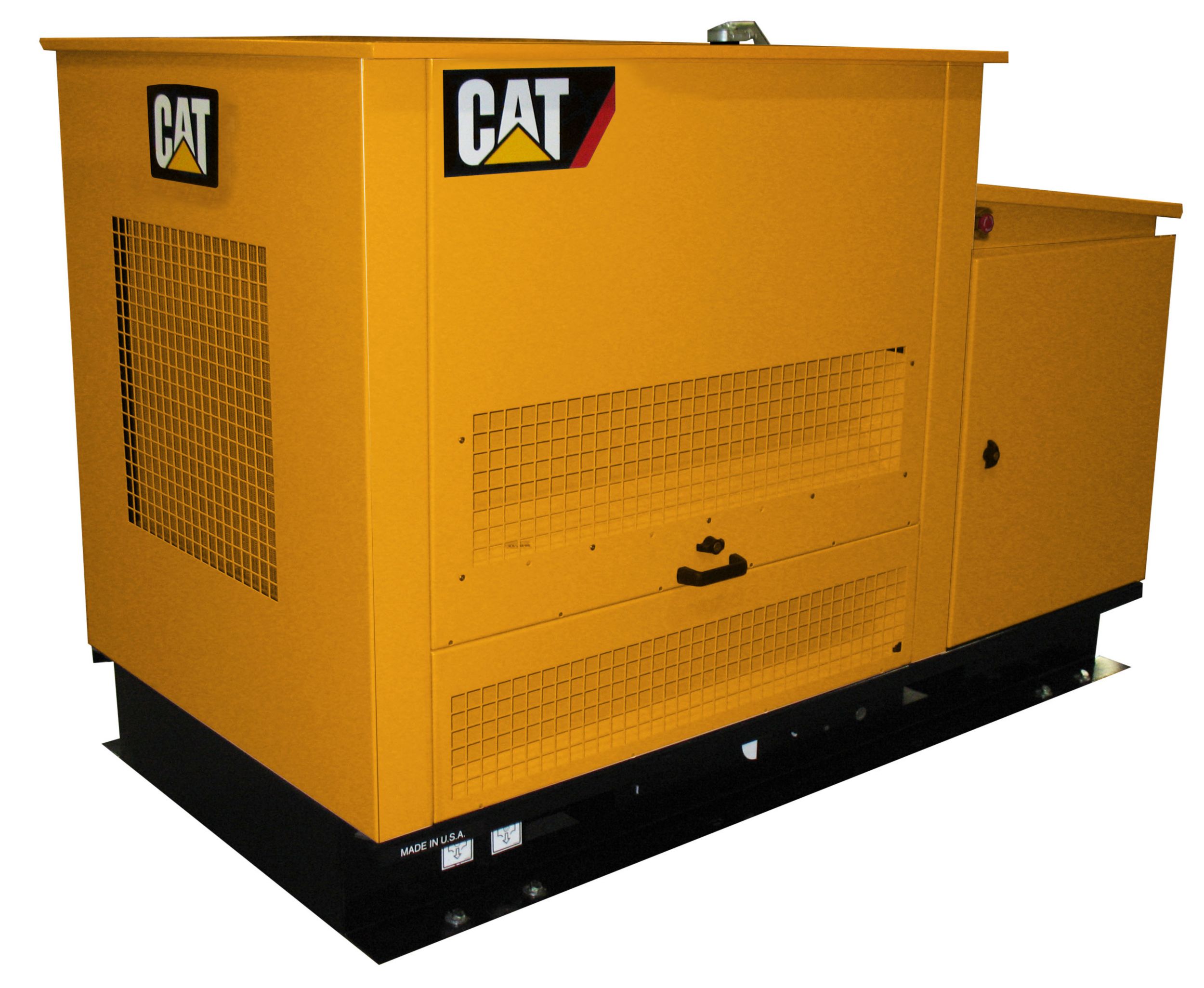

Overview
Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.
Specifications
Units:
| Emissions/Fuel Strategy | U.S. EPA Certified for Stationary Emergency Application |
| Natural Gas Rating | 30 ekW (37.5 kVA) |
| Speed | 1800 RPM |
Benefits & Features
Specifications
Units:
| Emissions/Fuel Strategy | U.S. EPA Certified for Stationary Emergency Application |
| Natural Gas Rating | 30 ekW (37.5 kVA) |
| Speed | 1800 RPM |
| Voltage | 480 Volts |
| Propane Rating | 30 ekW (37.5 kVA) |
| Frequency | 60 Hz |
| Displacement | — |
| Bore | — |
| Stroke | — |
| Engine Model | 3.0L In-line 4, 4-cycle Gas |
| Governor Type | Electronic |
| Compression Ratio | 10.5:1 |
| Fuel System | Natural Gas, LP Vapor |
Benefits & Features
Engine
Engine
- Four-stroke-cycle gas engine combines consistent performance and excellent fuel economy with minimum weight
Alternator
Generator
- Matched to the performance and output characteristics of Cat engines
- Industry leading mechanical and electrical design
- Industry leading motor starting capabilities
- High Efficiency
EMCP Control Panel
EMCP Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Design Criteria
Design Criteria
- The generator set facilitates compliance with NFPA 110 and meets ISO 8528-5 requirements for transient response
- Cooling system designed to operate in 50˚C/122˚F ambient temperatures with an air flow restriction of 0.5 in. water
UL 2200 / CSA - Optional
UL 2200 / CSA - Optional
- UL 2200 Listed packages
- CSA Certified
- Certain restrictions may apply
- Consult with your Cat® Dealer
World Wide Product Support
World Wide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Data not available.
Standard Equipment
- Air Inlet
- Single element air filter
- Cooling
- Radiator and cooling fan complete with protective guards
- Standard ambient termperatures up to 50°C (122°F)
- Exhaust
- Exhaust outlet with 2.5” pipe
- Fuel
- Natural Gas or LP Vapor
- Dual lock off valves
- NPT connection
- Generator
- Matched to the performance and output characteristics of Cat engines
- IP23 protection
- Integrated Voltage Regulator
- Governor
- Electronic governor (non adjustable)
- Control Panels
- EMCP 4.2 Series generator set controller
- Mounting
- Rubber vibration isolators
- Starting/Charging
- 12 volt starting motor
- Batteries with rack and cables
Optional Equipment
- Generator
- Oversize and premium generators
- Excitation: [ ] Permanent Magnet Excited (PM)
- Anti-condensation heater
- Starting/Charging
- Battery heater
- Lube oil sump heater
- Jacket water heater
- Battery charger – UL Listed 10 amp
- General
- Enclosures: sound attenuated, weather protective
- Automatic transfer switches (ATS)
- CSA Certified
- Suitable for Use as Service Equipment (SUSE)
- UL 2200 Listed
