C32 (50 Hz) with Upgradeable PackageNon-Current

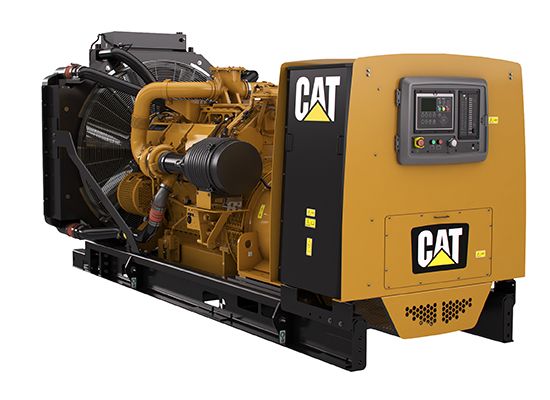

C32 with Upgradeable Packaging (50)
Overview
The C32 with the upgradeable packaging design has been developed for a wide range of applications, from emergency standby installations such as healthcare and datacenters to continuously powering remote installations. The packages can be optimized for performance to matters to you with either low emissions or low fuel consumption versions available. Backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty, Cat generator sets will provide the reliability and durability you expect.
Specifications
Units:
| Minimum Rating | 910 kVA |
| Maximum Rating | 1500 kVA |
| Emissions/Fuel Strategy | Low Fuel, Low Emissions |
Benefits & Features
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
SR5 Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
Specifications
Units:
| Minimum Rating | 910 kVA |
| Maximum Rating | 1500 kVA |
| Emissions/Fuel Strategy | Low Fuel, Low Emissions |
| Voltage | 400 to 415 Volts |
| Frequency | 50 Hz |
| Speed | 1500 rpm |
| Duty Cycle | Standby, Mission Critical, Prime, Continuous |
| Engine Model | C32 TA, V-12, 4-Stroke Water-Cooled Diesel |
| Bore | — |
| Stroke | — |
| Displacement | — |
| Compression Ratio | 15.0:1 |
| Aspiration | TA |
| Fuel System | MEUI |
| Governor Type | Adem™A4 |
| Length - Minimum | — |
| Length - Maximum | — |
| Width - Minimum | — |
| Width - Maximum | — |
| Height - Minimum | — |
| Height - Maximum | — |
| Dry Weight - Genset (minimum) | — |
| Dry Weight - Genset (maximum) | — |
Benefits & Features
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
SR5 Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
EMCP 4 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 50°C (122°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
- EU Certification of Conformance (CE)
- EEC Declaration of Conformity
One Safe Source
- Components used in the generator set are selected at the design stage to provide optimum package performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
World Wide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Data not available.
Standard Equipment
- Air Inlet System
- Single element canister type with service indicator
- Control Panel
- EMCP 4.2
- Warning shutdowns
- Digital Indicators
- Control features
- Communications
- Programmable protective relaying functions
- Cooling System
- Radiator fan and fan drive
- Low coolant level sensor
- ATAAC
- Coolant drain line with valve
- Fan and belt guards
- Caterpillar extended life coolant
- Exhaust System
- Exhaust manifold - dry
- 203 mm (8 in) ID round flanged outlet
- Fuel System
- Fuel priming pump
- Primary fuel filter with water separator
- Fuel cooler
- Secondary fuel filters
- General
- RH service
- Caterpillar yellow with high gloss black rails & radiator
- Flywheel and flywheel housing-SAE
- SAE standard rotation
- Generators and Attachments
- Reactive droop
- Winding temperature detectors
- Class H temperature rise at 40C ambient
- Busbar connections, top center mounted, top cable entry
- Permanent magnet excitation (PMG)
- NEMA Class H insulation
- Salient pole
- IEC standard hole pattern
- 6 Lead
- Integrated voltage regulator (IVR)
- 3 Phase brushless
- Internal excitation (IE)
- Governing System
- ADEM(tm) A4
- Lube System
- Gear type lube oil pump
- Integral lube Oil cooler
- Lubricating oil
- Oil filter, filler and dipstick
- Oil drain lines and valve
- Fumes disposal
- Mounting System
- Rails - engine/generator/radiator mounting
- Rubber anti-vibration mounts
- Power Termination
- Busbar
- Starting / Charging System
- 45 amp Charging alternator
- Battery, rack and cables
- 24-Volt electric starting motor
- Battery disconnect switch
