VM 46 DFNon-Current

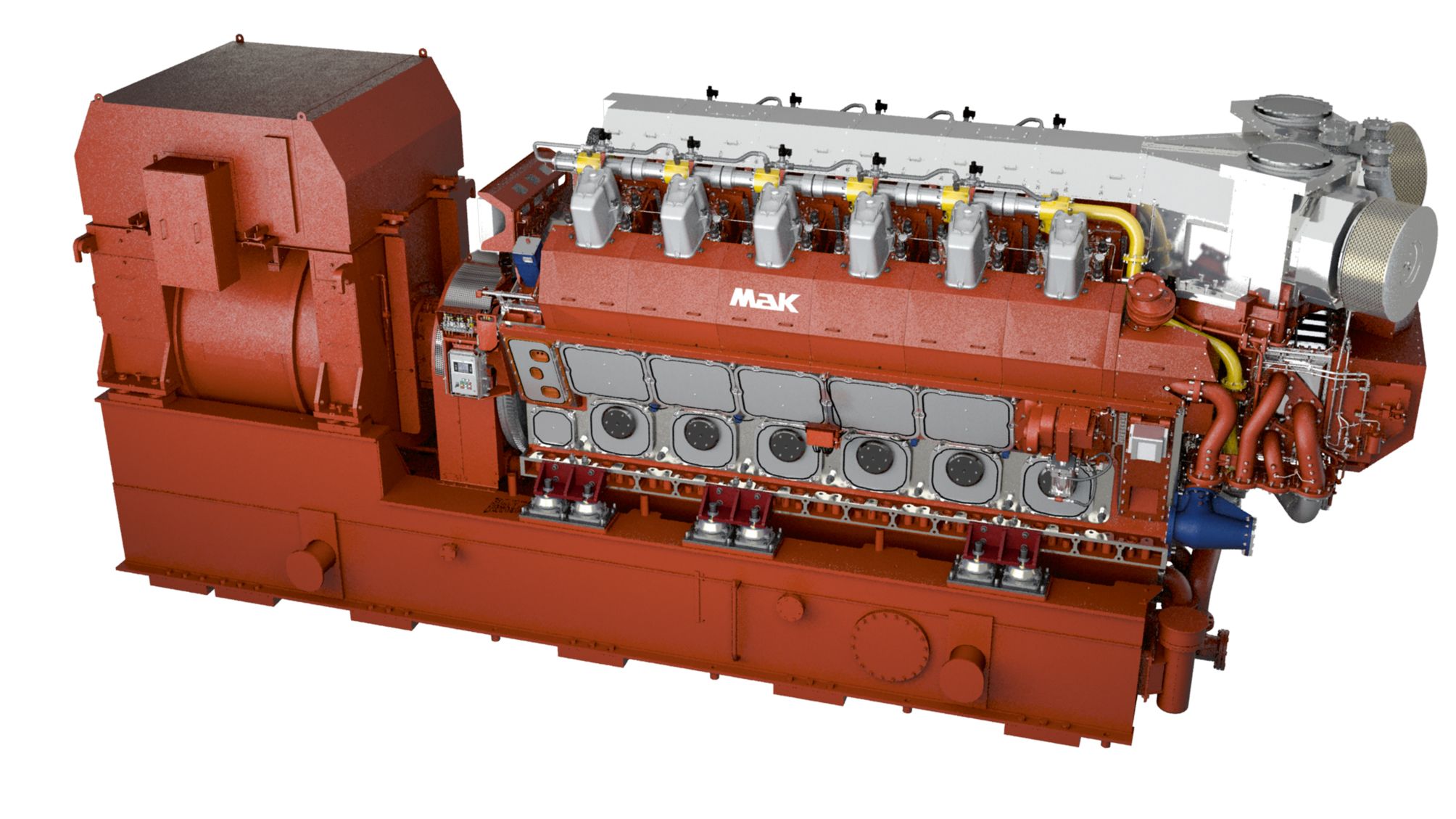

VM 46 DF Generator Set
Overview
The key attributes of the VM 46 DF are class leading efficiency and loading capacity as well as operational simplicity, which is supported by a fully automated engine control. Fast service access as well as service and maintenance simplicity are supported by a modular engine design concept and the monitoring and diagnostic system.
Specifications
Units:
| Minimum Rating | 10357 kWe (12960 kVA) |
| Maximum Rating | 14807 kWe (18528 kVA) |
| Configuration | 12,16 Cylinder |
Benefits & Features
Specifications
Units:
| Minimum Rating | 10357 kWe (12960 kVA) |
| Maximum Rating | 14807 kWe (18528 kVA) |
| Emissions/Fuel Strategy | IMO II in diesel mode / IMO III in gas mode |
| Configuration | 12,16 Cylinder |
| Bore | — |
| Stroke | — |
| Swept Volume | — |
| Length | 14740 - 16870 mm (580.3 - 664.2 in) |
| Height | 6493 - 6517 mm (255.6 - 256.6 in) |
| Width | 3890 - 4027 mm (153.1 - 158.5 in) |
| Weight | 275.0 - 345.0 t (606271 - 760595 lbs) |
Benefits & Features
Ease of installation
Reliable Operation
Ease of maintenance
Easy component accessibility
Data not available.
Standard Equipment
- Air Inlet System
- Air intake silencer / filter
- Control System
- Load sharing unit
- Modular Alarm Control Protection System (MACS)
- Speed governor
- Cooling System
- Electric cooling water preheater
- HT cooling water pump (engine driven)
- 2-stage charge air cooler
- Exhaust System
- Exhaust gas expansion joint
- Exhaust gas insulated manifolds
- Turbocharger at flywheel end / counter-flywheel end
- Fuel System
- Fuel circulating pump (electric driven / for MDO/MGO only)
- Fuel indicator filter
- Fuel pressure valve (separate / for MDO/MGO only)
- Gas System
- Gas valve unit
- Instrumentation
- Control push buttons and lamps
- Emergency stop lever
- Local control panel
- Pressure and temperature indicator
- Lube System
- Dry sump
- Lube oil plate cooler (separate)
- Lube oil pump (engine driven)
- Lube oil safety filter
- Lube oil self-cleaning filter
- Pressure regulating valve
- Mounting System
- High flexible coupling
- Rigid mounting
- Starting System
- Electrical barring device
- Starting air valve
- General
- Torsional Vibration Calculation (TVC)
Optional Equipment
- Air Inlet System
- Air inlet shut-off valve
- Air intake transition piece
- Expansion joint
- Silencer / filter
- Control System
- Engine alarm system
- Remote control system
- Remote indicators (start air pressure, engine speed, etc.)
- Starter for electric driven pumps
- 24 DC UPS
- Cooling System
- Cooling water piping for generator cooling on base frame
- Cooling water piping for lubricating oil cooler on base frame
- Cooling water preheater steam / thermal oil / electrical
- FW/SW plate cooler
- HT cooling water pump (electric driven)
- LT cooling water pump (electric driven)
- Sea water cooling pump (electric driven)
- Temperature contol valve
- Exhaust System
- Exhaust gas ventilation module
- Silencer (with or withour spark arrester)
- Fuel System
- Fuel oil cooler
- HFO final preheater
- HFO pressure regulating valve
- HFO self-cleaning automatic filter
- HFO supply and booster pumps (electrical driven)
- HFO treatment and supply modules
- HFO viscosity control device
- Mixing tank
- Gas System
- Gas flowmeter
- LNG vaporizing system
- Lube System
- Lube oil centrifuge
- Lube oil pump (electrical driven)
- Lube oil treatment and combined modules
- Pre-lubricating oil pump (electrical driven)
- Temperature control valve
- Wet sump with dip stick
- Mounting System
- Double resilient mounting
- Flexible pipe connections
- Resilient mounting
- Propulsion System
- Control system
- Thrusters
- Starting System
- Starting air compressor
- Starting air receiver
- General
- Engine PTO coupling
- Flywheel cover
- PTO alternator
- PTO shaft on counter-flywheel end
- Reduction gear
- Reduction gear PTO coupling
