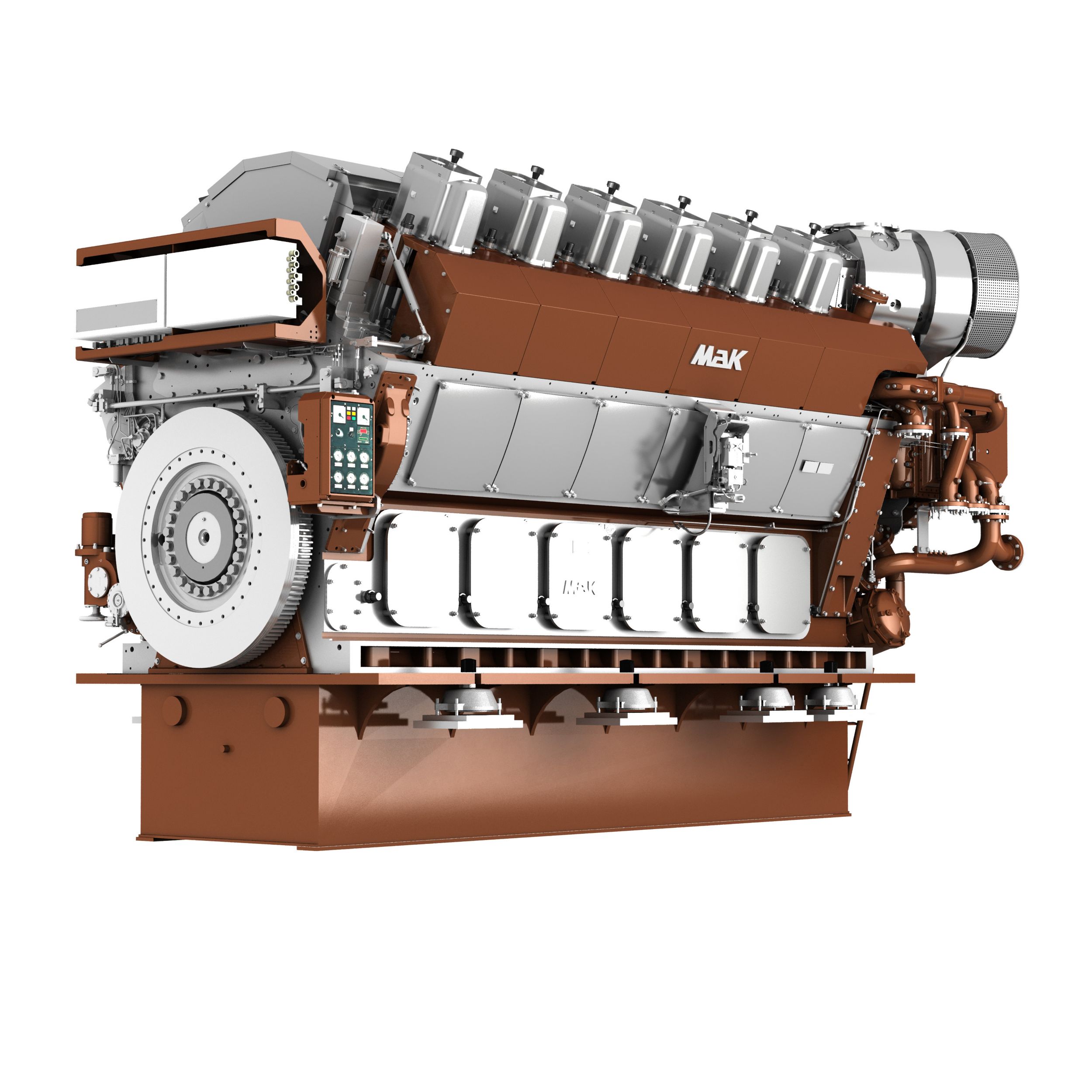

The new VM 32 E engine is designed for our offshore customers seeking the greatest reliability and durability in combination with stability at high power output. The VM 32 E engine extends the output range of our recently announced M 32 E in-line engine above 5 MW and stands out with the same superior serviceability and long maintenance intervals. Additional properties of the VM 32 E are power output of 560 kW/cylinder, 100% PTO capability and a large portfolio of application-driven options. The VM 32 E has an improved power to weight ratio. It is the best solution for engine rooms that occupy fewer frames. Besides, the VM 32 E is a SCR, ready for the new Cat® SCR System to fulfill IMO III exhaust gas emissions.
Power Range | 6360 - 8960 kW |
Speed Range | 720/750 rpm |
Emissions | IMO II |
Power Range | 6360 - 8960 kW |
Speed Range | 720/750 rpm |
Emissions | IMO II |
Aspiration | Turbocharged |
Bore | — |
Stroke | — |
Rotation from Flywheel End | Counterclockwise/Clockwise |
Configuration | 12,16 Cylinder |
Swept Volume | — |
Minimum Dry Weight | — |
Minimum Length | — |
Maximum Length | — |
Minimum Height | — |
Maximum Height | — |
Minimum Width | — |
Maximum Width | — |
Moderate temperature level of components surrounding the combustion chamber, Corrosion-free turbocharger casing without water cooling
Lubricating oil automatic filter fitted to the engine, Replaces duplex filter and separate automatic filters, Pumps and filters operate without any external power, Reduces the parts requirements
Long intervals between overhauls, Simple and fast assembly/ dismantling because of: - plug-in connections - integrated bores - self-centering
Data not available.
