Track LoadersNon-Current
We build the most complete line of track loaders in the construction equipment industry. Matching Cat® track loaders to specific applications is easy with several different configurations of track loaders built to serve customers worldwide.
Units:
| Model | Flywheel Power | Operating Weight | Capacity - General Purpose |
|---|---|---|---|
| 933C Hystat | —70 HP52.9 kW | —18690 lb8485 kg | —1.3 yd³1 m³ |
| 933C Hystat LGP | —70 HP52 kW | —19260 lb8744 kg | —1.3 yd³1 m³ |
| Model | Flywheel Power | Operating Weight | Capacity - General Purpose |
|---|---|---|---|
| 953 | —160 hp119 kW | —34594 lb15692 kg | —2.4 yd³1.8 m³ |
| 963 | —202 hp151 kW | —44881 lb20358 kg | —3.2 yd³2.5 m³ |
| 973K | —275 hp205 kW | —63900 lb28985 kg | —4.2 yd³3.2 m³ |
| 939C Hystat | —90 HP67 kW | —20908 lb9484 kg | — |
| 953C | — | — | — |
| 953C | —128 HP95 kW | —33389 lb15145 kg | —2.42 yd³1.85 m³ |
| 973K Steel Mill | —275 hp205 kW | —74293 lb33699 kg | —4 yd³3 m³ |
| Model | Net Flywheel Power | Operating Weight - GP Bucket with Teeth | Capacity - GP |
|---|---|---|---|
| 953D SH | —148 HP110 kW | —34229 lb15526 kg | —2.42 yd³1.85 m³ |
| Model | Engine Model | Operating Weight | Capacity - General Purpose Landfill |
|---|---|---|---|
| 953C WH | Cat® 3126B ATAAC | —36720 lb16656 kg | —3 yd³2.3 m³ |
| 953D WH | Cat® C6.6 ACERT™ | —34381 lb15595 kg | —3 yd³2.3 m³ |
| 953D WH | Cat® C6.6 ACERT™ | —34381 lb15595 kg | —3 yd³2.3 m³ |
| 963C WH | 3116 DITA | —44095 lb20043 kg | —5.5 yd³4.2 m³ |
| 963C WH | Cat® 3126B ATAAC | —45502 lb20639 kg | —5.49 yd³4.2 m³ |
| 973C | — | — | — |
| 973C WH | Cat® C9 ACERT™ | —61295 lb27803 kg | —6.15 yd³4.7 m³ |

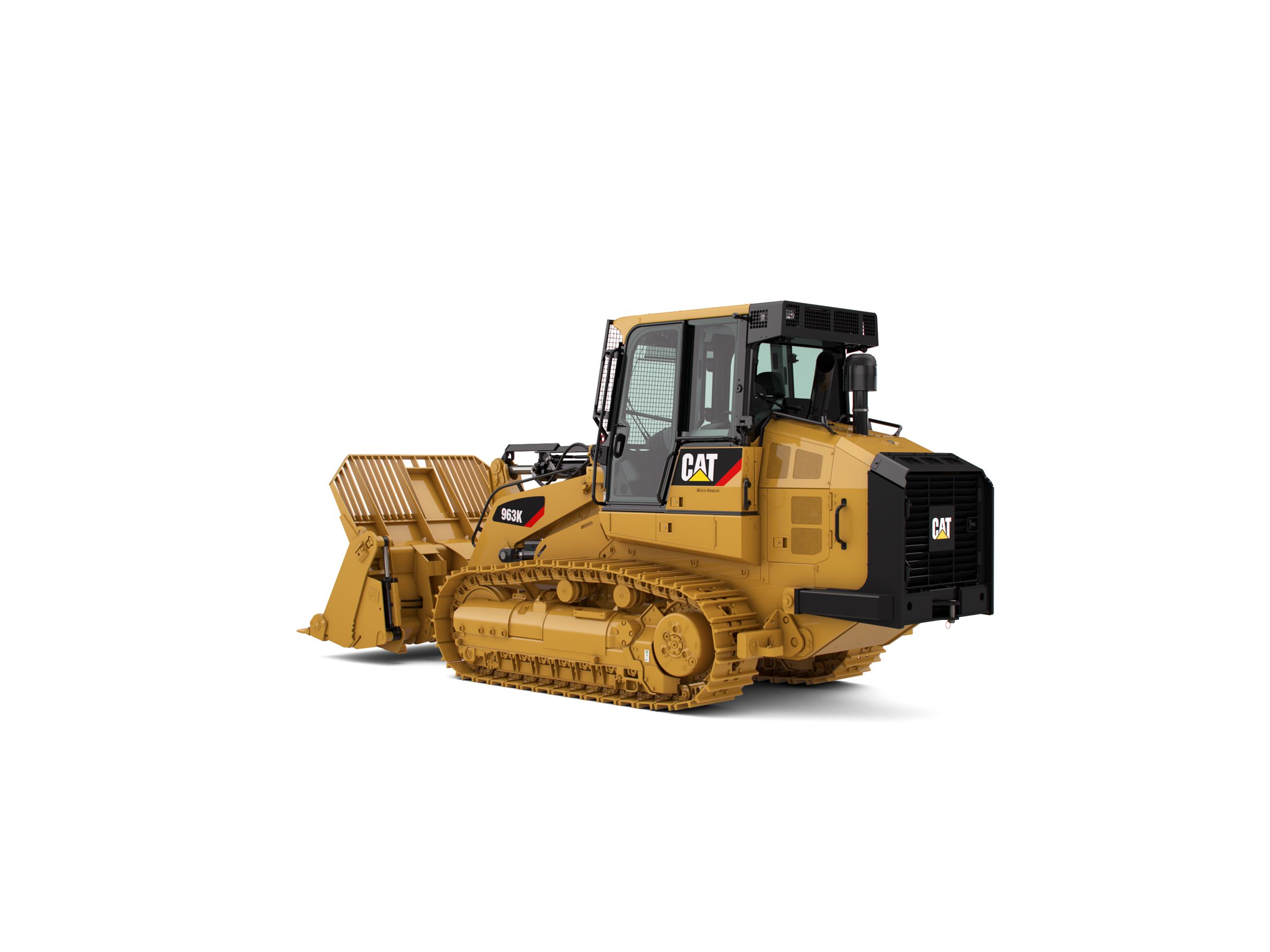

| 963K WH | Cat C7.1 ACERT | —45439 lb20611 kg | —4.1 yd³3.1 m³ |
| 953K WH | Cat C7.1 ACERT | —34656 lb15720 kg | —3 yd³2.3 m³ |
| 973K WH | Cat C9.3 ACERT | —64319 lb29175 kg | —6.4 yd³4.9 m³ |
