Material HandlersNon-Current

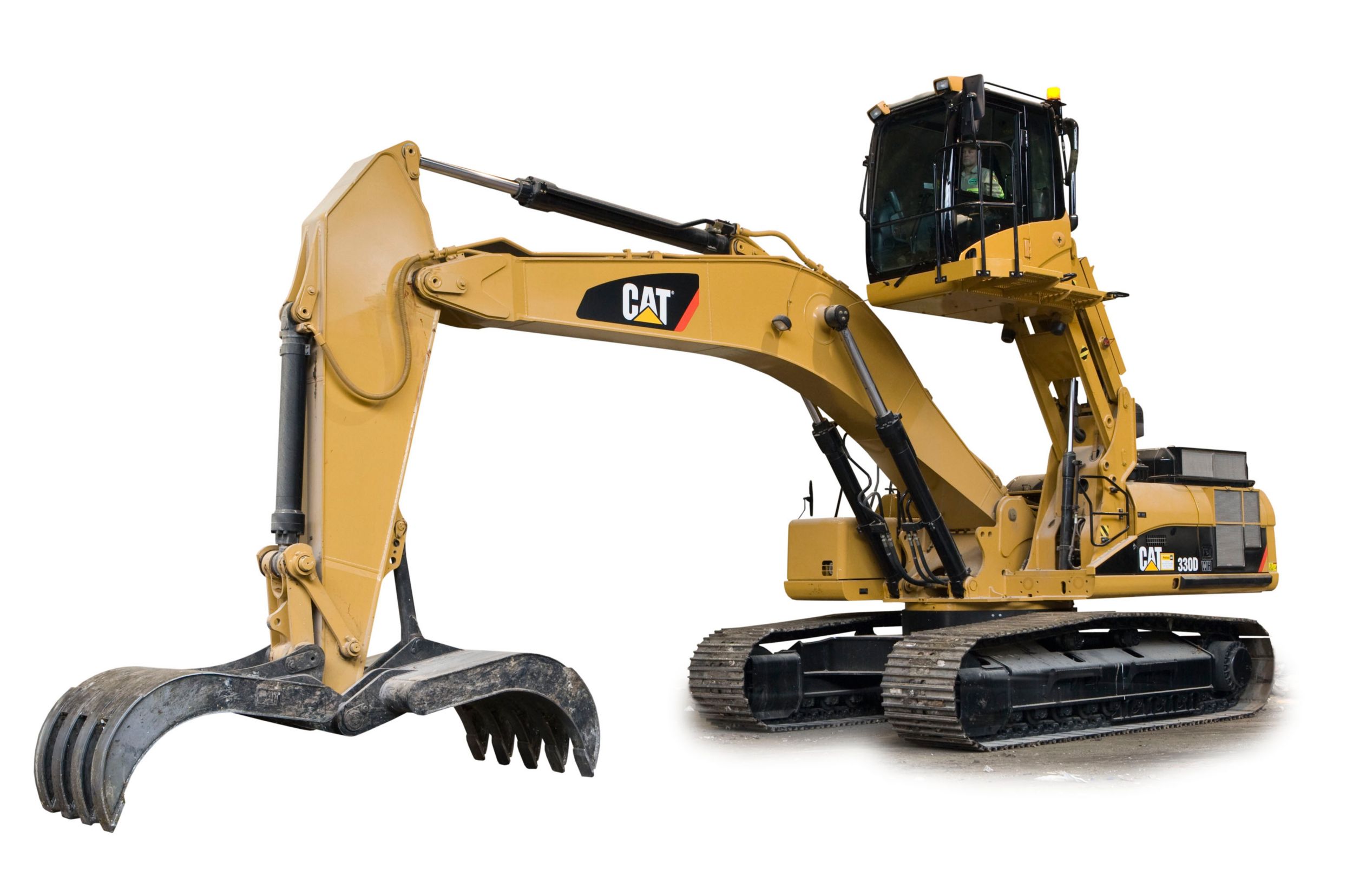

A complete line of track and wheel material handlers has been designed and built for your demanding industry. These aggressive machines deliver fast, mobile, efficient performance whether equipped with a grapple, clamshell bucket or magnet.
Units:
| Model | Engine Model | Net Flywheel Power | Operating Weight |
|---|---|---|---|
| 320B MH | 3066 DIT | —134 hp100 kW | —50670 lb23030 kg |
| 325B MH | Cat 3116TA | —168 hp125 kW | —73120 lb33167 kg |
| 325C MH | Cat® 3126B ATAAC HEUI | —188 hp140 kW | —76350 lb34630 kg |
| 325D MH | Cat® C7 ACERT™ | —204 hp152 kW | —78321 lb35526 kg |
| 330B MH | Cat 3306 TA | —222 hp165 kW | —91350 lb41430 kg |
| 330C MH | Cat® C-9 | —247 hp184 kW | —96595 lb43815 kg |
| 330D MH WH | Cat® C9 ACERT™ | —268 hp200 kW | —83980 lb38093 kg |
| 345B MH | Cat 3176 ATAAC | —290 hp216 kW | —122550 lb55705 kg |
| 345C MH | Cat® C13 ACERT™ | —345 hp257 kW | —126615 lb57431 kg |
| 350 MH | Cat 3306 ATAAC | —213 hp286 kW | —13563 lb61576 kg |
| 365B MH | Cat® 3196 | —385 hp287 kW | —164177 lb74470 kg |
| 375 MH | Cat 3406DI ATAAC | —428 hp319 kW | —203000 lb92081 kg |
| Model | Engine Model | Net Flywheel Power | Operating Weight |
|---|---|---|---|
| 320C MH Waste Handler | 3066T | —138 hp103 kW | —47644 lb21611 kg |
| 330C MH Waste Handler | Cat C-9 | —247 hp184 kW | —80265 lb36407.6 kg |
| Model | Engine Model | Operating Weight | Maximum Travel Speed |
|---|---|---|---|
| MH3022F | Cat C7.1 | 21 815-22 930 kg (48,094-50,552 lb) | —16 mile/h25 km/h |
| MH3024F | Cat C7.1 | 22 950-24 165 kg (50,596-53,242 lb) | —16 mile/h25 km/h |
| MH3026F | Cat C7.1 | 25 220-26 150 kg (55,601-57,651 lb) | —16 mile/h25 km/h |
| MH3022 | Cat® C7.1 ACERT™ | 21 500-24 500 kg (47,400-54,013 lb) | —15.5 mile/h25 km/h |
| MH3024 | Cat® C7.1 ACERT™ | 22 330-27 000 kg (49,229-59,525 lb) | — |
| M322C MH | — | — | — |
| M322D MH | Cat® C6.6 ACERT™ | 23 550 kg (51 919 lb) to 25 675 kg (56 604 lb) | —16 mile/h25 km/h |
| M325B MH | 3116 TA | — | — |
| M325D MH/ M325D LMH | CAT® C7 ACERT™ | 35261 kg (77737 lb) | — |
| MH3027 | Cat® C7.1 ACERT™ | 29 651 kg (65,370 lb) | —12.4 mile/h20 km/h |
| W330B MH | 3306 TA | — | — |
| MH3022 (2017) | Cat C7.1 ACERT | 21 500-24 500 kg (47,399-54,013 lb) | — |
| MH3024 (2017) | Cat C7.1 ACERT | 22 330-27 000 kg (49,229-59,525 lb) | —16 mile/h25 km/h |
