Buckets - Excavator

General Duty
Model	Width	Capacity	Weight
General Duty Bucket 900 mm (36 in)	—36 in900 mm	—0.81 yd³0.62 m³	—1186 lb538 kg
General Duty Bucket 1050 mm (42 in)	—42 in1050 mm	—1 yd³0.76 m³	—1329 lb603 kg
General Duty Bucket 1850 mm (74 in)	—74 in1850 mm	—4.04 yd³3.08 m³	—4784 lb2170 kg
General Duty Bucket 750 mm (30 in)	—30 in750 mm	—0.73 yd³0.56 m³	—1116 lb506 kg
General Duty Bucket 900 mm (36 in)	—36 in900 mm	—0.92 yd³0.7 m³	—1239 lb562 kg
General Duty Bucket 1050 mm (42 in)	—42 in1050 mm	—1.09 yd³0.83 m³	—1347 lb611 kg
General Duty Wide Tip Bucket 900 mm (36 in): 573-4999	—36 in900 mm	—0.96 yd³0.73 m³	—1204 lb546 kg
General Duty Bucket 1500 mm (60 in)	—60 in1500 mm	—2.97 yd³2.27 m³	—3340 lb651 kg
General Duty Bucket 1524 mm (60 in)	—60 in772 mm	—2.98 yd³2.27 m³	—969 lb440 kg
General Duty Bucket 1067 mm (42 in)	—61 in1560 mm	—2.5 yd³1.9 m³	—831 lb368 kg
General Duty Bucket 610 mm (24 in)	—24 in610 mm	—0.55 yd³0.42 m³	—921 lb522 kg
General Duty Bucket 914 mm (36 in)	—70.9 in914 mm	—1.2 yd³0.9 m³	—1418 lb643 kg
General Duty Bucket 1067 mm (42 in)	—42 in750 mm	—1.2 yd³0.92 m³	—2315 lb515 kg
1350mm (54in)	—54 in1350 mm	—3.98 yd³3.04 m³	—7236 lb3282 kg
500mm (20in) CW-20S	—20 in500 mm	—0.31 yd³0.24 m³	—695 lb299 kg
1050mm (42in)	—42 in1050 mm	—1.12 yd³0.86 m³	—1162 lb527 kg
900mm (36in)	—36 in900 mm	—0.92 yd³0.71 m³	—1041 lb472 kg
600mm (24in)	—24 in600 mm	—0.54 yd³0.41 m³	—818 lb371 kg
450mm (18in)	—18 in450 mm	—0.35 yd³0.27 m³	—699 lb317 kg
1200mm (48in)	—48 in1200 mm	—1.33 yd³1 m³	—1276 lb579 kg
1050mm (42in)	—42 in1050 mm	—1 yd³0.76 m³	—1224 lb564.3 kg
900mm (36in)	—36 in900 mm	—1.24 yd³0.95 m³	—1728 lb784 kg
1350mm (54in)	—54 in1350 mm	—2.08 yd³1.59 m³	—2239 lb1016 kg
600mm (24in)	—24 in600 mm	—0.72 yd³0.55 m³	—1356 lb615 kg
1200mm (48in)	—48 in1200 mm	—1.8 yd³1.38 m³	—2067 lb938 kg
1050mm (42in)	—42 in1050 mm	—1.52 yd³1.16 m³	—1895 lb860 kg
750mm (30in)	—30 in750 mm	—0.98 yd³0.75 m³	—1560 lb708 kg
750mm (30in) Wide Tip	—30 in750 mm	—1.13 yd³0.86 m³	—1802 lb818 kg
600mm (24in) Wide Tip	—24 in600 mm	—0.83 yd³0.63 m³	—1607 lb729 kg
1350mm (54in) Wide Tip	—54 in1350 mm	—2.4 yd³1.83 m³	—2592 lb1176 kg
900mm (36in) Wide Tip	—36 in900 mm	—1.43 yd³1.09 m³	—2001 lb908 kg
1200mm (48in) Wide Tip	—48 in1200 mm	—2.07 yd³1.58 m³	—2385 lb1082 kg
1050mm (42in) Wide Tip	—42 in1050 mm	—1.75 yd³1.34 m³	—2178 lb908 kg
1550mm (62in) Wide Tip	—62 in1550 mm	—2.98 yd³2.27 m³	—3044 lb1381 kg
1250mm (50in) Wide Tip	—50 in1250 mm	—2.26 yd³1.73 m³	—2604 lb1181 kg
1100mm (44in) Wide Tip	—44 in1100 mm	—1.91 yd³1.46 m³	—2414 lb1095 kg
950mm (38in) Wide Tip	—38 in950 mm	—1.95 yd³1.49 m³	—2403 lb1090 kg
800mm (32in) Wide Tip	—32 in800 mm	—1.54 yd³1.18 m³	—2220 lb1007 kg
1400mm (56in) Wide Tip	—56 in1400 mm	—2.62 yd³2 m³	—2822 lb1280 kg
1500mm (60in)	—60 in1500 mm	—2.44 yd³1.87 m³	—2765 lb1254 kg
2000mm (79in)	—79 in2000 mm	—5.96 yd³4.56 m³	—8646 lb3922 kg
2200mm (87in) High Capacity	—87 in2200 mm	—7.95 yd³6.08 m³	—10163.243 lb4610 kg
1050mm (42in) High Capacity	—42 in1050 mm	—1.98 yd³1.51 m³	—3256 lb1477 kg
1200mm (48in) High Capacity	—48 in1200 mm	—2.36 yd³1.8 m³	—3563 lb1616 kg
1500mm (60in) High Capacity	—60 in1500 mm	—3.13 yd³2.39 m³	—4125 lb1871 kg
1700mm (68in) High Capacity	—68 in1700 mm	—3.64 yd³2.78 m³	—4506 lb2044 kg
1350mm (54in) High Capacity	—54 in1350 mm	—2.74 yd³2.1 m³	—3818 lb1732 kg
900mm (36in) Wide Tip	—36 in900 mm	—1.77 yd³1.35 m³	—3212 lb1457 kg
1350mm (54in)	—54 in1350 mm	—2.9 yd³2.22 m³	—4142 lb1879 kg
1650mm (66in) Wide Tip	—66 in1650 mm	—3.68 yd³2.81 m³	—4738 lb2149 kg
2000mm (80in) High Capacity	—80 in2000 mm	—5 yd³3.82 m³	—5232 lb2373 kg
1500mm (60in) Wide Tip	—60 in1500 mm	—3.29 yd³2.52 m³	—4398 lb1995 kg
1950mm (78in) Wide Tip	—78 in1950 mm	—4.46 yd³3.41 m³	—5335 lb2420 kg
1800mm (72in) Wide Tip	—72 in1800 mm	—4.07 yd³3.11 m³	—4996 lb2266 kg

General Duty - Deprecated
Model	Width	Adapters - Style	Adapters - Quantity
2000mm (79in) GD	—79 in2000 mm	K150	4

Heavy Duty
Model	Tooth Count	Width	Capacity
Heavy Duty Power Bucket 900 mm (36 in)	5	—36 in900 mm	—1.03 yd³0.79 m³
Heavy Duty Bucket 610 mm (24 in)	—	—55 in610 mm	—2.05 yd³1.57 m³
Heavy Duty Bucket 610 mm (24 in)	—	—42 in610 mm	—1.31 yd³1 m³
Heavy Duty Bucket 676 mm (27 in)	—	—70.9 in676 mm	—1.48 yd³1.13 m³
Heavy Duty Bucket 900 mm (36 in): 550-9307	—	—36 in900 mm	—0.8 yd³0.61 m³
Heavy Duty Bucket 914 mm (36 in)	—	—51 in914 mm	—1.31 yd³1 m³
Heavy Duty Bucket 1067 mm (42 in)	—	—60 in1500 mm	—3.13 yd³2.39 m³
Heavy Duty Bucket 1200 mm (48 in)	—	—48 in600 mm	—1.83 yd³1.4 m³
Heavy Duty Bucket 1220 mm (48 in)	—	—48 in600 mm	—1.77 yd³1.35 m³
Heavy Duty Bucket 1350 mm (54 in)	—	—54 in1350 mm	—2.14 yd³1.64 m³
Heavy Duty Bucket 1500 mm (60 in)	—	—60 in1500 mm	—2.46 yd³1.88 m³
Heavy Duty Bucket 1800 mm (72 in)	—	—72 in1800 mm	—3.52 yd³2.69 m³
1220mm (48in)	3	—48 in1220 mm	—2.9 yd³2.22 m³
1050mm (42in) Pin Grabber Performance	5	—42 in1050 mm	—1.42 yd³1.08 m³
610mm (24in) Pin Grabber Performance	3	—24 in610 mm	—0.73 yd³0.56 m³
1700mm (66in)	4	—66 in1700 mm	—4.34 yd³3.32 m³
1900mm (75in)	5	—75 in1900 mm	—5.05 yd³3.86 m³
1050mm (42in)	—	—42 in1050 mm	—1.75 yd³1.34 m³
600mm (24in) Pin-Lock	—	—24 lb/in600 mm	—0.5 yd³0.38 m³

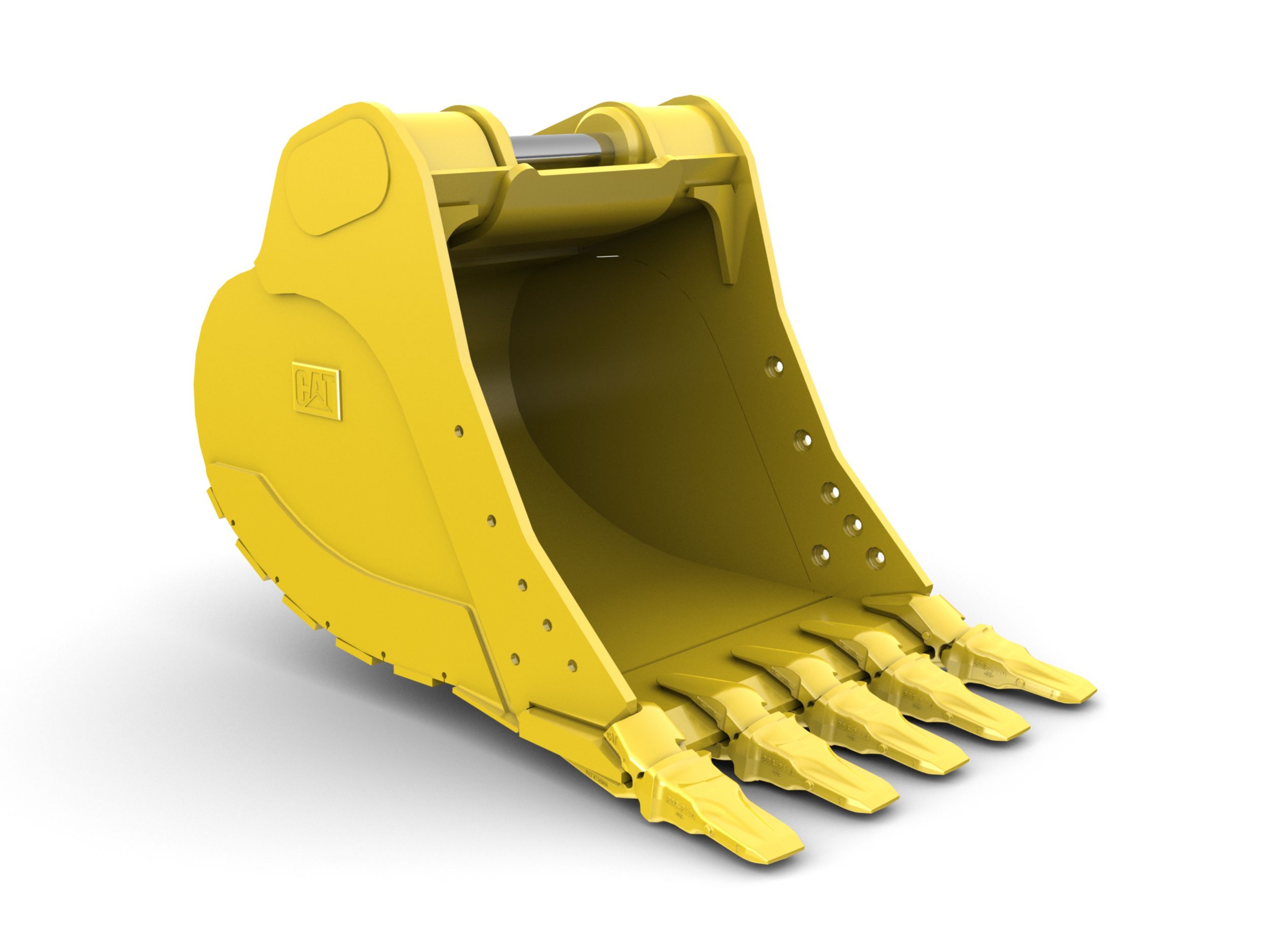

Pin Grabber Performance
Model	Width	Adapters - Style	Adapters - Quantity
1200mm (48in) HD	—48 lb/in1200 mm	K100	5
750mm (30in) SD	—30 lb/in750 mm	K110	3
600mm (24in) GD	—24 lb/in600 mm	K80	3
1200mm (48in) SD	—48 lb/in1200 mm	K90	6

Severe Duty
Model	Width	Capacity	Weight
Severe Duty Bucket 1224 mm (48 in)	—48 in1224 mm	—1.09 yd³0.83 m³	—1612 lb731 kg
Severe Duty Bucket 1350 mm (54 in)	—54 in1350 mm	—2.04 yd³1.56 m³	—2664 lb1208 kg
Severe Duty Bucket 900 mm (36 in)	—48 in900 mm	—2.09 yd³1.6 m³	—4486 lb2035 kg
Severe Duty Bucket 1200 mm (48 in)	—48 in650 mm	—1.83 yd³1.4 m³	—897 lb407 kg
Severe Duty Bucket 1350 mm (54 in)	—54 in1350 mm	—2.14 yd³1.64 m³	—3673 lb736 kg
1400mm (55in)	—55 in1400 mm	—2.44 yd³1.87 m³	—4638 lb2104 kg
1850mm (74in)	—74 in1850 mm	—3.52 yd³2.69 m³	—5759 lb2612 kg
1200mm (48in) Pin Grabber Performance	—48 in1200 mm	—1.68 yd³1.28 m³	—2661 lb1207 kg
1450mm (58in)	—58 in1450 mm	—3.13 yd³2.39 m³	—5432 lb2464 kg

Severe Duty / Heavy Duty Rock
Model	Width	Adapters - Style	Adapters - Quantity
2000mm (79in) HDR Spade	—79 in2000 mm	K150	4

Tilting Ditch Cleaning Buckets - Mini Excavator
Model	Width	Capacity	Weight
1600 mm (63 in), 280 L (9.9 ft3), Pin On, 40 mm (1.6 in)	—63 in1600 mm	—9.9 ft³280.29 l	—552.3 lb250.5 kg

Digging Buckets - Mini Excavator
Model	Width	Capacity	Weight
250 mm (10 in), 14 L (0.5 ft3), Pin On, Weld-On Teeth	—9.8 in250 mm	—0.5 ft³14 l	—32.6 lb14.8 kg
370 mm (15 in), 18 L (0.6 ft3), Pin On, Weld-On Teeth	—14.6 in370 mm	—0.6 ft³18 l	—37.9 lb17.2 kg

Ditch Cleaning
Model	Width	Capacity	Weight
Ditch Cleaning Bucket 1500 mm (60 in)	—60 in1500 mm	—1 ft³0.76 l	—1247 lb565 kg
1200mm (48in)	—48 in1200 mm	—0.74 yd³0.57 m³	—723 lb328 kg
1500mm (60in)	—60 in1500 mm	—1.32 yd³1.01 m³	—1271 lb576 kg
1800mm (72in)	—72 in1800 mm	—2.57 yd³1.96 m³	—2279 lb1034 kg
1500mm (60in)	—60 in1500 mm	—1.22 yd³0.93 m³	—1116 lb506 kg
1800mm (72in)	—72 in1800 mm	—1.49 yd³1.14 m³	—1263 lb573 kg
1500mm (60in)	—60 in1500 mm	—1.61 yd³1.23 m³	—1640 lb744 kg
1800mm (72in)	—72 in1800 mm	—1.99 yd³1.52 m³	—1845 lb837 kg

Ditch Cleaning Buckets - Mini Excavator
Model	Width	Capacity	Weight
1400 mm (55 in), 159 L (5.6 ft3), Pin On	—55.1 in1400 mm	—5.6 ft³158.6 l	—249.6 lb113.2 kg

Ditch Cleaning Tilt
Model	Width	Adapters - Style	Capacity
1800mm (72in) Coupler	—72 in1800 mm²	Bolt-on cutting edge	—2.5 yd³1.91 m³

Extreme Duty
Model	Width	Capacity	Weight
Extreme Duty Bucket 120 mm (48 in)	—55 in1400 mm	—2.14 yd³1.64 m³	—3979 lb1805 kg
1250mm (49in)	—49 in1250 mm	—2.09 yd³1.6 m³	—5048 lb2148 kg
2000mm (79in)	—79 in2000 mm	—5.72 yd³4.37 m³	—12758 lb5787 kg
2090mm (82in)	—82 in2090 mm	—6.5 yd³5 m³	—16221 lb7358 kg
1550mm (62in)	—62 in1550 mm	—3.41 yd³2.61 m³	—6759 lb3066 kg
